LOVOL TB504-X161Y6K Tractor Parts Catalogue 10

Meppon Parts Posted on by

TB450.373B 37.3-副变速总成 37.3-AUXILIARY GEARSHIFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.37J.169a

副变速主动齿轮轴

AUXILIARY GEARSHIFT DRIVING GEAR SHAFT

1

2011-11_

10

GBT894.1-40

挡圈40

WASHER 40

1

2011-11_

11

FT300.37.106a

倒档齿轮啮合齿座

REVERSE GEAR MESHING SEAT

1

2011-11_

12

FT300.37J.105

副变速换档套

AUXILIARY GEARSHIFT SLEEVE

1

2011-11_

12

FT300.37J.105

副变速换档套

AUXILIARY GEARSHIFT SLEEVE

1

2011-11_

13

FT300.37.111

隔套

SPACER BUSH

1

2011-11_

14

QSFZB019-K35X43X34ZW

滚针轴承

NEEDLE BEARINGS

1

2011-11_

15

FT300.37.103

副变速从动齿轮

AUXILIARY GEARSHIFT DRIVEN GEAR

1

2004-01_

15

FT450.37.103

副变速从动齿轮

AUXILIARY GEARSHIFT DRIVEN GEAR

1

2007-04_

16

FT300.37J.182

限位挡圈

LIMITING RETAINER RING

1

2004-01_

16

FT300.37J.182a

限位挡圈

LIMITING RETAINER RING

1

2007-04_

17

GBT894.1-35

轴用弹性挡圈

SNAP RING

1

2011-11_

18

GBT283-NUP307E

圆柱滚子轴承

BEARING

1

2011-11_

19

TB450.37J-01

副变速从动轴

AUXILIARY GEARSHIFT DRIVEN SHAFT

1

2011-11_

2

GBT276-6210

深沟球轴承

BEARING

1

2011-11_

20

JBT7918-K25X31X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

3

GBT894.1-50

轴用弹性挡圈

SNAP RING

1

2011-11_

4

GBT283-NUP308E

圆柱滚子轴承

BEARING

1

2011-11_

5

FT300.37.139

副变速轴承盖

AUXILIARY GEARSHIFT BEARING COVER

1

2011-11_

6

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

7

GBT5783-M10X30-A2L

六角头螺栓

BOLT

4

2011-11_

8

FT300.37J.180

隔套

SPACER BUSH

1

2011-11_

9

GBT283-NF208E

圆柱滚子轴承

BEARING

1

2011-11_








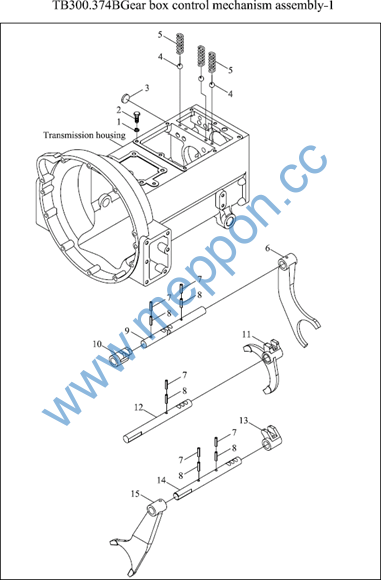

TB300.374B-1 37.4.1-变速箱操纵机构总成-1 37.4TRANSMISSION CONTROL MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT93-10

垫圈10

WASHER 10

8

2011-11_

10

FT300.37.154

副变速拨头

AUXILIARY GEARSHIFT DIAL HEAD

1

2011-11_

11

FT300.37.147

Ⅲ-Ⅳ档拨叉

Ⅲ-Ⅳ FORK

1

2011-11_

12

FT300.37.150

Ⅲ-Ⅳ档拨叉轴

Ⅲ-Ⅳ FORK SHAFT

1

2011-11_

13

FT300.37.152

Ⅰ-Ⅱ档拨头

I-II GEAR FORK HEAD

1

2011-11_

14

FT300.37.149

Ⅰ-Ⅱ档拨叉轴

I-II GEAR FORK SHAFT

1

2011-11_

15

FT300.37.148

Ⅰ-Ⅱ档拨叉

I-II GEAR FORK

1

2011-11_

2

GBT5783-M10X30-A3L

螺栓

BOLT

8

2011-11_

3

Q721-14

塞片

PLUG PIECE

1

2011-11_

4

GBT308-8-G100-B

钢球

BALL

3

2011-11_

5

FT300.37.135

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

3

2011-11_

6

FT300.37.145

副变速拨叉

AUXILIARY GEARSHIFT FORK

1

2011-11_

7

GBT879.1-3X24

弹性圆柱销

PIN

5

2011-11_

8

GBT879.1-5X24

弹性圆柱销

PIN

5

2011-11_

9

FT300.37.156

副变速拨叉轴

AUXILIARY GEARSHIFT FORK SHAFT

1

2011-11_








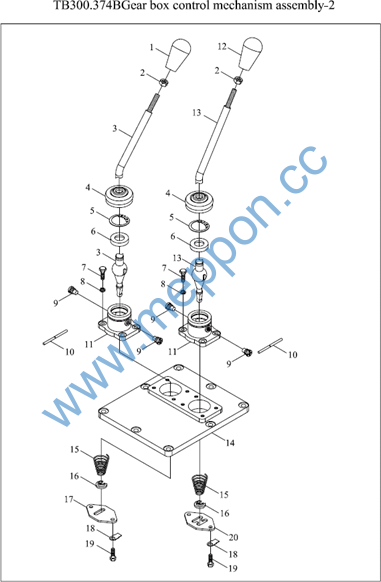

TB300.374B-2 37.4.2-变速箱操纵机构总成-2 37.4TRANSMISSION CONTROL MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.37J.016

副变速操纵手柄总成

AUXILIARY GEARSHIFT CONTROL HANDLE

1

2011-11_

10

TF1004.374-02-SZ-1.4X250

低碳钢丝

ASSEMBLY

2

2011-11_

11

FT300.37.180

变速杆支座

LOW CARBON STEEL WIRE

2

2011-11_

12

FT300.37.015

主变速操纵手柄总成

GEARLEVER SEAT

1

2011-11_

13

FT300.37.167a

主变速杆

MAIN GEARSHIFT CONTROL HANDLE ASSEMBLY

1

2011-11_


MAIN GEARLEVER



14

FT300.37.163a

变速箱上盖



1

2011-11_

15

FT300.37.165

变速杆弹簧

GEARBOX UPPER COVER

2

2011-11_

15

FT300.37.165

变速杆弹簧

GEARLEVER SPRING

2

2011-11_

16

FT300.37.164

变速杆弹簧挡圈

GEARLEVER SPRING

2

2011-11_

17

FT300.37J.161

副变速导板

GEARLEVER SPRING RETAINER RING

1

2011-11_


AUXILIARY GAR GUIDE PLATE



18

GBT854-8

单耳制动垫圈



4

2004-01_

19

GBT5783-M8X16-A2L

螺栓

WASHER

4

2004-01_

2

GBT6172.1-M10-A2L

螺母

BOLT

2

2004-01_

20

FT300.37.162

主变速导板

NUT

1

2011-11_

3

FT300.37.160a

副变速杆

MAIN GEARSHIFT GUIDE PLATE

1

2011-11_


AUXILIARY GEARLEVER



4

FT300.37.166a

变速杆防尘罩



2

2011-11_

5

GBT893.1-40

挡圈

GEARLEVER DUSTPROOF BONNET

2

2004-01_

6

FT800A.37.305

尼龙座

RETAINER RING

2

2011-11_

7

GBT5781-M8X20-A2L

六角头螺栓

NYLON SEAT

8

2011-11_

7

GBT5781-M8X20-A2L

六角头螺栓

BOLT

8

2011-11_


BOLT



8

GBT93-8-A0P

垫圈



8

2011-11_

9

FT800A.37.326

变速杆定位销

WASHER

4

2011-11_


GEARLEVER LOCATING PIN










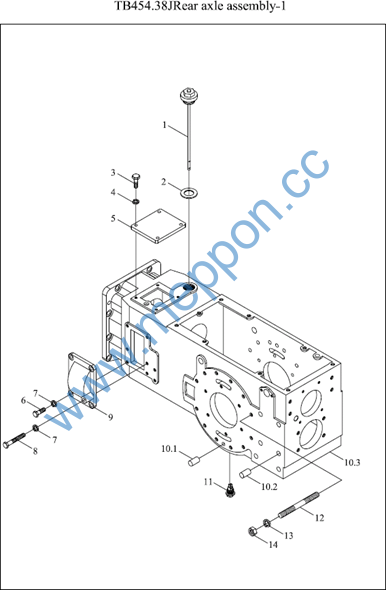

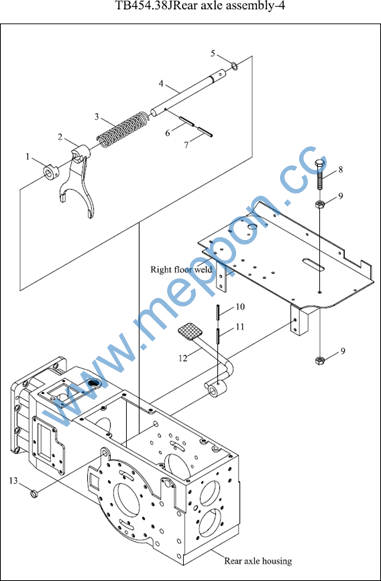

TB454.38J-1 38.1-后桥总成-1 38REAR AXLE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.38.016a

加油通气塞总成

REFUELING AND AIRING PLUG ASSEMBLY

1

2011-11_

10

FT300.38J.011

后桥壳总成

REAR AXLE HOUSING ASSEMBLY

1

2011-11_

10

FT300.38J.011

后桥壳总成

REAR AXLE HOUSING ASSEMBLY

1

2011-11_

10.1

GBT119-D12X28

圆柱销

PIN

2

2011-11_

10.2

GBT119-D14X30

圆柱销

PIN

4

2011-11_

10.3

FT300.38J.101a

后桥壳体

REAR AXLE HOUSING

1

2011-11_

11

FT65.38.026

油塞总成

Oil Plug assembly

1

2011-11_

11

FT65.38.026

油塞总成

Oil Plug assembly

1

2011-11_

12

GBT899-AM12-M12X1.25X150-8.8-A2L

双头螺柱

8.8-A3L STUD

24

2004-01_

12

GBT899-AM12-M12X1.25X150-8.8-A1L

双头螺柱

8.8-A3L STUD

22

2010-03_

12

GBT899-AM12-M12X1.25X160-8.8-A1L

双头螺柱

8.8-A3L STUD

2

2010-03_

13

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

24

2011-11_

2

JBT982-36

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

3

GBT5783-M8X20-A2L

螺栓

BOLT

4

2011-11_

4

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

5

FT300.38J.124

上盖

UPPER COVER

1

2011-11_

6

GBT5783-M10X25-A2L

六角头螺栓

BOLT

5

2011-11_

7

GBT93-10-A0P

标准型弹簧垫圈

WASHER

6

2011-11_

8

GBT5782-M10X60-A2L

六角头螺栓

BOLT

1

2011-11_

9

FT300.38J.206

倒档侧盖

REVERSE SIDE COVER

1

2011-11_








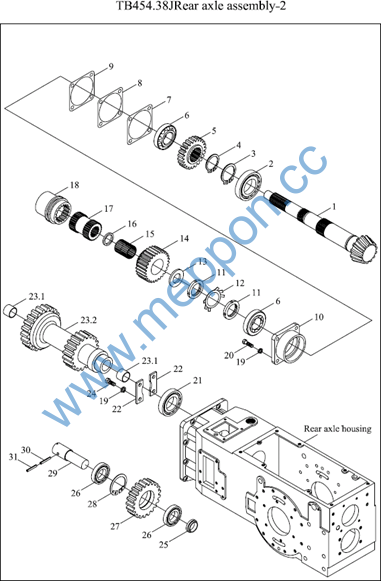

TB454.38J-2 38.2-后桥总成-2 38REAR AXLE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB450.38J-05

小圆锥齿轮轴

SMALL TAPER GEAR SHAFT

1

2011-11_

10

FT300.38.117

轴承座

BEARING SEAT

1

2011-11_

11

GBT812-M39X1.5

圆螺母

ROUND NUT

2

2011-11_

12

GBT858-39

圆螺母用止动垫圈

THRUST RING

1

2011-11_

13

FT300.38J.202

调整垫圈

ADJUSTING WASHER

999

2011-11_

14

TB450.38J-04

倒档被动齿轮

REVERSE DRIVEN GEAR

1

2011-11_

15

QSFZB019-K35X43X34ZW

滚针轴承

NEEDLE BEARINGS

1

2004-01_

16

TB450.38J-03

隔套

SPACER BUSH

1

2011-11_

17

TB450.38J-01

啮合座

MESHING SEAT

1

2011-11_

18

TB450.38J-02

换档啮合套

GEARSHIFT SHIFT COLLAR

1

2011-11_

19

GBT93-10-A0P

标准型弹簧垫圈

WASHER

8

2011-11_

2

GBT283-NUP2210E

圆柱滚子轴承

BEARING

1

2011-11_

20

GBT5783-M10X30-A3L

螺栓

BOLT

4

2011-11_

21

GBT283-NJ208E

圆柱滚子轴承

BEARING

1

2011-11_

22

FT300.38J.204

轴承压板

BEARING PRESSURE PLATE

2

2011-11_

23

TB450.38J.1

倒档中间轴总成

REVERSE MIDDLE SHAFT ASSEMBLY

1

2011-11_

23.1

FT300.37.170

衬套

SLEEVE

2

2011-11_

23.2

TB450.38J.1-01

倒档中间齿轮轴

REVERSE MIDDLE GEAR SHAFT

1

2011-11_

24

GBT5783-M10X25-A2L

六角头螺栓

BOLT

4

2011-11_

25

TB450.38J-08

倒档惰轮轴隔套

REVERSE IDLER GEAR SHAFT SPACER SLEEVE

1

2011-11_

26

GBT283-NJ206E

轴承

BEARING

2

2011-11_

27

TB450.38J-06

倒档惰轮

REVERSE IDLER GEAR

1

2011-11_

28

GBT893.1-62

孔用挡圈62

BLOCKING RING – HOLE

1

2011-11_

29

TB450.38J-07

倒档惰轮轴

REVERSE IDLER GEAR SHAFT

1

2011-11_

3

GBT894.1-50

轴用弹性挡圈

SNAP RING

1

2011-11_








TB454.38J-2 38.2-后桥总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

GBT879.2-3.5X28

弹性圆柱销

PIN

2

2011-11_

31

GBT879.1-6X28

弹性圆柱销

PIN

2

2011-11_

31

GBT879.1-6X28

弹性圆柱销

PIN

2

2011-11_

4

GBT894.1-48

挡圈

RETAINER RING

1

2011-11_

5

FT404.38G.116

前驱动输出齿轮

FRONT DRIVE OUTPUT GEAR

1

2011-11_

6

GBT297-32208

圆锥滚子轴承

BEARING

2

2011-11_

7

FT300.38.118

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_

8

FT300.38.119

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_

9

FT300.38.120

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_








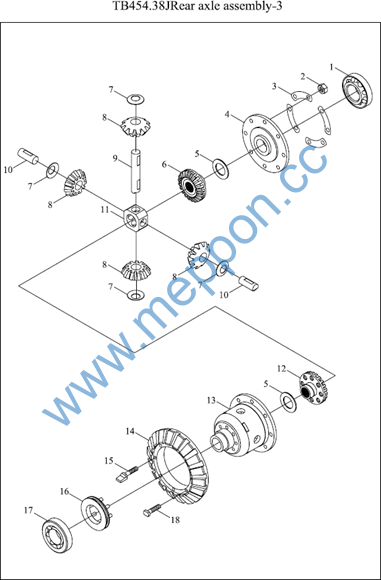

TB454.38J-3 38.3-后桥总成-3 38REAR AXLE ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT300.38.012

差速器总成

DIFFERENTIAL ASSEMBLY

1

2011-11_

1

GBT297-32013

圆锥滚子轴承

BEARING

1

2011-11_

10

FT300.38.183

短行星齿轮轴

SHORT PLANETARY GEAR SHAFT

2

2011-11_

11

FT300.38.184

中心环

CENTRAL RING

1

2011-11_

12

FT300.38.143

左半轴齿轮

LEFT HALF SHAFT GEAR

1

2011-11_

13

FT300.38.180

差速器壳体

DIFFERENTIAL HOUSING

1

2011-11_

14

FT300.38.141

大圆锥齿轮

BIG TAPER GEAR

1

2011-11_

15

FT300.38.185

行星齿轮轴止推螺栓

PLANET GEAR SHAFT THRUST BOLT

4

2011-11_

16

FT300.38.019

差速锁总成

DIFFERENTIAL LOCK ASSEMBLY

1

2011-11_

16

FT300.38.019

差速锁总成

DIFFERENTIAL LOCK ASSEMBLY

1

2011-11_

17

GBT297-30211

圆锥滚子轴承

BEARING

1

2011-11_

18

FT300.38.186

大锥齿轮固定螺栓

FIXING BOLT

4

2011-11_

2

GBT6170-M12-A3L

螺母

NUT

8

2011-11_

3

FT300.38.152

锁紧垫片

LOCKING WASHER

4

2011-11_

4

FT300.38.181

差速器盖

DIFFERENTIAL HOUSING

1

2011-11_

4

FT300.38.181

差速器盖

DIFFERENTIAL HOUSING

1

2011-11_

5

FT300.38.147

半轴齿轮垫片

HALF SHAFT GEAR WASHER

2

2011-11_

6

FT300.38.144

右半轴齿轮

RIGHT HALF SHAFT GEAR

1

2011-11_

7

FT300.38.148

行星齿轮垫片

PLANET GEAR WASHER

4

2011-11_

8

FT300.38.145

行星齿轮

PLANETARY GEAR

4

2011-11_

8

FT300.38.145

行星齿轮

PLANETARY GEAR

4

2011-11_

9

FT300.38.182

长行星齿轮轴

LONG PLANETARY GEAR SHAFT

1

2011-11_
