LOVOL TB2SA604-002K Tractor Parts Catalogue 14
Lovol TB2SA604-002K Wheeled Tractor
TS04473010000 Bonnet Locking Device Assembly(006)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04473010000 |
Bonnet Locking Device Assembly |
1 |
||
1 |
TB450.473-02 |
Rubber Ring |
1 |
|
2 |
TS04473010006 |
Pull Rod |
1 |
|
3 |
TS06473010002 |
Bonnet Lock |
1 |
|
4 |
GBT97.1-8-A0P |
Flat Washer |
3 |
|
5 |
GBT93-8-A0P |
Standard Spring Washer |
5 |
|
6 |
GBT5783-M8X25-8.8-A2L |
Hexagon Bolt |
3 |
|
7 |
TS04473010015 |
Bonnet Lock Pillar |
1 |
|
8 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
2 |
|
9 |
GBT96.1-8-A0P |
Big Washer |
2 |
151
Lovol TB2SA604-002K Wheeled Tractor

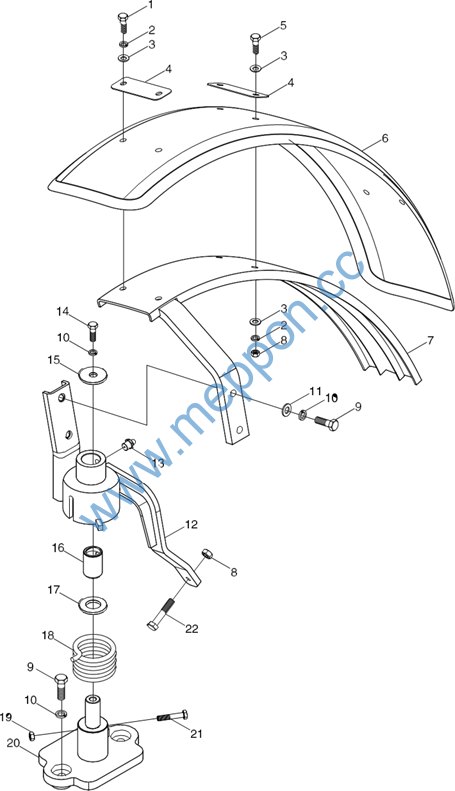

TB400.475A Left Front Mud Gaurd Assembly
152
Lovol TB2SA604-002K Wheeled Tractor
TB400.475A Left Front Mud Gaurd Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.475A |
Left Front Mud Guard Assembly |
1 |
||
1 |
GBT5783-M10×35-8.8-A3L |
Hexagon Bolt |
2 |
|
2 |
GBT93-10-A0P |
Standard Spring Washer |
6 |
|
3 |
GBT97.1-10-A0P |
Flat Washer |
10 |
|
4 |
TB400.475A-04 |
Strengthen Plate |
3 |
|
5 |
GBT5783-M10×30-8.8-A3L |
Hexagon Bolt |
4 |
|
6 |
TB400.475A-03 |
Left Front Mud Guard |
1 |
|
7 |
TB400.475A.2 |
Upper Bracket Weldment |
1 |
|
8 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
5 |
|
9 |
GBT5783-M12×40-8.8-A3L |
Hexagon Bolt |
4 |
|
10 |
GBT93-12-A0P |
Standard Spring Washer |
5 |
|
11 |
GBT97.1-12-A0P |
Flat Washer |
2 |
|
12 |
GBT5783-M12×30-10.9-A3L |
Hexagon Bolt |
1 |
|
13 |
TB400.475-07 |
Washer 2 |
1 |
|
14 |
TB400.475A.3 |
Lower Bracket Weldment |
1 |
|
15 |
TB400.475A-01 |
Sleeve |
1 |
|
16 |
TB400.475A-02 |
Left Torque Spring |
1 |
|
17 |
TB400.475-06 |
Washer |
1 |
|
18 |
TB400.475A.1 |
Left Installation Plate Weldment |
1 |
|
19 |
JB/T 7940.1-M10×1 |
Straight Forced Filling Oil Cup |
1 |
|
20 |
GBT5783-M8×45-8.8-A2L |
Hexagon Bolt |
1 |
|
21 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
22 |
GBT5783-M10×55-8.8-A2L |
Hexagon Bolt |
1 |
153
Lovol TB2SA604-002K Wheeled Tractor

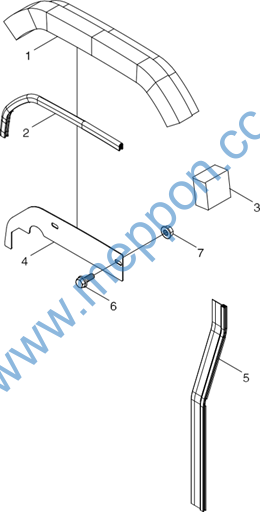

TS04475080000K Bonnet Seal Installation Assembly(002)
154
Lovol TB2SA604-002K Wheeled Tractor
TS04475080000K Bonnet Seal Installation Assembly(002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04475080000K |
Bonnet Seal Installation Assembly |
1 |
||
1 |
TS04475010002 |
Up Seal Cotton |
1 |
|
2 |
TS04475080002K |
Seal Strip |
1 |
|
3 |
TS04475010001 |
Side Seal Cotton |
2 |
|
4 |
TS04475080001K |
Seal Spacer Plate |
1 |
|
5 |
TS04475010005 |
Seal Strip |
2 |
|
6 |
GBT16674.1-M8X20-8.8-A2L |
Hexagon Flange Nut |
2 |
|
7 |
GBT6177.1-M8-8-A2L |
Hexagon Flange Nut |
2 |
155
Lovol TB2SA604-002K Wheeled Tractor

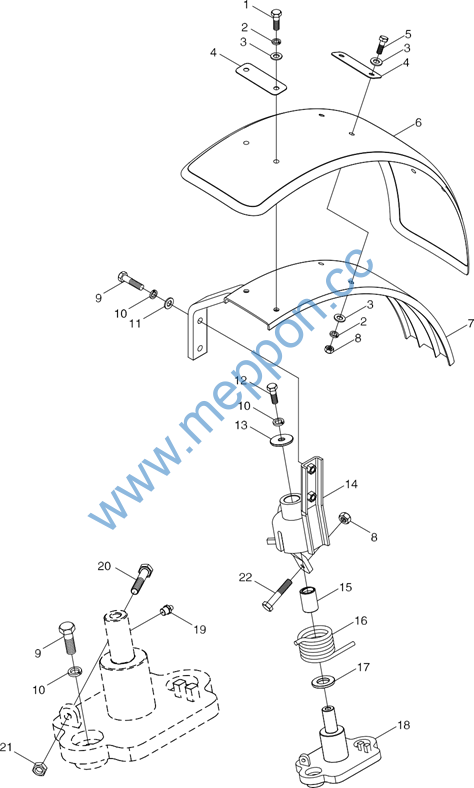

TB400.476A Right Front Mud Guard Assembly
156
Lovol TB2SA604-002K Wheeled Tractor
TB400.476A Right Front Mud Guard Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.476A |
Right Front Mud Guard Assembly |
1 |
||
1 |
GBT5783-M10×35-8.8-A2L |
Hexagon Bolt |
2 |
|
2 |
GBT93-10-AOP |
Standard Spring Washer |
6 |
|
3 |
GBT96.1-10-A2 |
Flat Washer |
10 |
|
4 |
TB400.475A-04 |
Strengthen Plate |
3 |
|
5 |
GBT5782-M10×30-8.8-A3L |
Hexagon Bolt |
4 |
|
6 |
TB400.475A-03 |
Left Front Mud Guard |
1 |
|
7 |
TB400.476A.2 |
Upper Bracket Weldment |
1 |
|
8 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
5 |
|
9 |
GBT5783-M12×40-8.8-A3L |
Hexagon Bolt |
4 |
|
10 |
GBT93-12-AOP |
Standard Spring Washer |
5 |
|
11 |
GBT97.1-12-AOP |
Flat Washer |
2 |
|
12 |
TB400.476A.3 |
Lower Bracket Weldment |
1 |
|
13 |
JB/T 7940.1-M10×1 |
Straight-Through Type Pressure Live Oil Cup |
1 |
|
14 |
GBT5783-M12×30-10.9-A3L |
Hexagon Bolt |
1 |
|
15 |
TB400.475-07 |
Washer 2 |
1 |
|
16 |
TB400.475A-01 |
Sleeve |
1 |
|
17 |
TB400.475-06 |
Washer |
1 |
|
18 |
TB400.476A-01 |
Right Torsion Spring |
1 |
|
19 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
20 |
TB400.476A.1 |
Right Installation Plate Weldment |
1 |
|
21 |
GBT5783-M8×45-8.8-A2L |
Hexagon Bolt |
1 |
|
22 |
GBT5783-M10×55-8.8-A3L |
Hexagon Bolt |
1 |
157
Lovol TB2SA604-002K Wheeled Tractor

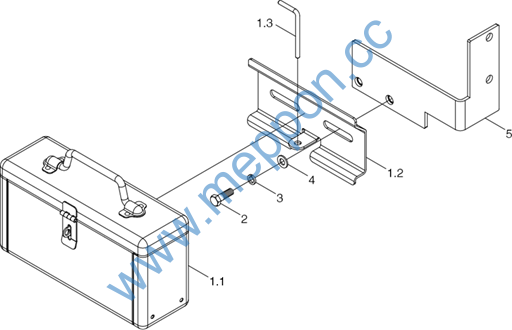

TS04490010000 Tool Kit Assembly
158
Lovol TB2SA604-002K Wheeled Tractor
TS04490010000 Tool Kit Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04490010000 |
Tool kit assembly |
1 |
||
1 |
TB400.49.1 |
Tool kit supply assembly |
1 |
|
1.1 |
TB400.49.1.1 |
Tool kit welding and riveting assembly |
1 |
|
1.2 |
FT65.49.103 |
Fixing plate |
1 |
|
1.3 |
FT65.49.102 |
Latch |
1 |
|
2 |
GBT5783-M12X25-8.8-A3L |
Hexagon head bolt |
2 |
|
3 |
GBT93-12-A0P |
Standard spring washer |
2 |
|
4 |
GBT97.1-12-A0P |
Plain washer |
2 |
|
5 |
TS04490010003 |
Installation bracket weldment |
1 |
159
Lovol TB2SA604-002K Wheeled Tractor
TB1S501020000K Oil Tank Installation Assembly-1(001)
160
Lovol TB2SA604-002K Wheeled Tractor
TB1S501020000K Oil Tank Installation Assembly-1(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB1S501020000K |
Oil Tank Installation Assembly |
1 |
||
1 |
TS04501010012 |
Oil Tank Protection Plate |
1 |
|
2 |
GBT5789-M10X20-10.9-A3L |
Hexagon Flange Nut |
2 |
|
3 |
TB604.501.2 |
Rear Bracket Weldment |
1 |
|
4 |
TB604.501-01 |
Rubber Washer |
1 |
|
5 |
TB604.501-02 |
Tie Rubber Strip |
1 |
|
6 |
TS04501010008 |
Rear Fastening Tie Weldment |
1 |
|
7 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
4 |
|
8 |
TS04501010009 |
Tie Rubber Strip |
1 |
|
9 |
TS04501010003 |
Front Band Weldment |
1 |
|
10 |
TB1S501020001K |
Oil Tank Assembly |
1 |
161
Lovol TB2SA604-002K Wheeled Tractor

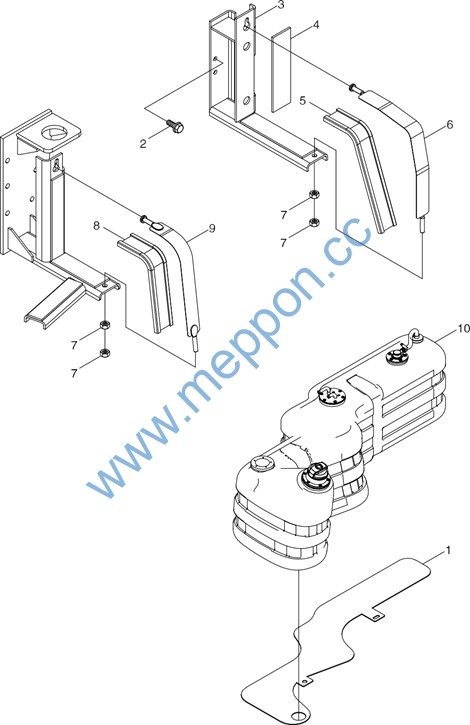

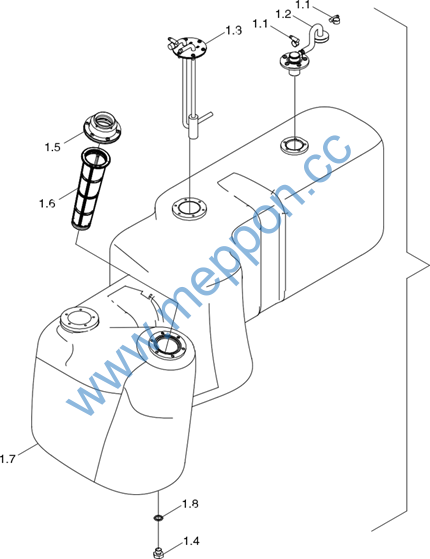

TB1S501020000K Oil Tank Installation Assembly-2(001)
