LOVOL TB2SA604-002K Tractor Parts Catalogue 15
Lovol TB2SA604-002K Wheeled Tractor
TS04481080000K Harness Installation Assembly, Engine(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04481080000K |
Harness installation assembly, engine(001) |
1 |
||
1 |
3203505D9-L |
Lock cable ties |
4 |
|
2 |
TF1204.481B-01 |
Harness fastener |
2 |
|
3 |
GBT97.1-6-A3L |
Plain washer |
2 |
|
4 |
GBT93-6-A3L |
Standard spring washer |
2 |
|
5 |
GBT5783-M6X25-8.8-A2L |
Hexagon head bolt |
2 |
|
6 |
TS06482010005 |
Harness fastener |
2 |
|
7 |
TS04481080001K |
Engine harness assembly |
1 |
|
8 |
Q67405400 |
Plastic fastenging strap |
1 |
|
9 |
GBT5783-M10X20-8.8-A3L |
Hexagon head bolt |
2 |
|
10 |
GBT93-10-A3L |
Standard spring washer |
2 |
|
11 |
GBT97.1-10-A3L |
Plain washer |
2 |
|
12 |
GBT818-M4X10-4.8-A2L |
Cross recessed pan head screw |
5 |
|
13 |
GBT93-4-A3L |
Standard spring washer |
5 |
|
14 |
TS04481010002 |
Oil amount sensor assembly |
1 |
|
15 |
TS10481010002 |
Rotating speed sensor |
1 |
|
16 |
FT65.48.073a |
Oil pressure alarm |
1 |
|
17 |
TS04481010008 |
Harness fixing plate |
1 |
|
18 |
Q67405100 |
Plastic fastenging strap |
2 |
|
19 |
FT65.48.072 |
Water temperature sensor |
1 |
|
20 |
TS04481010003 |
Bonding |
1 |
|
21 |
GBT5783-M8X16-8.8-A2L |
Hexagon head bolt |
1 |
175
Lovol TB2SA604-002K Wheeled Tractor

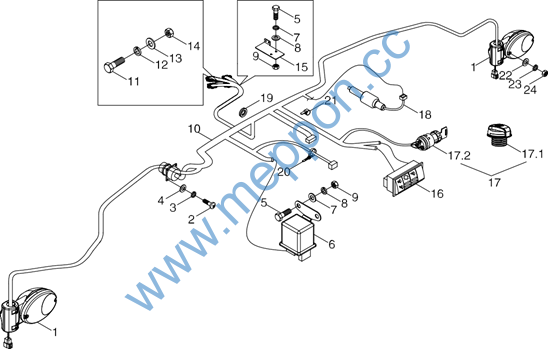

TS04482010000K Body Harness Installation Assembly
176
Lovol TB2SA604-002K Wheeled Tractor
TS04482010000K Body Harness Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04482010000K |
Body Harness Installation Assembly |
1 |
||
1 |
TS04482010002K |
Right Armrest Light Assembly |
2 |
|
2 |
GBT818-M3X20-4.8-A2L |
Cross Screw |
4 |
|
3 |
GBT93-3-A3L |
Standard Spring Washer |
4 |
|
4 |
GBT97.1-3-A3L |
Flat Washer |
4 |
|
5 |
GBT5783-M6X20-8.8-A2L |
Hexagon Bolt |
4 |
|
6 |
FT300.48.055 |
Starting Relay |
1 |
|
7 |
GBT97.1-6-A3L |
Flat Washer |
4 |
|
8 |
GBT93-6-A3L |
Standard Spring Washer |
4 |
|
9 |
GBT6170-M6-8-A2L |
Hexagon Nut, Type-1 |
2 |
|
10 |
TS04482010001K |
Body Harness Assembly |
1 |
|
11 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
1 |
|
12 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
13 |
GBT97.1-8-A3L |
Flat Washer |
1 |
|
14 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
15 |
TS04482010011 |
Inserts Fixing Plate Weldment |
1 |
|
16 |
TS04482150002 |
Two Gang Paddle Switch |
1 |
|
17 |
TS04482150003 |
Two Locks Assembly |
1 |
|
17.1 |
TS04501010005 |
Oil Tank Cover |
1 |
|
17.2 |
TB550.482.3 |
Ignition Lock |
1 |
|
18 |
TB550.484.2 |
Brake Light Switch |
2 |
|
19 |
TS04482010008 |
Rubber Ring |
1 |
|
20 |
Q67405200 |
Plastic Fastening Strip |
1 |
|
21 |
3203505D9-L |
Tie |
7 |
|
22 |
GBT97.1-5-A3L |
Flat Washer |
2 |
|
23 |
GBT93-5-A3L |
Standard Spring Washer |
2 |
|
24 |
GBT6170-M5-8-A2L |
Hexagon Nut, Type-1 |
2 |
177
Lovol TB2SA604-002K Wheeled Tractor
TS04483020000K Front Lamp Harness Installation Assembly(004)
178
Lovol TB2SA604-002K Wheeled Tractor
TS04483020000K Front Lamp Harness Installation Assembly(004)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04483020000K |
Front Lamp Harness Installation Assembly |
1 |
||
1 |
TS04483020002K |
Right Front Big Lamp Assembly |
1 |
|
2 |
TS04483010007 |
Washer |
2 |
|
3 |
GBT5783-M8X25-8.8-A2L |
Hexagon Bolt |
1 |
|
4 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
5 |
GBT97.1-8-A3L |
Flat Washer |
1 |
|
6 |
TD800.483B.3 |
Electric Horn |
1 |
|
7 |
TS04483020001K |
Left Front Big Lamp Assembly |
1 |
|
8 |
GBT97.1-6-A3L |
Flat Washer |
8 |
|
9 |
GBT93-6-A3L |
Standard Spring Washer |
8 |
|
10 |
GBT818-M6X20-4.8-A2L |
Cross Screw |
4 |
|
11 |
GBT6170-M6-8-A2L |
Hexagon Nut, Type-1 |
4 |
|
12 |
TS04483010001 |
Front Lamp Harness Assembly |
1 |
|
13 |
FT65.48.095 |
Harness Fixing Clamp (1) |
7 |
|
14 |
TS04483010005 |
Adorning Strip |
1 |
|
15 |
GBT97.1-5-A3L |
Flat Washer |
2 |
|
16 |
GBT93-5-A3L |
Standard Spring Washer |
2 |
|
17 |
GBT6170-M5-8-A2L |
Hexagon Nut, Type-1 |
2 |
179
Lovol TB2SA604-002K Wheeled Tractor

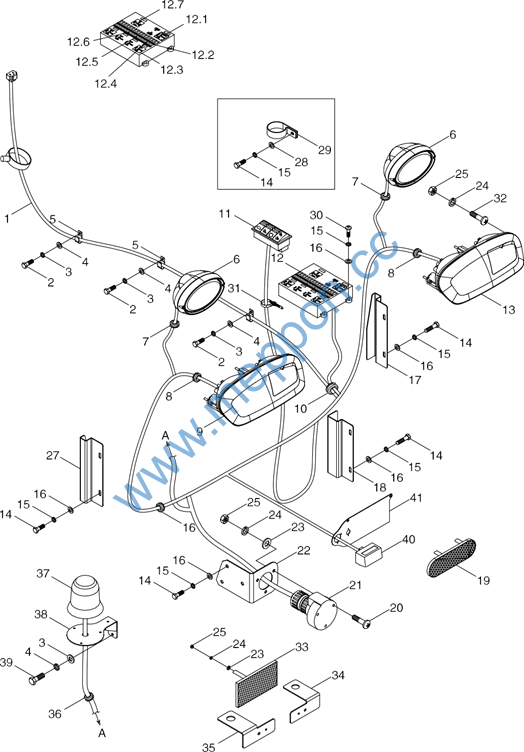

TS04484040000K Harness Installation Assembly, Rear Lamp (002)
180
Lovol TB2SA604-002K Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04484040000K |
Harness installation assembly, rear lamp |
1 |
||
1 |
TS04484040001K |
Rear lamp harness assembly |
1 |
|
2 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
3 |
|
3 |
GBT93-8-A0P |
Standard spring washer |
5 |
|
4 |
GBT97.1-8-A0P |
Plain washer |
5 |
|
5 |
TS06482010005 |
Harness fastener |
5 |
|
6 |
TS06484020006 |
Rear lamp assembly |
2 |
|
7 |
TD800.484B-03 |
Wire through ring |
4 |
|
8 |
TS04484020003 |
Wire through ring |
2 |
|
9 |
TS06484010001 |
Left rear taillamp assembly |
1 |
|
10 |
FT65.48.092 |
Wire through ring (3) |
2 |
|
11 |
TS04484040003K |
Five-function rocker switch |
1 |
|
12 |
TS04484040002K |
Central electric box assembly |
1 |
|
12.1 |
GE20H16Y.34.6-04 |
Main power source relay |
1 |
|
12.2 |
TC02482010003K |
Warning type fuse (10A) |
5 |
|
12.3 |
FT300.48.513 |
Electronic flasher |
1 |
|
12.4 |
TC02482010007K |
Warning type fuse (7.5A) |
3 |
|
12.5 |
TC02482010002K |
Warning type fuse (5A) |
5 |
|
12.6 |
TC02482010004K |
Warning type fuse (15A) |
6 |
|
12.7 |
FT300.48D.2.2.2 |
Preheating relay |
1 |
|
13 |
TS06484010002 |
Right rear taillamp assembly |
1 |
|
14 |
GBT5783-M6X20-8.8-A2L |
Hexagon head bolt |
10 |
|
15 |
GBT93-6-A0P |
Standard spring washer |
14 |
|
16 |
GBT97.1-6-A0P |
Plain washer |
13 |
|
17 |
TS04484020007 |
Harness shield 2 |
1 |
|
18 |
TS04484020008 |
Harness shield 3 |
1 |
|
19 |
TS06484010005 |
Retro reflector |
2 |
|
20 |
GBT819.1-M5X35-4.8-A1L |
Cross recessed countersunk head screw |
3 |
|
21 |
TD900.484.2 |
Rear trailer socket |
1 |
|
22 |
TS04484010005 |
Trailer socket fixing plate weldment |
1 |
|
23 |
GBT97.1-5-A0P |
Plain washer |
9 |
|
24 |
GBT93-5-A0P |
Standard spring washer |
9 |
181
Lovol TB2SA604-002K Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002)(extension)
182
Lovol TB2SA604-002K Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002)(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
25 |
GBT6170-M5-8-A2L |
Hexagon nut, style 1 |
6 |
|
26 |
TS04484020002 |
Wire through ring |
1 |
|
27 |
TS04484020006 |
Harness shield 1 |
1 |
|
28 |
GBT96.1-6-A0P |
Large washer |
1 |
|
29 |
TS04481010006 |
Harness fastener |
1 |
|
30 |
GBT818-M6X25-4.8-A2L |
Cross recessed pan head screw |
4 |
|
31 |
3203505D9-L |
Lock cable ties |
14 |
|
32 |
GBT818-M5X12-4.8-A2L |
Cross recessed pan head screw |
2 |
|
33 |
TD800.484B.5 |
Reflector assembly |
2 |
|
34 |
TD800.484B-02 |
Reflector installation plate (right) |
1 |
|
35 |
TD800.484B-01 |
Reflector installation plate (left) |
1 |
|
36 |
FT65.48.093 |
Wire through ring (1) |
2 |
|
37 |
TS04486010002K |
Rotary warning lamp assembly |
1 |
|
38 |
TS10484010005 |
Warning lamp bracket weldment |
1 |
|
39 |
GBT5783-M8X70-8.8-A2L |
Hexagon head bolt |
2 |
|
40 |
TA700.484A.2.1 |
License lamp |
1 |
|
41 |
TB500.484A.1 |
License lamp installation plate weldment |
1 |
183
Lovol TB2SA604-002K Wheeled Tractor

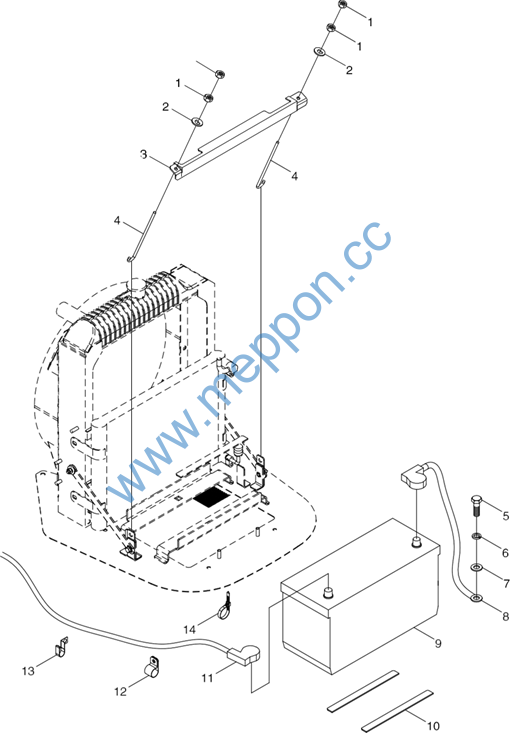

TS04485010000 Battery Installation Assembly
184
Lovol TB2SA604-002K Wheeled Tractor
TS04485010000 Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04485010000 |
Battery installation assembly |
1 |
||
1 |
GBT6170-M6-8-A2L |
Hexagon nut, style 1 |
4 |
|
2 |
GBT97.1-6-A0P |
Plain washer |
2 |
|
3 |
TS04485010004 |
Pressure plate welding assembly |
1 |
|
4 |
TS04485010002 |
Pull rod |
2 |
|
5 |
GBT5783-M8X25-8.8-A2L |
Hexagon head bolt |
1 |
|
6 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
7 |
GBT97.1-8-A0P |
Plain washer |
1 |
|
8 |
TB400.485A.2 |
Battery bonding |
1 |
|
9 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
10 |
TB450.485.1 |
Battery shock absorbing pad |
2 |
|
11 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
12 |
TS04481010006 |
Harness fastening clip |
1 |
|
13 |
TD800.485A-04 |
Harness fastening clip |
1 |
|
14 |
Q67405100 |
Plastic fastening strap |
1 |
185
Lovol TB2SA604-002K Wheeled Tractor

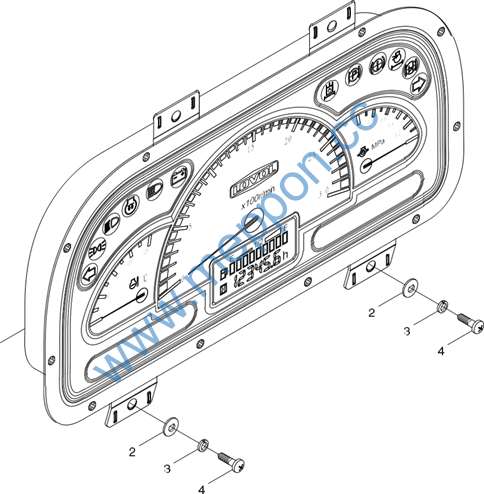

TS04487010000 Compound Instrument Assembly
