Lovol TB2SA604-002K Wheeled Tractor
TS04452010000 Floor Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04452010000 |
Floor assembly |
1 |
||
TS04452010001 |
Floor welding assembly |
1 |
||
1 |
GBT5783-M6×16-8.8-A2L |
Hexagon head bolt |
13 |
|
2 |
GBT93-6-A0P |
Standard spring washer |
17 |
|
3 |
TS04452011150 |
Central electric box bracket weldment |
1 |
|
4 |
TS04452011030 |
Rear connecting board weldment |
2 |
|
5 |
GBT97.1-8-A0P |
Plain washer |
8 |
|
6 |
GBT93-8-A0P |
Standard spring washer |
8 |
|
7 |
GBT5783-M8×25-8.8-A2L |
Hexagon head bolt |
6 |
|
8 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
4 |
|
9 |
TS04452011000 |
Floor body weldment |
1 |
|
10 |
TS04451012001 |
Gearbox inspection window cover plate |
1 |
|
11 |
GBT5782-M6×40-8.8-A2L |
Hexagon head bolt |
4 |
|
12 |
TS04452011210 |
Position lamp bracket right pieces weldment |
1 |
|
13 |
GBT97.1-6-A0P |
Plain washer |
4 |
|
14 |
GBT6170-M6-8-A2L |
Hexagon nut, style 1 |
4 |
|
15 |
TB550.452H-24 |
Rear floor cover |
1 |
|
16 |
TS04452011190 |
Position lamp bracket left pieces weldment |
1 |
|
17 |
GBT5783-M8×20-8.8-A2L |
Hexagon head bolt |
2 |
|
18 |
TS04451012114 |
Handbrake cable fixing bracket |
1 |
127
Lovol TB2SA604-002K Wheeled Tractor
TS04452010000 Floor Assembly-3
128
Lovol TB2SA604-002K Wheeled Tractor
TS04452010000 Floor Assembly-3

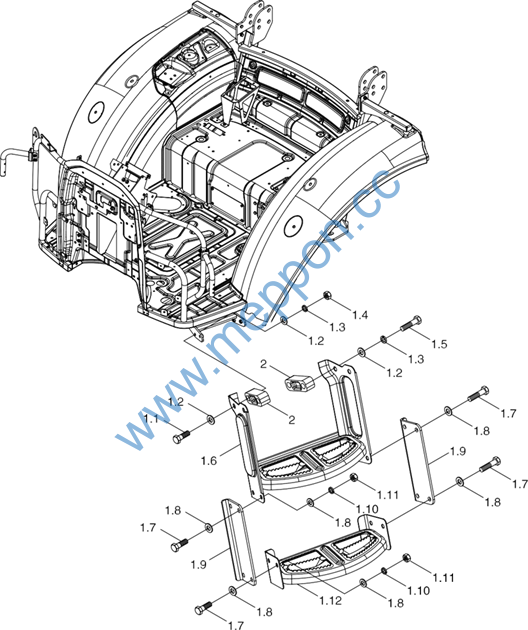

No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04452010000 |
Floor assembly |
1 |
||
1 |
TS04451017000 |
Left boarding ladder assembly |
1 |
|
1.1 |
GBT5782-M10×60-8.8-A2L |
Hexagon head bolt |
1 |
|
1.2 |
GBT95-10-A0P |
Plain washer |
5 |
|
1.3 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
1.4 |
GBT6170-M10-8-A3L |
Hex nut, style 1 |
1 |
|
1.5 |
GBT5782-M10×55-8.8-A2L |
Hexagon head bolt |
3 |
|
1.6 |
TS04451017100 |
Left boarding ladder weldment |
1 |
|
1.7 |
GBT5783-M8×25-8.8-A2L |
Hexagon head bolt |
8 |
|
1.8 |
GBT97.1-8-A0P |
Plain washer |
16 |
|
1.9 |
TS04451017107 |
Rope ladder hanging plate |
2 |
|
1.10 |
GBT93-8-A0P |
Standard spring washer |
8 |
|
1.11 |
GBT6170-M8-10-A2L |
Hex nut, style 1 |
8 |
|
1.12 |
TS04451017106 |
First step pedal weldment |
1 |
|
2 |
TS04451017301 |
Boarding ladder support seat |
2 |
129
Lovol TB2SA604-002K Wheeled Tractor

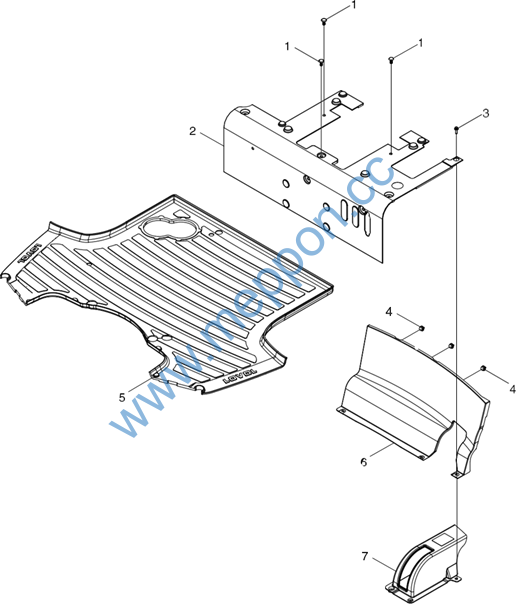

TS04453020000K Upholstery Assembly(001)
130
Lovol TB2SA604-002K Wheeled Tractor
TS04453020000K Upholstery Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04453020000K |
Upholstery Assembly |
1 |
||
1 |
Q69208 |
Plastic Split Pin |
8 |
|
2 |
TS04453022100 |
Middle Floor Mat |
1 |
|
3 |
GBT16674.1-M6X20-8.8-A2L |
Hexagon Flange Nut |
5 |
|
4 |
TS06453020001 |
Plastic Buckle BL033 |
3 |
|
5 |
TS04453022000 |
Floor Mat |
1 |
|
6 |
TS04453023300 |
Into Upholstery |
1 |
|
7 |
TS04453023701 |
Parking Brake Bonnet |
1 |
131
Lovol TB2SA604-002K Wheeled Tractor

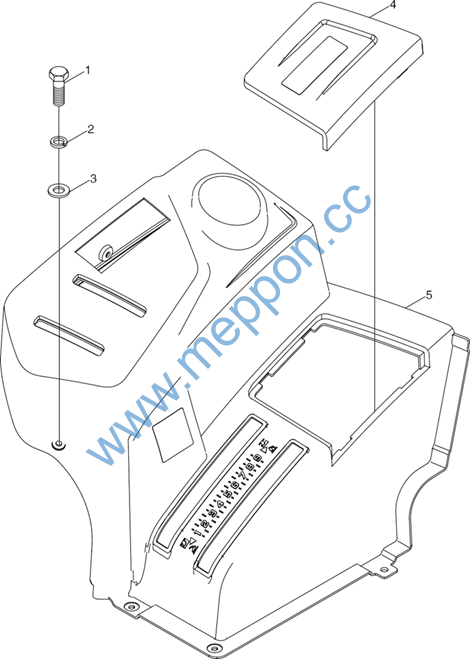

TS04454010000 Control Cover Assembly
132
Lovol TB2SA604-002K Wheeled Tractor
TS04454010000 Control Cover Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04454010000 |
Control cover plate assembly |
1 |
||
1 |
GBT818-M6×20-4.8-A2L |
Cross recessed pan head screw |
8 |
|
2 |
GBT93-6-A3L |
Standard spring washer |
8 |
|
3 |
GBT97.1-6-A3L |
Plain washer |
8 |
|
4 |
TS04454010001 |
Control cover plate |
1 |
|
5 |
TS04454010002 |
Electric box cover |
1 |
133
Lovol TB2SA604-002K Wheeled Tractor

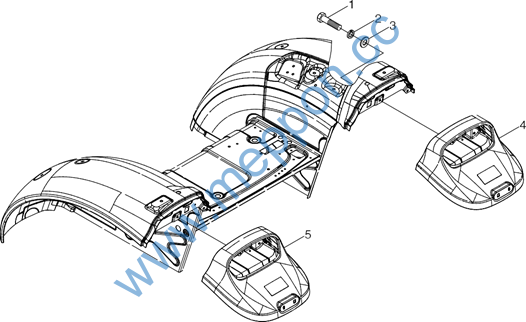

TS04455020000 Rear Mudguard Trimming Assembly
134
Lovol TB2SA604-002K Wheeled Tractor
TS04455020000 Rear Mudguard Trimming Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04455020000 |
Rear mudguard trimming assembly |
1 |
||
1 |
GBT5783-M8×16-8.8-A2L |
Hexagon head bolt |
10 |
|
2 |
GBT93-8-A3L |
Standard spring washer |
10 |
|
3 |
GBT97.1-8-A3L |
Plain washer |
10 |
|
4 |
TS04454019000 |
Right rear mudguard trimming assembly |
1 |
|
5 |
TS04454018000 |
Left rear mudguard trimming assembly |
1 |
135
Lovol TB2SA604-002K Wheeled Tractor

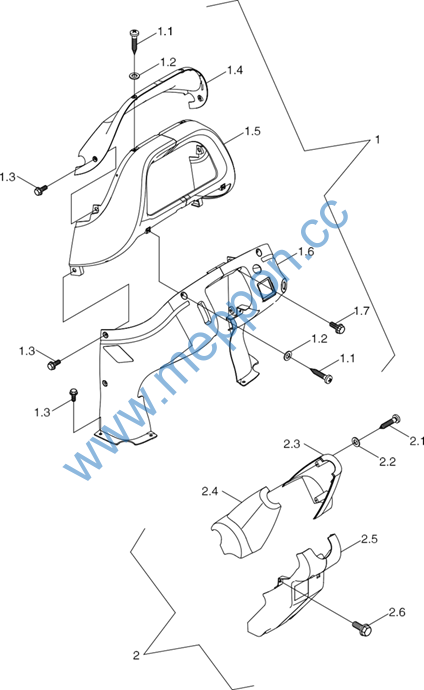

TB1S456020000K Dashboard Assembly(001)
136
Lovol TB2SA604-002K Wheeled Tractor
TB1S456020000K Dashboard Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB1S456020000K |
Dashboard Assembly |
1 |
||
1 |
TS04456020001 |
Dashboard Box |
1 |
|
1.1 |
GBT845-ST4.8X16-O |
Screw |
4 |
|
1.2 |
GBT97.1-6-O |
Flat Washer |
4 |
|
1.3 |
GBT16674.1-M6X20-8.8-A2L |
Hexagon Flange Nut |
4 |
|
1.4 |
TS04456020002 |
Upper Cover |
1 |
|
1.5 |
TS04456010003 |
Dashboard Middle Cover |
1 |
|
1.6 |
TS04456020004 |
Lower Cover |
1 |
|
1.7 |
GBT5789-M6X16-8.8-A2L |
Hexagon Flange Nut |
4 |
|
2 |
TS04456010005 |
Steering Gear Housing |
1 |
|
2.1 |
GBT845-ST4.8X16-O |
Screw |
2 |
|
2.2 |
GBT97.1-6-O |
Flat Washer |
2 |
|
2.3 |
TS06456010008 |
Steering Gear Right Cover Plate |
1 |
|
2.4 |
TS06456010007 |
Steering Gear Left Cover Plate |
1 |
|
2.5 |
TS04456010006 |
Steering Gear Low Cover Plate |
1 |
|
2.6 |
GBT16674.1-M6X20-8.8-O |
Hexagon Flange Nut |
4 |
137
Lovol TB2SA604-002K Wheeled Tractor

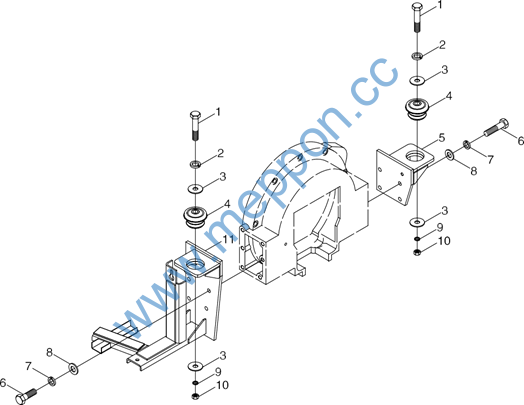

TS04457010000 Front Connecting Assembly
138
