LOVOL TB2SA604-002K Tractor Parts Catalogue 11
Lovol TB2SA604-002K Wheeled Tractor
TC02561060000k Hitch Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561060000k |
Hitch assembly |
1 |
||
1 |
GBT91-5X32-A0P |
Pin |
2 |
|
2 |
FT500A.56.011a |
Upper pull rod assembly |
1 |
|
2.1 |
FT500A.56.026 |
Front adjusting lever assembly of upper pull rod |
1 |
|
2.2 |
GBT6173-M27X2-05-A3L |
Hexagon thin nut |
1 |
|
2.3 |
FT500A.56.027 |
Adjusting screw pipe weldment |
1 |
|
2.4 |
GBT6173-M27X2-LH-05-A3L |
Hexagon thin nut |
1 |
|
2.5 |
FT500A.56.024 |
Rear adjusting lever assembly of upper pull rod |
1 |
|
2.6 |
FT65.56.015 |
Upper pull rod lock pin assembly |
1 |
|
3 |
FT500A.56.101 |
Upper connecting pin of lifting rod |
2 |
|
4 |
TB400.56E.1 |
Lifting rod assembly |
2 |
|
4.1 |
TB400.56E.1-01 |
Upper connecting fork of lifting rod |
1 |
|
4.2 |
TB400.56E.1.1 |
Adjusting screw pipe weldment |
1 |
|
4.3 |
TB400.56E.1.2 |
Lifting rod adjusting sleeve weldment |
1 |
|
4.4 |
TB400.56E.1.3 |
Lower connecting fork weldment |
1 |
|
5 |
FT500A.56.118 |
Washer |
2 |
|
6 |
GBT91-5X40-A0P |
Split pin |
2 |
|
7 |
FT300.56A.112 |
Lower connecting pin of lifting rod |
2 |
|
8 |
GBT97.1-24-A0P |
Plain washer |
2 |
|
9 |
TB500.56B.6 |
Upper pull rod fixing clamp combination |
1 |
|
9.1 |
GBT91-2X14-A0P |
Split pin |
1 |
|
9.2 |
GBT96.1-6-A0P |
Large washer |
1 |
|
9.3 |
TE300.56.6-01 |
Fixing seat |
1 |
|
9.4 |
TB500.56B.6-01 |
Upper pull rod fixing hook |
1 |
|
9.5 |
TE300.56.6-03 |
Nylon bushing |
1 |
|
10 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
2 |
|
11 |
GBT97.1-8-A0P |
Plain washer |
2 |
|
12 |
GBT93-8-A0P |
Standard spring washer |
2 |
|
13 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
115
Lovol TB2SA604-002K Wheeled Tractor

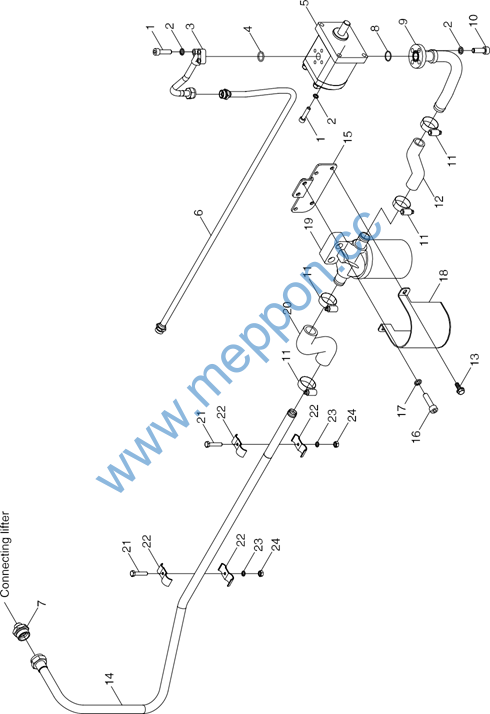

TS04581070000K Oil Pump/Pipe/Filter Assembly(001)
116
Lovol TB2SA604-002K Wheeled Tractor
TS04581070000K Oil Pump/Pipe/Filter Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04581070000K |
Oil Pump/Pipe/Filter Assembly |
1 |
||
1 |
GBT70.1-M8X30-8.8-A2L |
Inner Hexagon Screw |
7 |
|
2 |
GBT93-8-A3L |
Standard Spring Washer |
11 |
|
3 |
TS04581070010K |
Pressure Oil Pipe Assembly 1 |
1 |
|
4 |
GBT3452.1-18.0X2.65G |
Rubber O-Seal Ring |
1 |
|
5 |
TC02581240001K |
Gear Pump |
1 |
|
6 |
TS04581070008K |
Pressure Oil Pipe Assembly 2 |
1 |
|
7 |
TC03581030007 |
End Straight Joint Assembly M33-28 |
1 |
|
8 |
GBT3452.1-21.2X1.80G |
Rubber O-Seal Ring |
1 |
|
9 |
TS04581070002K |
Oil Suction Pipe Weldment Assembly |
1 |
|
10 |
GBT70.1-M8X25-8.8-A2L |
Inner Hexagon Screw |
4 |
|
11 |
Q67638 |
B-Type Worm Transmission Hose Clamp |
4 |
|
12 |
TS04581070007K |
Oil Suction Filter Outlet Pipe |
1 |
|
13 |
GBT16674.1-M8X16-8.8-A2L |
Hexagon Flange Nut |
4 |
|
14 |
TC02581480001K |
Oil Suction Steel Pipe Assembly |
1 |
|
15 |
TS04581070004K |
Oil Suction Filter Fixing Plate Weldment |
1 |
|
16 |
GBT70.1-M10X40-8.8-A3L |
Inner Hexagon Screw |
2 |
|
17 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
18 |
TC02581130008K |
Oil Filter Shield Weldment |
1 |
|
19 |
TB504.581E.2 |
Absorb Oil Filter Assembly |
1 |
|
20 |
TS04581070001K |
Oil Suction Rubber Hose |
1 |
|
21 |
GBT5783-M6X25-8.8-A2L |
Hexagon Bolt |
2 |
|
22 |
TB504.581E.1 |
Oil Pipe Clamp And Rubber Washer |
4 |
|
23 |
GBT93-6-A3L |
Standard Spring Washer |
2 |
|
24 |
GBT6170-M6-8-A2L |
Hexagon Nut, Type-1 |
2 |
117
Lovol TB2SA604-002K Wheeled Tractor

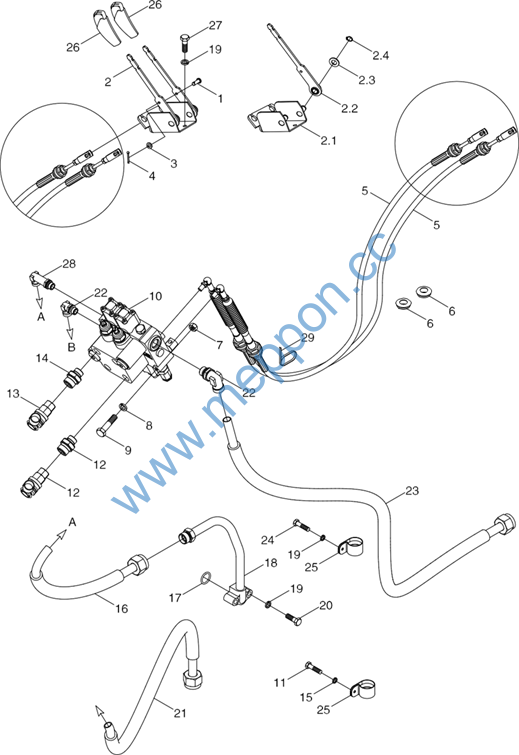

TC02582090000K Multi-way Valve Oil Pipe Assembly (001)
118
Lovol TB2SA604-002K Wheeled Tractor
TC02582090000K Multi-way Valve Oil Pipe Assembly (001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02582090000K |
Multi-way valve oil pipe assembly |
1 |
||
1 |
TG1654.583C-01 |
Pin shaft |
2 |
|
2 |
TS04582010058 |
Multi-way valve control assembly |
1 |
|
2.1 |
TS04582010059 |
Installation seat weldment |
1 |
|
2.2 |
TS04582010043 |
Control handle press |
2 |
|
2.3 |
GBT97.1-14-A0P |
Plain washer |
2 |
|
2.4 |
GBT894.1-14 |
Circlip for shaft |
2 |
|
3 |
GBT97.1-6-A0P |
Plain washer |
2 |
|
4 |
GBT91-2X14-A0P |
Split pin |
2 |
|
5 |
TS04582020001 |
Flexible shaft mechanism assembly |
2 |
|
6 |
TS04582010027 |
Rubber ring |
2 |
|
7 |
GBT6170-M6-8-A2L |
Hexagon nut, style 1 |
3 |
|
8 |
GBT93-6-A0P |
Standard spring washer |
3 |
|
9 |
GBT5782-M6X60-8.8-A1L |
Hexagon head bolt |
3 |
|
10 |
TC04582140010 |
Multi-way valve assembly |
1 |
|
11 |
GBT5783-M10X16-8.8-A3L |
Hexagon head bolt |
1 |
|
12 |
TC02580010001K |
Quick-change connector |
2 |
|
13 |
FT354.58A.030 |
Quick-change connector |
2 |
|
14 |
TC04582140009 |
Straight thread connector, body M18 assembly |
4 |
|
15 |
GBT93-10-A0P |
Standard spring washer |
1 |
|
16 |
TC04582300012 |
Lifter oil inlet pipe assembly |
1 |
|
17 |
GBT3452.1-20.0X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
18 |
TC04582300005 |
Lifter oil inlet steel pipe weldment |
1 |
|
19 |
GBT93-8-A0P |
Standard spring washer |
6 |
|
20 |
GBT5783-M8X35-8.8-A2L |
Hexagon head bolt |
2 |
|
21 |
TC04582300013 |
Multi-way valve oil return rubber pipe assembly |
1 |
|
22 |
TC04582140012 |
Adjustable joint M18-15 assembly |
2 |
|
23 |
TC04582300001 |
Multi-way valve oil inlet rubber pipe assembly |
1 |
|
24 |
GBT5783-M8X16-8.8-A2L |
Hexagon head bolt |
1 |
|
25 |
TD924.582-01 |
Pipe clip |
2 |
|
26 |
TS04582010025 |
Handle head |
2 |
|
27 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
3 |
|
28 |
TC04582300011 |
Adjustable joint M18-15 combination |
1 |
|
29 |
Q67405200 |
Plastic fastening strap |
1 |
119
Lovol TB2SA604-002K Wheeled Tractor

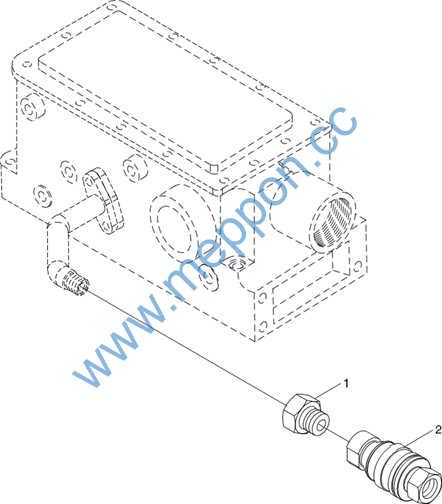

TB300.583A Single-way Hydraulic Outlet Assembly 2(003)
120
Lovol TB2SA604-002K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB300.583A |
Single-way hydraulic outlet assembly 2 |
1 |
||
1 |
FT354.58A.104 |
Oil pipe joint (British system) |
1 |
|
2 |
FT354.58A.030 |
Quick-adapt joint |
1 |
121
Lovol TB2SA604-002K Wheeled Tractor

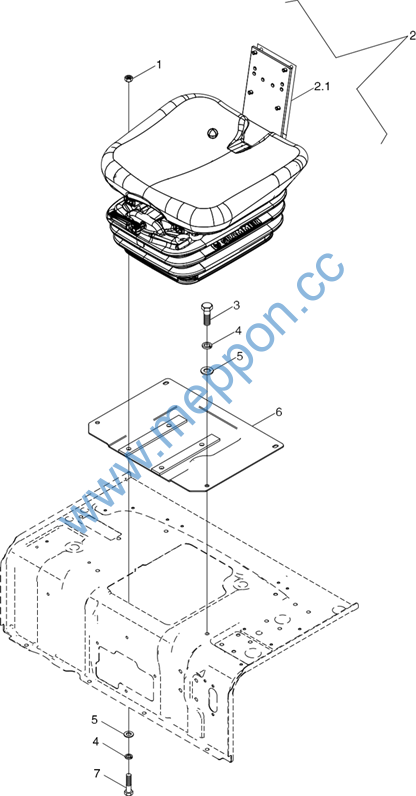

TC02440090000K Seat Installation Assembly(001)
122
Lovol TB2SA604-002K Wheeled Tractor
TC02440090000K Seat Installation Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02440090000K |
Seat Installation Assembly |
1 |
||
1 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
4 |
|
2 |
TC02440050001K |
Seat Assembly |
1 |
|
2.1 |
TC02440050002K |
Seat |
1 |
|
3 |
GBT5783-M8X25-8.8-A2L |
Hexagon Bolt |
4 |
|
4 |
GBT93-8-A3L |
Standard Spring Washer |
8 |
|
5 |
GBT97.1-8-A3L |
Flat Washer |
8 |
|
6 |
TC02440090002K |
Seat Installation Plate Weldment |
1 |
|
7 |
GBT5783-M8X30-8.8-A2L |
Hexagon Bolt |
4 |
123
Lovol TB2SA604-002K Wheeled Tractor

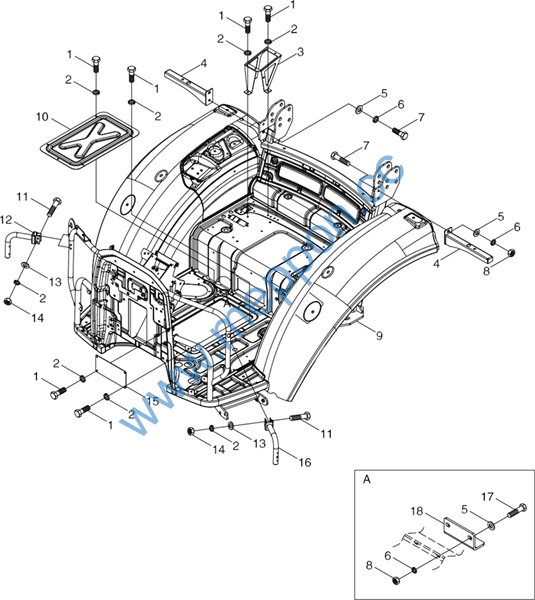

TS04452010000 Floor Assembly-1
124
Lovol TB2SA604-002K Wheeled Tractor
TS04452010000 Floor Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04452010000 |
Floor assembly |
1 |
||
1 |
TS06452014200 |
Right handle |
1 |
|
2 |
TS04452010001 |
Floor welding assembly |
1 |
|
3 |
TS06451019003 |
Processing hole plug cover 3 |
1 |
|
4 |
TS06455013000 |
Rear mudguard fixing gasket |
2 |
|
5 |
TS06451019001 |
Processing hole plug cover 1 |
1 |
|
6 |
TS06452014100 |
Left handle |
1 |
|
7 |
TS06451019004 |
Processing hole plug cover 4 |
1 |
|
8 |
GBT5783-M6×16-8.8-A2L |
Hexagon head bolt |
2 |
|
9 |
GBT93-6-A0P |
Standard spring washer |
2 |
|
10 |
TS04452015200 |
Right rearview mirror assembly |
1 |
|
11 |
TA700.452B-06 |
Rubber washer |
6 |
|
12 |
TS04452013200 |
Right front windshield |
1 |
|
13 |
TA700.452B-03 |
Rubber washer |
7 |
|
14 |
TA700.452B-02 |
Plastic cast nut |
6 |
|
15 |
TS04452013100 |
Left front windshield |
1 |
|
16 |
TS04452016000 |
Front wall seal strip |
1 |
|
17 |
GBT96.1-8-A0P |
Large washer |
4 |
|
18 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
19 |
GBT6170-M8-8-A2L |
Hexagon nut , Style 1 |
4 |
|
20 |
GBT93-5-A0P |
Standard spring washer |
6 |
|
21 |
GBT818-M5×16-4.8-A2L |
Cross recessed pan head screw |
6 |
125
Lovol TB2SA604-002K Wheeled Tractor

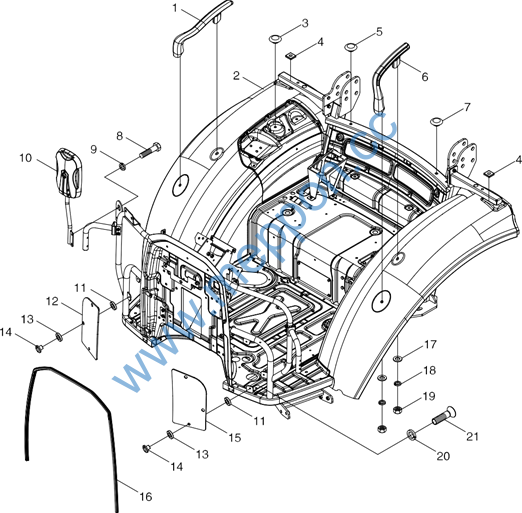

TS04452010000 Floor Assembly-2
126
