LOVOL TB2SA604-002K Tractor Parts Catalogue 10
Lovol TB2SA604-002K Wheeled Tractor
TC02551230000K Lifter Installation Assembly-1(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02551230000K |
Lifter Installation Assembly |
1 |
||
1 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
2 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
3 |
TC02582070015 |
Bracket Weldment |
1 |
|
4 |
GBT70.1-M10X40-8.8-A3L |
Inner Hexagon Screw |
2 |
|
5 |
TC02582070001 |
Oil Return Filter Assembly |
1 |
|
6 |
TC02582070006 |
End Straight M22-18 Subassembly |
3 |
|
7 |
SPL-CO-M12-10-F3 |
Hexagon Nut |
2 |
|
8 |
TC02582070003 |
Oil Return Pipe Assembly |
1 |
|
9 |
TC02582080001 |
Oil Filter Into Pipe Assembly |
1 |
|
10 |
GBT3452.1-25.8X2.65G |
Rubber O-Seal Ring |
1 |
|
11 |
GBT93-8-A3L |
Standard Spring Washer |
2 |
|
12 |
GBT5783-M8X30-8.8-A2L |
Hexagon Bolt |
2 |
|
13 |
TC02551200005K |
Lifter Assembly |
1 |
|
14 |
GBT5783-M12X40-10.9-A3L |
Hexagon Bolt |
3 |
|
15 |
TB404.312B-01 |
Washer |
7 |
|
16 |
FT300.55B.136 |
Bolt M12X235 |
2 |
|
17 |
TB300.55-01 |
Double End Studs |
2 |
|
18 |
GBT5783-M12X100-10.9-A3L |
Hexagon Bolt |
2 |
|
19 |
GBT16674.1-M12X50-10.9-A3L |
Hexagon Flange Nut |
4 |
|
20 |
GBT5783-M8X30-10.9-A2L |
Hexagon Bolt |
2 |
|
21 |
TB300.55-02 |
Washer |
2 |
|
22 |
GBT3452.1-103X2.65G |
Rubber O-Seal Ring |
1 |
103
Lovol TB2SA604-002K Wheeled Tractor

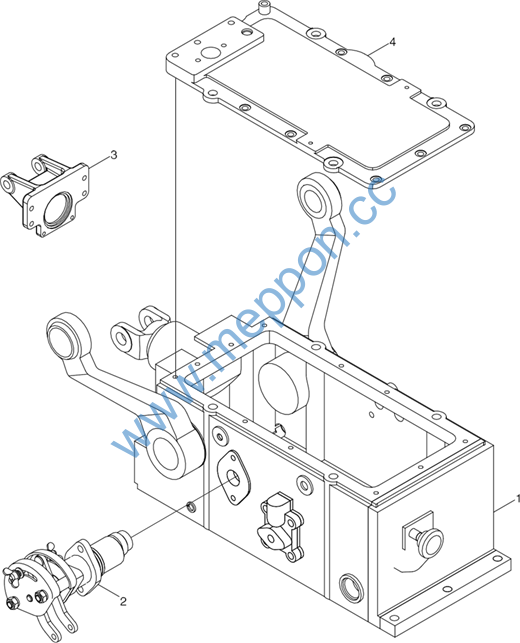

TC02551230000K Lifter Installation Assembly-2(003)
104
Lovol TB2SA604-002K Wheeled Tractor
TC02551230000K Lifter Installation Assembly-2(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02551230000K |
Lifter Installation Assembly |
1 |
||
1 |
TC02551200006K |
Lifter Housing |
1 |
|
2 |
TB504.551F.5.1 |
Distributor Control Mechanism Assembly |
1 |
|
3 |
TC02551050001K |
Upper Suspension Point Rocker Bracket |
1 |
|
4 |
TC02551200007K |
Lifter Upper Cover |
1 |
105
Lovol TB2SA604-002K Wheeled Tractor

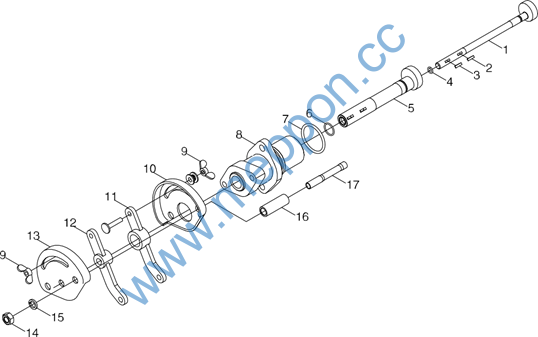

TC02551230000K Lifter Installation Assembly-3(003)
106
Lovol TB2SA604-002K Wheeled Tractor
TC02551230000K Lifter Installation Assembly-3(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02551230000K |
Lifter Installation Assembly |
1 |
||
1 |
TB504.551F.5.1 |
Distributor Control Mechanism Assembly |
1 |
|
2 |
TB504.551.1.1.4 |
Force Adjusting Eccentric Wheel Weldment Assembly |
1 |
|
3 |
GBT1099.1-3X5X13 |
Semicircle Key |
1 |
|
4 |
GBT1099.1-2.5X3.7X10 |
Semicircle Key |
1 |
|
5 |
GBT3452.1-6.90X1.80G |
Rubber O-Seal Ring |
1 |
|
6 |
TB504.551.1.1.3 |
Position Adjusting Eccentric Wheel Weldment Assembly |
1 |
|
7 |
GBT3452.1-17.0X1.80G |
Rubber O-Seal Ring |
1 |
|
8 |
GBT3452.1-41.2X3.55G |
Rubber O-Seal Ring |
1 |
|
9 |
TB504.551.1.1-01 |
Seat |
1 |
|
10 |
GBT62-M6-A2L |
Butterfly Nut |
2 |
|
11 |
TB504.551B.1.1-02 |
Position Adjusting Sector Plate |
1 |
|
12 |
TB504.551F.5.1.2 |
Position Adjusting Rocker Weldment |
1 |
|
13 |
TB504.551F.5.1.1 |
Force Adjusting Rocker Weldment |
1 |
|
14 |
TB504.551B.1.1-01 |
Force Adjusting Sector Plate |
1 |
|
15 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
16 |
GBT93-10-A0P |
Standard Spring Washer |
2 |
|
17 |
TB504.551.1.1-04 |
Spacer Bush |
2 |
|
18 |
GBT898-M10X65-8.8-A2L |
Double End Studs |
2 |
107
Lovol TB2SA604-002K Wheeled Tractor

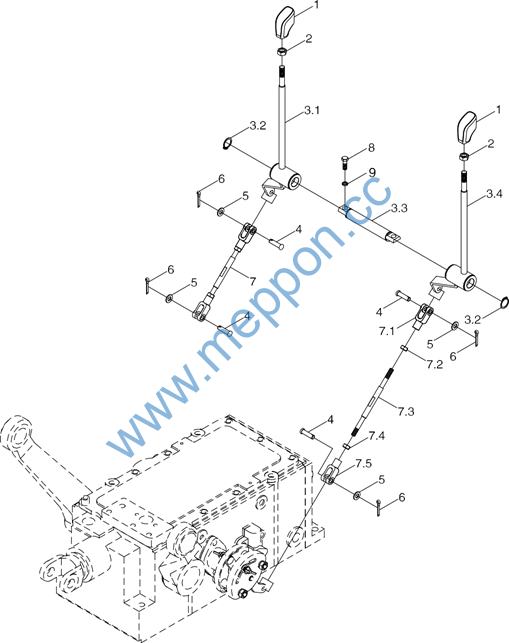

TS04552010000 Raiser Control Assembly
108
Lovol TB2SA604-002K Wheeled Tractor
TS04552010000 Raiser Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04552010000 |
Raiser control assembly |
1 |
||
1 |
TS04552010011 |
Raiser control handle head |
2 |
|
2 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
2 |
|
3 |
TS04552010010 |
Raiser control assembly |
1 |
|
3.1 |
TS04552010002 |
Raiser control press 1 |
1 |
|
3.2 |
GBT894.1-20 |
Circlip for shaft |
2 |
|
3.3 |
TS04552010001 |
Fixing shaft |
1 |
|
3.4 |
TS04552010007 |
Raiser control press 2 |
1 |
|
4 |
GBT882-B8X30-A0P |
Pin shaft |
4 |
|
5 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
6 |
GBT91-3.2X16-A0P |
Cotter pin |
4 |
|
7 |
TS04552010012 |
Adjusting lever assembly |
2 |
|
7.1 |
TB504.552D.3-03 |
Righthand connecting fork |
1 |
|
7.2 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
1 |
|
7.3 |
TS04552010013 |
Control pull rod |
1 |
|
7.4 |
GBT6170-M8-LH-8-A2L |
Hexagon nut, style 1 |
1 |
|
7.5 |
TB504.552D.3-02 |
Lefthand connecting fork |
1 |
|
8 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
2 |
|
9 |
GBT93-8-A0P |
Standard spring washer |
2 |
109
Lovol TB2SA604-002K Wheeled Tractor

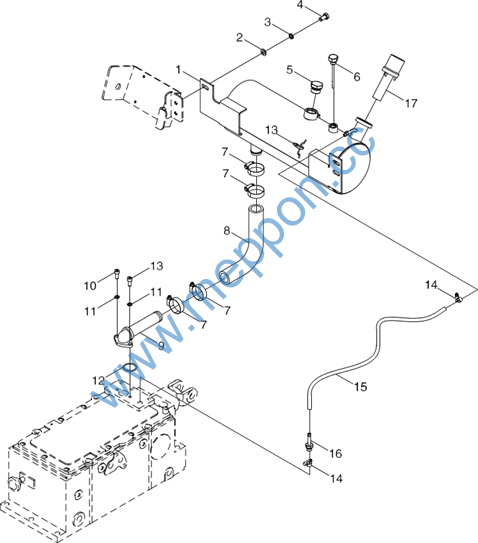

TC02553070000K Hydraulic Auxiliary Oil Tank Assembly (003)
110
Lovol TB2SA604-002K Wheeled Tractor
TC02553070000K Hydraulic Auxiliary Oil Tank Assembly (003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02553070000K |
Hydraulic Auxiliary Oil Tank Assembly |
1 |
||
1 |
TC02553070013K |
Auxiliary Oil Tank Weldment |
1 |
|
2 |
GBT97.1-10-A3L |
Flat Washer |
3 |
|
3 |
GBT93-10-A3L |
Standard Spring Washer |
3 |
|
4 |
GBT5783-M10X25-8.8-A3L |
Hexagon Bolt |
3 |
|
5 |
TC04553010011K |
Screw Plug Subassembly |
1 |
|
6 |
TC02553010003 |
Oil Dipstick Assembly |
1 |
|
7 |
Q67645 |
B-Type Worm Transmission Hose Clamp |
4 |
|
8 |
TC02553070020K |
Connecting Rubber Pipe |
1 |
|
9 |
TC02553050005K |
Connecting Oil Pipe Weldment |
1 |
|
10 |
GBT70.1-M8X20-8.8-A2L |
Inner Hexagon Screw |
2 |
|
11 |
GBT93-8-A3L |
Standard Spring Washer |
2 |
|
12 |
GBT3452.1-34.5X2.65G |
Rubber O-Seal Ring |
1 |
|
13 |
Q67405100 |
Plastic Fastening Strip |
1 |
|
14 |
Q67512 |
A-Type Worm Transmission Hose Clamp |
2 |
|
15 |
TC02553020003 |
Breath Hose |
1 |
|
16 |
TC02553010005 |
Breather Joint Weldment |
1 |
|
17 |
TD800.556.4 |
Oil Tank Air Filter |
1 |
111
Lovol TB2SA604-002K Wheeled Tractor

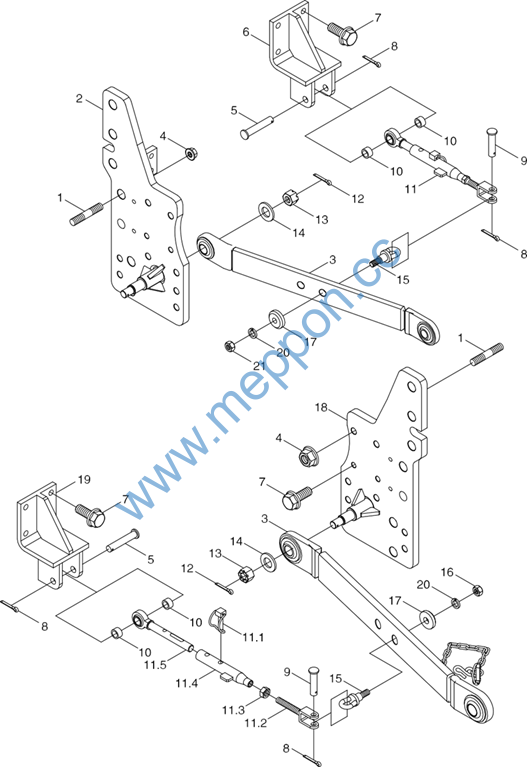

TC02561060000k Hitch Assembly-1
112
Lovol TB2SA604-002K Wheeled Tractor
TC02561060000k Hitch Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02561060000k |
Hitch assembly |
1 |
||
1 |
GBT899-AM16-M16X1.5X45-10.9-A3L |
Double-headed stud |
8 |
|
2 |
TC02561060004K |
Right support plate weldment |
1 |
|
3 |
FT500A.56.012 |
Lower pull rod assembly |
2 |
|
4 |
SPL-CO-M16X1.5-10-F3 |
Hexagon flange nut |
8 |
|
5 |
FT300.56A.102 |
Limit lever connecting pin |
2 |
|
6 |
FT300.56A.019 |
Right limit lever bracket weldment |
1 |
|
7 |
GBT16674.1-M16X40-10.9-A3L |
Hexagon flange bolt |
8 |
|
8 |
GBT91-5X32-A0P |
Split pin |
4 |
|
9 |
GBT882-B18X55-A0P |
Pin shaft |
2 |
|
10 |
FT300.56A.103 |
Sleeve |
4 |
|
11 |
FT300.56A.016a |
Limit lever assembly |
2 |
|
11.1 |
FT300.56A.023 |
Limit lever lock pin combination |
1 |
|
11.2 |
FT300.56A.161 |
Limit lever adjusting screw rod |
1 |
|
11.3 |
GBT6170-M22-8-A9L |
Hexagon nut, style 1 |
1 |
|
11.4 |
FT300.56A.022a |
Telescopic pipe weldment |
1 |
|
11.5 |
FT300.56A.021a |
Telescopic lever ball head assembly |
1 |
|
12 |
GBT91-4X36-A0P |
Split pin |
2 |
|
13 |
GBT6178-M20-8-A9L |
Hexagon slotted nut, style 1 |
2 |
|
14 |
GBT97.1-20-A0P |
Plain washer |
2 |
|
15 |
FT300.56A.110a |
Limit lever rear connecting pin |
2 |
|
16 |
GBT6170-M20-8-A3L |
Hexagon nut, style 1 |
2 |
|
17 |
FT300.56A.111a |
Round plate |
2 |
|
18 |
TC02561060001K |
Left support plate weldment |
1 |
|
19 |
FT300.56A.017 |
Left limit lever bracket weldment |
1 |
|
20 |
GBT93-20-A0P |
Standard spring washer |
2 |
113
Lovol TB2SA604-002K Wheeled Tractor

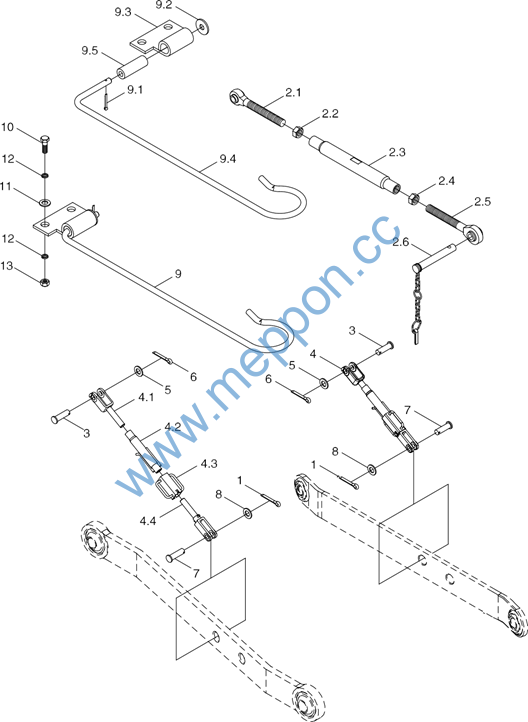

TC02561060000k Hitch Assembly-2
114
