LOVOL TB2SA604-002K Tractor Parts Catalogue 09
Lovol TB2SA604-002K Wheeled Tractor
TS04433010000 Braking System Control Mechanism Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04433010000 |
Brake System Control Assembly |
1 |
||
1 |
TS04433010001 |
Controlling Handle Assembly |
1 |
|
1.1 |
FT800A.21.045 |
Button Assembly |
1 |
|
1.2 |
FT800A.21.319 |
Controlling Handle Sleeve |
1 |
|
1.3 |
FT800.43.180 |
Spring |
1 |
|
1.4 |
FT800A.21.315 |
Top Rod |
1 |
|
1.5 |
TS06212010003 |
Fixing Seat Weldment |
1 |
|
1.6 |
GBT68-M4X10-4.8-A2L |
Slotted Screw |
4 |
|
1.7 |
FT800A.21.322 |
Small Pin Shaft |
1 |
|
1.8 |
FT800A.21.044 |
Controlling Handle Assembly |
1 |
|
1.9 |
FT800A.21.314 |
Pawl |
1 |
|
1.10 |
GBT894.1-6 |
Circlip For Shaft |
1 |
|
1.11 |
FT800A.21.323 |
Pin |
1 |
|
1.12 |
FT800A.21.321 |
Pin Shaft |
1 |
|
1.13 |
TB604.433E.9-01 |
Short Pull Rod |
1 |
|
1.14 |
FT800A.43.310 |
Ratchet Wheel |
1 |
|
1.15 |
GBT894.1-13 |
Circlip For Shaft |
2 |
|
1.16 |
TS06212010009 |
Washer |
2 |
|
2 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
4 |
|
3 |
GBT93-8-A3L |
Standard Spring Washer |
4 |
|
4 |
GBT97.1-8-A3L |
Flat Washer |
5 |
|
5 |
TS04433010006 |
Right Brake Pull Wire Assembly |
1 |
|
6 |
GBT882-B8X40-A3L |
Pin Shaft |
1 |
|
7 |
TB604.433E-04 |
Small Retainer Ring |
2 |
|
8 |
TS04433010012 |
Left Pull Wire Support Seat Weldment |
1 |
|
9 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
10 |
GBT5783-M10X20-8.8-A3L |
Hexagon Bolt |
2 |
|
11 |
GBT91-2X20-A3L |
Split Pin |
1 |
|
12 |
TS04433010007 |
Left Brake Wire Assembly |
1 |
|
13 |
TA700.431A-01 |
Dextrorotation Long Hole Connect Fork |
2 |
|
14 |
GBT882-B10X30-A3L |
Pin Shaft |
1 |
|
15 |
GBT97.1-10-A3L |
Flat Washer |
1 |
|
16 |
TS04433010002 |
Dustproof Mat |
1 |
91
Lovol TB2SA604-002K Wheeled Tractor

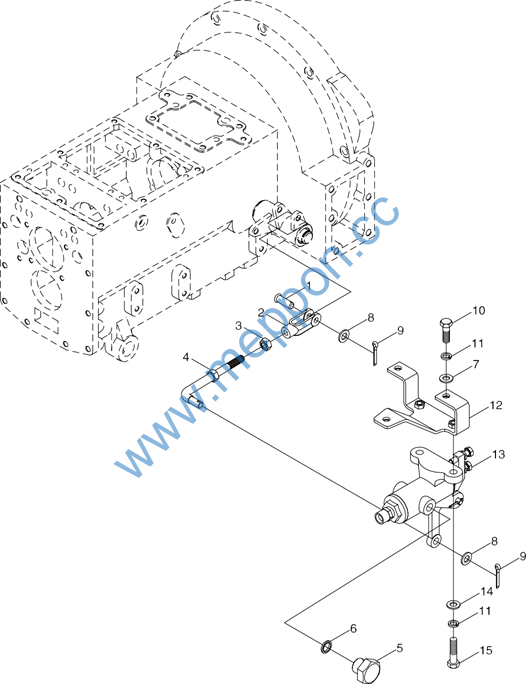

TS04801010000K Air valve brake assembly
92
Lovol TB2SA604-002K Wheeled Tractor
TS04801010000K Air valve brake assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04801010000K |
Air valve brake assembly |
1 |
||
1 |
GBT882-B10X28-A0P |
Pin shaft |
1 |
|
2 |
FT300.80.105 |
Adjusting fork |
1 |
|
3 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
1 |
|
4 |
TS04801010002 |
Brake valve adjusting pull rod subassembly |
1 |
|
5 |
Q617B14 |
Hexagon head screw plug |
1 |
|
6 |
JBT982-14 |
Compound seal washer |
1 |
|
7 |
GBT96.1-8-A0P |
Large washer |
3 |
|
8 |
GBT848-10-A0P |
Small washer |
3 |
|
9 |
GBT91-3.2X16-A0P |
Split pin |
2 |
|
10 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
3 |
|
11 |
GBT93-8-A0P |
Standard spring washer |
5 |
|
12 |
TS04801010004 |
Brake valve installation bracket weldment |
1 |
|
13 |
FT300.80.011 |
Air brake valve assembly |
1 |
|
14 |
GBT97.1-8-A0P |
Plain washer |
2 |
|
15 |
GBT5783-M8X30-8.8-A2L |
Hexagon head bolt |
2 |
93
Lovol TB2SA604-002K Wheeled Tractor

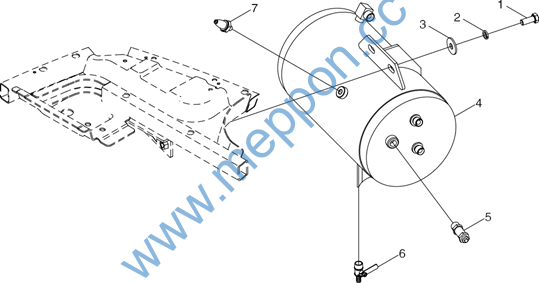

TS04802010000K Gas Holder Installation Assembly
94
Lovol TB2SA604-002K Wheeled Tractor
TS04802010000K Gas Holder Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04802010000K |
Gas holder installation assembly |
1 |
||
1 |
GBT5783-M12X30-8.8-A3L |
Hexagon head bolt |
2 |
|
2 |
GBT93-12-A0P |
Standard spring washer |
2 |
|
3 |
GBT96.1-12-A0P |
Large washer |
2 |
|
4 |
TS04802010001K |
Gas holder weldment |
1 |
|
5 |
FT300.80.034 |
Safety valve assembly |
1 |
|
6 |
FT300.80.033 |
Water drainage valve assembly |
1 |
|
7 |
TC02484060001K |
Air pressure alarm |
1 |
95
Lovol TB2SA604-002K Wheeled Tractor

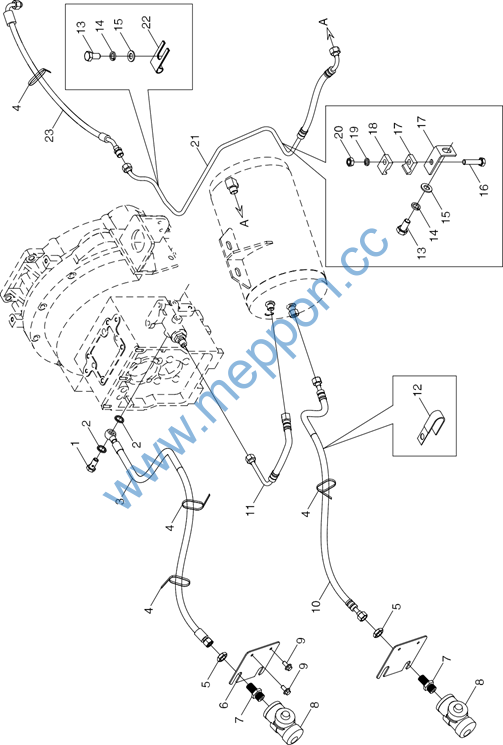

TS04803050000K Air Conveying Pipeline Assembly(001)
96
Lovol TB2SA604-002K Wheeled Tractor
TS04803050000K Air Conveying Pipeline Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04803050000K |
Air Conveying Pipeline Assembly |
1 |
||
1 |
FT65.50.106 |
Hollow Bolt |
1 |
|
2 |
JBT982-14 |
Combined Seal Gasket |
2 |
|
3 |
TS04803010003K |
Air Conveying Pipe Assembly |
1 |
|
4 |
Q67405200 |
Plastic Fastening Strip |
4 |
|
5 |
GBT6173-M18X1.5-05-A3L |
Hexagon Thin Nut |
2 |
|
6 |
TS04803030001K |
Joint Mounting Plate |
1 |
|
7 |
TD800.803D-01 |
Output Joint |
2 |
|
8 |
TD800.803D.1 |
Quick Joint |
2 |
|
9 |
GBT16674.1-M6X12-8.8-A2L |
Hexagon Flange Nut |
2 |
|
10 |
TS04803010005K |
Air Conveying Pipe Assembly |
1 |
|
11 |
TS04803010006 |
Brake Valve Inlet Pipe Assembly |
1 |
|
12 |
TD800.803-07 |
Tighten Clip |
1 |
|
13 |
GBT5783-M10X20-8.8-A3L |
Hexagon Bolt |
2 |
|
14 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
15 |
GBT97.1-10-A3L |
Flat Washer |
2 |
|
16 |
GBT5783-M8X35-8.8-A2L |
Hexagon Bolt |
1 |
|
17 |
TS04803010007 |
Pipe Clamp Bracket |
1 |
|
18 |
TB454.40X-01 |
Single Hole Pipe Clamp |
2 |
|
19 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
20 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
21 |
TS04803010004 |
Air Reservoir Inlet pipe Assembly |
1 |
|
22 |
TE350.80A-01 |
Pipe Clamp |
1 |
|
23 |
TS04803020001K |
Air Compressor Outlet Pipe Assembly |
1 |
97
Lovol TB2SA604-002K Wheeled Tractor

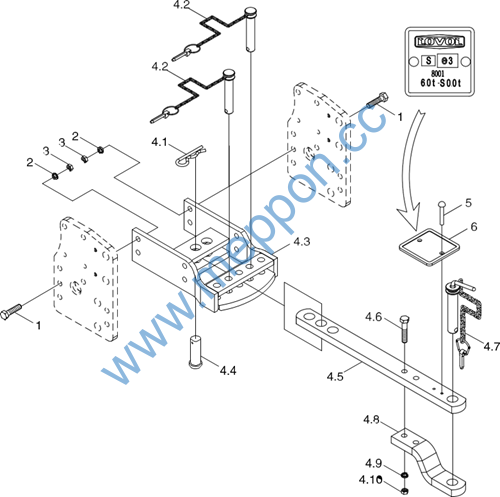

TB400.35C Towing Mechanism Installation Assembly(002)
98
Lovol TB2SA604-002K Wheeled Tractor
TB400.35C Towing Mechanism Installation Assembly(002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.35C |
Towing Mechanism Installation Assembly |
1 |
||
1 |
GBT5783-M16X60-8.8-A3L |
Hexagon Bolt |
8 |
|
2 |
GBT93-16-A0P |
Standard Spring Washer |
8 |
|
3 |
GBT6170-M16-8-A3L |
Hexagon Nut, Type-1 |
8 |
|
4 |
TB400.35C.1 |
Traction Device Assembly |
1 |
|
4.1 |
FT65.35.103 |
Spring Lock Pin |
1 |
|
4.2 |
TB400.35.1.1 |
Limiting Pin And Lock Pin Assembly |
2 |
|
4.3 |
TB400.35C.1.1 |
Towing Bracket Weldment |
1 |
|
4.4 |
FT300.35A.103 |
Connecting Pin |
1 |
|
4.5 |
TB400.35C.1-01 |
Swing Rod |
1 |
|
4.6 |
TB400.35.1-03 |
Bolt M16X75 |
6 |
|
4.7 |
TB400.35.1.2 |
Towing Pin And Lock Pin Assembly |
1 |
|
4.8 |
TB400.35.1-02 |
Connecting Swing Rod |
1 |
|
4.9 |
GBT93-16-A0P |
Standard Spring Washer |
2 |
|
4.10 |
GBT6170-M16-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
5 |
GBT827-3X8-A0P |
Label Rivet |
2 |
|
6 |
TB400.35-01 |
Towing Sign Plate |
1 |
99
Lovol TB2SA604-002K Wheeled Tractor

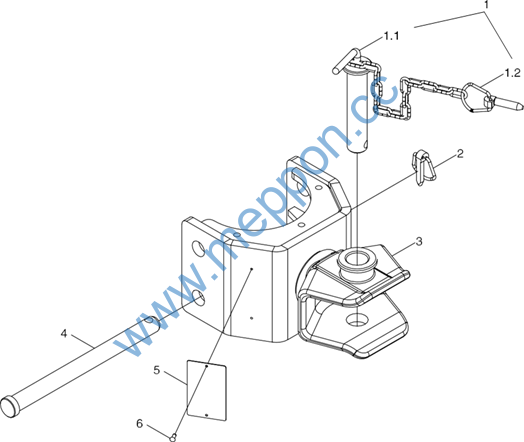

TC02530010000K Up-down Adjustable Traction Connector
100
Lovol TB2SA604-002K Wheeled Tractor
TC02530010000K Up-down Adjustable Traction Connector
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02530010000K |
Up-down adjustable traction connector |
1 |
||
1 |
TA700.53C.1.3 |
Trailer pin and lock pin assembly |
2 |
|
1.1 |
TA700.53C.1.3.1 |
Trailer pin weldment |
1 |
|
1.2 |
TD800.35A.1.1.1 |
Lock pin and chain assembly |
1 |
|
2 |
FT300.56.029 |
Lock pin assembly |
1 |
|
3 |
TB400.53B.1 |
Trailing device assembly weldment |
1 |
|
4 |
FT300.53.101a |
Connecting pin |
2 |
|
5 |
TC02530010001K |
Trailing identification label |
2 |
|
6 |
GBT827-3X8-A0P |
Label rivet |
1 |
101
Lovol TB2SA604-002K Wheeled Tractor

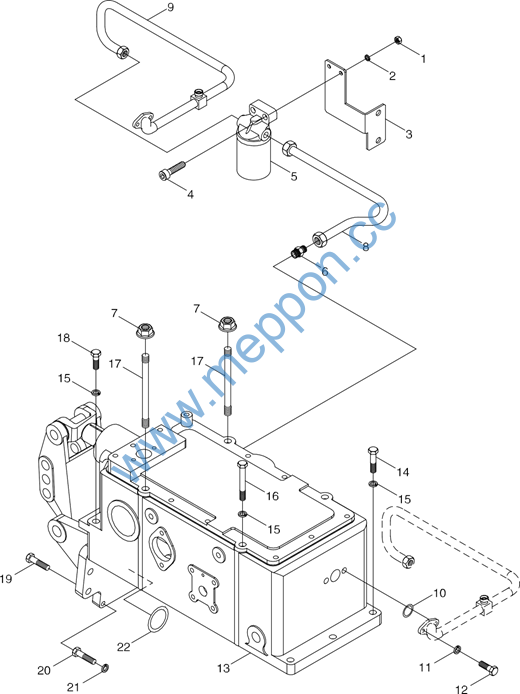

TC02551230000K Lifter Installation Assembly-1(003)
102
