LOVOL TB2SA604-002K Tractor Parts Catalogue 08
Lovol TB2SA604-002K Wheeled Tractor
TS04402070000K Fully Hydraulic Steering Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04402070000K |
Fully Hydraulic Steering Assembly |
1 |
||
1 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
2 |
|
2 |
GBT93-10-A3L |
Standard Spring Washer |
2 |
|
3 |
GBT97.1-10-A3L |
Flat Washer |
2 |
|
4 |
TS04402010019 |
Steering Oil Tank and Breather Assembly |
1 |
|
5 |
Q67632 |
B-Type Worm Transmission Hose Clamp |
5 |
|
6 |
TC04402010006 |
Gear Pump Oil Inlet Rubber Pipe |
1 |
|
7 |
TS04402010006 |
Oil Return Rubber Hose |
1 |
|
8 |
TS04402010007 |
Oil Return Steel Pipe |
1 |
|
9 |
TC02402290001K |
Redirector Oil Return Pipe Assembly |
1 |
|
10 |
TC04402080012 |
End Straight Thread Connector Body L16 |
1 |
|
11 |
GBT5783-M8X40-8.8-A2L |
Hexagon Bolt |
2 |
|
12 |
TG1204.402-01 |
Single Hole Pipe Clamp |
2 |
|
13 |
TS04402010012 |
Pipe Clamp Bracket 2 |
1 |
|
14 |
GBT5783-M10X25-8.8-A3L |
Hexagon Bolt |
2 |
|
15 |
TS04402010011 |
Steering Oil Tank Bracket |
1 |
|
16 |
TC04402010003 |
Gear Pump Oil Suction Steel Pipe Weldment |
1 |
|
17 |
GBT3452.1-17.0X2.65G |
Rubber O-Seal Ring |
1 |
|
18 |
GBT93-8-A3L |
Standard Spring Washer |
9 |
|
19 |
GBT5783-M8X30-8.8-A2L |
Hexagon Bolt |
3 |
|
20 |
GBT70.1-M8X30-8.8 |
Inner Hexagon Screw |
2 |
|
21 |
GBT70.1-M8X65-8.8 |
Inner Hexagon Screw |
2 |
|
22 |
TC02402350001K |
Permanent Overflow Pump |
1 |
|
23 |
TC04400020003 |
Adjustable Joint |
1 |
|
24 |
TC04402010005 |
Oil Outlet Pipe Assembly Of Gear Pump |
1 |
|
25 |
TC04402010007 |
High Pressure Hose Assembly |
1 |
|
26 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
27 |
TC04402010017 |
Oil Pipe Clip and Rubber Pad Subassembly 16-12 |
4 |
|
28 |
GE20D18.24.93.5 |
End Straight Thread Connector Body |
2 |
|
29 |
GBT5783-M8X35-8.8-A2L |
Hexagon Bolt |
1 |
79
Lovol TB2SA604-002K Wheeled Tractor

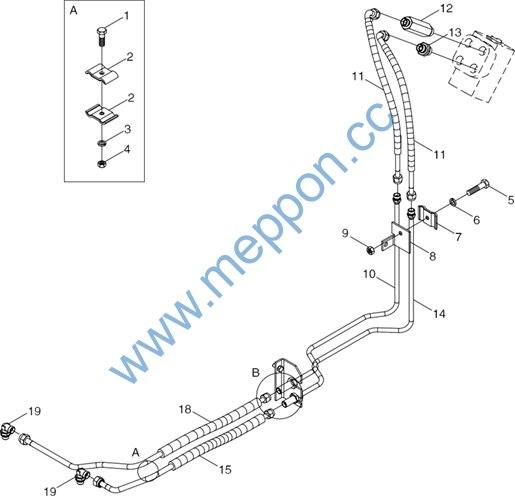

TS04402070000K Fully Hydraulic Steering Assembly-2
80
Lovol TB2SA604-002K Wheeled Tractor
TS04402070000K Fully Hydraulic Steering Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04402070000K |
Fully Hydraulic Steering Assembly |
1 |
||
1 |
GBT5783-M8X25-8.8-A2L |
Hexagon Bolt |
1 |
|
2 |
TC02402200018K |
Oil Pipe Clamp |
2 |
|
3 |
GBT93-8-A3L |
Standard Spring Washer |
2 |
|
4 |
GBT6170-M8-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
5 |
GBT5783-M6X25-8.8-A2L |
Hexagon Bolt |
1 |
|
6 |
GBT93-6-A3L |
Standard Spring Washer |
1 |
|
7 |
TC04402010023 |
Oil Pipe Clip and Rubber Pad Subassembly 10-10/40 |
1 |
|
8 |
TS04402070002K |
Bracket |
1 |
|
9 |
GBT6170-M6-8-A2L |
Hexagon Nut, Type-1 |
1 |
|
10 |
TC04402010009 |
Left Steering Steel Pipe |
1 |
|
11 |
TC04402010008 |
Left and Right Steering Rubber Pipe Assembly |
2 |
|
12 |
TC04402080010 |
End Straight Thread Connector Body L12 |
1 |
|
13 |
GBT3763-M16X1.5 |
Nut |
2 |
|
14 |
TC04402010013 |
Right Steering Steel Pipe |
1 |
|
15 |
TC02402200001 |
Right Steering Oil Pipe Assembly |
1 |
|
16 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
1 |
|
17 |
TS04402070001K |
Oil Pipe Bracket |
1 |
|
18 |
TC02402200002 |
Left Steering Oil Pipe Assembly |
1 |
|
19 |
GL06701050023 |
24° cone connector – straight thread elbow L12 |
2 |
81
Lovol TB2SA604-002K Wheeled Tractor

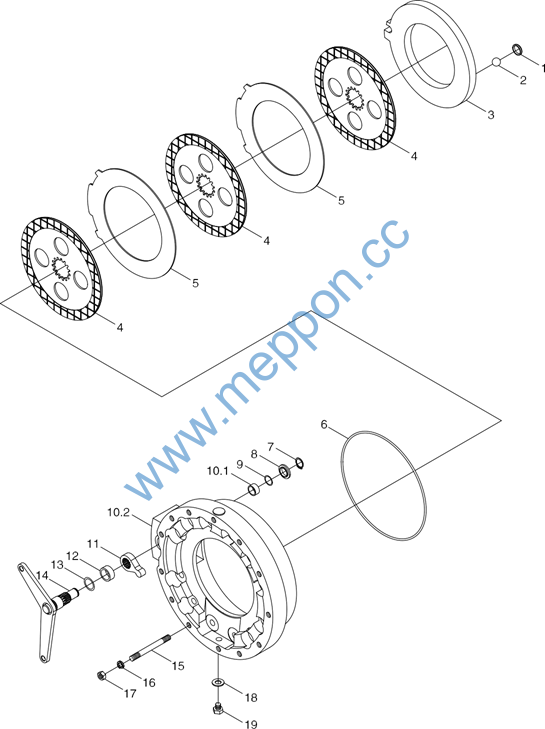

TB704.431 Left Brake Assembly
82
Lovol TB2SA604-002K Wheeled Tractor
TB704.431 Left Brake Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB704.431 |
Left brake assembly |
1 |
||
1 |
FT300.43.102 |
Plug piece |
6 |
|
2 |
GBT308-18.000-G100-b |
Steel ball |
6 |
|
3 |
TB550.431-01 |
Left brake platen |
1 |
|
4 |
TB550.431.3 |
Brake friction disc assembly |
3 |
|
5 |
FT300.43.105 |
Spacing plate |
2 |
|
6 |
FT300.43.101 |
O-ring |
1 |
|
7 |
GBT894.1-18 |
Circlip for shaft |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GBT3452.1-18.0X2.65G |
O-ring |
1 |
|
10 |
TB550.431.1 |
Left brake housing assembly |
1 |
|
10.1 |
TB550.431.1-02 |
Crankshaft lining |
1 |
|
10.2 |
TB550.431.1-01 |
Left brake housing |
1 |
|
11 |
TB550.431-02 |
Shift block |
1 |
|
12 |
FT300.43.107 |
Spacing sleeve |
1 |
|
13 |
GBT3452.1-20.0X2.65G |
O-ring |
1 |
|
14 |
TB704.431.1 |
Left crank unit |
1 |
|
15 |
GBT898-AM12-M12X1.25X80-10.9-A2L |
Stud |
13 |
|
16 |
GBT93-12 |
Washer |
13 |
|
17 |
GBT6171-M12X1.25-10-A3L |
Nut |
13 |
|
18 |
FT300.43.153 |
Final transmission oil drainage port washer |
1 |
|
19 |
FT300.43.154 |
Screw plug |
1 |
83
Lovol TB2SA604-002K Wheeled Tractor

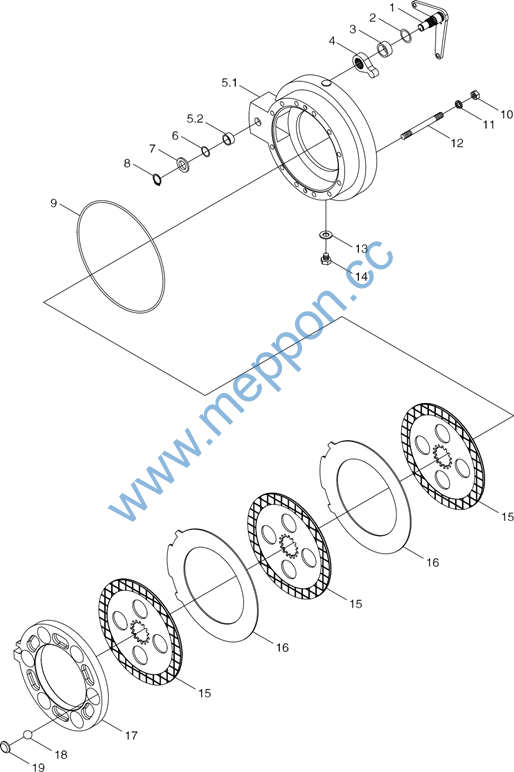

TB704.432 Right Brake Assembly
84
Lovol TB2SA604-002K Wheeled Tractor
TB704.432 Right Brake Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB704.432 |
Right brake assembly |
1 |
||
1 |
TB704.432.1 |
Right crank unit |
1 |
|
2 |
GBT3452.1-20.0X2.65G |
O-ring |
1 |
|
3 |
FT300.43.107 |
Spacing sleeve |
1 |
|
4 |
TB550.431-02 |
Shift block |
1 |
|
5 |
TB550.432.1 |
Right brake housing assembly |
1 |
|
5.1 |
TB550.432.1-01 |
Right brake housing |
1 |
|
5.2 |
TB550.431.1-02 |
Crank shaft bushing |
1 |
|
6 |
GBT3452.1-18.0X2.65G |
O-ring |
1 |
|
7 |
FT300.43.109a |
Washer |
1 |
|
8 |
GBT894.1-18 |
Circlip for shaft |
1 |
|
9 |
FT300.43.101 |
O-ring |
1 |
|
10 |
GBT6171-M12X1.25-10-A3L |
Nut |
13 |
|
11 |
GBT93-12 |
Washer |
13 |
|
12 |
GBT899-AM12-M12X1.25X80-10.9-A2L |
Stud |
13 |
|
13 |
FT300.43.153 |
Final transmission oil drainage port washer |
1 |
|
14 |
FT300.43.154 |
Screw plug |
1 |
|
15 |
TB550.431.3 |
Brake friction disc assembly |
3 |
|
16 |
FT300.43.105 |
Spacing plate |
2 |
|
17 |
TB550.432-01 |
Right brake platen |
1 |
|
18 |
GBT308-18.000-G100-b |
Steel ball |
6 |
|
19 |
FT300.43.102 |
Plug piece |
6 |
85
Lovol TB2SA604-002K Wheeled Tractor

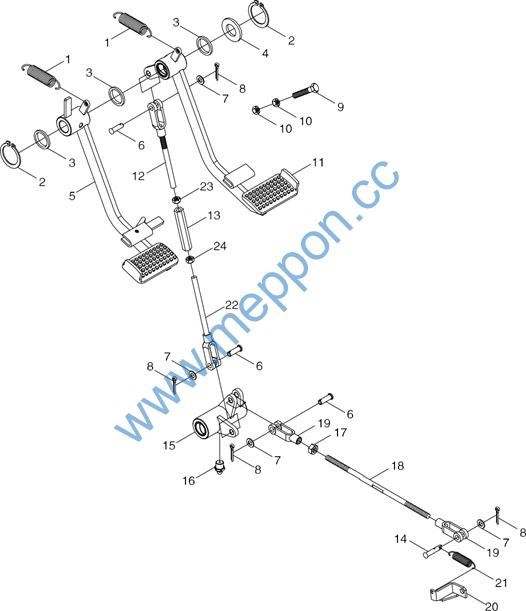

TS04433010000 Braking System Control Mechanism Assembly-1
86
Lovol TB2SA604-002K Wheeled Tractor
TS04433010000 Braking System Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04433010000 |
Brake System Control Assembly |
1 |
||
1 |
TE250.212D-05 |
Clutch Pedal Return Spring |
2 |
|
2 |
GBT894.1-25 |
Circlip For Shaft |
2 |
|
3 |
GBT97.1-24-A3L |
Flat Washer |
1 |
|
4 |
TE250.433C-02 |
Washer |
7 |
|
5 |
TS04433010025 |
Left Brake Pedal Unit |
1 |
|
6 |
GBT882-B10X30-A3L |
Pin Shaft |
2 |
|
7 |
GBT97.1-10-A3L |
Flat Washer |
4 |
|
8 |
GBT91-3.2X22-A3L |
Split Pin |
4 |
|
9 |
GBT5783-M10X45-8.8-A3L |
Hexagon Bolt |
2 |
|
10 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
4 |
|
11 |
TS04433010028 |
Right Brake Pedal Unit |
1 |
|
12 |
TB604.212A.5 |
Upper Pull Rod Weldment |
1 |
|
13 |
TE354.433-03 |
Connecting Rod |
1 |
|
14 |
TB704.433-04 |
Connecting Pin |
1 |
|
15 |
TB604.433E.5 |
Rocker Unit Hub |
1 |
|
16 |
JBT7940.1-M8X1 |
Straight Forced Filling Oil Cup |
3 |
|
17 |
GBT6170-M10-LH-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
18 |
TB604.433E-03 |
Lower Pull Rod |
1 |
|
19 |
TA700.431A-01 |
Dextrorotation Long Hole Connect Fork |
2 |
|
20 |
TB704.433.5 |
Right Return Spring Connecting Plate Weldment |
1 |
|
21 |
TB504.433-09 |
Return Spring |
1 |
|
22 |
TB604.433E.10 |
Brake Lower Pull Rod Weldment |
1 |
|
23 |
GBT6171-M12X1.5-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
24 |
GBT6171-M12X1.5-LH-8-A3L |
Hexagon Nut, Type-1 |
1 |
87
Lovol TB2SA604-002K Wheeled Tractor

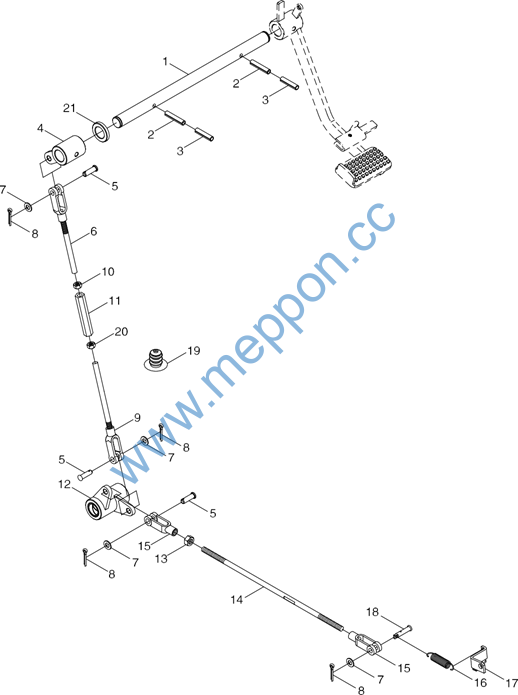

TS04433010000 Braking System Control Mechanism Assembly-2
88
Lovol TB2SA604-002K Wheeled Tractor
TS04433010000 Braking System Control Mechanism Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04433010000 |
Brake System Control Assembly |
1 |
||
1 |
TB604.433E-01 |
Support Shaft |
1 |
|
2 |
GBT879.1-5X40 |
Spring Column Pin |
2 |
|
3 |
GBT879.1-8X40 |
Spring Column Pin |
2 |
|
4 |
TB604.433E.3 |
Left Draw Arm Weldment |
1 |
|
5 |
GBT882-B10X30-A3L |
Pin Shaft |
5 |
|
6 |
TB604.212A.5 |
Upper Pull Rod Weldment |
1 |
|
7 |
GBT97.1-10-A3L |
Flat Washer |
5 |
|
8 |
GBT91-3.2X22-A3L |
Split Pin |
6 |
|
9 |
TB604.433E.10 |
Brake Lower Pull Rod Weldment |
1 |
|
10 |
GBT6171-M12X1.5-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
11 |
TE354.433-03 |
Connecting Rod |
1 |
|
12 |
TB604.433E.4 |
Rocker Unit Hub |
1 |
|
13 |
GBT6170-M10-LH-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
14 |
TB604.433E-03 |
Lower Pull Rod |
1 |
|
15 |
FT300.43.110 |
Pull Rod Rear Fork |
2 |
|
16 |
TB504.433-09 |
Return Spring |
1 |
|
17 |
TB704.433.6 |
Left Return Spring Connecting Plate Weldment |
1 |
|
18 |
TB704.433-04 |
Connecting Pin |
1 |
|
19 |
TB604.433E-06 |
Dustproof Sleeve |
2 |
|
20 |
GBT6171-M12X1.5-LH-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
21 |
TS04433010011 |
Brake Rocker Arm Spacing Sleeve |
1 |
89
Lovol TB2SA604-002K Wheeled Tractor

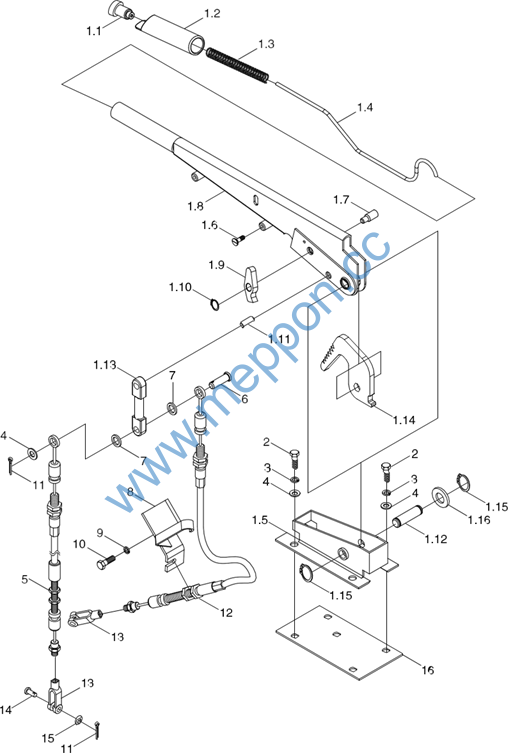

TS04433010000 Braking System Control Mechanism Assembly-3
90
