LOVOL TB2SA604-002K Tractor Parts Catalogue 07
Lovol TB2SA604-002K Wheeled Tractor
TS04423010000 Transfer Case Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04423010000 |
Transfer case control assembly |
1 |
||
1 |
GBT879.1-5X32 |
Elastic cylindrical pin |
1 |
|
2 |
GBT879.1-8X32 |
Elastic cylindrical pin |
1 |
|
3 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
4 |
GBT882-B10X30-A0P |
Pin shaft |
2 |
|
5 |
FT300.43.108 |
Pull rod front fork |
2 |
|
6 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
|
7 |
TS04423010004 |
Pull rod |
1 |
|
8 |
GBT97.1-10-A0P |
Plain washer |
2 |
|
9 |
GBT91-3.2X16-A0P |
Cotter pin |
2 |
|
10 |
TS04423010003 |
Support seat press |
1 |
|
11 |
TS04423010001 |
Transfer case control handle |
1 |
|
12 |
GBT894.1-22 |
Circlip for shaft |
2 |
|
13 |
TS04423010002 |
Control rotary shaft weldment |
1 |
|
14 |
GBT823-M6X12-4.8-A2L |
Cross recessed small pan head screw |
2 |
|
15 |
TS04423010013 |
Press plate |
1 |
|
16 |
TS04423010012 |
Seal gasket |
1 |
|
17 |
GBT93-8-A0P |
Standard spring washer |
4 |
|
18 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
4 |
|
19 |
TS04423010005 |
Rocker arm weldment |
1 |
67
Lovol TB2SA604-002K Wheeled Tractor

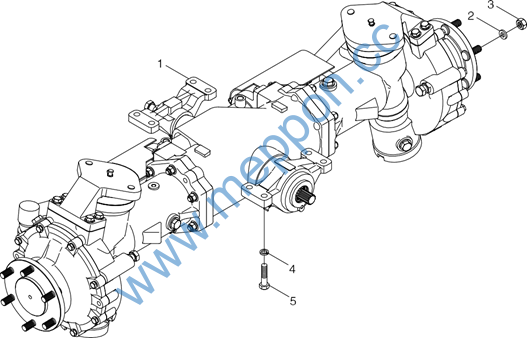

TC02311210000 Front Driving Axle Assembly(001)
68
Lovol TB2SA604-002K Wheeled Tractor
TC02311210000 Front Driving Axle Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311210000 |
Front Driving Axle Assembly |
1 |
||
1 |
TC02311210001 |
Front Driving Axle Sub-Assembly |
1 |
|
2 |
FT400.31B.103 |
Washer |
12 |
|
3 |
GBT6176-M14X1.5-10-A3L |
Hexagon Nut, Type-2 |
12 |
|
4 |
GBT93-14-A0P |
Standard Spring Washer |
8 |
|
5 |
GBT5783-M14X45-10.9-A3L |
Hexagon Bolt |
8 |
69
Lovol TB2SA604-002K Wheeled Tractor

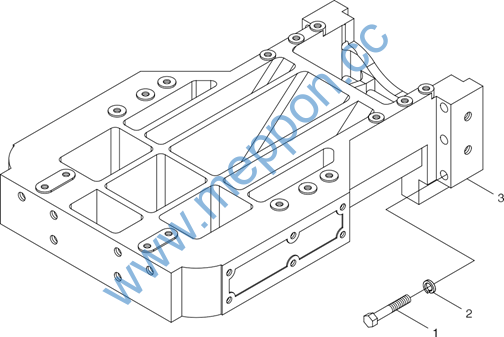

TB554.312 Front Bracket Assembly(005)
70
Lovol TB2SA604-002K Wheeled Tractor
TB554.312 Front Bracket Assembly(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.312 |
Front bracket assembly |
1 |
||
1 |
TC02312010002 |
Hex bolt M16X105-10.9-A2L |
6 |
|
2 |
TB604.312-04 |
Washer |
6 |
|
3 |
TB554.312-01 |
Front bracket |
1 |
71
Lovol TB2SA604-002K Wheeled Tractor

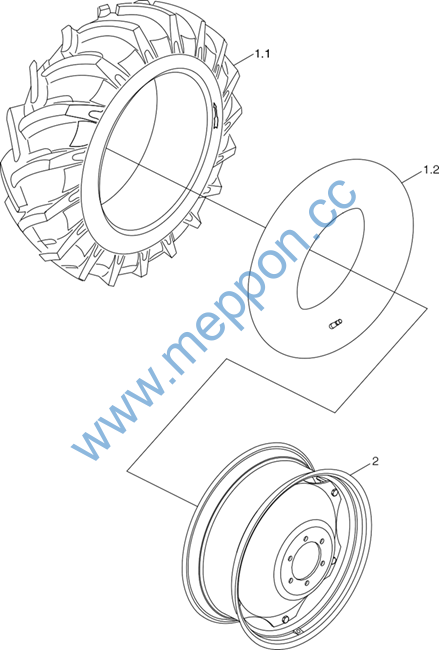

FT404.32F.001 Front Drive Wheel Assembly(005)
72
Lovol TB2SA604-002K Wheeled Tractor
FT404.32F.001 Front Drive Wheel Assembly(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT404.32F.001 |
Front drive wheel assembly |
1 |
||
1 |
TB704.32B.2 |
Inner tube/tyre assembly 8.3-20 |
1 |
|
1.1 |
GBT2979-8.3-20-6PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2 |
GBT2979-8.3-20-R |
Inner tube of tractor drive wheel |
1 |
|
2 |
FT404.32F.011 |
Rim welding |
1 |
73
Lovol TB2SA604-002K Wheeled Tractor

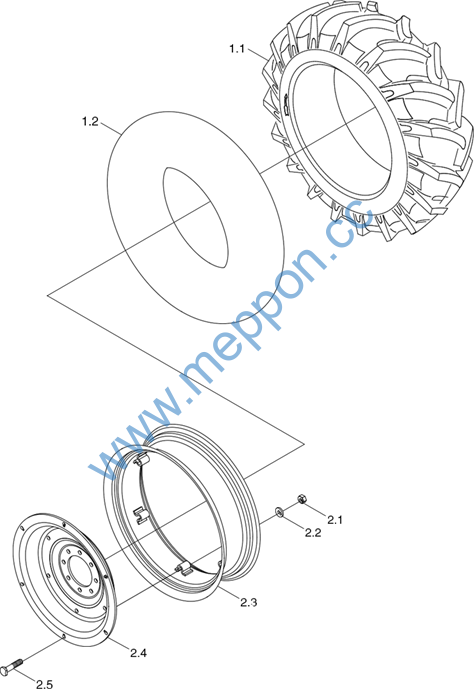

FT550.34F.001 Rear Driving Wheel Assembly (005)
74
Lovol TB2SA604-002K Wheeled Tractor
FT550.34F.001 Rear Driving Wheel Assembly (005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT550.34F.001 |
Rear Driving Wheel Assembly |
1 |
||
1 |
TB604.34A.1.2 |
Tires Assembly |
1 |
|
1.1 |
GBT2979-14.9-28-6PR-R |
Driving Wheel Outer Tube |
1 |
|
1.2 |
GBT2979-14.9-28-R |
Driving Wheel Inner Tube |
1 |
|
2 |
FT550.34F.011 |
Rim Spoke Assembly |
1 |
|
2.1 |
GBT6171-M16X1.5-10-A3L |
Nut |
6 |
|
2.2 |
FT654.32.104 |
Washer |
6 |
|
2.3 |
FT550.34F.012 |
Rim Weldment |
1 |
|
2.4 |
FT550.34.105b |
Spoke |
1 |
|
2.5 |
FT650.34.107 |
Rim Bolt |
6 |
75
Lovol TB2SA604-002K Wheeled Tractor

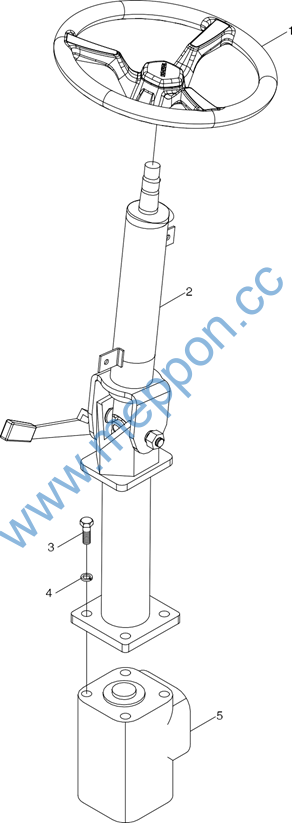

TC04401080000 Steering Gear and Steering Column Assembly
76
Lovol TB2SA604-002K Wheeled Tractor
TC04401080000 Steering Gear and Steering Column Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC04401080000 |
Steering gear and steering column assembly |
1 |
||
1 |
TS04401010001 |
Steering wheel assembly |
1 |
|
2 |
TS04401010002 |
Steering column assembly |
1 |
|
3 |
GBT5783-M10X30-8.8-A3L |
Hexagon head bolt |
4 |
|
4 |
GBT93-10-A0P |
Standard spring washer |
4 |
|
5 |
TC04400010009 |
Hydraulic steering gear assembly |
1 |
77
Lovol TB2SA604-002K Wheeled Tractor

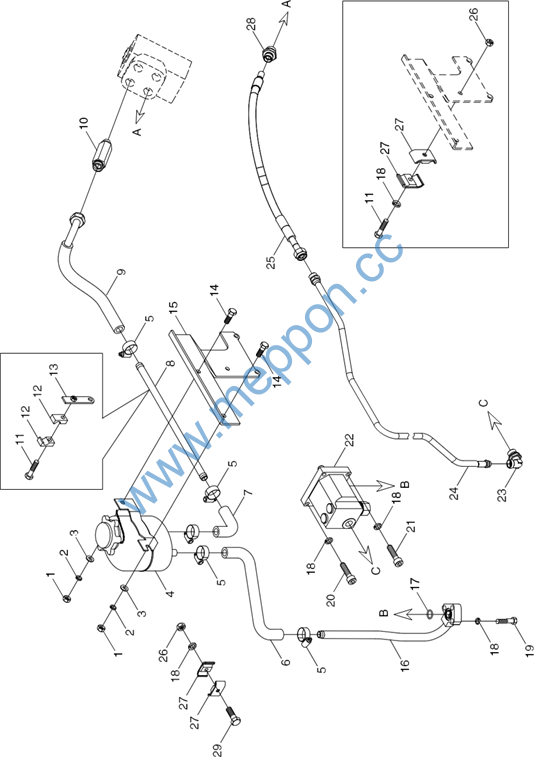

TS04402070000K Fully Hydraulic Steering Assembly-1
