LOVOL TB2SA604-002K Tractor Parts Catalogue 06
Lovol TB2SA604-002K Wheeled Tractor
TC02411020000K PTO Gear Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02411020000K |
PTO gear assembly |
1 |
||
1 |
GBT894.1-40 |
Circlip for shaft |
2 |
|
2 |
GBT276-6208 |
Deep-grooved ball bearing |
1 |
|
3 |
TB550.411A-01 |
PTO high-speed driving gear |
1 |
|
4 |
GBT5782-M12X55-8.8-A3L |
Hexagon head bolt |
4 |
|
5 |
TC02411010001K |
PTO protection shield weldment |
1 |
|
6 |
GBT276-6308N |
Deep-grooved ball bearing |
1 |
|
7 |
GBT305-90-96.5 |
Thrust ring |
1 |
|
8 |
GBT812-M25X1.5 |
Round nut |
2 |
|
9 |
GBT858-25 |
Stop washer for round nut |
1 |
|
10 |
FT300.41.122 |
Washer |
1 |
|
11 |
GBT276-6306 |
Deep-grooved ball bearing |
1 |
|
12 |
FT300.41C.118 |
PTO front circlip |
1 |
|
13 |
TB550.411A-02 |
PTO high-speed driven gear |
1 |
|
14 |
JBT7918-K35X40X27 |
Radial roller needle and retainer subassembly |
1 |
|
15 |
FT300.41C.117 |
PTO joggle seat |
1 |
|
16 |
FT300.41C.116 |
PTO joggle sleeve |
1 |
|
17 |
TB550.411-03 |
PTO low-speed driven gear |
1 |
|
18 |
TB550.411-04 |
Needle bearingKK40X46X34 |
1 |
|
19 |
FT300.41E.114 |
Rear circlip |
1 |
|
20 |
FT300.41E.119 |
Thrust ring |
1 |
|
21 |
GBT276-6309 |
Deep-grooved ball bearing |
1 |
|
22 |
FT300.41E.113 |
PTO shaft bearing washer |
1 |
|
23 |
GBT9877.1-FB50X72X8D |
Rubber covered rotary shaft lip seal |
2 |
|
24 |
GBT5783-M12X25-8.8-A3L |
Hexagon head bolt |
4 |
|
25 |
FT300.41E.115 |
Oil seal circlip |
1 |
|
26 |
FT300.41E.101 |
Rear end cover I |
1 |
|
27 |
GBT93-12 |
Standard spring washer |
8 |
55
Lovol TB2SA604-002K Wheeled Tractor

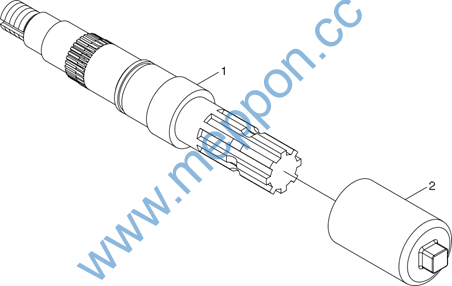

TB550.412A PTO Shaft Assembly(004)
56
Lovol TB2SA604-002K Wheeled Tractor
TB550.412A PTO Shaft Assembly(004)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.412A |
PTO shaft assembly |
1 |
||
1 |
TB550.412A-01 |
Type I35 PTO shaft |
1 |
|
2 |
TB550.412-02 |
PTO shaft head shield |
1 |
57
Lovol TB2SA604-002K Wheeled Tractor

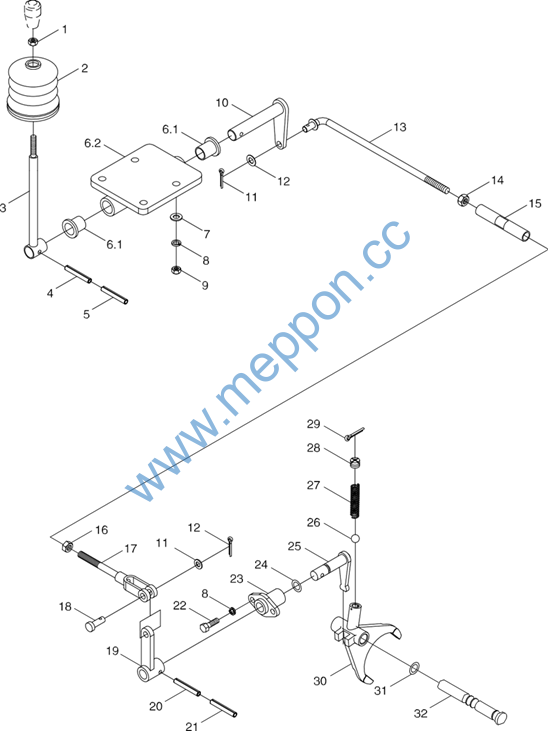

TS04413010000 PTO Control Assembly
58
Lovol TB2SA604-002K Wheeled Tractor
TS04413010000 PTO Control Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04413010000 |
PTO control assembly |
1 |
||
1 |
GBT6170-M10-8-A3L |
Hexagon nut, style 1 |
1 |
|
2 |
TB704.413A-02 |
Dustproof ring |
1 |
|
3 |
TB504.413A.2 |
PTO control lever weldment |
1 |
|
4 |
GBT879.1-6X32 |
Spring-type straight pin |
1 |
|
5 |
GBT879.1-3.5X32 |
Spring-type straight pin |
1 |
|
6 |
TS04413010003 |
Support seat press |
1 |
|
6.1 |
TB480.413A.1-01 |
Nylon bush |
2 |
|
6.2 |
TB704.413A.3.1 |
Support seat weldment |
1 |
|
7 |
GBT97.1-8-A0P |
Plain washer |
4 |
|
8 |
GBT93-8-A0P |
Standard spring washer |
6 |
|
9 |
GBT6170-M8-8-A2L |
Hexagon nut, style 1 |
4 |
|
10 |
TS04413010004 |
Control rocker arm weldment |
1 |
|
11 |
GBT91-3.2X16-A0P |
Split pin |
2 |
|
12 |
GBT97.1-10-A0P |
Plain washer |
2 |
|
13 |
TS04413010005 |
Intermediate drawbar |
1 |
|
14 |
GBT6171-M10X1-LH-8-A2L |
Hexagon nut, style 1 |
1 |
|
15 |
FT800A.21.353 |
Countershaft |
1 |
|
16 |
GBT6171-M10X1-8-A2L |
Hexagon nut, style 1 |
1 |
|
17 |
TB504.413A.5 |
Short pull rod weldment |
1 |
|
18 |
GBT882-B10X30 |
Pin shaft |
1 |
|
19 |
TB480.413.2 |
Rocker arm weldment |
1 |
|
20 |
GBT879.1-6X26 |
Spring-type straight pin |
1 |
|
21 |
GBT879.1-3.5X26 |
Spring-type straight pin |
1 |
|
22 |
GBT5783-M8X20-8.8-A2L |
Hexagon head bolt |
2 |
|
23 |
FT300.41E.109 |
Dial lever bush |
1 |
|
24 |
GBT3452.1-16.0X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
25 |
TB550.413-04 |
Finger-shaped dial lever |
1 |
|
26 |
GBT308-9.5-G100-b |
Steel ball |
1 |
|
27 |
FT704.42B.163 |
Shift fork shaft locating spring |
1 |
|
28 |
TB550.413-03 |
Screw |
1 |
|
29 |
GBT91-2.5X32-A0P |
Split pin |
1 |
|
30 |
TB550.413-01a |
PTO control shift fork |
1 |
|
31 |
GBT3452.1-11.2X2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
32 |
FT300.41C.107a |
PTO shift fork shaft |
1 |
59
Lovol TB2SA604-002K Wheeled Tractor

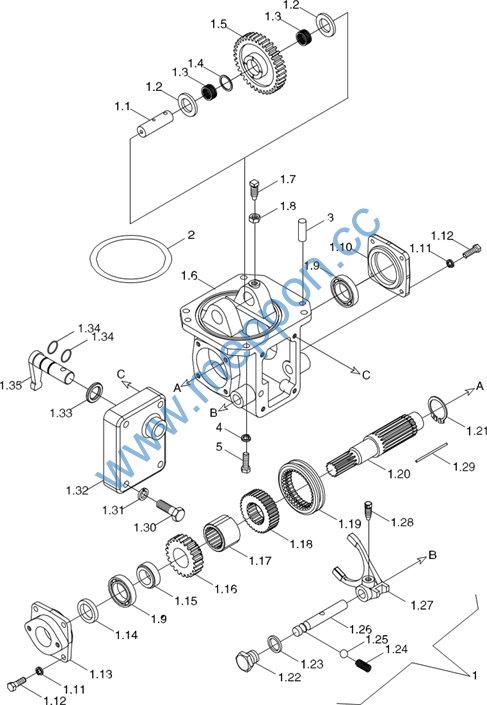

TB554.421B Transfer Case Housing Assembly(006)
60
Lovol TB2SA604-002K Wheeled Tractor
TB554.421B Transfer Case Housing Assembly(006)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.421B |
Transfer Case Housing Assembly |
1 |
||
1 |
TB554.421B.1 |
Transfer Case Body Assembly |
1 |
|
1.1 |
TB554.421B.1-05 |
Idler Shaft |
1 |
|
1.2 |
FT304.42F.103 |
Thrust Ring |
2 |
|
1.3 |
JBT7918-K25X31X20 |
Needle And Carrier Combination |
2 |
|
1.4 |
FT304.42.126 |
Needle Inner Spacer Sleeve |
1 |
|
1.5 |
TB554.421B.1-01 |
Transfer Case Idler |
1 |
|
1.6 |
TB554.421B.1-03 |
Transfer Case Housing |
1 |
|
1.7 |
FT304.42.112 |
Thrust Screw |
1 |
|
1.8 |
GBT6173-M10X1-05-A2L |
Hexagon Thin Nut |
1 |
|
1.9 |
GBT276-6306 |
Deep Groove Ball Bearing |
2 |
|
1.10 |
FT304.42.117 |
Bearing Cover |
1 |
|
1.11 |
GBT93-8-A0P |
Standard Spring Washer |
8 |
|
1.12 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
8 |
|
1.13 |
FT304.42F.106 |
Bearing Seat |
1 |
|
1.14 |
GBT9877.1-FB30X52X7D |
Seal Ring |
1 |
|
1.15 |
FT804.42.119a |
Spacer Bush |
1 |
|
1.16 |
TB554.421B.1-02 |
Transfer Case Driven Gear |
1 |
|
1.17 |
TB554.421B.1-06 |
Gear Bush |
1 |
|
1.18 |
FT804.42.115 |
Mesh Gear Seat |
1 |
|
1.19 |
TB504.421.1-04 |
Shift Collar |
1 |
|
1.20 |
TB554.421B.1-04 |
Transfer Case Gear Shaft |
1 |
|
1.21 |
GBT894.1-38 |
Circlip For Shaft |
1 |
|
1.22 |
FT804.42.110 |
Screw Plug |
2 |
|
1.23 |
JBT982-18 |
Combined Seal Gasket |
2 |
|
1.24 |
FT800.37.139 |
Spring |
1 |
|
1.25 |
GBT308-10-G100-b |
Steel Ball |
1 |
|
1.26 |
TB554.421B.1-08 |
Fork Shaft |
1 |
|
1.27 |
TB554.421B.1-07 |
Release Fork |
1 |
|
1.28 |
FT800.37.194 |
Locking Screw |
1 |
|
1.29 |
TA800.212B-02 |
Low Carton Steel Wire Sz-1.4 |
1 |
|
1.30 |
GBT5782-M10X45-8.8-A3L |
Hexagon Bolt |
4 |
61
Lovol TB2SA604-002K Wheeled Tractor
TB554.421B Transfer Case Housing Assembly(006)(extension)
62
Lovol TB2SA604-002K Wheeled Tractor
TB554.421B Transfer Case Housing Assembly(006)(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1.31 |
GBT93-10-A0P |
Standard Spring Washer |
4 |
|
1.32 |
TB554.423B-01 |
Side Cover |
1 |
|
1.33 |
TB554.423B-02 |
Rotary Shaft Spacer Bush |
1 |
|
1.34 |
GBT3452.1-17.0X1.80G |
Rubber O-Seal Ring |
2 |
|
1.35 |
TB554.423B.1 |
Rotary Shaft Weldment |
1 |
|
2 |
GBT3452.1-132X3.55G |
Rubber O-Seal Ring |
1 |
|
3 |
GBT119.1-10m6X20-A0P |
Column Pin |
2 |
|
4 |
GBT93-10 |
Standard Spring Washer |
4 |
|
5 |
GBT5783-M10X30-8.8-A3L |
Hexagon Bolt |
4 |
63
Lovol TB2SA604-002K Wheeled Tractor

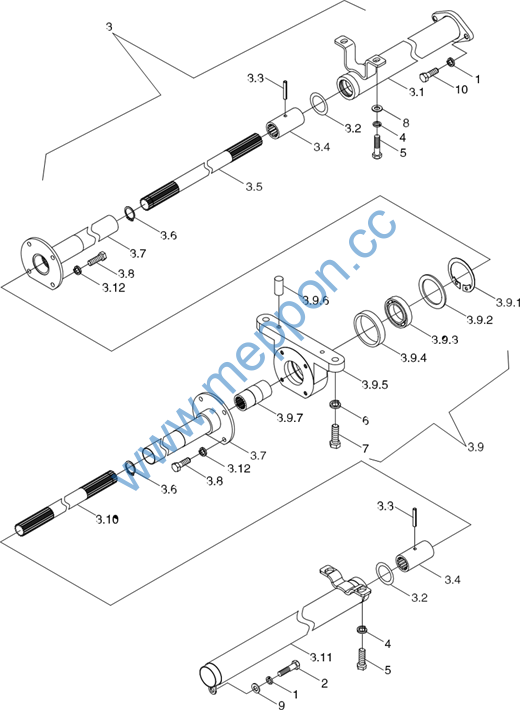

TB554.422 Transfer Case Transmission Assembly(005)
64
Lovol TB2SA604-002K Wheeled Tractor
TB554.422 Transfer Case Transmission Assembly(005)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.422 |
Transfer Case Transmission Assembly |
1 |
||
1 |
GBT93-8-A3L |
Standard Spring Washer |
3 |
|
2 |
GBT5783-M8X16-8.8-A2L |
Hexagon Bolt |
1 |
|
3 |
TB554.422.3 |
Transmission Shaft Assembly |
1 |
|
3.1 |
FT304.42F.015 |
Bonnet (1) Weldment |
1 |
|
3.2 |
GBT3452.1-34.5X3.55G |
Rubber O-Seal Ring |
2 |
|
3.3 |
GBT879.1-6X35 |
Spring Column Pin |
2 |
|
3.4 |
FT304.42.107a |
Spline Bush |
2 |
|
3.5 |
FT404.42.128 |
Rear Transmission Shaft |
1 |
|
3.6 |
GBT894.1-26 |
Circlip For Shaft |
2 |
|
3.7 |
FT304.42X.017 |
Sheath (2) Welding |
2 |
|
3.8 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
8 |
|
3.9 |
TB554.422.1 |
Middle Bearing Seat Assembly |
1 |
|
3.9.1 |
GBT893.2-72 |
Circlips For Hole |
1 |
|
3.9.2 |
FT304.42X.136 |
Spacer Ring |
1 |
|
3.9.3 |
GBT276-6007-2RS |
Deep Groove Ball Bearing |
1 |
|
3.9.4 |
FT304.42X.137 |
Rubber Ring |
1 |
|
3.9.5 |
FT304.42X.138 |
Middle Bearing Seat |
1 |
|
3.9.6 |
GBT119.1-8m6X20-A0P |
Column Pin |
2 |
|
3.9.7 |
FT304.42X.135 |
Middle Spline Bush |
1 |
|
3.10 |
TB554.422-01 |
Front Transmission Shaft |
1 |
|
3.11 |
TB554.422.2 |
Sheath (3) Welding |
1 |
|
3.12 |
GBT93-8-A3L |
Standard Spring Washer |
8 |
|
4 |
GBT93-10-A3L |
Standard Spring Washer |
4 |
|
5 |
GBT5783-M10X25-8.8-A3L |
Hexagon Bolt |
4 |
|
6 |
GBT93-12-A3L |
Standard Spring Washer |
2 |
|
7 |
GBT5783-M12X40-8.8-A3L |
Hexagon Bolt |
2 |
|
8 |
GBT97.1-10-A3L |
Flat Washer |
4 |
|
9 |
GBT97.1-8-A3L |
Flat Washer |
1 |
|
10 |
GBT5783-M8X20-8.8-A2L |
Hexagon Bolt |
2 |
65
Lovol TB2SA604-002K Wheeled Tractor

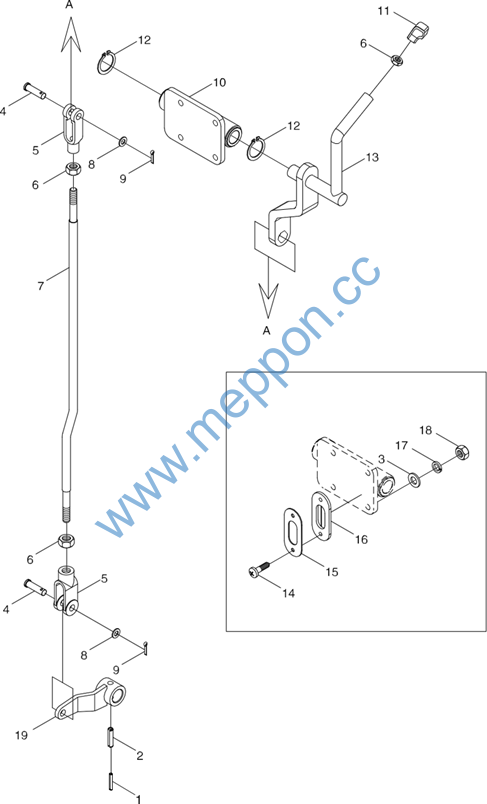

TS04423010000 Transfer Case Control Assembly
66
