TA704.422E 42.2-分动箱传动及防护装配总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

FT654.42.139 GBT894.1-30

FRONT TRANSMISSION SHAFT RETAINER RING

1

2

2011-11_

2011-11_

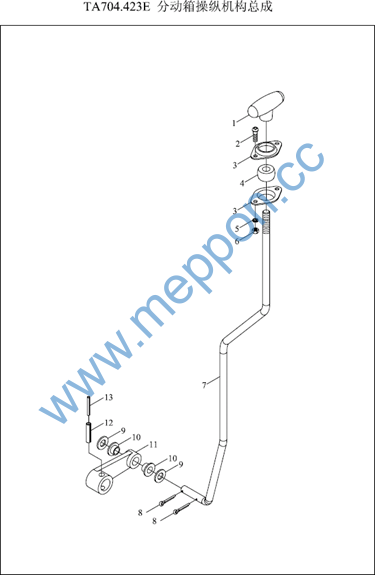

TA704.423E 42.3-分动箱操纵机构总成 42.3-TRANSFER CASE CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.38.051

PULL/PRESS HANDLE

1

2011-11_

10

FT654.42.107

CONTROL ROD LINER

2

2011-11_

11

FT704.42B.105

LEVER PLATE

1

2011-11_

12

GBT879.1-8X32

PIN

1

2011-11_

13

GBT879.1-5X32

PIN

1

2011-11_

2

GBT818-M6X14-A2L

SCREW

2

2011-11_

3

TG1204.435.2-01

SPHERICAL SHAFT LINING SEAT

2

2011-11_

3

TG1204.435.2-01

SPHERICAL SHAFT LINING SEAT

2

2011-11_

4

FT65.38.504

SPHERICAL SHAFT LINING

1

2011-11_

5

GBT93-6-A0P

SPRING WASHER

2

2011-11_

6

GBT6170-M6-A2L

NUT

2

2011-11_

7

FT654.42.144a

CONTROL ROD

1

2007-01_

8

GBT91-2X18-A0P

PIN

2

2011-11_

9

GBT97.1-10-A0P

WASHER

2

2011-11_

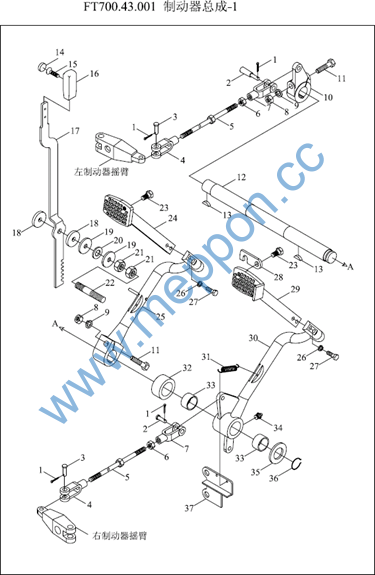

FT700.43.001-1 43.1-制动器总成-1 43BRAKER ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT91-3.2X28-A0P

PIN

4

2009-03_

1

GBT91-3.2X20-A0P

PIN

4

2004-01_

1

GBT91-3.2X20-A0P

PIN

4

2004-01_

10

FT65.43.123

BRAKE PEDAL LEFT ROCKER

1

2011-11_

11

GBT5782-M12X70-A2L

BOLT

2

2004-01_

12

FT700.43.124

BRAKE PEDAL SHAFT

1

2011-11_

13

GBT1099-6X25

KEY

2

2011-11_

14

FT65.43.151

HANDLE COVER

2

2011-11_

15

GBT68-M5X12

SCREW

2

2011-11_

16

FT65.43.150

HANDLE

1

2011-11_

17

FT700.43.137

PARKING LOCKING PLATE

1

2011-11_

18

FT300.43.159

HAND BRAKE FRICTION DISC

2

2011-11_

19

FT300.43.160

WASHER

2

2011-11_

2

FT65.43.140

CONNECT PIN

1

2011-11_

2

FT65.43.140

CONNECT PIN

1

2011-11_

20

GBT955-14-A3L

WASHER

1

2011-11_

21

GBT6173-M12X1.5-A3L

NUT

2

2011-11_

22

GBT899-AM12-M12X1.5X40-A3L

8.8-A3L STUD

1

2011-11_

23

FT65.43.132

SCREW

2

2011-11_

24

FT700.43.024

LEFT BRAKE PEDAL WELDMENT

1

2011-11_

25

FT65.43.021

LEFT BRAKE PEDAL WELDMENT ASSEMBLY

1

2011-11_

26

GBT93-8

WASHER 8

4

2011-11_

27

FT65.43.155

BOLT

4

2011-11_

28

FT65.43.130

INTERLOCKING PLATE

1

2011-11_

29

FT700.43.023

RIGHT BRAKE PEDAL WELDMENT

1

2011-11_








FT700.43.001-1 43.1-制动器总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

GBT882-B10X32-A0P

PIN

4

2011-11_

30

FT65.43.020

RIGHT BRAKE PEDAL WELDMENT ASSEMBLY

1

2011-11_

31

FT700.43.155

BRAKE PEDAL RETURN SPRING

2

2011-11_

32

FT700.43.156

SPACER BUSH I

1

2011-11_

33

FT65.43.127

RIGHT PEDAL ROD LINER

2

2011-11_

34

JBT7940.1-M10X1

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

35

GBT97.1-30-A0P

WASHER

1

2011-11_

36

GBT895.2-30

RETAINER RING

1

2011-11_

37

FT700.43.025

RETURN SPRING FIXING PLATE WELDMENT

1

2011-11_

4

FT65.43.152

LEFT REVOLVING CONNECTING FORK

2

2011-11_

4

FT65.43.152

LEFT REVOLVING CONNECTING FORK

2

2011-11_

5

FT65.43.013

BRAKE LONG PULL ROD UNIT

2

2011-11_

6

GBT6170-M10-A3L

NUT

2

2011-11_

7

FT65.43.134

RIGHT REVOLVING CONNECTING FORK

2

2011-11_

8

GBT6170-M12-A3L

NUT

2

2011-11_

9

GBT93-12

WASHER

2

2011-11_

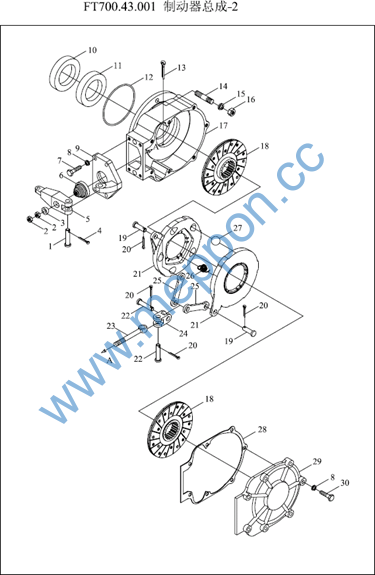

FT700.43.001-2 43.2-制动器总成-2 43BRAKER ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT882-B14X45-A0P

PIN

1

2004-01_

10

FT65.43.154

OIL SEAL

1

2011-11_

11

FT65.43.153

OIL SEAL

1

2011-11_

12

GBT3452.1-132X3.55G

O-SEAL RING

1

2011-11_

13

GBT91-6.3X45-AOP

PIN

1

2011-11_

14

GBT898-GM12-M12X1.25X40-8.8-A2L

8.8-A3L STUD

5

2011-11_

15

GBT93-12-A0P

SPRING WASHER

5

2011-11_

16

GBT6171-M12X1.25-A2L

NUT

5

2011-11_

17

FT700.43.102

LEFT BRAKE HOUSING

1

2011-11_

18

FT65.43.015

BRAKE FRICTION DISC ASSEMBLY

2

2011-11_

19

GBT882-B14X26-A0P

PIN

2

2004-01_

2

GBT6172.1-M12-A3L

NUT

2

2011-11_

20

GBT91-4×26-AOP

PIN

4

2011-11_

21

FT65.43.108

BRAKE PRESSURE PLATE

2

2011-11_

21

FT65.43.014

BRAKE PRESSURE PLATE ASSEMBLY

1

2011-11_

22

GBT882-B14X40-AOP

PIN

2

2011-11_

23

FT65.43.113

BRAKE PLATE PULL ROD

1

2011-11_

24

FT65.43.112

BRAKE PLATE PULL ROD FORK HEAD

1

2011-11_

25

FT65.43.111

BRAKE DISC ROD

2

2011-11_

26

FT65.43.109

BRAKE PRESS PLATE RETURN SPRING

5

2011-11_

26

FT65.43.109

BRAKE PRESS PLATE RETURN SPRING

5

2011-11_

27

GBT308-22.225

BALL

5

2011-11_

28

FT65.43.103

BRAKE COVER ADJUSTING WASHER

999

2011-11_

29

FT65.43.104

LEFT BRAKE COVER

1

2011-11_

3

FT65.43.117

BRAKE ARM ROUND PIN

1

2011-11_








FT700.43.001-2 43.2-制动器总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

4

5

6

7



8

9

GBT5783-M10X40-A3L GBT91-4X25-A0P FT65.43.114 FT65.43.019

GBT5783-M10X35-A3L



GBT93-10-AOP FT65.43.118

BOLT PIN

LEFT BRAKE ROCKER RUBBER COVER ASSEMBLY BOLT



WASHER

BRAKE ROCKER SEAT

7

1

1

1

4



11

1

2011-11_

2004-01_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_








FT700.43.001-3 43.3-制动器总成-3 43BRAKER ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT882-B14X45-A0P

PIN

1



10

FT65.43.154

OIL SEAL

1

2011-11_

11

FT65.43.153

OIL SEAL

1

2011-11_

12

GBT3452.1-132X3.55G

O-SEAL RING

1

2011-11_

13

GBT91-6.3X45-A0P

PIN

1

2004-01_

14

GBT898-AGM12-M12X1.25X40-8.8-A2L

8.8-A3L STUD

5

2011-11_

15

GBT93-12-A0P

SPRING WASHER

5

2011-11_

16

GBT6171-M12X1.25-A2L

NUT

5

2011-11_

17

FT700.43.119

RIGHT BRAKE HOUSING

1

2011-11_

18

FT65.43.015

BRAKE FRICTION DISC ASSEMBLY

2

2011-11_

19

GBT882-B14X26-A0P

PIN

2

2004-01_

2

GBT6172.1-M12-A3L

NUT

2

2011-11_

20

GBT91-4X26-A0P

PIN

4

2011-11_

21

FT65.43.108

BRAKE PRESSURE PLATE

2

2011-11_

21

FT65.43.014

BRAKE PRESSURE PLATE ASSEMBLY

1

2011-11_

22

GBT882-B14X40-AOP

PIN

2

2011-11_

23

FT65.43.113

BRAKE PLATE PULL ROD

1

2011-11_

24

FT65.43.112

BRAKE PLATE PULL ROD FORK HEAD

1

2011-11_

25

FT65.43.111

BRAKE DISC ROD

2

2011-11_

26

FT65.43.109

BRAKE PRESS PLATE RETURN SPRING

5

2011-11_

26

FT65.43.109

BRAKE PRESS PLATE RETURN SPRING

5

2011-11_

27

GBT308-22.225

BALL

5

2004-01_

28

FT65.43.103

BRAKE COVER ADJUSTING WASHER

999

2011-11_

29

FT65.43.120

RIGHT BRAKE COVER

1

2011-11_

3

FT65.43.117

BRAKE ARM ROUND PIN

1

2011-11_
