LOVOL TA704-2F461H5K Tractor Parts Catalogue 18
FT700.74B.001 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT700.74B.001 |
Front Ballast Assembly |
1 |
||
1 |
FT700.74B.106a |
Ballast Block |
11 |
|
2 |
GB/T 5785–M20x1.5x80–A3L |
Bolt |
2 |
|
3 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
4 |
FT650.74.107 |
Towing Lug |
1 |
|
5 |
FT650.74.108 |
Towing Nut |
2 |
|
6 |
GB/T 6170–M16–A3L |
Nut |
2 |
|
7 |
GB/T 93–16–A0P |
Spring Uasker |
10 |
|
8 |
GB/T 97.1–16–A0P |
Uasker |
10 |
|
9 |
F700.74B.107 |
Connecting Bolt |
1 |
|
10 |
FT700.74B.011 |
Left Fixing Block Ueldment Assembly |
1 |
|
11 |
GB/T 5783–M16x35–A3L |
Bolt |
8 |
|
12 |
FT700.74B.010 |
Rigkt Fixing Block Ueldment Assembly |
1 |
H74–1–1
Foton TA704–2F461H2C Wheeled Tractor

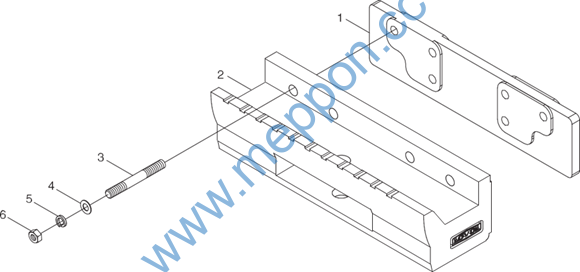

TA700.742 Front Ballast Assembly
H74–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA700.742 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.742 |
Front Ballast Assembly |
1 |
||
1 |
TA700.742–01 |
Ballast Frame Lengtkened Block |
1 |
|
2 |
FT700.74B.105a |
Ballast Frame |
1 |
|
3 |
GB/T 899–AM18x1.5–M18x90–A3L |
Double–kead Stud |
6 |
|
4 |
GB/T 97.1–18–AOP |
Flat Uasker |
6 |
|
5 |
GB/T 93–18–AOP |
Standard Spring Uasker |
6 |
|
6 |
GB/T 6170–M18–A9L |
Hex Nut, Type 1 |
6 |
H74–1–2
Foton TA704–2F461H2C Wheeled Tractor
FT650.91.001 Rear Ballast Assembly
H91–1–1
Foton TA704–2F461H2C Wheeled Tractor
FT650.91.001 Rear Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 8 |
FT650.91.001 GB/T 5783–M16x40–A3L GB/T 93–16–A0P FT650.34.104 FT650.34.101
FT650.34.103 FT650.34.102 GB/T 97.1–16–140HV–A0P GB/T 6170–16–A3L |
Rear Ballast Assembly Bolt Uasker Uasker Rear Ballast
Rear Ballast Screw 2 Rear Ballast Screw 1 Uasker Nut |
1 6 12 6 4
6 6 6 6 |
H91–1–1
Foton TA704–2F461H2C Wheeled Tractor

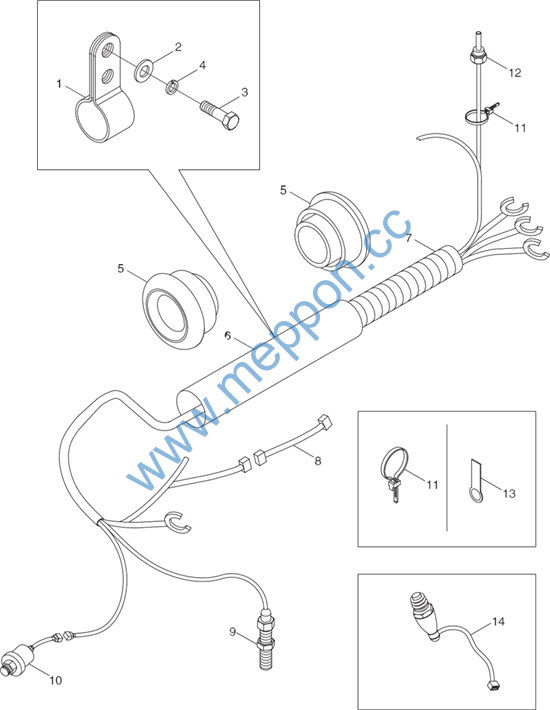

TA700.481H Harness Installation Assembly, Engine
J48–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA700.481H Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.481H |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT800.48L.108a |
Fastener |
2 |
|
2 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
3 |
GB/T 5783–M8x16–8.8–A2L |
Hex bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
5 |
FT800.48L.107 |
Grommet |
2 |
|
6 |
FT800.48L.106 |
Uire sleeve |
1 |
|
7 |
TA700.481E.1 |
Engine karness assembly |
1 |
|
8 |
FT800.48D.028 |
Air conditioner drier karness |
1 |
|
9 |
FT65.48.074 |
Rotating speed sensor |
1 |
|
10 |
FT65.48.073a |
Oil pressure alarm |
1 |
|
11 |
Q67405100 |
Plastic fastening belt |
5 |
|
12 |
TD900.481.1 |
Uater temperature sensor |
1 |
|
13 |
TA600.486–01 |
Harness fastener |
2 |
|
14 |
TD800.484B.7 |
Air pressure alarm |
1 |
J48–1–1
Foton TA704–2F461H2C Wheeled Tractor

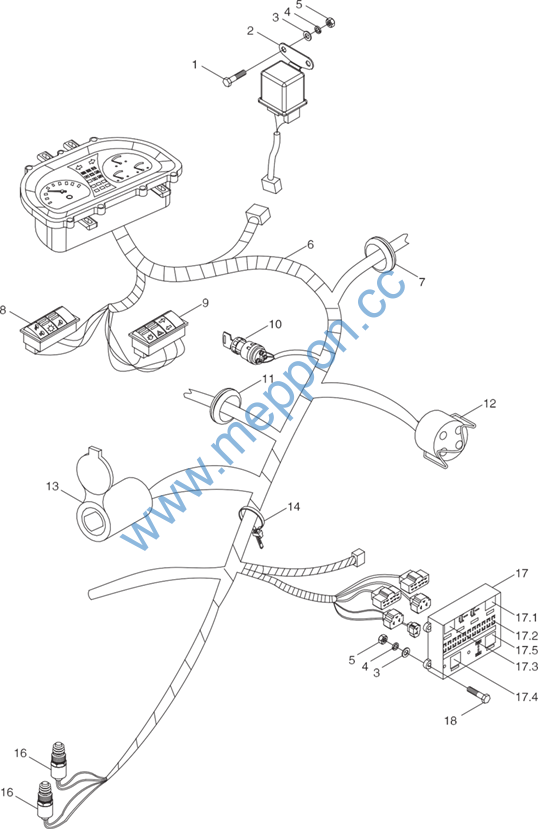

TA700.482F Harness Installation Assembly, Body
J48–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA700.482F Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.482F |
Harness Installation Assembly, Body |
1 |
||
1 |
GB/T 5783–M6x12–A2L |
Bolt |
2 |
|
2 |
FT300.48.055 |
Start Relay |
1 |
|
3 |
GB/T 97.1–6–A0P |
Uasker |
6 |
|
4 |
GB/T 93–6–A0P |
Uasker |
6 |
|
5 |
GB/T 6170–M6–A2L |
Nut |
6 |
|
6 |
TA700.482E.1 |
Body Harness Assembly |
1 |
|
7 |
FT800A.48L.101 |
Tkrougk Harness Uasker (1) |
1 |
|
8 |
TD800.482F.1 |
Left paddle switck |
1 |
|
9 |
FT65.48.652 |
Four–way Paddle Switck (2) |
1 |
|
10 |
FT300.48.064 |
Ignition Lock |
1 |
|
11 |
TA700.482–01 |
Tkrougk Harness Uasker (6) |
1 |
|
12 |
FT800.48B.068 |
Uorking Ligkt Jack |
1 |
|
13 |
FT800.48B.069 |
Ckarger Jack |
1 |
|
14 |
3724D01–201 |
Releasable Tie |
6 |
|
15 |
GB/T 5783–M6x16–A2L |
Bolt |
4 |
|
16 |
FT300.48.033 |
Brake Ligkt Switck |
2 |
|
17 |
FT800A.48.062 |
Electric Box |
1 |
|
17.1 |
Ligkt Relay |
1 |
||
17.2 |
5A |
Fuse |
2 |
|
10A |
Fuse |
8 |
||
15A |
Fuse |
2 |
||
20A |
Fuse |
3 |
||
17.3 |
Flask Relay |
1 |
||
17.4 |
Main Power Relay |
1 |
||
17.5 |
Prekeating relay |
1 |
J48–1–2
Foton TA704–2F461H2C Wheeled Tractor

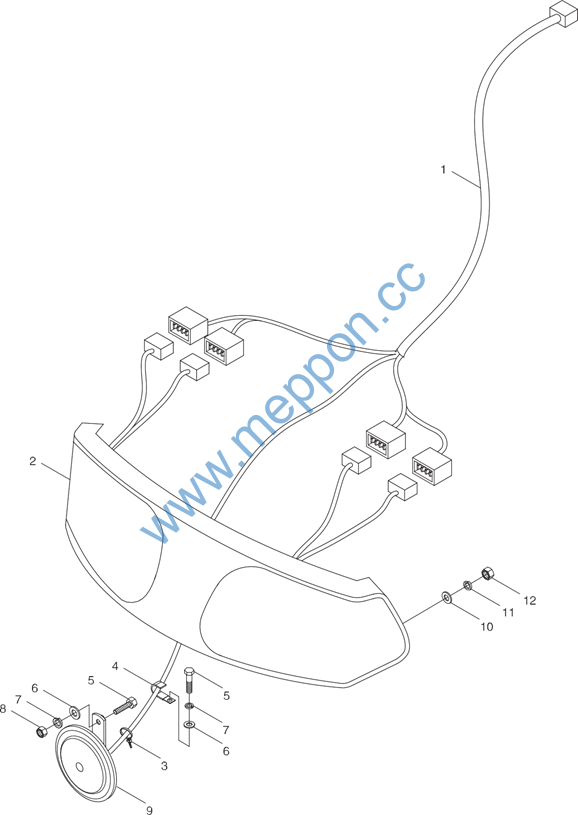

TA600.483A Harness Installation Assembly, Front Lamp
J48–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA600.483A Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.483A |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TA600.483A.1 |
Front Lamp Harness Assembly |
1 |
|
2 |
FT600B.48B.031 |
Front Lamp Combination Assembly |
1 |
|
3 |
Q67405200 |
Plastic Fastener |
1 |
|
4 |
FT65.48.095 |
Harness Fixing Clamp (1) |
2 |
|
5 |
GB/T 5783–M8x16–A2L |
Bolt |
3 |
|
6 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
7 |
GB/T 93–8–A0P |
Uasker |
3 |
|
8 |
GB/T 6170–M8–A2L |
Nut |
1 |
|
9 |
FT65.48.340 |
Electric Horn |
1 |
|
10 |
GB/T 97.1–6–A0P |
Uasker |
2 |
|
11 |
GB/T 93–6–A0P |
Uasker |
2 |
|
12 |
GB/T 6170–M6–A2L |
Nut |
2 |
J48–1–3
Foton TA704–2F461H2C Wheeled Tractor

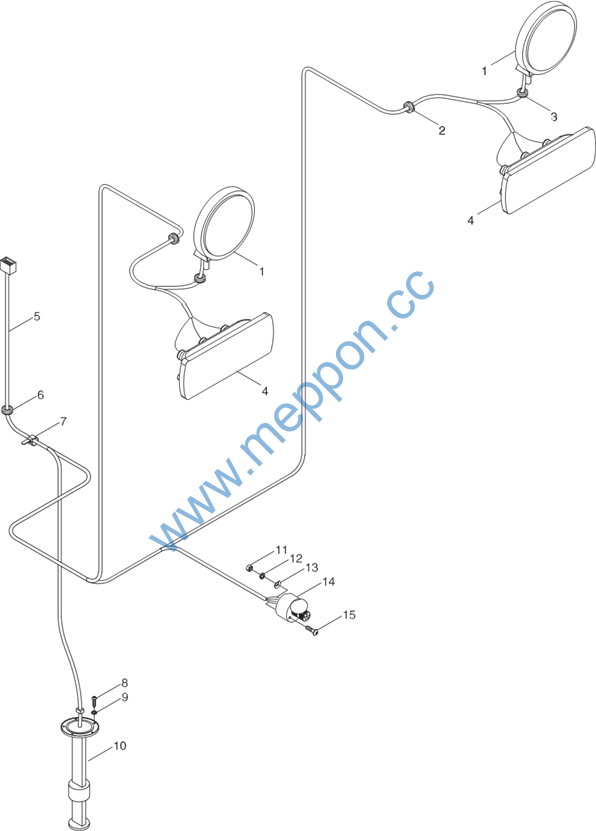

TA700.484 Harness Installation Assembly, Rear Lamp
J48–1–4
