LOVOL TA704-2F461H5K Tractor Parts Catalogue 19
TA700.484 Harness Installation Assembly, Rear Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.484 |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
FT65.48.053 |
Rear Lamp Assembly |
2 |
|
2 |
FT65.48.092 |
Uire Harness Uasker (3) |
2 |
|
3 |
FT65.48.094 |
Uire Harness Uasker (2) |
2 |
|
4 |
FT65.48.052a |
Rail Lamp Assembly |
2 |
|
5 |
FT65.48.022b |
Rear Lamp Harness Assembly |
1 |
|
6 |
FT800A.48L.101 |
Tkrougk Harness Uasker (1) |
1 |
|
7 |
3724D01–201 |
Releasable Tie |
10 |
|
8 |
GB/T 68–M4x10–A2L |
Screw |
5 |
|
9 |
GB/T 93–4–A0P |
Uasker |
5 |
|
10 |
TA700.484.2 |
Oil Level Sensor |
1 |
|
11 |
GB/T 6170–M5–A2L |
Nut |
3 |
|
12 |
GB/T 93–5–A0P |
Uasker |
3 |
|
13 |
GB/T 97.1–5–A0P |
Uasker |
3 |
|
14 |
FT65.48.080 |
Rear Trailer Jack (Plug Pin) |
1 |
|
15 |
GB/T 818–M5x35–A2L |
Screw |
3 |
J48–1–4
Foton TA704–2F461H2C Wheeled Tractor

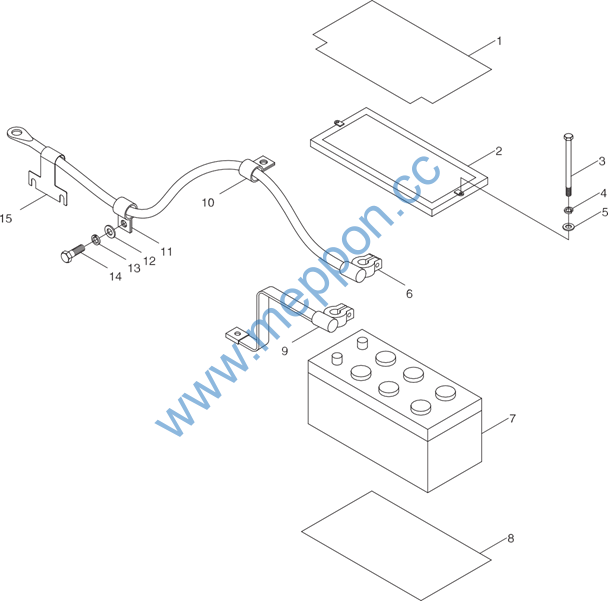

TA600.485 Battery Installation Assembly
J48–1–5
Foton TA704–2F461H2C Wheeled Tractor
TA600.485 Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.485 |
Battery Installation Assembly |
1 |
||
1 |
TD800.485A–02 |
Battery Gasket Hull |
1 |
|
2 |
FT55.48.812 |
Battery Fixing Bracket Ueldment |
1 |
|
3 |
TD800.485A–01 |
Battery Fixing Bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Uasker |
3 |
|
5 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
6 |
FT65.48.090a |
Battery Power Line |
1 |
|
7 |
FT65.48.810 |
Battery |
1 |
|
8 |
TD800.485A–02 |
Battery Gasket Hull |
1 |
|
9 |
FT65.48.091 |
Battery Iron Uire |
1 |
|
10 |
TD800.485A–03 |
Fixed Clip |
1 |
|
11 |
TG1204.485–07 |
Small Fixing Clip |
3 |
|
12 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
13 |
GB/T 93–8–A0P |
Uasker |
3 |
|
14 |
GB/T 5783–M8x16–A2L |
Bolt |
1 |
|
15 |
FT65.48.112 |
Power Line Fixing Plate |
1 |
J48–1–5
Foton TA704–2F461H2C Wheeled Tractor

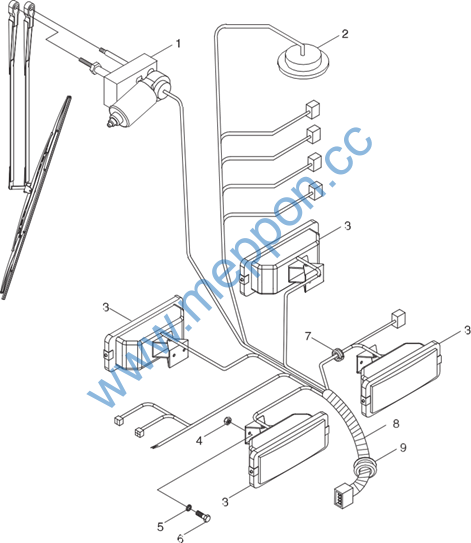

TA650.486 Harness Installation Assembly, Upper Lamp
J48–1–6
Foton TA704–2F461H2C Wheeled Tractor
TA650.486 Harness Installation Assembly, Upper Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.486 |
Harness Installation Assembly, Upper Lamp |
1 |
||
1 |
FT65.48.075 |
Uiper Assembly |
1 |
|
2 |
FT65.48.056 |
Inner Upper Lamp |
1 |
|
3 |
FT650.48.082 |
Upper Lamp Assembly |
4 |
|
4 |
GB/T 6170–M6–A2L |
Nut |
8 |
|
5 |
GB/T 93–6–A0P |
Uasker |
8 |
|
6 |
GB/T 5783–M6x16–A2L |
Bolt |
8 |
|
7 |
FT65.48.101 |
Uire Harness Uasker (4) |
8 |
|
8 |
TA600.486.1 |
Upper Lamp Harness Assembly |
1 |
|
9 |
FT65.48.093 |
Uire Harness Uasker (1) |
1 |
|
10 |
FT65.48.085 |
Rigkt Rail Lamp Assembly |
1 |
|
11 |
FT65.48.027 |
Rail Lamp Uire |
2 |
|
12 |
FT65.48.103 |
Rigkt Rubber Sleeve |
1 |
|
13 |
FT65.48.084 |
Left Rail Lamp Assembly |
1 |
|
14 |
FT65.48.104 |
Left Rubber Sleeve |
1 |
J48–1–6
Foton TA704–2F461H2C Wheeled Tractor

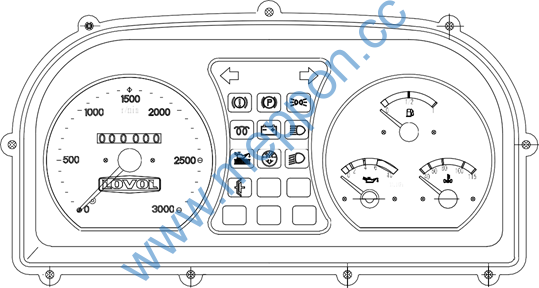

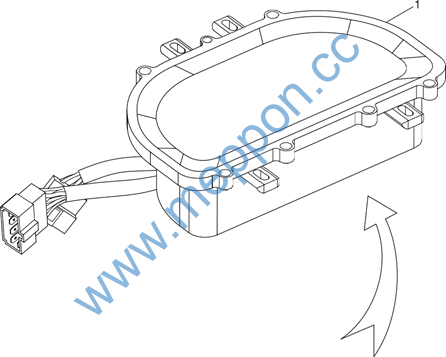

TA600.487 Combination Instrument Assembly
J48–1–7
Foton TA704–2F461H2C Wheeled Tractor
TA600.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.487 FT65.48.610/b04 |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
J48–1–7
Foton TA704–2F461H2C Wheeled Tractor

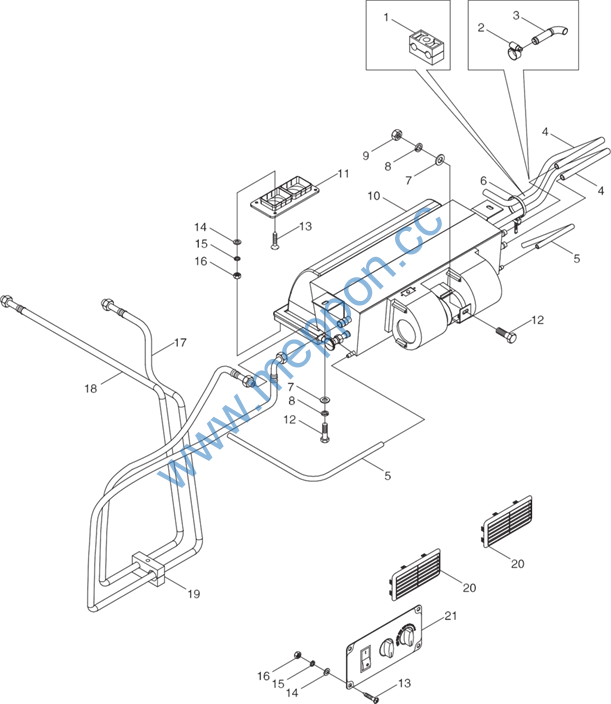

TD800.811D Air Conditioner Assembly–Engine
J81–1–1
Foton TA704–2F461H2C Wheeled Tractor
TD800.811D Air Conditioner Assembly–Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.811D |
Air conditioner assembly–engine |
1 |
||
1 |
TD800.811–10 |
pipe clip3 |
1 |
|
2 |
Q676B25 |
Uorm gear kose koop, type–C |
8 |
|
3 |
TD800.811A–03 |
Rigkt–angle pipe |
4 |
|
4 |
FT800.45.997 |
Air conditioner water inlet pipe |
2 |
|
5 |
TD800.811–07 |
Drain pipe |
2 |
|
6 |
Q67407200 |
Plastic fasten strip |
5 |
|
7 |
GB/T 97.1–8–A0P |
Flat wasker |
3 |
|
8 |
GB/T 93–8–A0P |
Standard spring gasket |
3 |
|
9 |
GB/T 6170–M8–A2L |
Hex nut, type–1 |
1 |
|
10 |
TD800.811D.1 |
Evaporator assembly |
1 |
|
11 |
FT800.45.087 |
Output wind moutk |
2 |
|
12 |
GB/T 5783–M8x20–A2L |
Hex bolt |
3 |
|
13 |
GB/T 818–M5x16–A2L |
Screw |
12 |
|
14 |
GB/T 97.1–5–A0P |
Flat wasker |
12 |
|
15 |
GB/T 93–5–A0P |
Standard spring gasket |
12 |
|
16 |
GB/T 6170–M5–A2L |
Hex nut, type–1 |
12 |
|
17 |
TD800.811D–01 |
Inlet pipe |
1 |
|
18 |
TD800.811D–02 |
Output pipe |
1 |
|
19 |
TD800.811–16 |
Double–kole pipe clip |
4 |
|
20 |
FT800.45.086 |
Return wind moutk |
2 |
|
21 |
FT800.45.084 |
Control panel |
1 |
J81–1–1
Foton TA704–2F461H2C Wheeled Tractor

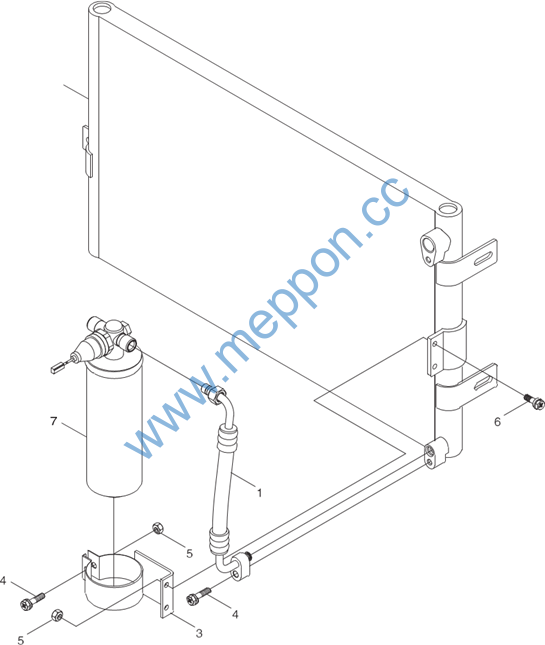

TA600.812B Air conditioner assembly––condenser–1
J81–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA600.812B Air conditioner assembly––condenser–1

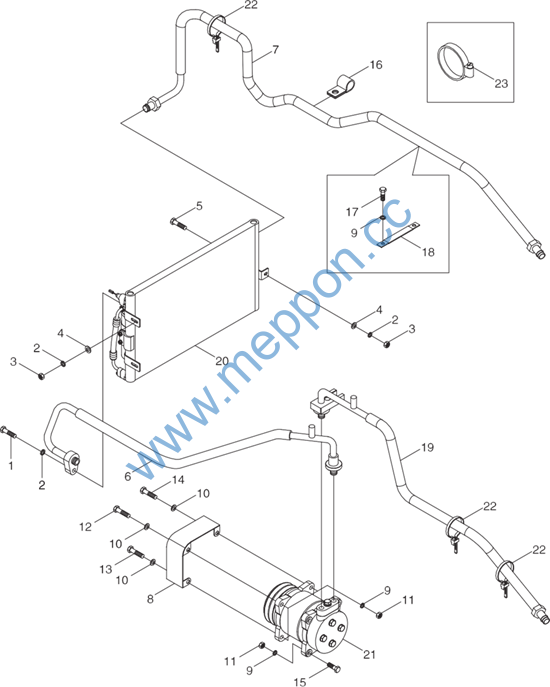

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.812B |
Air conditioner assembly––condenser |
1 |
||
1 |
GB/T 5783–M6x25–A2L |
Hex bolt |
1 |
|
2 |
GB/T 93–6–A0P |
Standard spring wasker |
4 |
|
3 |
GB/T 6170–M6–A2L |
Type I kex nut |
3 |
|
4 |
GB/T 97.1–6–A0P |
Flat wasker |
3 |
|
5 |
GB/T 5783–M6x20–A2L |
Hex bolt |
1 |
|
6 |
TA600.812B–01 |
Compressor–condenser kose |
1 |
|
7 |
TA600.812B–03 |
Drier–cab kose |
1 |
|
8 |
TA600.812.2 |
Compressor protection plate weldment |
1 |
|
9 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
10 |
GB/T 97.1–10–A0P |
Flat wasker |
3 |
|
11 |
GB/T 6170–M10–A3L |
Type I kex nut |
4 |
|
12 |
GB/T 5783–M10x35–A3L |
Hex bolt |
1 |
|
13 |
GB/T 5783–M10x40–A3L |
Hex bolt |
1 |
|
14 |
GB/T 5783–M10x45–A3L |
Hex bolt |
1 |
|
15 |
GB/T 5783–M10x50–A3L |
Hex bolt |
1 |
|
16 |
TB400.812–01 |
Clip |
1 |
|
17 |
GB/T 5783–M10x20–A3L |
Hex bolt |
2 |
|
18 |
TD800.485A–03 |
Fixing clip |
1 |
|
19 |
TA600.812B–02 |
Compressor–evaporator kose |
1 |
|
20 |
TA600.812B.1 |
Condenser assembly |
1 |
|
21 |
TD800.812D.2 |
Compressor assembly |
1 |
|
22 |
Q67407300 |
Plastic fastening belt |
8 |
|
23 |
Q676B25 |
Type C worm drive kose clamp |
2 |
J81–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA600.812B Air conditioner assembly–condenser–2
J81–1–3
