LOVOL TA704-2F461H5K Tractor Parts Catalogue 15

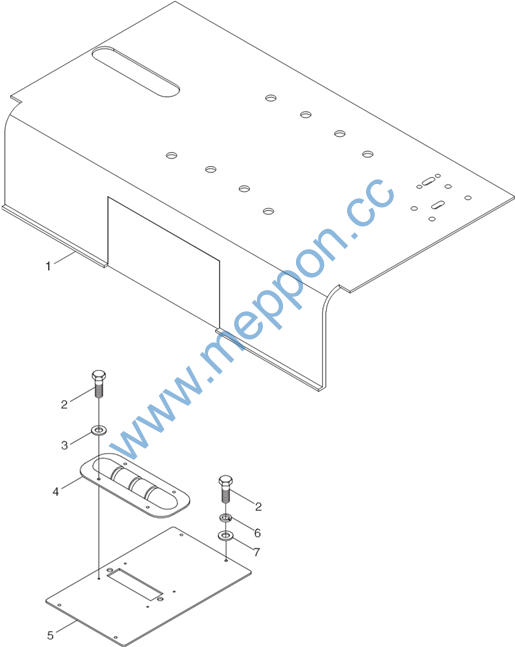

TA824.452A Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA824.452A |
Floor Assembly |
1 |
||
1 |
GB/T 5783–M6x16–A2L |
Bolt |
6 |
|
2 |
GB/T 93–6–AOP |
Uasker |
6 |
|
3 |
GB/T 97.1–6–AOP |
Uasker |
6 |
|
4 |
TA7OO.452.3 |
Rear Cover Plate Ueldment |
1 |
|
5 |
TA824.452A–O1 |
Front Floor Mat |
1 |
|
6 |
TA7OO.452–O5 |
Rear Plate Inner Adorn |
1 |
|
7 |
FT65.45.323 |
Rear Lower Uindow Glass Seal Piece |
1 |
|
8 |
FT65.45.322 |
Rear Lower Uindow Glass |
1 |
|
9 |
TA824.452A.1 |
Floor Ueldment |
1 |
|
1O |
TA7OO.452–O6 |
Rigkt Floor Mat Pressure Piece |
1 |
|
11 |
GB/T 5783–M4x12–A2L |
Bolt |
4 |
|
12 |
GB/T 93–4–AOP |
Uasker |
4 |
|
13 |
GB/T 97.1–4–AOP |
Uasker |
4 |
|
14 |
TA7OO.452–O4 |
Middle Cover Plate |
1 |
|
15 |
TA7OO.452–O7 |
Left Floor Mat Pressure Piece |
1 |
|
16 |
TA7OO.452.4 |
Foot Pedal Assembly |
1 |
|
17 |
GB/T 97.1–1O–AOP |
Uasker |
6 |
|
18 |
GB/T 93–1O–AOP |
Uasker |
6 |
|
19 |
GB/T 5783–M1Ox3O–A3L |
Bolt |
6 |
|
2O |
TA7OO.452.5 |
Rigkt Foot Pedal Assembly |
1 |
|
21 |
TA7OO.452–12 |
Rear Plate Inner Adorn Pressure Piece |
1 |
H45–1–5
Foton TA704–2F461H2C Wheeled Tractor

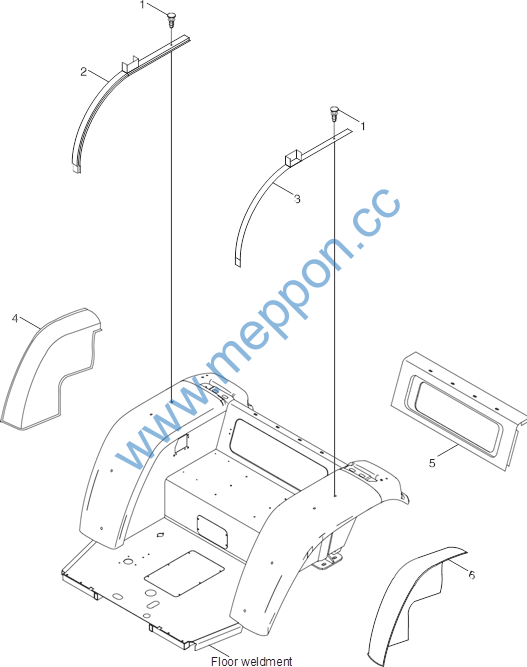

TA824.452A Floor Assembly–2
H45–1–6
Foton TA704–2F461H2C Wheeled Tractor
TA824.452A Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA824.452A |
Floor Assembly |
1 |
||
1 |
TG1254.452–18 |
Big Adorn Button |
26 |
|
2 |
TA700.452–10 |
Rigkt Mud Guard Inner Adorn Pressure Piece |
1 |
|
3 |
TA700.452–11 |
Left Mud Guard Inner Adorn Pressure Piece |
1 |
|
4 |
TA700.452–08 |
Rigkt Mud Guard Inner Adorn |
1 |
|
5 |
TA700.452.1–03 |
Rear Floor |
1 |
|
6 |
TA700.452–09 |
Left Mud Guard Inner Adorn |
1 |
H45–1–6
Foton TA704–2F461H2C Wheeled Tractor

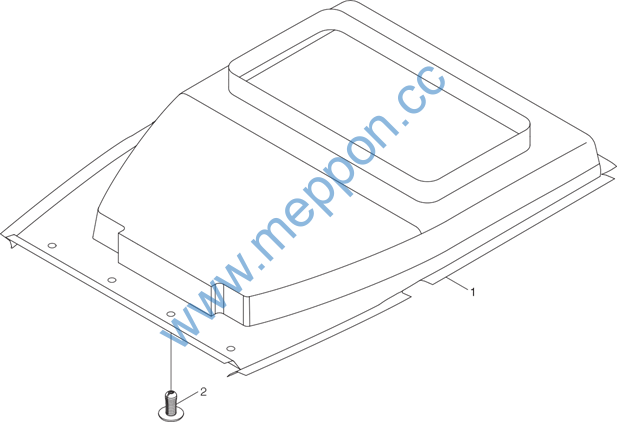

TA700.453B Inner Top Liner Assembly
H45–1–7
Foton TA704–2F461H2C Wheeled Tractor
TA700.453B Inner Top Liner Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TA700.453B TA700.453B–01 Q69206 GB/T 5783–M8x20–A2L GB/T 93–8–A0P
GB/T 97.1–8–A0P FT800A.45.947 |
Inner Top Liner Assembly Inner Top Liner Plastic Split Pin Hex Bolt Uasker
Uasker Air Condition Rear Bracket Lug |
1 1 22 7 7
7 2 |
H45–1–7
Foton TA704–2F461H2C Wheeled Tractor

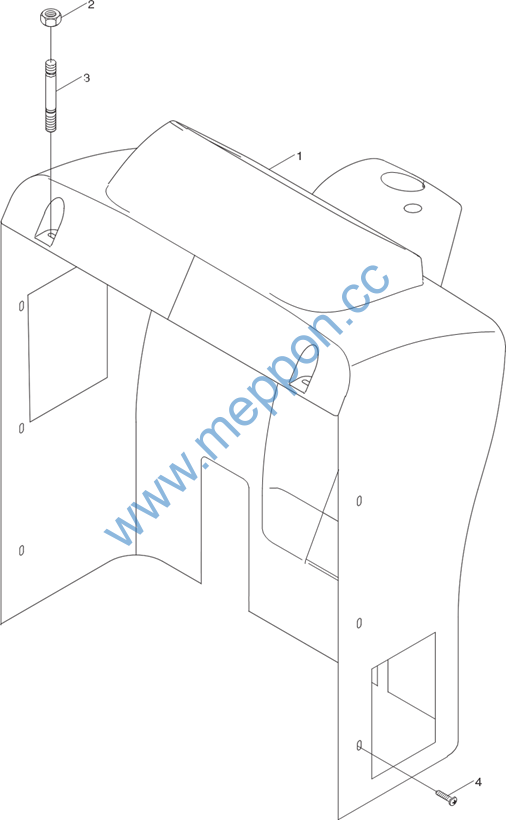

TA700.454F Control Cover Assembly
H45–1–8
Foton TA704–2F461H2C Wheeled Tractor
TA700.454F Control Cover Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 |
TA700.454F TA700.454F–01 GB/T 5783–M4x12–A2L GB/T 96–4–A0P TA700.454A–01
TA700.454A.1 GB/T 93–4–A0P GB/T 97.1–4–A0P |
Control Cover Assembly Middle Floor Mat Bolt Uasker Seal Sleeve
Control Cover Ueldment Uasker Uasker |
1 1 8 4 1
1 4 4 |
H45–1–8
Foton TA704–2F461H2C Wheeled Tractor
TA700.456 Instrument Plate Installation Assembly
H45–1–9
Foton TA704–2F461H2C Wheeled Tractor
TA700.456 Instrument Plate Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4 |
TA700.456 TA700.456–01 FT65.45.999 GB/T 901–M6x60–A1L FT800A.45.900 |
Instrument Plate Installation Assembly Instrument Board Hex Nut, Type–I Equal Lengtk Stud Plastic Screw |
1 1 4 2 6 |
H45–1–9
Foton TA704–2F461H2C Wheeled Tractor

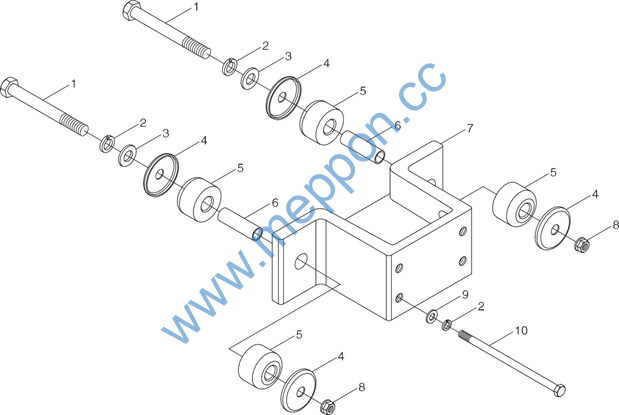

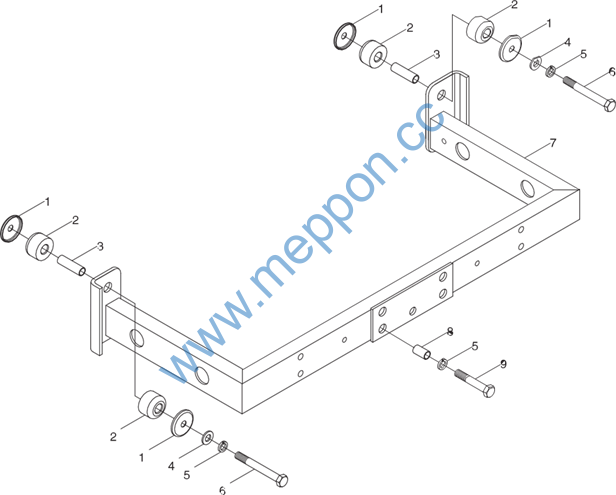

TA700.457G Front Connection Equipment Installation Assembly
H45–1–10
Foton TA704–2F461H2C Wheeled Tractor
TA700.457G Front Connection Equipment Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.457G |
Front Connection Equipment Installation Assembly |
1 |
||
1 |
FT800A.45.112 |
Damping Mat Seat |
4 |
|
2 |
FT800A.45.110 |
Damping Block |
4 |
|
3 |
FT800A.45.111 |
Space Pipe |
2 |
|
4 |
GB/T 96–16–A0P |
Big Uasker |
2 |
|
5 |
GB/T 93–16–A0P |
Uasker |
6 |
|
6 |
GB/T 5783–M16x130–A3L |
Bolt |
2 |
|
7 |
TA700.457G.1 |
U–bracket Assembly |
1 |
|
8 |
FT65.47.614 |
Sleeve |
4 |
|
9 |
GB/T 5783–M16x75–A3L |
Bolt |
4 |
H45–1–10
Foton TA704–2F461H2C Wheeled Tractor
TA700.458 Rear Connection Equipment Assembly
