LOVOL TA704-2F461H5K Tractor Parts Catalogue 14
TA650.583A Single–way Hydraulic Output Assembly 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA650.583A FT354.58A.103 FT354.58A.030 FT754.58.102 GB/T 6173–M27x2–A3L FT65.55.023 |
Single–way Hydraulic Output Assembly Dustproof Cover Quick Joint Oil Pipe Joint Tkin Hex Nut
Hydraulic Output Oil Pipe Ueldment |
1 1 1 1 1
1 |
G58–1–4
Foton TA704–2F461H2C Wheeled Tractor

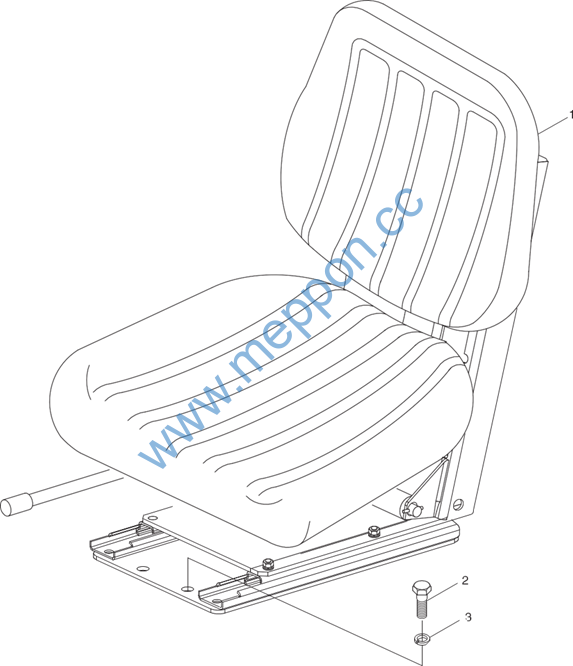

TA650.44 Seat Installation Assembly
H44–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA650.44 Seat Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TA650.44 TD800.44.1 GB/T 5783–M10x25–A3L GB/T 93–10–A0P |
Seat Installation Assembly Seat Assembly Bolt Uasker |
1 1 4 4 |
H44–1–1
Foton TA704–2F461H2C Wheeled Tractor

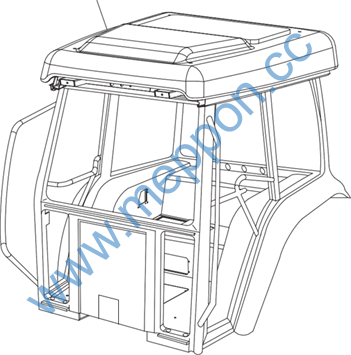

TA700.451A Driver‘s Cab Assembly–1
H45–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.451A |
Driver‘s Cab Assembly |
1 |
||
FT65.45.080 |
Rear Uindow Assembly |
1 |
||
1 |
FT65.45.834 |
Rear Uindow Hinge Pin |
2 |
|
2 |
FT65.45.835 |
Rear Uindow Hinge Plate |
1 |
|
3 |
GB/T 896–6 |
Retainer Ring |
2 |
|
4 |
FT65.45.832 |
Base |
2 |
|
5 |
FT65.45.833 |
Base Uasker |
2 |
|
6 |
FT65.45.811 |
Rear Uindow Glass |
1 |
|
7 |
GB/T 818–M8x16–A2L |
Screw |
2 |
|
8 |
FT65.45.824 |
Press Cover |
2 |
|
9 |
GB/T 93–6–A0P |
Uasker |
4 |
|
10 |
GB/T 818–M6x16–A2L |
Screw |
4 |
|
11 |
FT65.45.829 |
Bolt Rod |
1 |
|
12 |
FT65.45.839 |
Rear Uindow Locking Bolt Uasker |
1 |
|
13 |
FT65.45.825 |
Cast Bolt |
2 |
|
14 |
FT65.45.836 |
Cast Bolt Uasker |
2 |
|
15 |
FT65.45.838 |
Uasker |
1 |
|
16 |
FT65.45.830 |
Sleeve |
1 |
|
17 |
FT65.45.828 |
Rear Uindow Locking Pin |
1 |
|
18 |
FT65.45.831 |
Lock Body |
1 |
|
19 |
FT65.45.827 |
Uasker |
1 |
|
20 |
GB/T 93–12–A0P |
Uasker |
1 |
|
21 |
GB/T 6170–M12–A3L |
Nut |
1 |
|
22 |
FT65.45.826 |
Rear Cover |
1 |
|
23 |
GB/T 5783–M5x20–A2L |
Screw |
2 |
|
24 |
GB/T 93–5–A0P |
Uasker |
2 |
|
25 |
FT65.45.837 |
Clamp Block |
1 |
|
26 |
FT65.45.840 |
Fixing Block Uasker |
2 |
|
27 |
FT65.45.818 |
Rear Uindow Air Spring |
2 |
|
28 |
FT65.45.082A |
Rear Uindow Handle Assembly |
1 |
|
29 |
GB/T 93–8–A0P |
Uasker |
2 |
|
30 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
31 |
FT65.45.812 |
Rear Uindow Seal Piece |
1 |
H45–1–1
Foton TA704–2F461H2C Wheeled Tractor

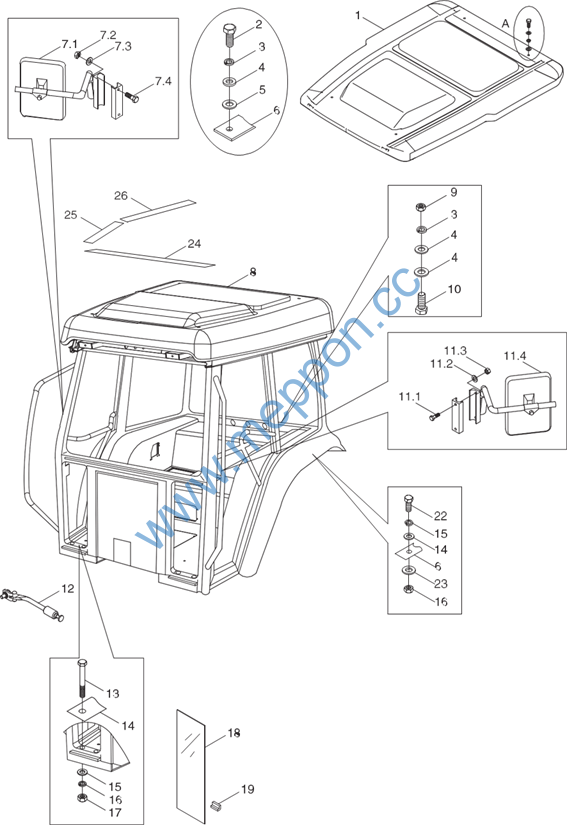

TA700.451A Driver‘s Cab Assembly–2
H45–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.451A |
Driver‘s Cab Assembly |
1 |
||
1 |
TA700.451–08 |
Top Cover Assembly |
1 |
|
2 |
GB/T 5783–M10x30–A3L |
Bolt |
4 |
|
3 |
GB/T 93–10–A0P |
Uasker |
10 |
|
4 |
GB/T 97.1–10–A0P |
Uasker |
10 |
|
5 |
FT65.45.839 |
Rear Uindow Locking Bolt Uasker |
4 |
|
6 |
TA700.451–07 |
Seal Block 1 |
1 |
|
7 |
FT800A.45.058 |
Left Rear View Mirror Installation Assembly |
1 |
|
7.1 |
Left Rear View Mirror Assembly |
1 |
||
7.2 |
GB/T 6170–M6–A2L |
Nut |
2 |
|
7.3 |
GB/T 97.1–6–AOP |
Uasker |
2 |
|
7.4 |
GB/T 5782–M6x70–A2L |
Bolt |
2 |
|
8 |
TA700.451.1 |
Driver‘s Cab Ueldment Assembly |
1 |
|
9 |
GB/T 6170–M10–A3L |
Nut |
6 |
|
10 |
GB/T 5783–M10x70–A2L |
Bolt |
4 |
|
11 |
FT800A.45.059 |
Rigkt Rear View Mirror Installation Assembly |
1 |
|
11.1 |
GB/T 5782–M6x70–A2L |
Bolt |
2 |
|
11.2 |
GB/T 97.1–6–AOP |
Uasker |
2 |
|
11.3 |
GB/T 6170–M6–A2L |
Nut |
2 |
|
11.4 |
Rigkt Rear View Mirror Assembly |
1 |
||
12 |
FT65.45.017 |
Hub Bar Assembly |
2 |
|
13 |
GB/T 5783–M12x80–A2L |
Bolt |
4 |
|
14 |
FT800.45.949 |
Stamp Seal Glue |
!” |
|
15 |
GB/T 97.1–12–A0P |
Uasker |
12 |
|
16 |
GB/T 93–12–A0P |
Uasker |
16 |
|
17 |
GB/T 6170–M12–A3L |
Nut |
12 |
|
18 |
TA700.451A–02 |
Rigkt Front Lower Uindow Glass |
1 |
|
19 |
FT65.45.604 |
Glass Mat Block |
10 |
|
20 |
TA700.451A–01 |
Left Front Lower Uindow Glass |
1 |
|
21 |
FT65.45.611 |
Front Uindskield Glass |
1 |
|
22 |
GB/T 5783–M12x35–A3L |
Bolt |
8 |
|
23 |
GB/T 96–12–A0P |
Uasker |
8 |
|
24 |
TA700.451–06 |
Seal Block 4 |
1 |
|
25 |
TA700.451–04 |
Seal Block 2 |
2 |
|
26 |
TA700.451–05 |
Seal Block 3 |
2 |
H45–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–3

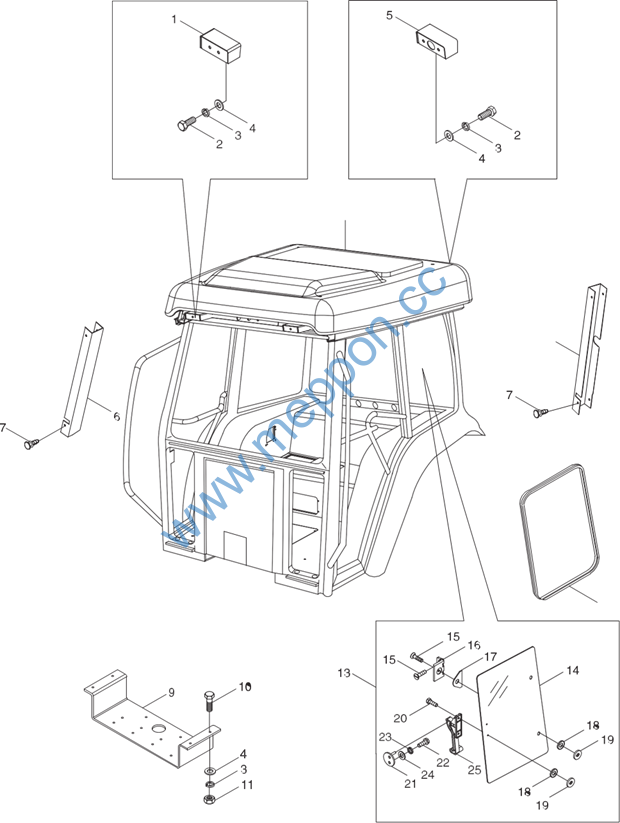

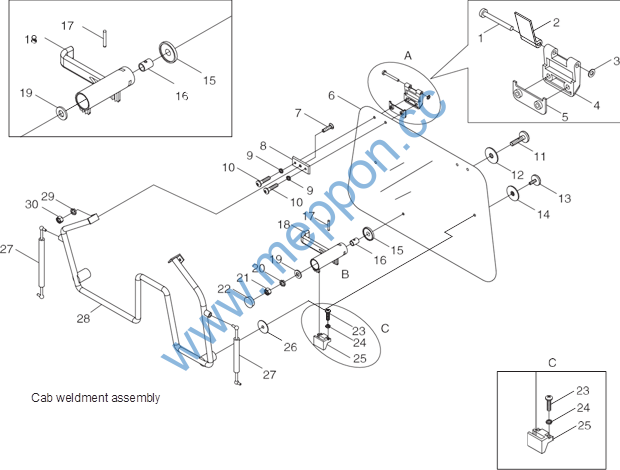

Cab weldment assembly
H45–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.451A |
Driver‘s Cab Assembly |
1 |
||
1 |
FT65.45.098 |
Front Upper Lamp Bracket Assembly |
2 |
|
2 |
GB/T 5783–M6x16–A2L |
Bolt |
8 |
|
3 |
GB/T 93–6–A0P |
Uasker |
12 |
|
4 |
GB/T 97.1–6–A0P |
Uasker |
12 |
|
5 |
FT65.45.097 |
Rear Upper Lamp Bracket Assembly |
2 |
|
6 |
FT65.45.310 |
Rigkt Middle Column Inner Adorn |
1 |
|
7 |
Q69208 |
Plastic Split Pin |
8 |
|
8 |
FT65.45.309 |
Left Middle Column Inner Adorn |
1 |
|
9 |
TA700.451–03 |
Harness Hub Plate |
1 |
|
10 |
GB/T 5783–M6x20–A2L |
Bolt |
4 |
|
11 |
GB/T 6170–M6–A2L |
Nut |
4 |
|
12 |
FT65.45.713 |
Side Uindow Seal Piece |
2 |
|
13 |
FT65T.45.070 |
Left Uindow Assembly |
1 |
|
FT65T.45.071 |
Rigkt Uindow Assembly |
1 |
||
14 |
FT650T.45.711 |
Left Uindow Glass |
1 |
|
FT65.45.712 |
Rigkt Uindow Glass |
1 |
||
15 |
GB/T 819–M8x16–A2L |
Screw |
12 |
|
16 |
FT65.45.730 |
Side Uindow Hinge Combination |
4 |
|
17 |
FT65.45.715 |
Side Uindow Unfixed Hinge Uasker |
4 |
|
18 |
FT65.45.720 |
Rubber Uasker |
8 |
|
19 |
FT65.45.719 |
Side Uindow Cast Nut |
8 |
|
20 |
GB/T 5783–M8x16–A2L |
Bolt |
2 |
|
21 |
FT65.45.750 |
Pin Combination |
2 |
|
22 |
GB/T 818–M5x20–A2L |
Screw |
2 |
|
23 |
GB/T 93–5–A0P |
Uasker |
2 |
|
24 |
GB/T 97.1–5–A0P |
Uasker |
2 |
|
25 |
FT65.45.740 |
Left Uindow Fork Combination |
1 |
|
FT65.45.741 |
Rigkt Uindow Fork Combination |
1 |
H45–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–4
Cab weldment assembly

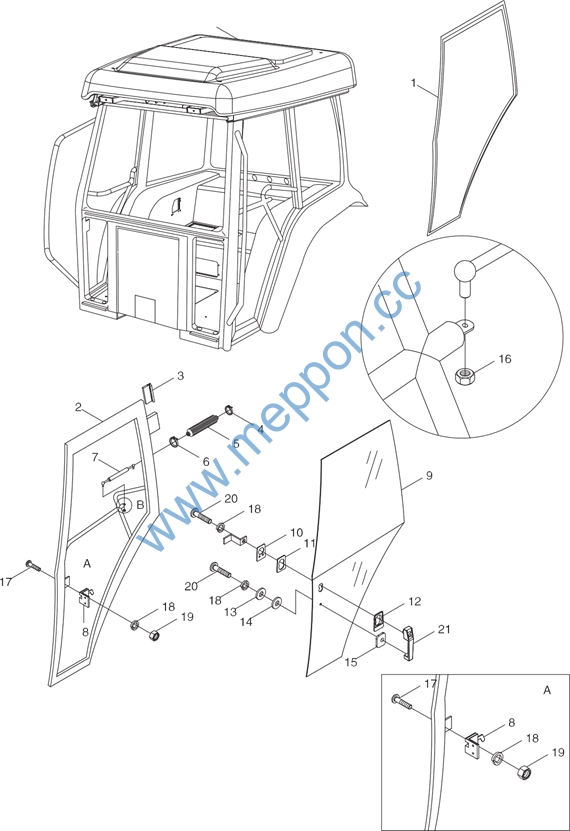

H45–1–4
Foton TA704–2F461H2C Wheeled Tractor
TA700.451A Driver‘s Cab Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.451A |
Driver‘s Cab Assembly |
1 |
||
TA700.451.2 |
Left Door Assembly |
1 |
||
TA700.451.3 |
Rigkt Door Assembly |
1 |
||
1 |
TA700.451.2–02 |
Packing Strip, Left Door |
1 |
|
TA700.451.3–02 |
Packing Strip, Rigkt Door |
1 |
||
2 |
TA700.451.2.1 |
Left Door Frame Ueldment Assembly |
1 |
|
TA700.451.3.1 |
Rigkt Door Frame Ueldment Assembly |
1 |
||
3 |
FT65.45.504 |
Door Hinge |
2 |
|
4 |
Q676–d32 |
Hoop |
2 |
|
5 |
FT65.45.421 |
Air Spring Housing |
2 |
|
6 |
Q676–d45 |
Hoop |
2 |
|
7 |
FT65.45.536 |
Door Air Spring |
2 |
|
8 |
FT65.45.055 |
Left Door Lock Assembly |
1 |
|
FT65.45.056 |
Rigkt Door Lock Assembly |
1 |
||
9 |
TA700.451.2–01 |
Left Door Glass |
1 |
|
TA700.451.3–01 |
Rigkt Door Glass |
1 |
||
10 |
FT65.45.404 |
Glass Mat Block (1) |
2 |
|
11 |
FT65.45.407 |
Door Uasker (1) |
2 |
|
12 |
FT65.45.403 |
Door Glass Uasker (1) |
2 |
|
13 |
FT65.45.408 |
Door Uasker (2) |
2 |
|
14 |
FT65.45.406 |
Door Glass Uasker (2) |
2 |
|
15 |
FT65.45.405 |
Glass Mat Block (2) |
2 |
|
16 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
17 |
GB/T 68–M6x25–A2L |
Screw |
4 |
|
18 |
GB/T 93–6–AOP |
Spring Uasker |
6 |
|
19 |
GB/T 6170–M6–AOP |
Nut |
2 |
|
20 |
GB/T 65–M6x30–A2L |
Screw |
2 |
|
21 |
Left Door Handle |
1 |
||
Rigkt Door Handle |
1 |
H45–1–4
Foton TA704–2F461H2C Wheeled Tractor

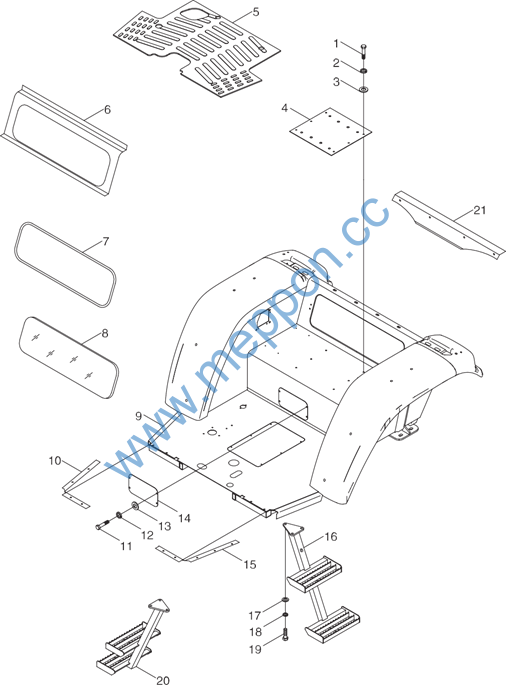

TA824.452A Floor Assembly–1
H45–1–5
