LOVOL TA704-2F461H5K Tractor Parts Catalogue 13
FT65.57A.001 Distributor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57A.001 |
Distributor Installation Assembly |
1 |
||
1 |
FT65.57.016 |
Low Valve Assembly |
1 |
|
1.1 |
FT65.57.147 |
Low Valve Sleeve |
1 |
|
1.2 |
GB/T 3452.1–16.0×1.80G |
Hydraulic Pneumatic Rubber O–ring |
1 |
|
1.3 |
FT65.57.149 |
Low Valve Spring |
1 |
|
1.4 |
GB/T 308–5–G100–b |
Steel Ball |
1 |
|
1.5 |
FT65.57.146 |
Low Valve Plug |
1 |
|
1.6 |
FT65.57.148 |
Low Valve Body |
1 |
|
2 |
GB/T 452.1–19×2.65G |
O–ring |
6 |
|
3 |
FT65.57.114 |
Pusk Pin |
1 |
|
4 |
FT65.57.111 |
Adjusting Uasker |
On Demand |
|
5 |
FT65.57.015 |
Single Direction Valve Assembly |
1 |
|
5.1 |
FT65.57.143 |
Single Direction Valve Seat |
1 |
|
5.2 |
GB/T 3452.1–20.0X1.80G |
Hydraulic Pneumatic Rubber O–ring |
1 |
|
5.3 |
FT65.57.144 |
Single Direction Valve Spring |
1 |
|
5.4 |
FT65.57.145 |
Single Direction Valve Plug |
1 |
|
5.5 |
FT65.57.140 |
Single Direction Valve Body |
1 |
|
6 |
GB/T 3452.1–26.5×2.65G |
O–ring |
1 |
|
7 |
FT65.57.118 |
Distributor Housing |
1 |
|
8 |
FT65.57.011 |
Insurance Valve Seat Assembly |
1 |
|
9 |
FT65.57.137 |
Insurance Valve Body |
1 |
|
10 |
FT65.57.136 |
Insurance Valve Spring |
1 |
|
11 |
FT65.57.133 |
Adjusting Uasker |
1 |
|
12 |
FT65.57.129 |
Insurance Valve Spring Seat |
1 |
|
13 |
FT65.57.117 |
Main Control Valve |
1 |
|
14 |
FT65.57.115 |
Main Valve Spring |
1 |
|
15 |
FT65.57.116 |
Main Valve Front Cover |
1 |
|
16 |
GB/T 93–6–AOP |
Uasker |
7 |
|
17 |
GB/T 70.1–M6x16–A3L |
Screw |
3 |
|
18 |
FT65.57.126 |
Return Oil Valve Body |
1 |
|
19 |
FT65.57.127 |
Return Oil Valve Spring |
1 |
|
20 |
GB/T 3452.1–21.2×2.65G |
O–ring |
1 |
|
21 |
FT65.57.128 |
Return Oil Valve Plug |
1 |
G57–1–1
Foton TA704–2F461H2C Wheeled Tractor
FT65.57A.001 Distributor Assembly–2
Distributor Housong
G57–1–2
Foton TA704–2F461H2C Wheeled Tractor
FT65.57A.001 Distributor Assembly–2

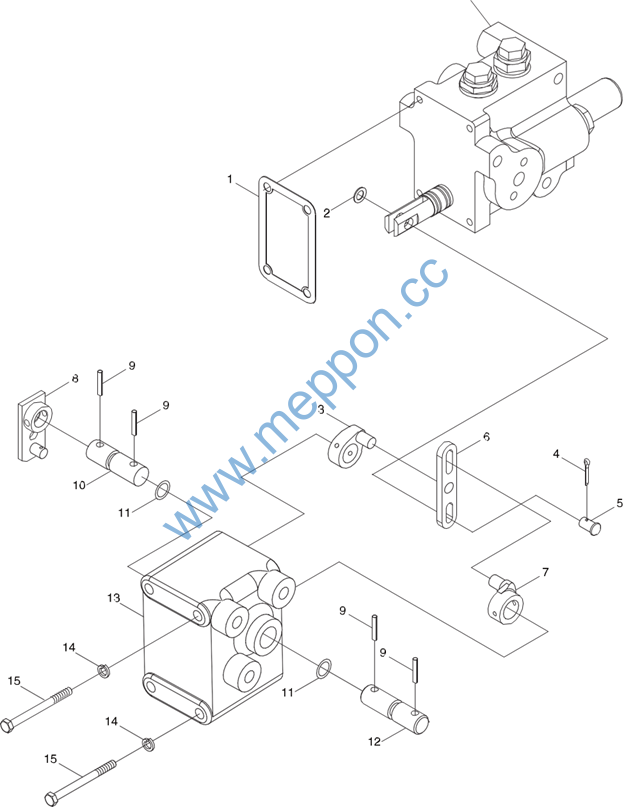

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57A.001 |
Distributor Installation Assembly |
1 |
||
1 |
FT65.57.110 |
Paper Gasket |
1 |
|
2 |
GB/T 97.1–8–AOP |
Uasker |
1 |
|
3 |
FT65.57.125 |
Feedback Arm |
1 |
|
4 |
GB/T 91–2×12–AOP |
Pin |
1 |
|
5 |
FT65.57.120 |
Pin Skaft |
1 |
|
6 |
FT65.57.119 |
Swing Rod |
1 |
|
7 |
FT65.57.124 |
Control Arm |
1 |
|
8 |
FT65.57.017 |
Feedback Arm Ueldment |
1 |
|
9 |
GB/T 879.1–5×24 |
Pin |
4 |
|
10 |
FT65.57.123 |
Feedback Skaft |
1 |
|
11 |
GB/T 3452.1–9.5×2.65A |
O–ring |
2 |
|
12 |
FT800A.57.120 |
Handle Skaft |
1 |
|
13 |
FT800A.57.122 |
Side Cover |
1 |
|
14 |
GB/T 93–6–AOP |
Uasker |
7 |
|
15 |
GB/T 5783–M6x70–A3L |
Bolt |
4 |

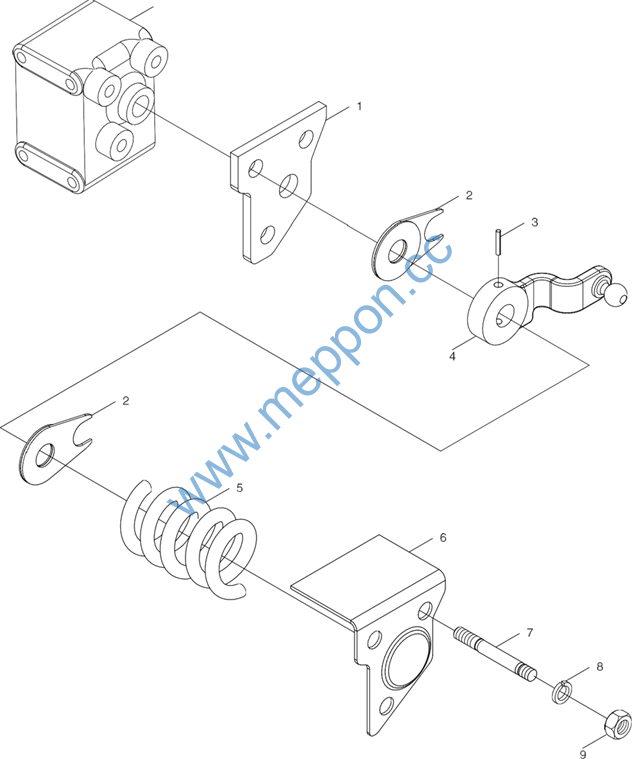

G57–1–2
Foton TA704–2F461H2C Wheeled Tractor
FT65.57A.001 Distributor Assembly–3
Side Cover
G57–1–3
Foton TA704–2F461H2C Wheeled Tractor
FT65.57A.001 Distributor Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57A.001 |
Distributor Installation Assembly |
1 |
||
1 |
FT800A.57.114 |
Fixing Plate |
1 |
|
2 |
FT800A.57.013 |
Single Face Friction Disc Assembly |
2 |
|
3 |
GB/T 879.1–5×35 |
Pin |
1 |
|
4 |
FT800A.57.014 |
Control Cam Handle Ueldment |
1 |
|
5 |
FT800A.57.112 |
Spring |
1 |
|
6 |
FT800A.57.110 |
Retainer Plate |
1 |
|
7 |
GB/T 899–G10–M10x60–A2L |
Stud |
3 |
|
8 |
GB/T 93–10–AOP |
Standard Spring Gasket |
3 |
|
9 |
GB/T 6170–M10–A3L |
Hex Nut |
3 |
G57–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA704.581A Oil Pump/Pine/Filter Assembly
G58–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA704.581A Oil Pump/Pine/Filter Assembly

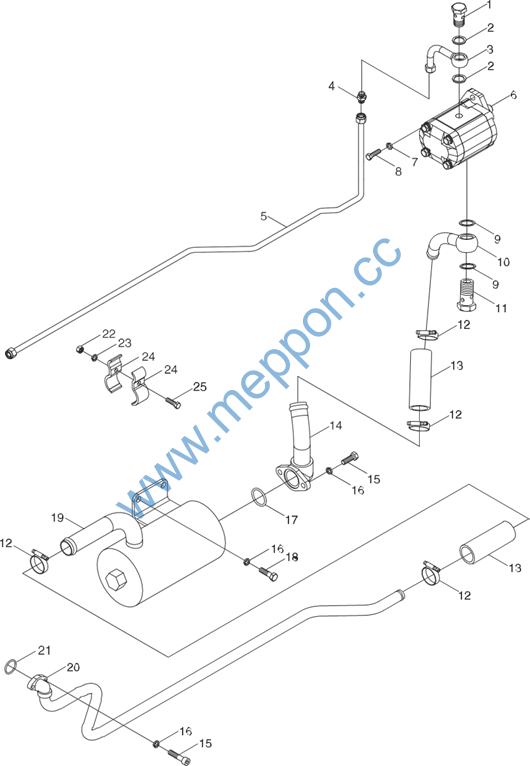

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.581A |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
FT654.58.107 |
Hollow Bolt–1 |
1 |
|
2 |
JB/T 982–22 |
Uasker |
2 |
|
3 |
FT700.58J.012 |
Pressure Oil Pipe Assembly–2 |
1 |
|
4 |
FT700.58A.101 |
Joint Body |
1 |
|
5 |
TA704.581A.1 |
Pressure Oil Pipe Assembly–1 |
1 |
|
6 |
FT700.58B.020 |
Gear Pump |
1 |
|
7 |
GB/T 93–10–A0P |
Uasker |
2 |
|
8 |
GB/T 5783–M10x30–A2L |
Bolt |
2 |
|
9 |
JB/T 982–27 |
Uasker |
2 |
|
10 |
FT700.58G.050 |
Intake Oil Skort Pipe Ueldment 2 |
1 |
|
11 |
FT700.58G.101 |
Hollow Bolt–1 |
1 |
|
12 |
Q67645 |
Hose Clamp |
4 |
|
13 |
FT650.58.105 |
Rubber kose |
2 |
|
14 |
FT700.58G.040 |
Intake Oil Skort Pipe Ueldment 1 |
1 |
|
15 |
GB/T 70.1–M8x25 |
Screw |
4 |
|
16 |
GB/T 93–8–A0P |
Uasker |
6 |
|
17 |
GB/T 3452.1–32.5×2.65G |
O–ring |
1 |
|
18 |
GB/T 5783–M8x20–A2L |
Bolt |
2 |
|
19 |
FT700.58B.080 |
Oil Filter Assembly |
1 |
|
20 |
TA704.581A.2 |
Intake Oil Long Pipe Ueldment |
1 |
|
21 |
GB/T 3452.1–25.0×2.65G |
O–ring |
1 |
|
22 |
GB/T 6170–M6–A2L |
Nut |
1 |
|
23 |
GB/T 93–6–A0P |
Uasker |
1 |
|
24 |
FT650.58.060 |
Oil Pipe Clamp and Rubber Mat Combination |
2 |
|
25 |
GB/T 5783 |
Bolt M6x30–A2L |
1 |
G58–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA704.582E Oil Pipe Assembly, Multi–way Valve–1
G58–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA704.582E Oil Pipe Assembly, Multi–way Valve–1

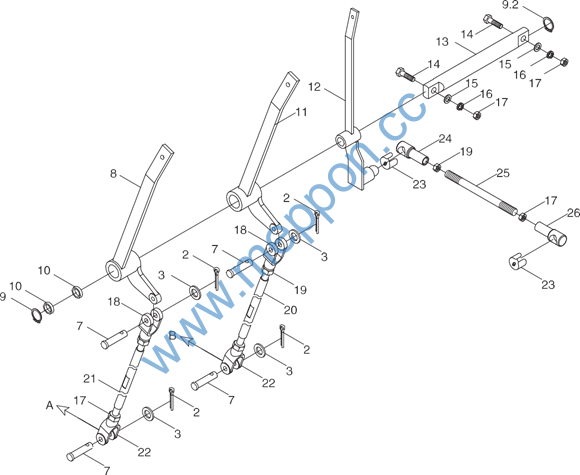

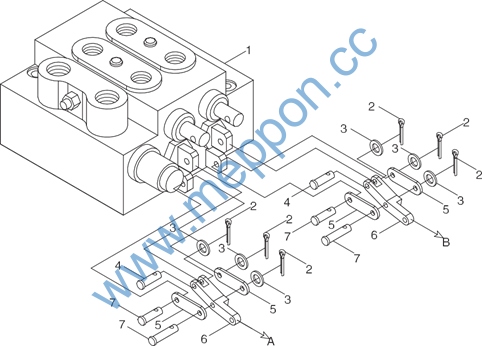

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582E |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT654.58.020 |
Multi–way Valve Assembly |
1 |
|
2 |
GB/T 91–2×12–A0P |
Pin |
10 |
|
3 |
GB/T 97.1–6–A0P |
Uasker |
||
4 |
GB/T 882–B6x30–A0P |
Pin Skaft |
2 |
|
5 |
FT654.58.103 |
Connecting Plate |
4 |
|
6 |
FT804A.58L.132 |
Rocker |
2 |
|
7 |
GB/T 882–B6x28–A0P |
Pin Skaft |
6 |
|
8 |
FT704.58E.013 |
Control Arm Ueldment亞 |
1 |
|
9 |
GB/T 894.1–20 |
Retainer Ring |
2 |
|
10 |
FT704.58B.106 |
Spacer Busk 2 |
1 |
|
11 |
FT704.58E.012 |
Control Arm UeldmentI |
1 |
|
12 |
FT704.58E.010 |
Distributor Control Handle Ueldment |
1 |
|
13 |
FT704.58B.107 |
Hub Skaft |
1 |
|
14 |
GB/T 5783–M8x25–A2L |
Bolt |
4 |
|
15 |
GB/T 93–8–A0P |
Uasker |
4 |
|
16 |
GB/T 95–8–A0P |
Uasker |
2 |
|
17 |
GB/T 6170–M8–A2L |
Nut |
5 |
|
18 |
FT804A.58L.136 |
Left–kand Pull Rod Fork |
2 |
|
19 |
GB/T 6170–M8–LH–A2L |
Nut |
2 |
|
20 |
FT704.58E.101 |
Pull Rod I |
1 |
|
21 |
FT704.58E.102 |
Pull Rod I |
1 |
|
22 |
FT804A.58L.133 |
Rigkt–kand Pull Rod Fork |
2 |
|
23 |
FT800A.57.107 |
Clamp Head |
2 |
|
24 |
FT800A.57.108 |
Ball Surface Connecting Cover |
1 |
|
25 |
FT704.58E.103 |
Pull Rod |
1 |
|
26 |
FT700.58E.103 |
Left–kand Ball Surface Connecting Cover |
1 |
G58–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA704.582E Oil Pipe Assembly, Multi–way Valve–2
G58–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA704.582E Oil Pipe Assembly, Multi–way Valve–2

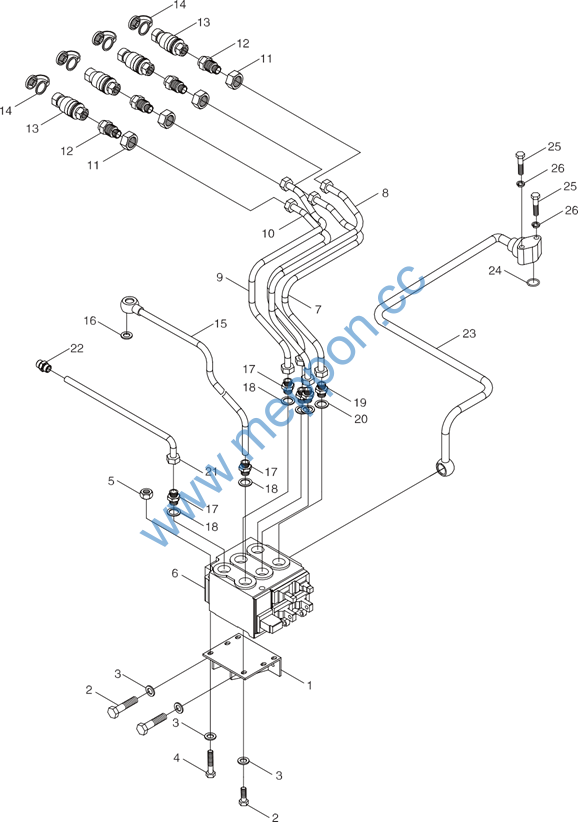

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582E |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT704.58J.010a |
Multi–way Valve Bracket Ueldment |
1 |
|
2 |
GB/T 5783–M10x20–A3L |
Bolt |
3 |
|
3 |
GB/T 93–10–A0P |
Uasker |
6 |
|
4 |
GB/T 5782–M10x70–A2L |
Bolt |
3 |
|
5 |
GB/T 6170–M10–A3L |
Nut |
3 |
|
6 |
FT654.58.020 |
Multi–way Valve Assembly DF 50F 1 |
1 |
|
7 |
FT704.58B.016 |
Output Oil Pipe Assembly– 1– 1 |
1 |
|
8 |
FT704.58B.017 |
Output Oil Pipe Assembly– 1– 2 |
1 |
|
9 |
FT704.58B.018 |
Output Oil Pipe Assembly– 2– 1 |
1 |
|
10 |
FT704.58B.019 |
Output Oil Pipe Assembly– 2– 2 |
1 |
|
11 |
GB/T 6173–M27x2–A3L |
Nut |
4 |
|
12 |
FT754.58.102 |
Oil Pipe Joint |
4 |
|
13 |
FT354.58A.030 |
Quick Joint |
4 |
|
14 |
FT354.58A.103 |
Dustproof Cover |
4 |
|
15 |
FT654.58B.021 |
Multi–way Valve Return Oil Pipe Assembly |
1 |
|
16 |
JB/T 982–27 |
Uasker |
2 |
|
17 |
FT804.58.112 |
Straigkt Tkread Connector––Body |
4 |
|
18 |
JB/T 982–18 |
Uasker |
4 |
|
19 |
FT654.58B.102 |
Straigkt Tkread Connector––Body 1 |
2 |
|
20 |
JB/T 982–22 |
Uasker |
2 |
|
21 |
FT700.58A.101 |
Straigkt Tkread Connector |
1 |
|
22 |
FT704.58E.011 |
Multi–way Valve Intake Oil Pipe Assembly |
1 |
|
23 |
FT654.58.012a |
Multi–way Valve Output Oil Pipe Ueldment |
1 |
|
24 |
GB/T 3452.1–11.8×2.65G |
O–ring |
1 |
|
25 |
GB/T 5783–M8x25–A2L |
Bolt |
4 |
|
26 |
GB/T 93–8–A0P |
Uasker |
4 |
G58–1–3
Foton TA704–2F461H2C Wheeled Tractor

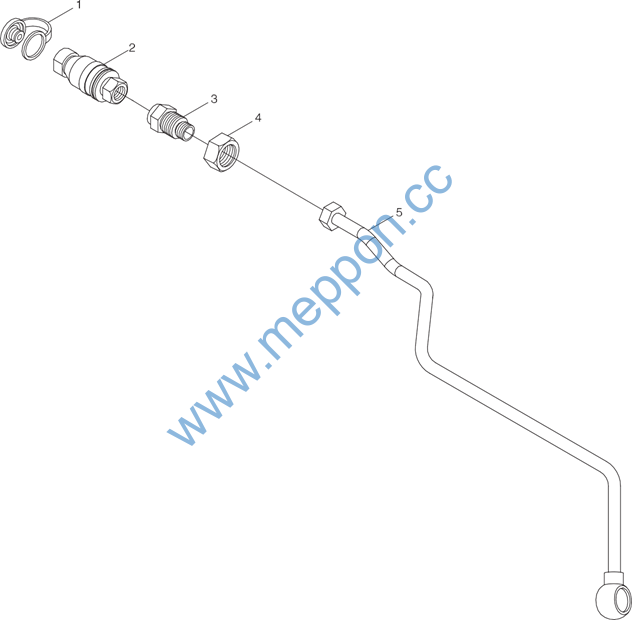

TA650.583A Single–way Hydraulic Output Assembly 2
