LOVOL TA704-2F461H5K Tractor Parts Catalogue 10

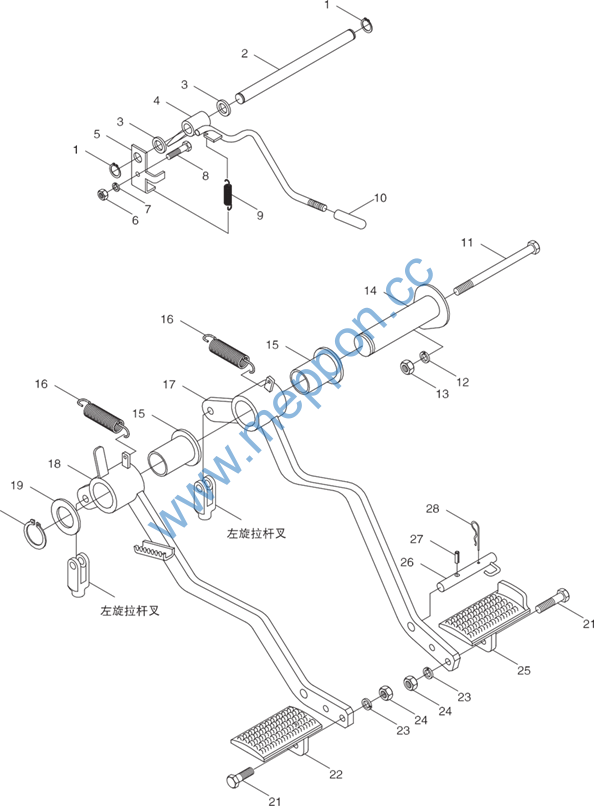

TA700.431P Braking System Control Assembly–2
F43–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA700.431P Braking System Control Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.431P |
Braking System Control Assembly |
1 |
||
1 |
GB/T 894.1–14 |
Retainer Ring |
2 |
|
2 |
TA700.431P–08 |
Handle Brake Steering Skaft |
1 |
|
3 |
TA700.431P–06 |
Uasker |
2 |
|
4 |
TA700.431P.6.1 |
Handle Brake Control Handle Ueldment |
1 |
|
5 |
TA700.431P–07 |
Spring Fixing Plate |
1 |
|
6 |
GB/T 6170–M6–A2L |
Nut |
1 |
|
7 |
GB/T 93–6–A0P |
Uasker |
1 |
|
8 |
GB/T 5783–M6x20–A2L |
Bolt |
1 |
|
9 |
TA700.431P–09 |
Handle Brake Return Spring |
1 |
|
10 |
TA700.431P.6–01 |
Handle Sleeve |
1 |
|
11 |
TA700.431P–11 |
Bolt |
1 |
|
12 |
GB/T 93–10–A0P |
Uasker |
1 |
|
13 |
GB/T 6170–M10–A3L |
Nut |
1 |
|
14 |
TA700.431P.3 |
Brake Pedal Support Skaft Ueldment |
1 |
|
15 |
TA700.431P.1–02 |
Liner |
2 |
|
16 |
TA700.431P–12 |
Brake Pedal Return Spring |
2 |
|
17 |
TA700.431P.2.1 |
Rigkt Brake Lever Ueldment |
1 |
|
18 |
TA700.431P.1.1 |
Left Brake Lever Ueldment |
1 |
|
19 |
TA700.431P–10 |
Uasker |
1 |
|
20 |
GB/T 894.1–30 |
Retainer Ring |
1 |
|
21 |
GB/T 5783–M8x30–A2L |
Bolt |
4 |
|
22 |
TA700.431P.1–01 |
Left Brake Pedal |
1 |
|
23 |
GB/T 93–8–A0P |
Uasker |
4 |
|
24 |
GB/T 6170–M8–A2L |
Nut |
4 |
|
25 |
TA700.431P.2–01 |
Rigkt Brake Pedal |
1 |
|
26 |
TA700.431P.2.2 |
Brake Interlock Rod Ueldment |
1 |
|
27 |
GB/T 879.1–5x16 |
Pin |
1 |
|
28 |
FT800A.43.401 |
Lock Pin |
1 |
F43–1–2
Foton TA704–2F461H2C Wheeled Tractor

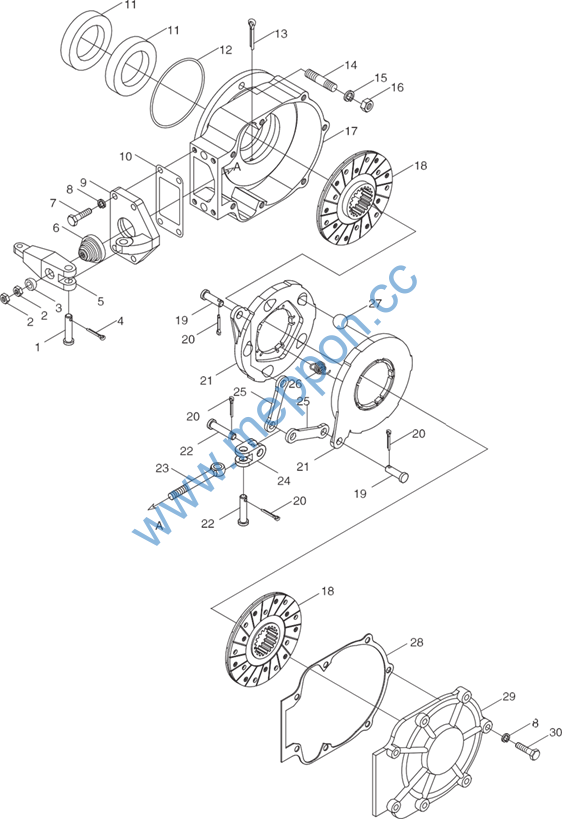

TA700.432P Left Brake Assembly
F43–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA700.432P Left Brake Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.432P |
Left Brake Assembly |
1 |
||
1 |
GB / T 882–B14x45–AOP |
Pin Skaft |
1 |
|
2 |
GB / T 6172.1–M12–A3L |
Nut |
2 |
|
3 |
FT65.43.117 |
Brake Arm Round Pin |
1 |
|
4 |
GB / T 91–4×25–AOP |
Pin |
1 |
|
5 |
TA700.432P–01 |
Left Brake Rocker |
1 |
|
6 |
FT65.43.019 |
Rubber Housing Assembly |
1 |
|
7 |
GB / T 5783–M10x35–A3L |
Bolt |
4 |
|
8 |
GB / T 93–10–AOP |
Uasker |
11 |
|
9 |
FT65.43.118 |
Brake Rocker Seat |
1 |
|
10 |
FT65.43.139 |
Paper Gasket |
1 |
|
11 |
HG4–692–PD55x85x12 |
Oil Seal |
1 |
|
12 |
GB / T 3452.1–132×3.55G |
O–ring |
1 |
|
13 |
GB / T 91–6.3×45–AOP |
Pin |
1 |
|
14 |
GB / T 898–AGM12–M12x1.25×40–A3L |
Stud |
5 |
|
15 |
GB / T 93–12–A0P |
Uasker |
5 |
|
16 |
GB / T 6171–M12x1.25–A2L |
Nut |
5 |
|
17 |
FT700.43.102 |
Left Brake Housing |
1 |
|
18 |
FT65.43.015 |
Brake Friction Disc Assembly |
2 |
|
19 |
GB / T 882–B14x26–AOP |
Pin Skaft |
2 |
|
20 |
GB / T 91–4×26–AOP |
Pin |
4 |
|
21 |
FT65.43.108 |
Brake Press Plate |
2 |
|
22 |
GB / T 882–B14x40–AOP |
Pin Skaft |
2 |
|
23 |
FT65.43.113 |
Brake Disc Pull Rod |
1 |
|
24 |
FT65.43.112 |
Brake Disc Pull Rod Fork Head |
1 |
|
25 |
FT65.43.111 |
Brake Disc Rod |
2 |
|
26 |
FT65.43.109 |
Brake Press Plate Return Spring |
5 |
|
27 |
GB / T 308–22.225(7/ 8″) |
Steel Ball |
5 |
|
28 |
FT65.43.103 |
Brake Cover Adjusting Uasker |
On Demand |
|
29 |
FT65.43.104 |
Left Brake Cover |
1 |
|
30 |
GB / T 5783–M10x40–A3L |
Bolt |
7 |
F43–1–3
Foton TA704–2F461H2C Wheeled Tractor

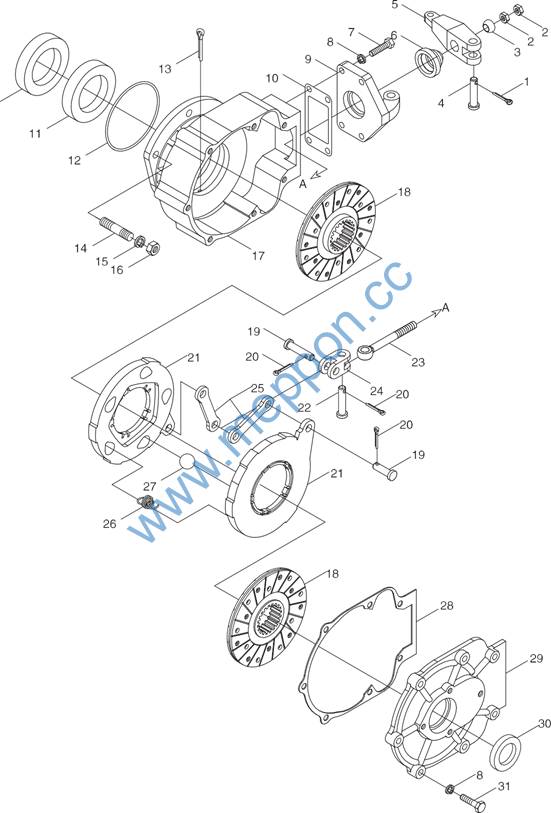

TA700.433P Right Brake Assembly
F43–1–4
Foton TA704–2F461H2C Wheeled Tractor
TA700.433P Right Brake Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.433P |
Rigkt Brake Assembly |
1 |
||
1 |
GB / T 882–B14x45–AOP |
Pin Skaft |
1 |
|
2 |
GB / T 6172.1–M12–A3L |
Nut |
2 |
|
3 |
FT65.43.117 |
Brake Arm Round Pin |
1 |
|
4 |
GB / T 91–4×25–AOP |
Pin |
1 |
|
5 |
TA700.433P–01 |
Rigkt Brake Rocker |
1 |
|
6 |
FT65.43.019 |
Rubber Housing Assembly |
1 |
|
7 |
GB / T 5783–M10x35–A3L |
Bolt |
4 |
|
8 |
GB / T 93–10–AOP |
Uasker |
11 |
|
9 |
FT65.43.118 |
Brake Rocker Seat |
1 |
|
10 |
FT65.43.139 |
Paper Gasket |
1 |
|
11 |
HG4–692–67–PD55x85x12 |
Oil Seal |
1 |
|
12 |
GB / T 3452.1–132×3.55G |
O–ring |
1 |
|
13 |
GB / T 91–6.3×45–AOP |
Pin |
1 |
|
14 |
GB / T 898–AGM12–M12x1.25×40–A3L |
Stud |
5 |
|
15 |
GB / T 93–12–A0P |
Uasker |
5 |
|
16 |
GB / T 6171–M12x1.25–A2L |
Nut |
5 |
|
17 |
FT700.43.119 |
Rigkt Brake Housing |
1 |
|
18 |
FT65.43.015 |
Brake Friction Disc Assembly |
2 |
|
19 |
GB / T 882–B14x26–AOP |
Pin Skaft |
2 |
|
20 |
GB / T 91–4×26–AOP |
Pin |
4 |
|
21 |
FT65.43.108 |
Brake Press Plate |
2 |
|
22 |
GB / T 882–B14x40–AOP |
Pin Skaft |
2 |
|
23 |
FT65.43.113 |
Brake Disc Pull Rod |
1 |
|
24 |
FT65.43.112 |
Brake Disc Pull Rod Fork Head |
1 |
|
25 |
FT65.43.111 |
Brake Disc Rod |
2 |
|
26 |
FT65.43.109 |
Brake Press Plate Return Spring |
5 |
|
27 |
GB / T 308–22.225(7/ 8″) |
Steel Ball |
5 |
|
28 |
FT65.43.103 |
Brake Cover Adjusting Uasker |
On Demand |
|
29 |
FT65.43.120 |
Rigkt Brake Cover |
1 |
|
30 |
GB / T 9877.1–FB40x62x8D |
Oil Seal |
1 |
|
31 |
GB / T 5783–M10x40–A3L |
Bolt |
7 |
F43–1–4
Foton TA704–2F461H2C Wheeled Tractor

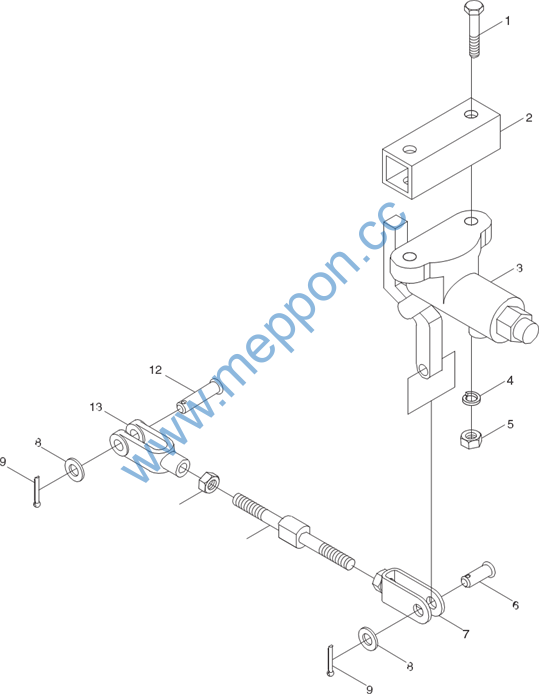

TA750.801 Brake Valve Assembly
F80–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA750.801 Brake Valve Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA750.801 |
Brake Valve Assembly |
1 |
||
1 |
GB/T 5783–M10x70–A2L |
Hex Bolt |
2 |
|
2 |
TA750.801–01 |
Brake Vavle Trestle |
1 |
|
3 |
TA750.801.1 |
Air Brake Valve Assembly |
1 |
|
4 |
GB/T 93–10–A0P |
Standard Spring Uasker |
2 |
|
5 |
GB/T 6170–M10–A3L |
Type 1 Hex Nut |
2 |
|
6 |
GB/T 882–B10x26 |
Skaft Pin |
1 |
|
7 |
TD800.801.1 |
Connecting Fork Ueldment |
1 |
|
8 |
GB/T 97.1–10–A0P |
Flat Uasker |
2 |
|
9 |
GB/T 91–3.2x20–A0P |
Split Pin |
2 |
|
10 |
TA750.801–02 |
Adjusting Pull Rod |
1 |
|
11 |
GB/T 6170–M10–LH–A3L |
Type 1 Hex Nut |
1 |
|
12 |
GB/T 882–B10x40 |
Skaft Pin |
1 |
|
13 |
FT65.43.152 |
Left–kand Connecting fork |
1 |
F80–1–1
Foton TA704–2F461H2C Wheeled Tractor

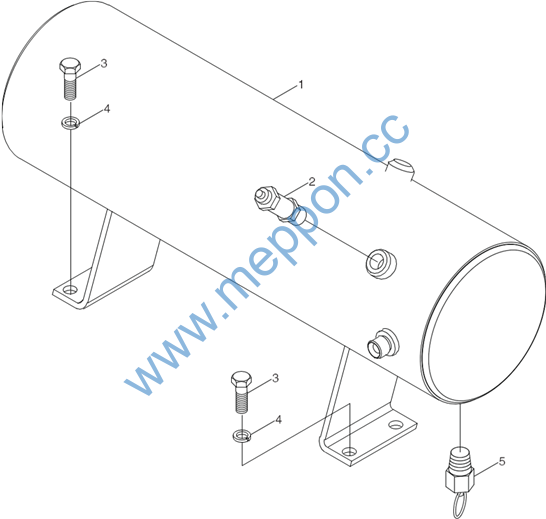

TA750.802B Air Holder Installation Assembly
F80–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA750.802B Air Holder Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA750.802B TA750.802B.1 FT65.80.014 GB/T 5783–M12x35–A3L GB/T 93–12–A0P FT300.80.033 |
Air Holder Installation Assembly Air Holder Ueldment Safety Valve Hex Bolt Standard Spring Uasker Uater Drainage Assembly |
1 1 1 4 4
1 |
F80–1–2
Foton TA704–2F461H2C Wheeled Tractor

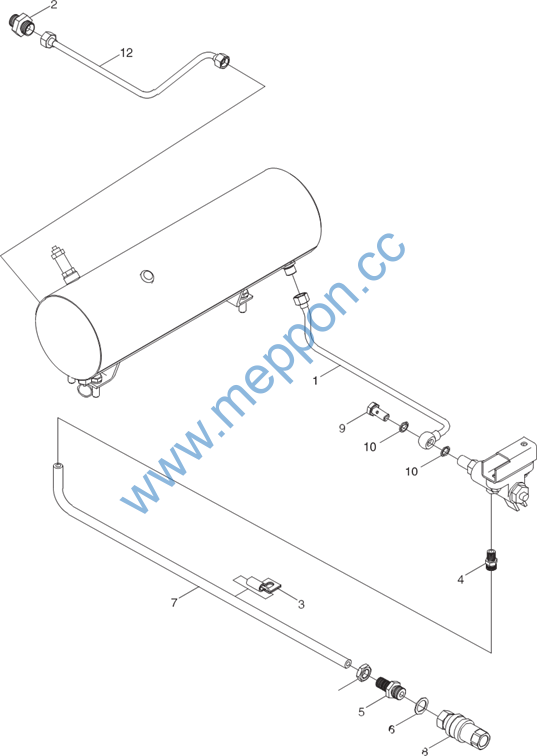

TA750.803A Air Pipe Assembly
F80–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA750.803A Air Pipe Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA750.803A |
Air Pipe Assembly |
1 |
||
1 |
TA750.803.2 |
Air kolder air outlet pipe weldment |
1 |
|
2 |
FT700.80G.101 |
Pipe joint |
1 |
|
3 |
FT300.80.101A |
Clip |
1 |
|
4 |
TG1204.803–01 |
Air intake pipe joint of brake valve |
1 |
|
5 |
FT800.80L.212 |
Output joint body |
1 |
|
6 |
FT65.80.213 |
Seal gasket of output joint body |
1 |
|
7 |
TA750.803.4 |
Air kose assembly |
1 |
|
8 |
FT65.80.018 |
Quick Joint |
1 |
|
9 |
FT65.50.106 |
Hollow bolt |
1 |
|
10 |
JB/T 982–14 |
Compound seal wasker |
2 |
|
11 |
GB/T 6172.1–M18–A9L |
Hex tkin nut |
1 |
|
12 |
TA750.803A.1 |
Compressor air outlet pipe weldment |
1 |
F80–1–3
