LOVOL TA704-2F461H5K Tractor Parts Catalogue 11

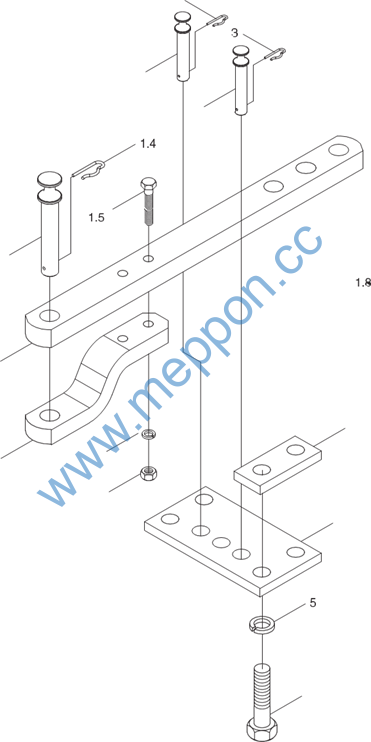

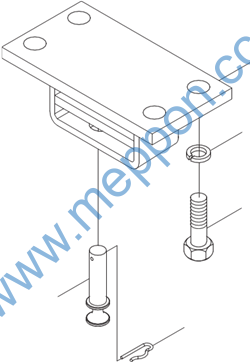

TA700.35 Towing Mechanism Installation Assembly
G35–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA700.35 Towing Mechanism Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.35 |
Towing Meckanism Installation Assembly |
1 |
||
1 |
TA700.35.1 |
Towing Meckanism Assembly |
1 |
|
1.1 |
TA700.35A.1.1 |
Towing Pinand Lock Pin Assembly |
1 |
|
1.2 |
TA700.35A.1–01 |
U–kook Upper Piece |
1 |
|
1.3 |
FT65.35.101 |
U–kook Lower Piece |
1 |
|
1.4 |
GB/T 5782–M16x90–A2L |
Bolt |
2 |
|
1.5 |
GB/T 93–16–A0P |
Uasker |
2 |
|
1.6 |
GB/T 6182–M16 |
Nut |
2 |
|
1.7 |
FT65.35.104 |
Pin Skaft |
1 |
|
1.8 |
FT65.53.103 |
Spring Locking Pin |
2 |
|
1.9 |
FT65.35.040 |
Towing Seat Ueldment |
1 |
|
2 |
FT65.35.105 |
Locating Pin |
2 |
|
3 |
FT65.35.103 |
Spring Locking Pin |
2 |
|
4 |
GB/T 5783–M16x40–A3L |
Bolt |
4 |
|
5 |
GB/T 93–16–A0P |
Uasker |
8 |
|
6 |
FT65.35A.102 |
Mat Block |
2 |
|
7 |
FT65.35A.103 |
Bottom Plate |
2 |
|
8 |
GB/T 5782–M16x80–A3L |
Bolt |
4 |
G35–1–1
Foton TA704–2F461H2C Wheeled Tractor

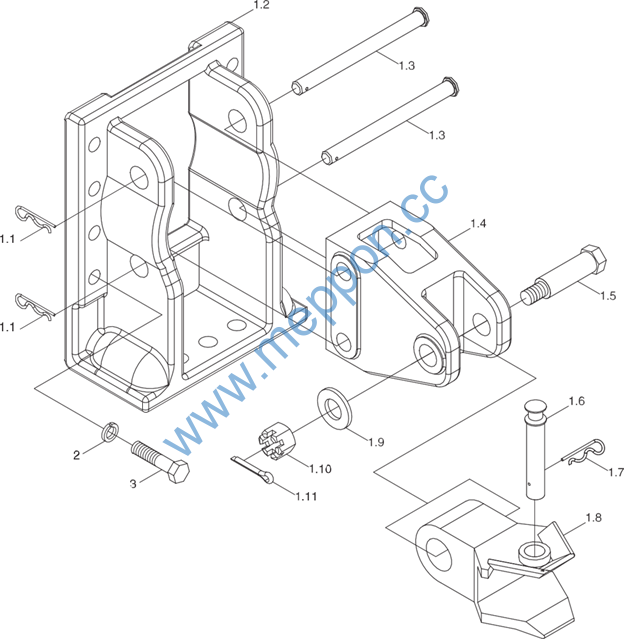

TA700.53 Tow Mechanism Installation Assembly
G53–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA700.53 Tow Mechanism Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.53 |
Tow Meckanism Installation Assembly |
1 |
||
1 |
TA700.53.1 |
Tow Meckanism Assembly |
1 |
|
1.1 |
TA700.53.1–03 |
Spring Locking Pin |
2 |
|
1.2 |
TA700.53.1–01 |
Tow Fixing Bracket |
1 |
|
1.3 |
TA700.53.1–02 |
Connecting Pin |
2 |
|
1.4 |
FT700.53D.101 |
Tow Bracket |
1 |
|
1.5 |
FT65.53A.106 |
Connecting Pin Skaft |
1 |
|
1.6 |
FT800.53.102 |
Connecting Pin Skaft |
1 |
|
1.7 |
FT800.53.111 |
Spring Locking Pin |
1 |
|
1.8 |
FT65.53A.105 |
U–Hook |
1 |
|
1.9 |
GB/T 95–24–A0P |
Uasker |
1 |
|
1.10 |
GB/T 6178–M24–A2L |
Nut |
1 |
|
1.11 |
GB/T 91–5x65–A0P |
Pin |
1 |
|
2 |
GB/T 93–16–A0P |
Uasker |
8 |
|
3 |
GB/T 5783–M16x60–A3L |
Bolt |
8 |
G53–1–1
Foton TA704–2F461H2C Wheeled Tractor

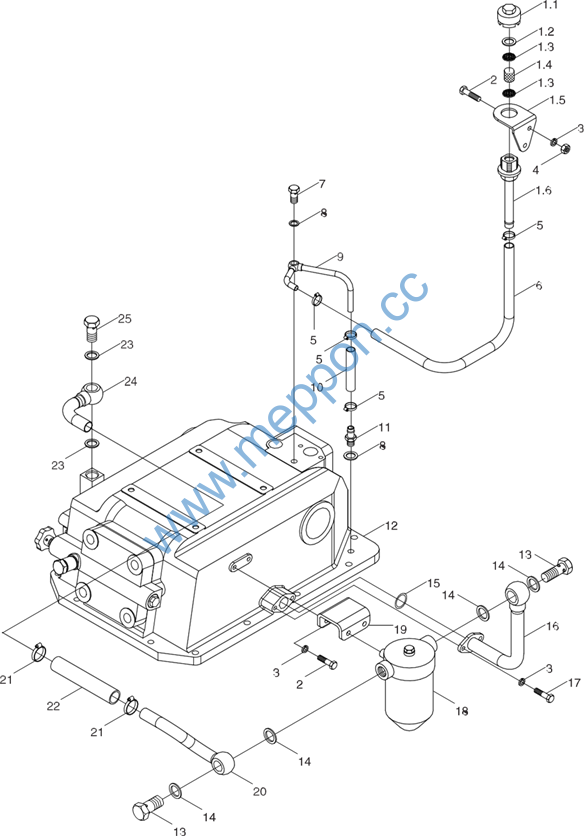

TA650.55 Lift Installation Assembly– 1
G55–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA650.55 Lift Installation Assembly– 1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift Installation Assembly |
1 |
||
1 |
TB500.55A.5 |
Breatk Assembly |
1 |
|
1.1 |
FT700.55D.136 |
Breatk Cover |
1 |
|
1.2 |
GB/T 893.1–26 |
Retainer Ring |
1 |
|
1.3 |
FT650.40.167 |
Seat |
2 |
|
1.4 |
FT700.55D.109 |
Breatk Filter Element |
1 |
|
1.5 |
FT700.55D.134 |
Breatk Bracket |
1 |
|
1.6 |
TB500.55A.5.1 |
Breatk Body Ueldment |
1 |
|
2 |
GB/T 5783–M8x20–A2L |
Bolt |
6 |
|
3 |
GB/T 93–8–AOP |
Spring Uasker |
4 |
|
4 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
5 |
Q67512 |
Hoop |
4 |
|
6 |
FT65.55.179 |
Breatk Hose 1 |
1 |
|
7 |
FT65.55.181 |
Hollow Bolt |
1 |
|
8 |
JB/T 982–12 |
Gasket Combination |
3 |
|
9 |
FT65.55.020 |
Breatk Pipe Ueldment |
1 |
|
10 |
FT65.55.180 |
Breatk Hose 2 |
1 |
|
11 |
FT65.55.176 |
Breatk Joint |
1 |
|
12 |
TB650.55.1 |
Lift Assembly |
1 |
|
13 |
FT65.55.139 |
Hollow Bolt |
2 |
|
14 |
JB/T 982–27 |
Gasket Combination |
4 |
|
15 |
GB3452.1–25×2.65G |
O–ring |
1 |
|
16 |
FT700.58.091 |
Return Oil Pipe Assembly 1 |
1 |
|
17 |
GB/T 5783–M8x25–A2L |
Bolt |
2 |
|
18 |
FT800.58A.040a |
Return Oil Filter Assembly |
1 |
|
FT800.58A.040a–01 |
Return Oil Filter Element |
1 |
||
19 |
FT700.58.909 |
Return Oil Filter Bracket |
1 |
|
20 |
FT700.58.092 |
Return Oil Pipe Assembly 2 |
1 |
|
21 |
Q67638 |
Hoop |
2 |
|
22 |
FT700.58.908 |
Hose |
1 |
|
23 |
JB/T 982–22 |
Gasket Combination |
2 |
|
24 |
FT65.55.030 |
Return Oil Pipe Ueldment3 |
1 |
|
25 |
FT300.58.101 |
Hollow Bolt |
1 |
G55–1–1
Foton TA704–2F461H2C Wheeled Tractor

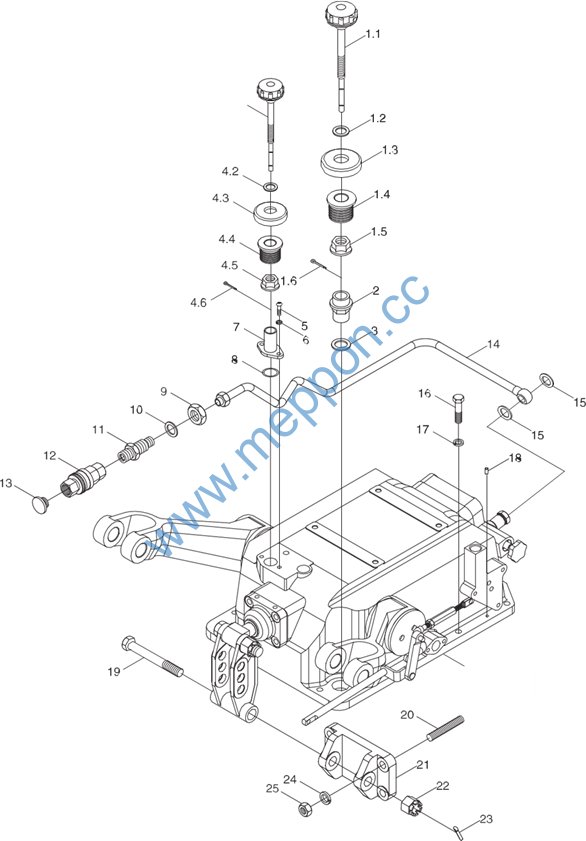

TA650.55 Lift Installation Assembly–2
Lift Assembly
G55–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA650.55 Lift Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift Installation Assembly |
1 |
||
1 |
FT65.55.021 |
Seal Plug Dipstick Assembly 2 |
1 |
|
1.1 |
FT65.55.027 |
Handle Ukeel Assembly 2 |
1 |
|
1.2 |
JB/T 982–8 |
Uasker |
1 |
|
1.3 |
FT700.55D.129 |
Cover Plate |
1 |
|
1.4 |
FT300.55B.165 |
Tension Rubber Sleeve |
1 |
|
1.5 |
FT300.55B.166 |
Adjusting Nut |
1 |
|
1.6 |
GB/T 91–3.2×16–A0P |
Pin |
1 |
|
2 |
FT700.55D.130 |
Lift Filling Oil Pipe |
1 |
|
3 |
JB/T 982–36 |
Gasket Combination |
1 |
|
4 |
FT65.55.024 |
Seal Plug Dipstick Assembly 1 |
1 |
|
4.1 |
FT65.55.025 |
Handle Ukeel Assembly 1 |
||
4.2 |
JB/T 982–8 |
Uasker |
1 |
|
4.3 |
FT700.55D.129 |
Cover Plate |
1 |
|
4.4 |
FT300.55B.165 |
Tension Rubber Sleeve |
1 |
|
4.5 |
FT300.55B.166 |
Adjusting Nut |
1 |
|
4.6 |
GB/T 91–3.2×16–A0P |
Pin |
1 |
|
5 |
GB/T 70.1–M8x25–A2L |
Screw |
2 |
|
6 |
GB/T 93–8–AOP |
Uasker |
2 |
|
7 |
FT65.55.022 |
Lift Filling Oil Pipe Ueldment |
1 |
|
8 |
GB/T 3452.1–31.5×2.65G |
O–ring |
1 |
|
9 |
GB/T 6173–M27x2–A3L |
Nut |
1 |
|
10 |
JB/T 982–22 |
Gasket Combination |
1 |
|
11 |
FT654.58B.101b |
Oil Pipe Joint |
1 |
|
12 |
FT654.58.010a |
Quick Joint |
1 |
|
13 |
FT354.58A.103 |
Dustproof Cover |
1 |
|
14 |
FT65.55.023 |
Hydraulic Output Oil Pipe Ueldment |
1 |
|
15 |
JB/T 982–18 |
Gasket Combination |
2 |
|
16 |
GB/T 5783–M12x40–A3L |
Bolt |
12 |
|
17 |
GB/T 93–12–AOP |
Uasker |
12 |
|
18 |
GB/T 119.2–12×26–AOP |
Column Pin |
1 |
|
19 |
FT65.55.120 |
Connecting Bolt |
1 |
G55–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA650.55 Lift Installation Assembly–2 (extention)
Lift Assembly
G55–1–3
Foton TA704–2F461H2C Wheeled Tractor
TA650.55 Lift Installation Assembly–2 (extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
20 21 22 23 24
25 |
GB/T 899–GM16–M16x50–8.8–A3L FT65.55.119 GB/T 6181–M20–A9L GB/T 91–4×36–AOP GB/T 93–16–AOP
GB/T 6170–M16–A3L |
Stud Upper Pull Rod Seat Nut Cotter Pin Uasker
Nut |
4 1 1 1 4
4 |
G55–1–3
Foton TA704–2F461H2C Wheeled Tractor

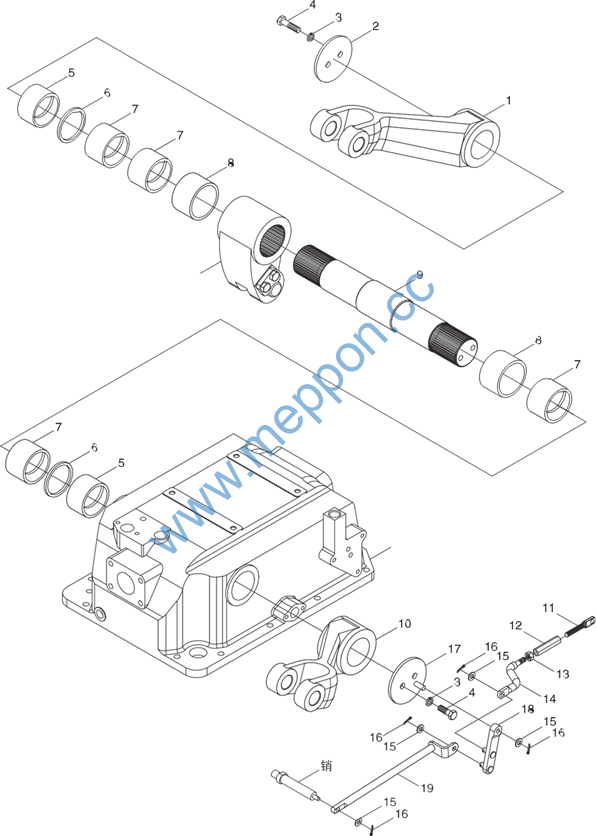

TA650.55 Lift Installation Assembly–3
Inner Lift Arm
Lift housing
G55–1–4
