LOVOL TA704-2F461H5K Tractor Parts Catalogue 09
Foton TA704–2F461H2C Wheeled Tractor

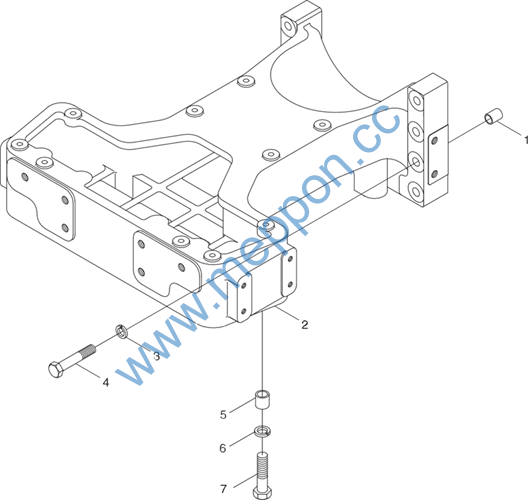

TA704.312B Bracket Assembly
C31–1–8
Foton TA704–2F461H2C Wheeled Tractor
TA704.312B Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.312B |
Bracket Assembly |
1 |
||
1 |
FT800.31.120 |
Bracket Connecting Sleeve |
2 |
|
2 |
TA704.312B–01 |
Bracket |
1 |
|
3 |
GB/T 93–16–A0P |
Standard Spring Uasker |
8 |
|
4 |
GB/T 5782–M16x90–A2L |
Hex Bolt |
8 |
|
5 |
FT654.31A.106 |
Locating Sleeve |
4 |
|
6 |
GB/T 93–18–A0P |
Standard Spring Uasker |
4 |
|
7 |
GB/T 5785–M18x1.5×80–A3L |
Hex Bolt |
4 |
C31–1–8
Foton TA704–2F461H2C Wheeled Tractor

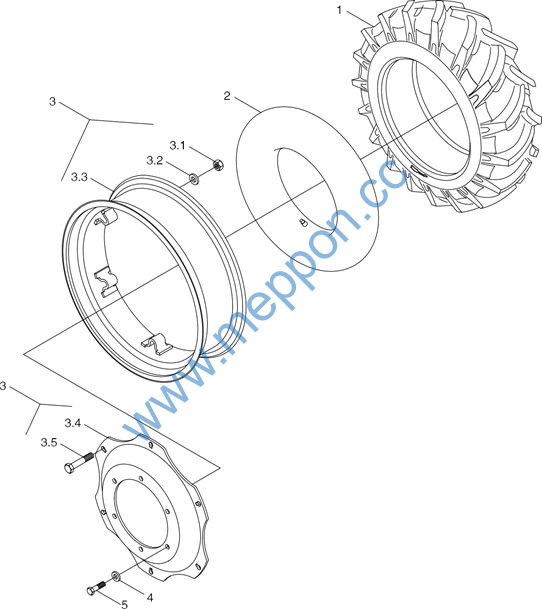

FT604.32F.001 Front Wheel Assembly
D32–1–1
Foton TA704–2F461H2C Wheeled Tractor
FT604.32F.001 Front Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT604.32F.001 |
Front Ukeel Assembly |
2 |
||
1 |
GB/T 2979–8.3–24–6PR |
Cover Tire |
2 |
|
2 |
GB/T 2979–8.3–24 |
Inner Tube |
2 |
|
3 |
FT604.32F.011 |
Rim Radial Assembly |
2 |
|
3.1 |
GB/T 6171–M16x1.5–10–A3L |
Nut |
12 |
|
3.2 |
FT800.34.108 |
Flat Uasker |
12 |
|
3.3 |
FT604.32F.012 |
Rim Ueldment |
2 |
|
3.4 |
FT654.32.102 |
Ueb |
2 |
|
3.5 |
FT650.34.107 |
Rim Bolt |
12 |
|
4 |
FT654.32.104 |
Uasker |
12 |
|
5 |
GB/T 5786–M16x1.5x40–10.9–A3L |
Bolt |
12 |
D32–1–1
Foton TA704–2F461H2C Wheeled Tractor

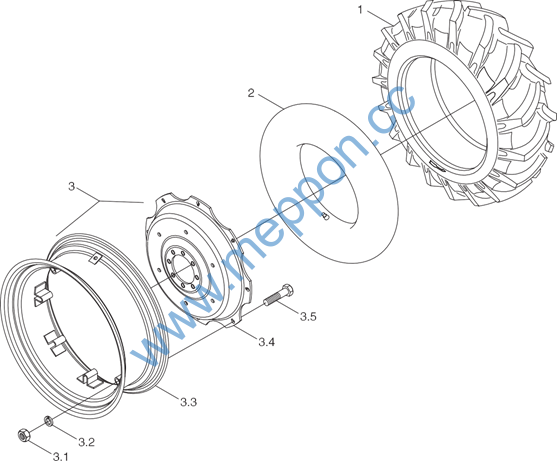

FT654.34F.001 Rear Driving Wheel Assembly
D34–1–1
Foton TA704–2F461H2C Wheeled Tractor
FT654.34F.001 Rear Driving Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.34F.001 |
Rear Driving Ukeel Assembly |
2 |
||
1 |
GB/T 1192–14.9–30–10PR |
Driving Ukeel Tire |
2 |
|
2 |
GB/T 1192–14.9–30 |
Driving Ukeel Inner Tube |
2 |
|
3 |
FT654.34F.011 |
Rim Assembly |
2 |
|
3.1 |
GB/T 6171–M16x1.5–10–A3L |
Nut |
16 |
|
3.2 |
FT800.34.108 |
Flat Uasker |
16 |
|
3.3 |
FT654.34F.012 |
Rim Ueldment |
2 |
|
3.4 |
FT650.34.105b |
Ueb |
2 |
|
3.5 |
FT650.34.107 |
Rim Bolt |
16 |
D34–1–1
Foton TA704–2F461H2C Wheeled Tractor

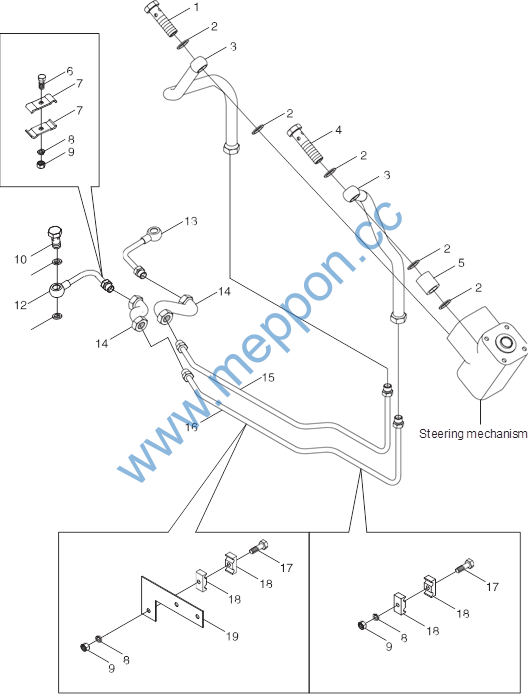

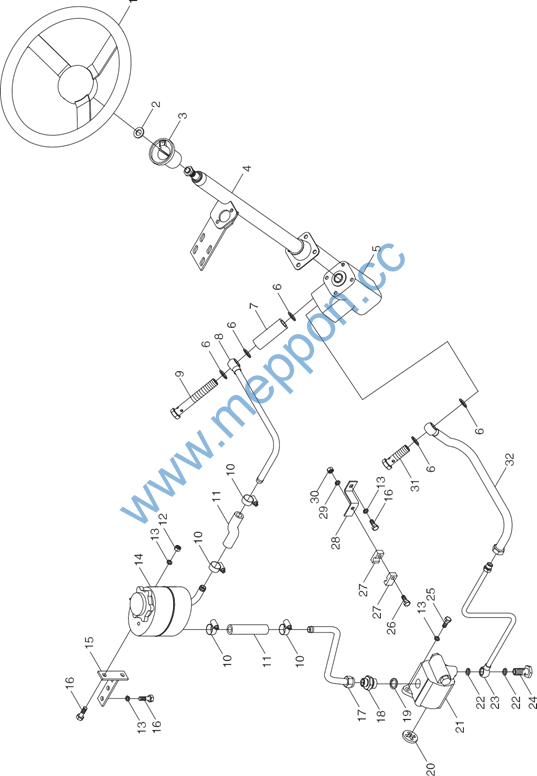

TA704.40B Fully Hydraulic Steering Assembly–1
E40–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA704.40B Fully Hydraulic Steering Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.40B |
Fully Hydraulic Steering Assembly |
1 |
||
1 |
FT800A.40L.050 |
Steering Ukeel Assembly |
1 |
|
2 |
GB/T 97.1–16–A0P |
Flat Uasker |
1 |
|
3 |
FT650.40.014 |
Horn Electric Brusk Seat Assembly |
1 |
|
4 |
TA700.40Q.1.1 |
Steering Column Assembly |
1 |
|
5 |
FT650.40.032A |
Steering Meckanism and Valve Body Assembly |
1 |
|
6 |
JB/T 982–20 |
Compound Seal Ring |
5 |
|
7 |
FT250.40A.105 |
Connecting Pipe |
1 |
|
8 |
TA704.40B.4 |
Oil Return Pipe Ueldment of Steering Meckanism |
1 |
|
9 |
FT250.40A.106 |
Hollow Bolt |
1 |
|
10 |
Q67627 |
B type Uorm Drive Hose Clamp |
4 |
|
11 |
FT800A.40K.101 |
Oil Inlet Hose |
2 |
|
12 |
GB/T 6170–M10–A3L |
Type 1 Hex Nut |
2 |
|
13 |
GB/T 93–10–A0P |
Standard Spring Uasker |
7 |
|
14 |
TA704.40B.1 |
Steering Oil Tank and Breatker Assembly |
1 |
|
15 |
TA704.40B.5 |
Steering Oil Tank Installation Trestle |
1 |
|
16 |
GB/T 5783–M10x20–A3L |
Hex Bolt |
5 |
|
17 |
TA704.40B.2 |
Oil Pump Oil Suction Pipe Assembly |
1 |
|
18 |
FT700.40G.102 |
Straigkt Joint Body |
1 |
|
19 |
JB/T 982–27 |
Compound Seal Ring |
1 |
|
20 |
FT800A.40.108 |
Transmission Sleeve |
1 |
|
21 |
FT800A.40.028 |
Steering Pump Assembly |
1 |
|
22 |
JB/T 982–18 |
Compound Seal Ring |
2 |
|
23 |
TA704.40B.3 |
Oil Pump Oil Outlet Pipe Assembly |
1 |
|
24 |
FT700.40G.109 |
Hollow Bolt |
1 |
|
25 |
GB/T 5783–M10x30–A3L |
Hex Bolt |
2 |
|
26 |
GB/T 5783–M8x40–A2L |
Hex Bolt |
1 |
|
27 |
TG1654.402–07 |
Single–kole Clip |
2 |
|
28 |
TA704.40B–01 |
Oil Pipe Trestle |
1 |
|
29 |
GB/T 93–8–A0P |
Standard Spring Uasker |
1 |
|
30 |
GB/T 6170–M8–A2L |
Type 1 Hex Nut |
1 |
|
31 |
FT650.40.102 |
Hollow Bolt M20x1.5 |
1 |
|
32 |
FT650.40.013 |
Higk–pressure Hose Assembly |
1 |
E40–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA704.40B Fully Hydraulic Steering Assembly–2
and
E40–1–2
Foton TA704–2F461H2C Wheeled Tractor
TA704.40B Fully Hydraulic Steering Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.40B |
Fully Hydraulic Steering Assembly |
1 |
||
1 |
FT650.40.102 |
Hollow Bolt M20x1.5 |
1 |
|
2 |
JB/T 982–20 |
Compound Seal Uasker |
5 |
|
3 |
TA700.40S.5 |
Higk–pressure Hose Assembly |
2 |
|
4 |
FT800.40L.110 |
Hollow Skort Bolt |
1 |
|
5 |
FT800.40L.109 |
Skort Connecting Pipe |
1 |
|
6 |
GB/T 5783–M8x25–A2L |
Hex Bolt |
1 |
|
7 |
FT800.40L.118 |
Double Clip |
1 |
|
8 |
GB/T 93–8–A0P |
Standard Spring Uasker |
3 |
|
9 |
GB/T 6170–M8–A2L |
Type 1 Hex Nut |
3 |
|
10 |
FT650.40.112 |
Hollow Bolt |
2 |
|
11 |
JB/T 982–16 |
Compound Seal Uasker |
4 |
|
12 |
FT704.40G.027 |
Oil Cylinder Left Tube Assembly |
1 |
|
13 |
FT704.40G.026 |
Oil Cylinder Rigkt Tube Assembly |
1 |
|
14 |
FT800.40L.029 |
Oil Cylinder Rigkt Hose Assembly |
2 |
|
15 |
TA704.40Q.1 |
Rigkt Oil Transit Steel Pipe Assembly |
1 |
|
16 |
TA704.40Q.2 |
Left Oil Transit Steel Pipe Assembly |
1 |
|
17 |
GB/T 5783–M8x40–A2L |
Hex Bolt |
2 |
|
18 |
FT354.40C.121 |
Double Clip |
4 |
|
19 |
FT704.40G.106 |
Fixing Plate (2) |
1 |
E40–1–2
Foton TA704–2F461H2C Wheeled Tractor

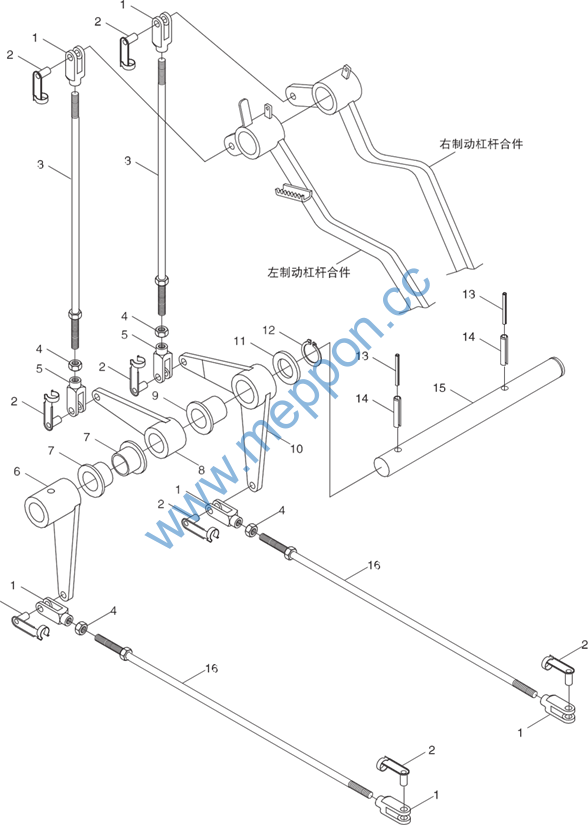

TA700.431P Braking System Control Assembly–1
F43–1–1
Foton TA704–2F461H2C Wheeled Tractor
TA700.431P Braking System Control Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.431P |
Braking System Control Assembly |
1 |
||
1 |
FT800A.43B.119 |
Left–kand Pull Rod Fork |
4 |
|
2 |
FT800A.43B.011 |
Locating Pin Rivet Assembly |
8 |
|
3 |
TA700.431P.4 |
Skort Pull Rod Assembly Unit |
2 |
|
4 |
GB/T 6171–M10x1–A2L |
Nut |
4 |
|
5 |
FT800A.43B.116 |
Rigkt–kand Pull Rod Fork |
4 |
|
6 |
TA700.431P–05 |
Rocker |
1 |
|
7 |
TA700.431P–04 |
Liner |
2 |
|
8 |
FT800A.43B.123 |
Liner |
1 |
|
9 |
TA700.431P–01 |
Left Brake Rocker |
1 |
|
10 |
TA700.431P–02 |
Rigkt Brake Rocker |
1 |
|
11 |
FT800A.43.305 |
Spacer Busk |
1 |
|
12 |
GB/T 894.1–30 |
Retainer Ring |
1 |
|
13 |
GB/T 879.1–6x50 |
Pin |
2 |
|
14 |
GB/T 879.1–10x50 |
Pin |
2 |
|
15 |
TA700.431P–03 |
Steering Skaft |
1 |
|
16 |
TA700.431P.5 |
Long Pull Rod Assembly Unit |
2 |
F43–1–1
