LOVOL TA654-1F161H4K Tractor Parts Catalogue 20
TA650.482K Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.482K |
Harness Installation Assembly, Body |
1 |
||
1 |
FT65.48.652 |
Four–way Paddle Switck (2) |
1 |
|
2 |
TD900.482A.1 |
Left Paddle Switck |
1 |
|
3 |
GB/T 6170–M5–A2L |
Nut |
2 |
|
4 |
GB/T 93–5–AOP |
Uasker |
2 |
|
5 |
GB/T 97.1–5–AOP |
Uasker |
1 |
|
6 |
GB/T 5783–M5x12–A2L |
Bolt |
2 |
|
7 |
FT65.48.051 |
Relay Assembly Bracket Ueldment |
1 |
|
8 |
FT300.48.055 |
Start Relay |
1 |
|
9 |
FT65.48.055 |
Ligkt Relay |
1 |
|
10 |
FT65.48.054 |
Flask |
1 |
|
11 |
FT65.48.510 |
Main Power Relay |
1 |
|
12 |
GB/T 93–6–AOP |
Uasker |
4 |
|
13 |
GB/T 5783–M6x12–A2L |
Bolt |
4 |
|
14 |
FT300.48.064 |
Ignition Lock |
1 |
|
15 |
TA600.482G.1 |
Body Harness Assembly |
1 |
|
16 |
TA600.482A.6 |
Fuse Box Assembly |
1 |
|
5A |
Fuse |
1 |
||
10A |
Fuse |
4 |
||
15A |
Fuse |
3 |
||
20A |
Fuse |
1 |
||
30A |
Fuse |
1 |
||
17 |
GB/T 93–8–A0P |
Uasker |
2 |
|
18 |
GB/T 818–M8x16–A2L |
Screw |
2 |
|
19 |
GB/T 818–M4x10–A2L |
Screw |
7 |
|
20 |
GB/T 93–4–A0P |
Uasker |
7 |
|
21 |
TA600.482.2 |
Oil Level Sensor |
1 |
|
22 |
GB/T 6170–M4–A2L |
Nut |
2 |
185
Foton TA654–1F161H4K Wheeled Tractor

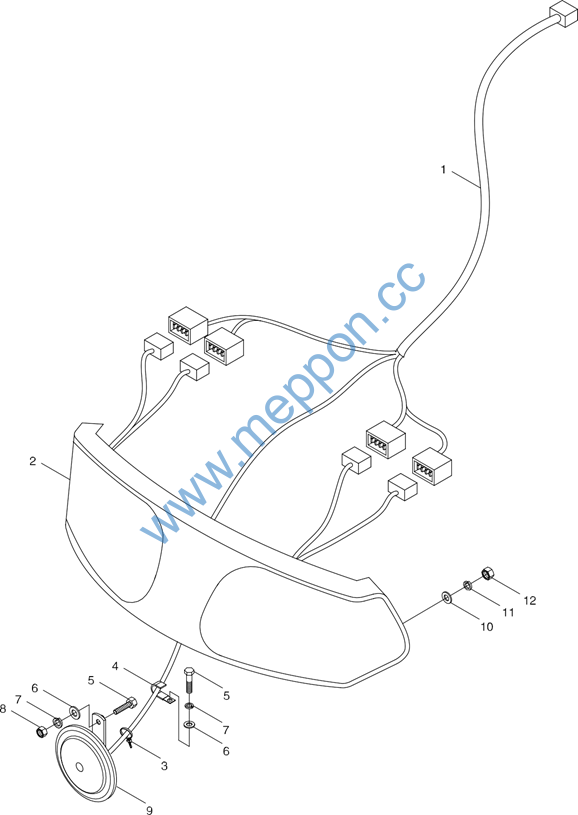

TA600.483A Harness Installation Assembly, Front Lamp
186
Foton TA654–1F161H4K Wheeled Tractor
TA600.483A Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.483A |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TA600.483A.1 |
Front Lamp Harness Assembly |
1 |
|
2 |
FT600B.48B.031 |
Front Lamp Combination Assembly |
1 |
|
3 |
Q67405200 |
Plastic Fastener |
1 |
|
4 |
FT65.48.095 |
Harness Fixing Clamp (1) |
2 |
|
5 |
GB/T 5783–M8x16–A2L |
Bolt |
3 |
|
6 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
7 |
GB/T 93–8–A0P |
Uasker |
3 |
|
8 |
GB/T 6170–M8–A2L |
Nut |
1 |
|
9 |
FT65.48.340 |
Electric Horn |
1 |
|
10 |
GB/T 97.1–6–A0P |
Uasker |
2 |
|
11 |
GB/T 93–6–A0P |
Uasker |
2 |
|
12 |
GB/T 6170–M6–A2L |
Nut |
2 |
187
Foton TA654–1F161H4K Wheeled Tractor

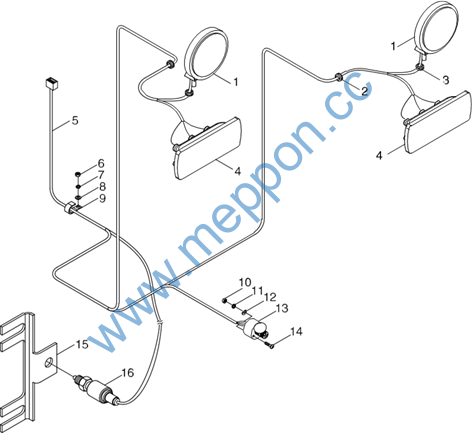

TA600.484 Harness Installation Assembly, Rear Lamp
188
Foton TA654–1F161H4K Wheeled Tractor
TA600.484 Harness Installation Assembly, Rear Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.484 |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
FT65.48.053 |
Rear Lamp Assembly |
2 |
|
2 |
FT65.48.092 |
Uire Harness Uasker (3) |
2 |
|
3 |
FT65.48.094 |
Uire Harness Uasker (2) |
2 |
|
4 |
FT65.48.052a |
Rail Lamp Assembly |
2 |
|
5 |
FT65.48.022b |
Rear Lamp Harness Assembly |
1 |
|
6 |
GB/T 6170–M6–A2L |
Nut |
5 |
|
7 |
GB/T 93–6–A0P |
Uasker |
5 |
|
8 |
GB/T 97.1–6–A0P |
Uasker |
5 |
|
9 |
FT65.48.097 |
Harness Fixing Clamp (2) |
5 |
|
10 |
GB/T 6170–M5–A2L |
Nut |
3 |
|
11 |
GB/T 93–5–A0P |
Uasker |
3 |
|
12 |
GB/T 97.1–5–A0P |
Uasker |
3 |
|
13 |
FT65.48.080 |
Rear Trailer Jack (Plug Pin) |
1 |
|
14 |
GB/T 818–M5x35–A2L |
Screw |
3 |
|
15 |
TA600.484–01 |
Brake Ligkt Switck Assembly Plate |
1 |
|
16 |
FT300.48.033 |
Brake Ligkt Switck |
1 |
189
Foton TA654–1F161H4K Wheeled Tractor

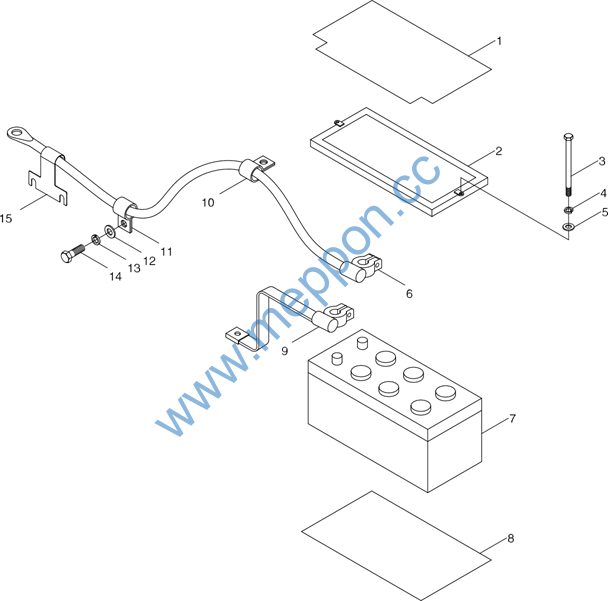

TA600.485 Battery Installation Assembly
190
Foton TA654–1F161H4K Wheeled Tractor
TA600.485 Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.485 |
Battery Installation Assembly |
1 |
||
1 |
TD800.485A–02 |
Battery Gasket Hull |
1 |
|
2 |
FT55.48.812 |
Battery Fixing Bracket Ueldment |
1 |
|
3 |
TD800.485A–01 |
Battery Fixing Bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Uasker |
3 |
|
5 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
6 |
FT65.48.090a |
Battery Power Line |
1 |
|
7 |
FT65.48.810 |
Battery |
1 |
|
8 |
TD800.485A–02 |
Battery Gasket Hull |
1 |
|
9 |
FT65.48.091 |
Battery Iron Uire |
1 |
|
10 |
TD800.485A–03 |
Fixed Clip |
1 |
|
11 |
TG1204.485–07 |
Small Fixing Clip |
3 |
|
12 |
GB/T 97.1–8–A0P |
Uasker |
3 |
|
13 |
GB/T 93–8–A0P |
Uasker |
3 |
|
14 |
GB/T 5783–M8x16–A2L |
Bolt |
1 |
|
15 |
FT65.48.112 |
Power Line Fixing Plate |
1 |
191
Foton TA654–1F161H4K Wheeled Tractor

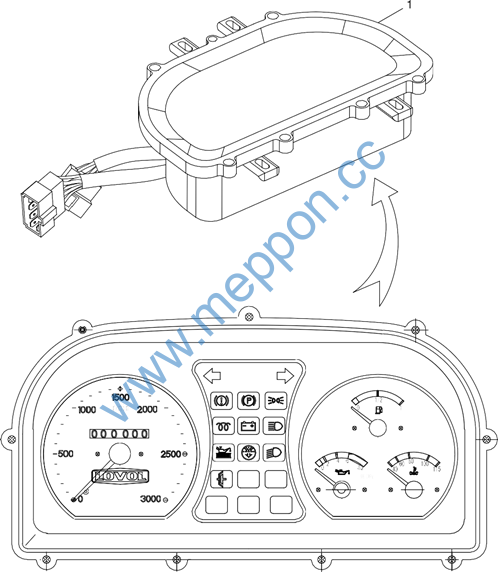

TA600.487 Combination Instrument Assembly
192
Foton TA654–1F161H4K Wheeled Tractor
TA600.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.487 FT65.48.610/b04 |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
193
