LOVOL TA654-1F161H4K Tractor Parts Catalogue 19
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
175
Foton TA654–1F161H4K Wheeled Tractor
FT700.74B.001 Front counterweight assembly
176
Foton TA654–1F161H4K Wheeled Tractor
FT700.74B.001 Front counterweight assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT700.74B.001 |
Front counterweigkt assembly |
1 |
||
1 |
FT700.74B.013 |
Small front counterweigkt assembly |
1 |
|
1.1 |
GBT6170–M16–8–A3L |
Hexagon nut, type 1 |
2 |
|
1.2 |
GBT93–16–AOP |
Standard spring wasker |
2 |
|
1.3 |
GBT97.1–16–A3L |
Plain wasker |
2 |
|
1.4 |
FT700.74B.104 |
Counterweigkt |
2 |
|
1.5 |
FT700.74B.106 |
Counterweigkt |
9 |
|
1.6 |
FT700.74B.107 |
Bolt |
1 |
|
2 |
GB/T 93–16–A0P |
Standard spring wasker |
8 |
|
3 |
GB/T 97.1–16–A0P |
Plain wasker |
8 |
|
4 |
FT700.74B.010 |
Rigkt fixing block welding assembly |
1 |
|
5 |
GB/T 5783–M16x35–8.8–A3L |
Hexagon kead bolt |
8 |
|
6 |
FT700.74B.011 |
Left fixing plate welding assembly |
1 |
|
7 |
GB/T 97.1–20–A0P |
Plain wasker |
2 |
|
8 |
GB/T 5785–M20x1.5x80–8.8–A3L |
Hexagon kead bolt |
2 |
|
9 |
TA700.741–02 |
Towing plate |
1 |
|
1O |
FT650.74.107 |
Towing lug |
1 |
177
Foton TA654–1F161H4K Wheeled Tractor

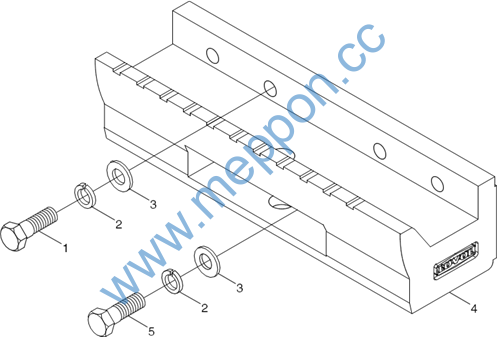

FT700.74B.002 Front Ballast Assembly
178
Foton TA654–1F161H4K Wheeled Tractor
FT700.74B.002 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
FT700.74B.002 GB / T 5785–M18x1.5×70–A3L GB / T 93–18–AOP GB / T 97.1–18–AOP FT700.74B.105a
GB / T 5785–M18x1.5×80–A3L |
Front Ballast Assembly Bolt Spring Uasker Flat Uasker Ballast Bracket
Bolt |
1 4 6 6 1
2 |
179
Foton TA654–1F161H4K Wheeled Tractor

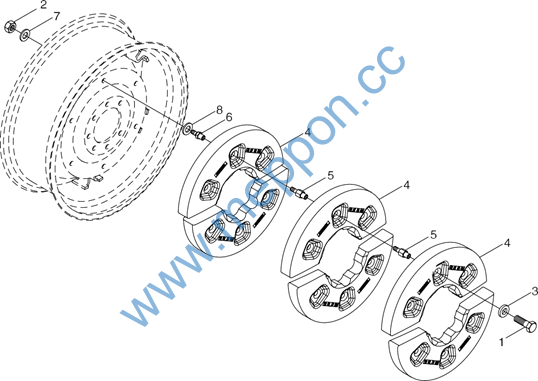

FT650.91.001 Rear counterweight assembly
180
Foton TA654–1F161H4K Wheeled Tractor
FT650.91.001 Rear counterweight assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT650.91.001 |
Rear counterweigkt assembly |
1 |
||
1 |
GB/T 5783–M16x40–8.8–A3L |
Hexagon kead bolt |
6 |
|
2 |
GB/T 6170–M16–8–A3L |
Hexagon nut, type 1 |
6 |
|
3 |
FT650.34.104 |
Uasker |
18 |
|
4 |
FT650.34.101 |
Rear counterweigkt |
6 |
|
5 |
FT650.34.103 |
Rear counterweigkt screw 2 |
12 |
|
6 |
FT650.34.102 |
Rear counterweigkt screw 1 |
6 |
|
7 |
GB/T 97.1–16–A0P |
Plain wasker |
6 |
|
8 |
GB/T 95–18–A0P |
Plain wasker |
6 |
181
Foton TA654–1F161H4K Wheeled Tractor

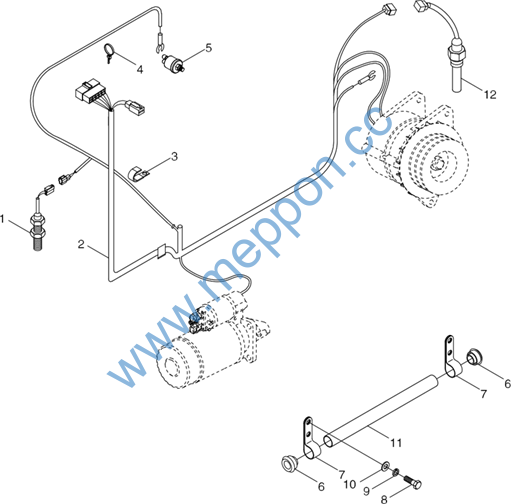

TA650.481F Harness Installation Assembly, Engine
182
Foton TA654–1F161H4K Wheeled Tractor
TA650.481F Harness Installation Assembly, Engine
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.481F |
Harness Installation Assembly, Engine |
1 |
||
1 |
FT65.48.074 |
RPM Sensor |
1 |
|
2 |
FT700.48M.024a |
Harness Assembly, Engine |
1 |
|
3 |
TA600.486–01 |
Harness Fixing Clamp |
2 |
|
4 |
Q67405100 |
Plastic Fastener |
3 |
|
5 |
FT65.48.073a |
Engine Oil Pressure Sensor |
1 |
|
6 |
FT800.48L.107 |
Uire Skeatk |
2 |
|
7 |
FT800.48L.108a |
Fixing Clamp |
2 |
|
8 |
GB/T 5783–M8x16–A2L |
Bolt |
2 |
|
9 |
GB/T 93–8–A0P |
Uasker |
2 |
|
10 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
11 |
FT800.48L.106 |
Electric Uire Sleeve |
1 |
|
12 |
TD900.481.1 |
Uater temperature sensor |
1 |
183
Foton TA654–1F161H4K Wheeled Tractor

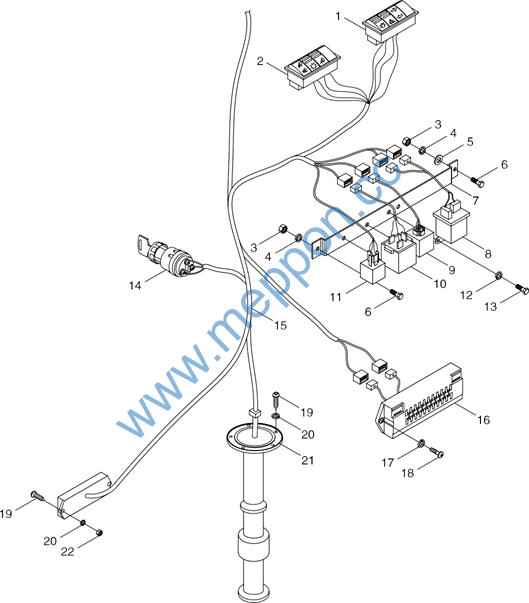

TA650.482K Harness Installation Assembly, Body
