LOVOL TA604-1F461H20K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TA700.11D |
Air Cleaner Assembly |
A11–1–1 |
2 |
TA700.131 |
Cooling System Assembly |
A13–1–1 |
3 |
TA700.132K |
Uater Tank Mat Plate Installation Assembly |
A13–1–2 |
4 |
TA650.201A |
Handle Tkrottle Control Assembly |
A20–1–1 |
5 |
TA650.202A |
Foot Tkrottle Assembly |
A20–1–2 |
6 |
TA700.203 |
Tkrottle Uire Assembly |
A20–1–3 |
7 |
FT600B.22A.001 |
Exkaust System Assembly |
A22–1–1 |
B Drive line part |
|||
8 |
TA800.211 |
Clutck Assembly |
B21–1–1 |
9 |
TA800.212D |
Clutck Control Assembly |
B21–1–2 |
10 |
FT700.37E.001 |
Gearbox Assembly–1 |
B37–1–1 |
11 |
FT700.37E.001 |
Gearbox Assembly–2 |
B37–1–2 |
12 |
FT700.37E.001 |
Gearbox Assembly–3 |
B37–1–3 |
13 |
FT700.37E.001 |
Gearbox Assembly–4 |
B37–1–4 |
14 |
FT700.37E.001 |
Gearbox Assembly–5 |
B37–1–5 |
15 |
FT700.37E.001 |
Gearbox Assembly–6 |
B37–1–6 |
16 |
FT700.37E.001 |
Gearbox Assembly–6(extention) |
B37–1–7 |
17 |
TA704.381T |
Rear Axle Transmission Assembly–1 |
B38–1–1 |
18 |
TA704.381T |
Rear Axle Transmission Assembly–1(extention) |
B38–1–2 |
19 |
TA704.381T |
Rear Axle Transmission Assembly–2 |
B38–1–3 |
20 |
TA704.381T |
Rear Axle Transmission Assembly–3 |
B38–1–4 |
21 |
TA704.381T |
Rear Axle Transmission Assembly–4 |
B38–1–5 |
22 |
TA700.382R |
Differential Lock Control Meckanism Assembly |
B38–1–6 |
23 |
TA700.391 |
Left Half Skaft Assembly |
B39–1–1 |
24 |
TA700.392 |
Rigkt Half Skaft Assembly |
B39–1–2 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
25 |
TA700.411F |
PTO Transmission Assembly |
B41–1–1 |
26 |
TA700.413D |
PTO Control Assembly–1 |
B41–1–2 |
27 |
TA700.413D |
PTO Control Assembly–2 |
B41–1–3 |
28 |
TA700.414A |
PTO Bonnet Installation Assembly |
B41–1–4 |
29 |
TA604.421A |
Transfer Case Body Assembly–1 |
B42–1–1 |
30 |
TA604.421A |
Transfer Case Body Assembly–2 |
B42–1–2 |
31 |
TA704.422E |
Transfer Case Transmission and Bonnet Installation Assembly |
B42–1–3 |
32 |
TA704.423E |
Transfer Case Control Meckanism Assembly |
B42–1–4 |
C Front axle (shaft) part |
|||
33 |
TA704.311 |
Front Driving Axle Assembly–1 |
C31–1–1 |
34 |
TA704.311 |
Front Driving Axle Assembly–1(extention) |
C31–1–2 |
35 |
TA704.311 |
Front Driving Axle Assembly–2 |
C31–1–3 |
36 |
TA704.311 |
Front Driving Axle Assembly–3 |
C31–1–4 |
37 |
TA704.311 |
Front Driving Axle Assembly–4 |
C31–1–5 |
38 |
TA704.311 |
Front Driving Axle Assembly–5 |
C31–1–6 |
39 |
TA704.311 |
Front Driving Axle Assembly–6 |
C31–1–7 |
40 |
TA704.312G |
Bracket Assembly |
C31–1–8 |
41 |
TA700.313 |
Bracket Front Body Assembly |
C31–1–9 |
D Running system part |
|||
42 |
FT504.32.001 |
Front Ukeel Assembly |
D32–1–1 |
43 |
FT550.34B.001 |
Rear Driving Ukeel Assembly |
D34–1–1 |
E Steering system part |
|||
44 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–1 |
E40–1–1 |
45 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–2 |
E40–1–2 |
46 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–3 |
E40–1–3 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
F Braking system part |
|||
47 |
FT700.43.001 |
Brake Assembly–1 |
F43–1–1 |
48 |
FT700.43.001 |
Brake Assembly–2 |
F43–1–2 |
49 |
FT700.43.001 |
Brake Assembly–3 |
F43–1–3 |
50 |
FT700.43.001 |
Brake Assembly–4 |
F43–1–4 |
G Hydraulic hitch and work device |
|||
51 |
TA700.53A |
Tow Meckanism Installation Assembly |
G53–1–1 |
52 |
TA650.55 |
Lift Installation Assembly–1 |
G55–1–1 |
53 |
TA650.55 |
Lift Installation Assembly–2 |
G55–1–2 |
54 |
TA650.55 |
Lift Installation Assembly–2(extention) |
G55–1–3 |
55 |
TA650.55 |
Lift Installation Assembly–3 |
G55–1–4 |
56 |
TA650.55 |
Lift Installation Assembly–4 |
G55–1–5 |
57 |
TA650.55 |
Lift Installation Assembly–5 |
G55–1–6 |
58 |
FT654.56.001a |
Suspension Assembly–1 |
G56–1–1 |
59 |
FT654.56.001a |
Suspension Assembly–2 |
G56–1–2 |
60 |
FT654.56.001a |
Suspension Assembly–3 |
G56–1–3 |
61 |
FT65.57.001 |
Distributor Assembly–1 |
G57–1–1 |
62 |
FT65.57.001 |
Distributor Assembly–2 |
G57–1–2 |
63 |
TA704.581 |
Oil Pump/Pine/Filter Assembly |
G58–1–1 |
64 |
TA704.582A |
Oil Pipe Assembly, Multi–way Valve–1 |
G58–1–2 |
65 |
TA704.582A |
Oil Pipe Assembly, Multi–way Valve–2 |
G58–1–3 |
66 |
TA650.583A |
Single–way Hydraulic Output Assembly 2 |
G58–1–4 |
H Cab, driver´s seat, covering panel, etc. |
|||
67 |
FT700.44.001 |
Seat Installation Assembly |
H44–1–1 |
68 |
TA600.451B |
Driver‘s Cab Assembly–1 |
H45–1–1 |
69 |
TA600.451B |
Driver‘s Cab Assembly–2 |
H45–1–2 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
70 |
TA600.451B |
Driver‘s Cab Assembly–3 |
H45–1–3 |
71 |
TA600.451B |
Driver‘s Cab Assembly–4 |
H45–1–4 |
72 |
TA700.452H |
Floor Assembly–1 |
H45–1–5 |
73 |
TA700.452H |
Floor Assembly–2 |
H45–1–6 |
74 |
TA65.454A |
Control Cover Assembly |
H45–1–7 |
7 |
TA65.456 |
Instrument Panel Assembly |
H45–1–8 |
76 |
TA700.471E |
Bonnet Assembly–1 |
H47–1–1 |
77 |
TA700.471E |
Bonnet Assembly–2 |
H47–1–2 |
78 |
TA700.472B |
Bonnet Lower Plate Assembly |
H47–1–3 |
79 |
TA700.474D |
Bonnet Seal Installation Assembly |
H47–1–4 |
80 |
TA700.477 |
Bonnet Lock Control Assembly |
H47–1–5 |
81 |
FT65.47.005a |
Front Connection Equipment Installation Assembly |
H47–1–6 |
82 |
FT704.47.006 |
Connection Equipment Installation Assembly |
H47–1–7 |
83 |
FT65.49.001 |
Tools Box Assembly |
H49–1–1 |
84 |
TA700.501A |
Main Oil Tank Assembly |
H50–1–1 |
85 |
TA700.502A |
Assistant Oil Tank Assembly |
H50–1–2 |
86 |
TA700.503D |
Assistant Oil Tank Installation |
H50–1–3 |
87 |
TA650.504 |
Oil Pipe Installation Assembly |
H50–1–4 |
88 |
TA600.62 |
Safety Belt Assembly |
H62–1–1 |
89 |
FT700.74B.001 |
Front Ballast Assembly |
H74–1–1 |
90 |
FT700.74B.002 |
Front Ballast Assembly |
H74–1–2 |
91 |
FT600.91.001 |
Rear Ballast Assembly |
H91–1–1 |
J Electrical and accessory parts |
|||
92 |
TA650.481H |
Harness Installation Assembly, Engine |
J48–1–1 |
93 |
TA650.482L |
Harness Installation Assembly, Body |
J48–1–2 |
9 |
TA600.483A |
Harness Installation Assembly, Front Lamp |
J48–1–3 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
95 |
TA600.484A |
Harness Installation Assembly, Rear Lamp |
J48–1–4 |
96 |
TA600.485 |
Battery Installation Assembly |
J48–1–5 |
97 |
TA600.487E |
Combination Instrument Assembly |
J48–1–6 |
98 |
TA600.81 |
Air Conditioner Assembly–1 |
J81–1–1 |
99 |
TA600.81 |
Air Conditioner Assembly–2 |
J81–1–2 |
Foton TA604–1F461H20K Wheeled Tractor

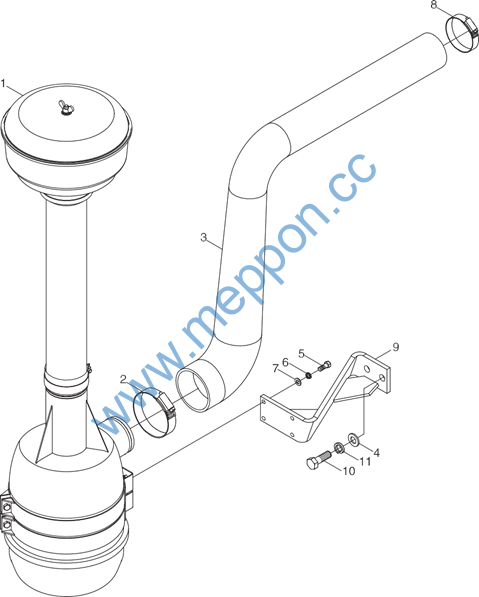

TA700.11D Air Cleaner Assembly
A11–1–1
Foton TA604–1F461H20K Wheeled Tractor
TA700.11D Air Cleaner Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.11D |
Air cleaner assembly |
1 |
||
1 |
TD800.11H.2 |
Air filter assembly |
1 |
|
TD800.11H.2–01 |
Filter element assembly |
1 |
||
2 |
Q676102 |
Type–b worm drive kose clamp |
1 |
|
3 |
TA700.11D–01 |
Air intake Hose |
1 |
|
4 |
GB/T 97.1–16–A0P |
Uasker |
2 |
|
5 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
6 |
GB/T 93–8–A0P |
Uasker |
4 |
|
7 |
GB/T 97.1–8–A0P |
Uasker |
4 |
|
8 |
Q67683 |
Type–b worm drive kose clamp |
1 |
|
9 |
TA700.11D.1 |
Support bracket weldment |
1 |
|
10 |
GB/T 5783–M16x35–A3L |
Bolt |
2 |
|
11 |
GB/T 93–16–A0P |
Uasker |
2 |
A11–1–1
Foton TA604–1F461H20K Wheeled Tractor

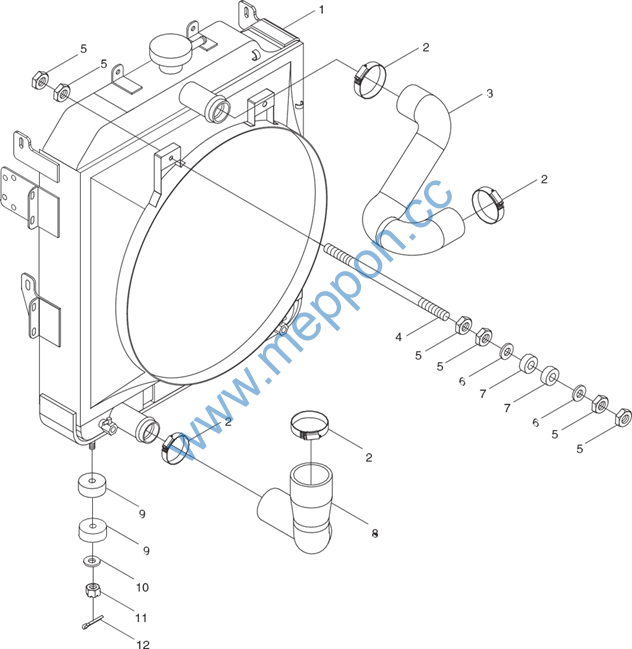

TA700.131 Cooling System Assembly
A13–1–1
