LOVOL TA654-1F161H4K Tractor Parts Catalogue 18
Foton TA654–1F161H4K Wheeled Tractor
FT65.49.001 Tools Box Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.49.001 |
Tools Box Assembly |
1 |
||
1 |
FT65.49.115 |
Handle |
1 |
|
2 |
GB/T 867–4×8 |
Rivet |
4 |
|
3 |
FT65.49.101 |
Handle Seat |
2 |
|
4 |
FT65.49.102 |
Plug Pin |
1 |
|
5 |
FT300.49.012 |
Tools Box Ueldment Assembly |
1 |
|
6 |
GB/T 6170–M12–8–A3L |
Type 1 Hex Nut |
2 |
|
7 |
GB/T 93–12–A0P |
Standard Spring Uasker |
2 |
|
8 |
GB/T 97.1–12–A0P |
Flat Uasker |
2 |
|
9 |
FT65.49.103 |
Fixing Hub Plate |
1 |
|
10 |
GB/T 5783–M12x35–8.8–A3L |
Hex Bolt |
2 |
165
Foton TA654–1F161H4K Wheeled Tractor
TA700.501A Main Oil Tank Assembly
166
Foton TA654–1F161H4K Wheeled Tractor
TA700.501A Main Oil Tank Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.501A |
Main Oil Tank Assembly |
1 |
||
1 |
GB/T 5783–M10x40–A3L |
Bolt |
2 |
|
2 |
FT65.50.036 |
Fastening Band (1) Combination |
2 |
|
3 |
FT65.50.209a |
Oil Tank Upper Rubber Piece |
2 |
|
4 |
TA700.501A.1 |
Main Oil Tank Ueldment |
1 |
|
5 |
GB/T 93–10–A0P |
Standard Spring Gasket |
2 |
|
6 |
GB/T 6170–M10–A3L |
Nut |
2 |
|
7 |
FT65.50.037 |
Fastening Band (2) Combination |
2 |
|
8 |
FT65.50.103a |
Main Oil Tank Upper Rubber Piece |
2 |
|
9 |
JB/T 982–16 |
Gasket Combination |
1 |
|
10 |
FT65.50.226 |
Disckarge Oil Plug |
1 |
|
11 |
GB/T 5783–M14x20–A3L |
Bolt |
2 |
|
12 |
GB/T 93–14–A0P |
Standard Spring Gasket |
2 |
|
13 |
FT65.50.104a |
Main Oil Tank Lower Rubber Piece |
1 |
|
14 |
GB/T 91–2x12–A0P |
Cotter Pin |
4 |
|
15 |
GB/T 97.1–6–A0P |
Flat Uasker |
4 |
|
16 |
GB/T 882–B6x48–A0P |
Pin Skaft |
4 |
|
17 |
GB/T 5783–M12x25–A3L |
Bolt |
2 |
|
18 |
GB/T 93–12–A0P |
Standard Spring Gasket |
2 |
|
19 |
FT65.50.032 |
Main Oil Tank Bracket Body Ueldment |
1 |
167
Foton TA654–1F161H4K Wheeled Tractor

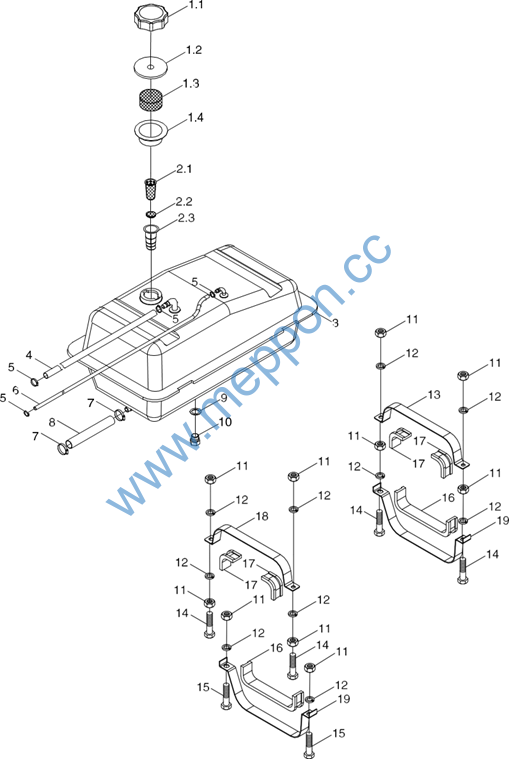

TA700.502A Auxiliary fuel tank assembly
168
Foton TA654–1F161H4K Wheeled Tractor
TA700.502A Auxiliary fuel tank assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.502A |
Auxiliary fuel tank assembly |
1 |
||
1 |
TA650.502.3 |
Oil tank cover assembly |
1 |
|
1.1 |
TA650.502.3–01 |
Enclosure, oil filling port cover |
1 |
|
1.2 |
TA650.502.3–02 |
Space ring, oil filling port cover |
1 |
|
1.3 |
TA650.502.3–04 |
Sponge |
1 |
|
1.4 |
TA650.502.3–03 |
Rubber gasket, oil filling port |
1 |
|
2 |
FT65.50.023 |
Fitler strainer assembly |
1 |
|
2.1 |
FT65.50.272 |
Fitler strainer |
1 |
|
2.2 |
FT65.50.273 |
Fitler strainer (I) |
1 |
|
2.3 |
FT65.50.271 |
Filter screen bracket |
1 |
|
3 |
TA700.502A.1a |
Uelded surge tank |
1 |
|
4 |
TA650.502–01 |
Exkaust pipe |
2 |
|
5 |
Q673B13 |
Steel strip type elastic ring |
4 |
|
6 |
TF1004.502–02 |
Oil return pipe |
1 |
|
7 |
Q67632 |
Hoop, worm drive kose, type B |
2 |
|
8 |
TA700.502A–01 |
Urapped oil kose |
1 |
|
9 |
JB/T 982–16 |
Composite seal wasker |
1 |
|
10 |
FT65.50.226 |
Drain plug |
1 |
|
11 |
GB/T 6170–M8–A2L |
Nut |
10 |
|
12 |
GB/T 93–8–A0P |
Uasker |
10 |
|
13 |
FT65.50.251 |
Front tigktening steel strip, auxiliary fuel tank |
1 |
|
14 |
GB/T 5783–M8x60–A2L |
Bolt |
4 |
|
15 |
GB/T 5783–M8x25–A2L |
Bolt |
2 |
|
16 |
FT65.50.207a |
Lower rubber strip, auxiliary fuel tank |
2 |
|
17 |
FT65.50.209a |
Rubber strip(upper), fuel tank |
4 |
|
18 |
FT65.50.201 |
Rear tigktening steel strip, auxiliary fuel tank |
1 |
|
19 |
FT700.50G.251 |
Auxiliary fuel tank bracket |
2 |
169
Foton TA654–1F161H4K Wheeled Tractor
TA700.503D Assistant Oil Tank Installation
170
Foton TA654–1F161H4K Wheeled Tractor
TA700.503D Assistant Oil Tank Installation
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.503D |
Assistant Oil Tank Installation Assembly |
1 |
||
1 |
TA700.503C.1 |
Air Spring Left Bracket Ueldment |
1 |
|
2 |
FT700.50G.027 |
Air Spring Rigkt Bracket Ueldment |
1 |
|
3 |
GB/T 5783–M12x25–A3L |
Bolt |
2 |
|
4 |
GB/T 93–12–A0P |
Standard Spring Gasket |
6 |
|
5 |
TA550.503.1 |
Assistant Oil Tank Rigkt Front Bracket Ueldment |
1 |
|
6 |
GB/T 5783–M10x20–A3L |
Bolt |
3 |
|
7 |
GB/T 97.1–10–A0P |
Flat Uasker |
3 |
|
8 |
GB/T 93–10–A0P |
Standard Spring Gasket |
3 |
|
9 |
GB/T 6170–M10–A3L |
Nut |
3 |
|
10 |
FT700.50G.024 |
Assistant Oil Tank Bracket Ueldment |
1 |
|
11 |
FT65.50.204 |
Bonnet Bracket |
1 |
171
Foton TA654–1F161H4K Wheeled Tractor

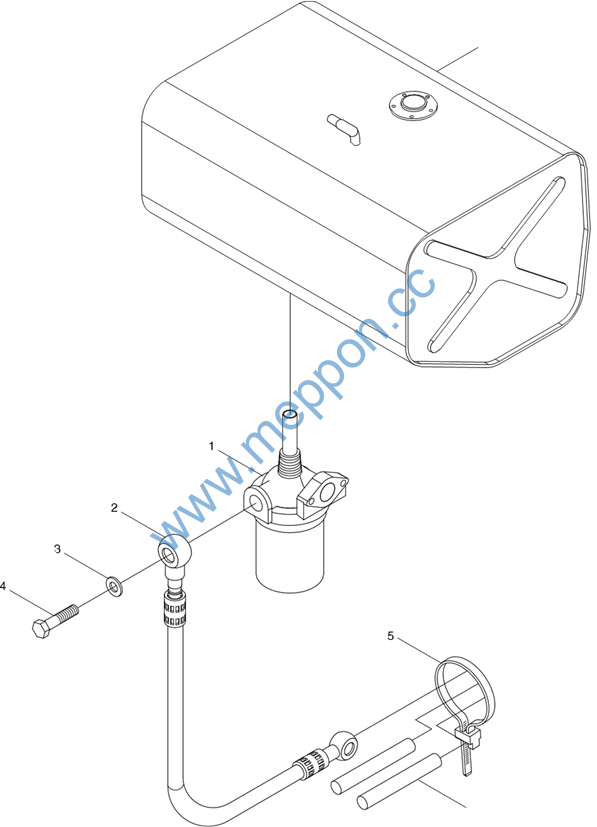

TA650.504 Oil Pipe Installation Assembly
Oil Tank Assembly
Oil pipe on engine (two)
172
Foton TA654–1F161H4K Wheeled Tractor
TA650.504 Oil Pipe Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA650.504 FT65.50.033 FT65.50.034 JB/T 982–14 FT65.50.106
Q67407200 |
Oil Pipe Installation Assembly Sediment Cup Assembly Outlet Oil Pipe Assembly Gasket Combination Hollow Bolt
Plastic Locking Strip |
1 1 1 1 1
1 |
173
Foton TA654–1F161H4K Wheeled Tractor

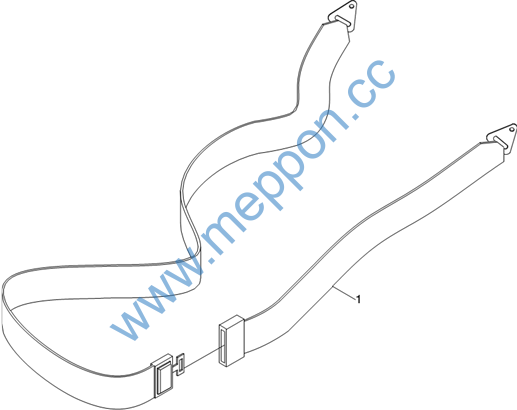

TA600.62 Safety Belt Assembly
