TA700.472B Bonnet Lower Plate Assembly



Label

Part code and specifications

Part name

Quantity

Remark



1

2

3

4



5

6

TA700.472B FT800B.47.241 TA700.472B.1

GB/T 5783–M8x20–A2L GB/T 97.1–8–A0P



GB/T 93–8–A0P

GB/T 6170–M8–A2L

Bonnet Lower Plate Assembly Bonnet Lower Plate Seal Piece Bonnet Lower Plate Ueldment Bolt

Uasker



Uasker Nut

1

1

1

4

4



4

4



155



Foton TA654–1F161H4K Wheeled Tractor

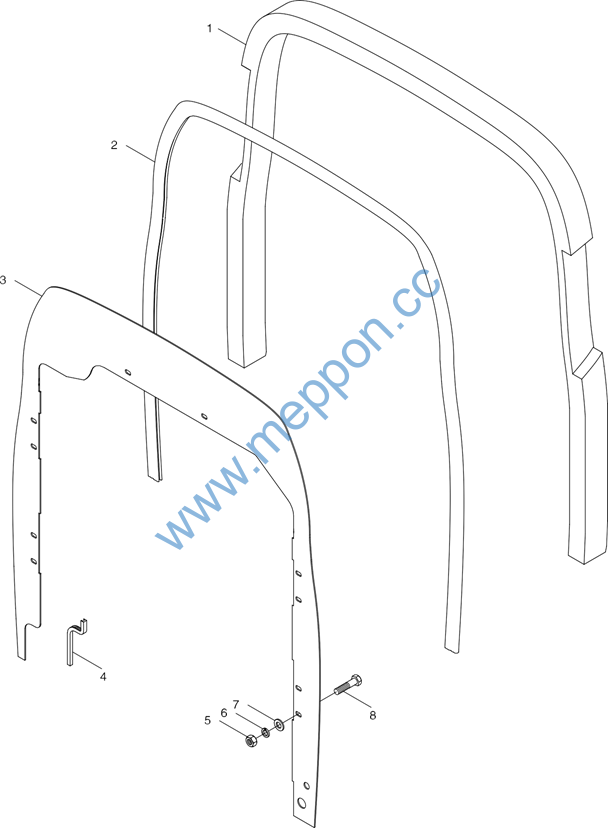

TA700.474D    Bonnet Seal Installation Assembly




156



Foton TA654–1F161H4K Wheeled Tractor





TA700.474D    Bonnet Seal Installation Assembly



Label

Part code and specifications

Part name

Quantity

Remark


TA700.474D

Bonnet Seal Installation Assembly

1



1

TA700.474B–01

Uater Tank Seal Block

1

2

TA700.474B–03

Seal Piece

1

3

TA700.474D–01

Uater Tank Seal Plate

1

4

TD800.475B–06

Seal Pressure Piece

1



5



GB/T 6170–M6–A2L



Nut



10

6

GB/T 93–6–A0P

Uasker

10

7

GB/T 97.1–6–A0P

Uasker

10

8

GB/T 5783–M6x16–A2L

Bolt

10

157



Foton TA654–1F161H4K Wheeled Tractor

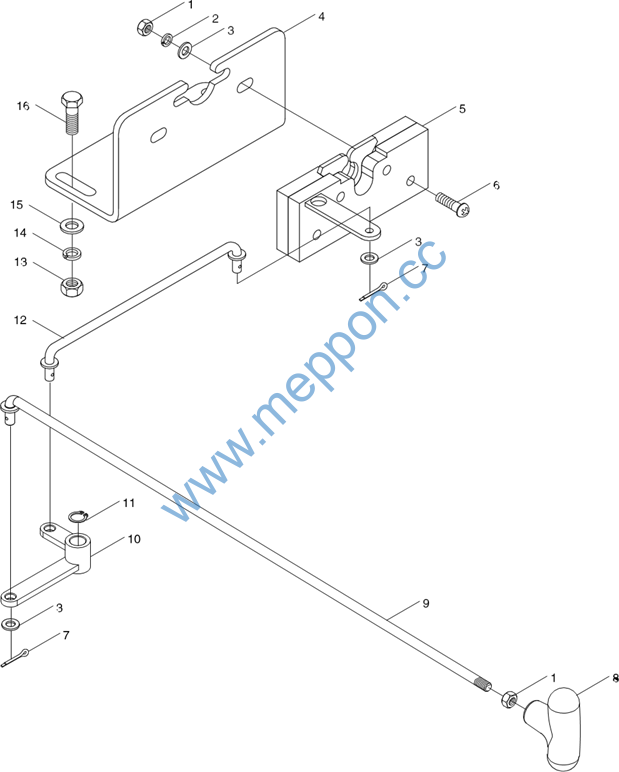

TA700.477 Bonnet Lock Control Assembly












158



Foton TA654–1F161H4K Wheeled Tractor





TA700.477 Bonnet Lock Control Assembly



Label

Part code and specifications

Part name

Quantity

Remark


TA700.477

Bonnet Lock Control Assembly

1



1

GB/T 6170–M6–A2L

Nut

5

2

GB/T 93–6–A0P

Uasker

4

3

GB/T 97.1–6–A0P

Uasker

7

4

TA700.477–01

Bonnet Lock Bracket

1

5

FT800.47.127

Bonnet Lock

1

6

GB/T 818–M6x40–A1L

Screw

4

7

GB/T 91–1.6×10–A0P

Pin

3

8

FT800A.47.056

Handle Assembly

1

9

FT800A.47.098

Pull Rod Ueldment (2)

1

10

FT800A.47.092

Rocker Ueldment

1

11

GB/T 894.1–10

Retainer Ring

1

12

TG1204.474.2

Pull Rod Ueldment

1

13

GB/T 6170–M8–A2L

Nut

2

14

GB/T 93–8–A0P

Uasker

2

15

GB/T 97.1–8–A0P

Uasker

2

16

GB/T 5782–M8x40–A2L

Bolt

2

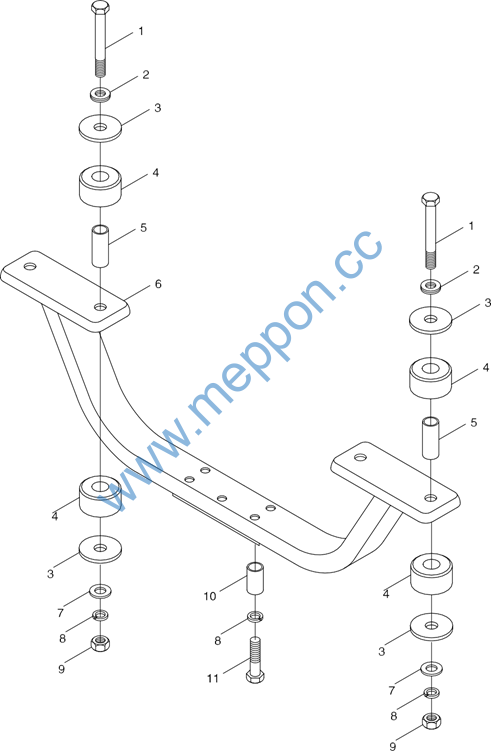

159



Foton TA654–1F161H4K Wheeled Tractor





FT65.47C.005a Front Connection Equipment Installation Assembly














160



Foton TA654–1F161H4K Wheeled Tractor





FT65.47C.005a Front Connection Equipment Installation Assembly



Label

Part code and specifications

Part name

Quantity



Remark


FT65.47C.005a

Front Connection Equipment Installation Assembly

1



1

GB/T 5782

Bolt M 16x160–A2L

4

2

FT65.47C.051

Uasker Combination

4

3

FT65.45.612

Damping Mat Block

8

4

FT65.47.613a

Damping Block

8

5

FT65.47.615

Front Connecting Sleeve Pipe

4

6

FT65.47.053a

U–BRACKET Assembly

1

7

GB/T 96–16–AOP

Big Uasker

4

8

GB/T 93–16–AOP

Uasker

8

9

GB/T 6170–M16–A3L

Nut

4

10

FT65.47.614

Sleeve

4

11

GB/T 5783–M16x75–A3L

Bolt

4

161

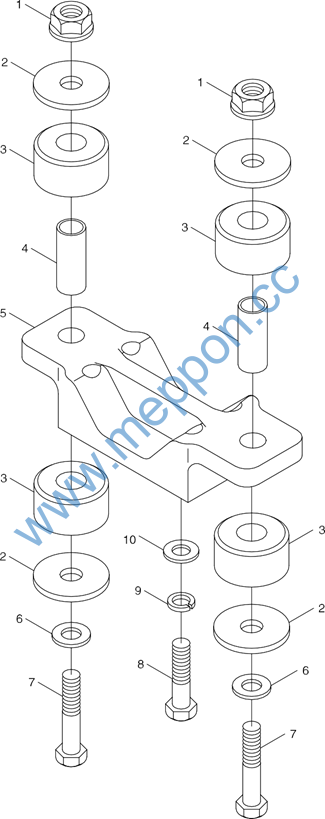

Foton TA654–1F161H4K Wheeled Tractor





FT704.47.006 Connection Equipment Installation Assembly




162



Foton TA654–1F161H4K Wheeled Tractor





FT704.47.006 Connection Equipment Installation Assembly



Label

Part code and specifications

Part name

Quantity

Remark


FT704.47.006

Connection Equipment Installation Assembly

1



1

GB/T 6187–M16–A3L

Metal Hex Flange Locking Nut

2

2

FT65.47.612

Damping Mat

4

3

FT65.47.613a

Damping Block

4

4

FT65.47.616

Rear Connecting Sleeve Pipe

2

5

FT704.47.632

Connecting Plate

1

6

GB/T 96–16–AOP

Big Uasker

2

7

GB/T 5785–M16x120–A3L

Hex Bolt

2

8

FT65.47.662

Big Hex Bolt

4

9

GB/T 93–16–AOP

Spring Uasker

4

10

GB/T 97.1–16–AOP

Uasker

4

163



Foton TA654–1F161H4K Wheeled Tractor

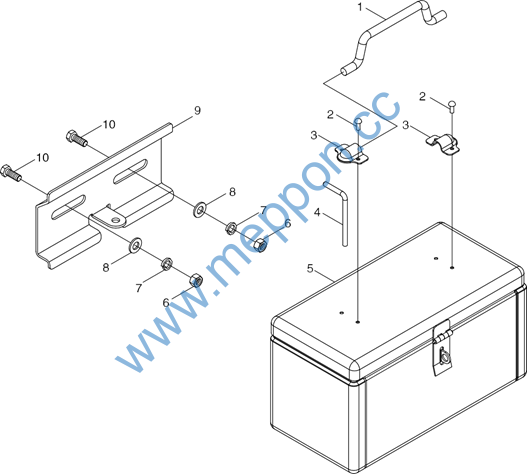

FT65.49.001 Tools Box Assembly




















































164
