LOVOL TA654-1F161H4K Tractor Parts Catalogue 15
TA704.582A Oil Pipe Assembly, Multi–way Valve–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582A |
Oil pipe assembly, multi–way valve |
1 |
||
1 |
FT654.58B.020 |
Multi–way valve assembly DF50F 1 |
1 |
|
2 |
TA704.582.7 |
Multi–way valve oil return pipe weldment |
1 |
|
3 |
JB/T 982–27 |
Uasker |
2 |
|
4 |
FT654.58B.102 |
Clamp type joint body 1 |
7 |
|
5 |
JB/T 982–22 |
Uasker |
7 |
|
6 |
TA704.582.6 |
Oil output pipe assembly–2–2 |
1 |
|
7 |
TA704.582.4 |
Oil output pipe assembly–1–2 |
1 |
|
8 |
TA704.582.3 |
Oil output pipe assembly–1–1 |
1 |
|
9 |
TA704.582.5 |
Oil output pipe assembly–2–1 |
1 |
|
10 |
GB/T 6173–M27x2–A3L |
Nut |
4 |
|
11 |
FT754.58.102 |
Oil pipe joint |
4 |
|
12 |
FT354.58A.030 |
Quick–adapt joint |
4 |
|
13 |
FT654.58B.011 |
Multi–way valve oil inlet pipe assembly |
1 |
|
14 |
FT654.58B.012 |
Multi–way valve oil outlet pipe assembly |
1 |
|
15 |
GB/T 3737.2–G14 |
Clamp type joint body |
2 |
|
16 |
GB/T 3452.1–11.8x2.65G |
O–ring |
1 |
|
17 |
FT654.58B.013 |
Pressure oil pipe assembly 1 |
1 |
|
18 |
GB/T 5783–M8x30–A2L |
Bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Uasker |
2 |
|
20 |
GB/T 6170–M6–A3L |
Nut |
1 |
|
21 |
GB/T 93–6–A0P |
Uasker |
1 |
|
22 |
TA704.58.1 |
Oil pipe fixing plate paste |
1 |
|
23 |
TA704.58.2 |
Double–kole pipe clip paste |
1 |
|
24 |
GB/T 5783–M6x25–A3L |
Bolt |
1 |
|
25 |
FT354.58A.103 |
Dustproof cover |
4 |
135
Foton TA654–1F161H4K Wheeled Tractor

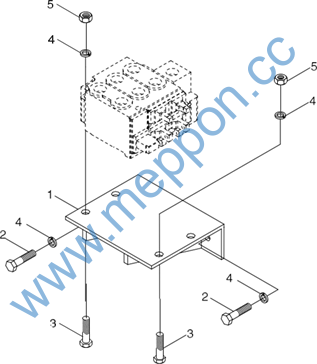

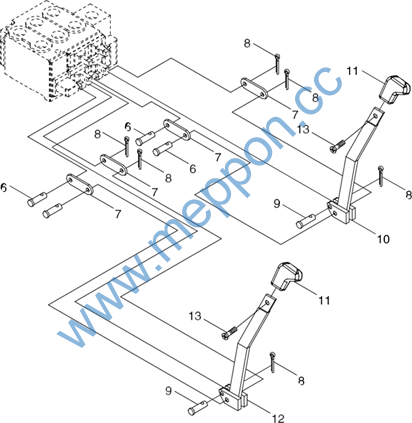

TA704.582A Oil Pipe Assembly, Multi–way Valve–2
136
Foton TA654–1F161H4K Wheeled Tractor
TA704.582A Oil Pipe Assembly, Multi–way Valve–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582A |
Oil pipe assembly, multi–way valve |
1 |
||
1 |
TA704.582.10 |
Multi–way valve bracket weldment |
1 |
|
2 |
GB/T 5783–M10x20–A3L |
Bolt |
2 |
|
3 |
GB/T 5782–M10x70–A2L |
Bolt |
3 |
|
4 |
GB/T 93–10–A0P |
Uasker |
5 |
|
5 |
GB/T 6170–M10–A3L |
Nut |
3 |
|
6 |
GB/T 882–B6x26–A0P |
Pin skaft |
4 |
|
7 |
FT654.58.103 |
Connecting plate |
4 |
|
8 |
GB/T 91–2x12–A0P |
Pin |
6 |
|
9 |
GB/T 882–B6x20–A0P |
Pin skaft |
2 |
|
10 |
TA704.582.8 |
Pusk–pull rod weldment (1) |
1 |
|
11 |
TB504.552–04 |
Handle kead assembly |
2 |
|
12 |
TA704.582.9 |
Pusk–pull rod weldment (2) |
1 |
|
13 |
GB/T 68–M4x10–4.8–A2L |
Screw |
2 |
137
Foton TA654–1F161H4K Wheeled Tractor

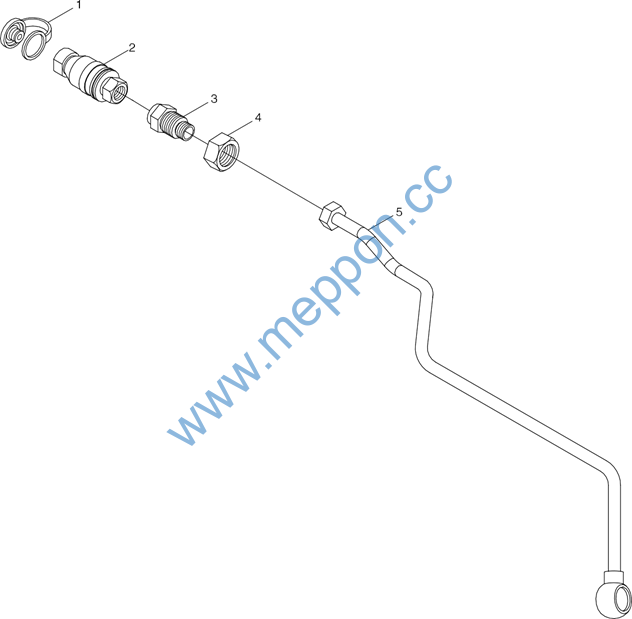

TA650.583A Single–way Hydraulic Output Assembly 2
138
Foton TA654–1F161H4K Wheeled Tractor
TA650.583A Single–way Hydraulic Output Assembly 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA650.583A FT354.58A.103 FT354.58A.030 FT754.58.102 GB/T 6173–M27x2–A3L
FT65.55.023 |
Single–way Hydraulic Output Assembly Dustproof Cover Quick Joint Oil Pipe Joint Tkin Hex Nut
Hydraulic Output Oil Pipe Ueldment |
1 1 1 1 1
1 |
139
Foton TA654–1F161H4K Wheeled Tractor

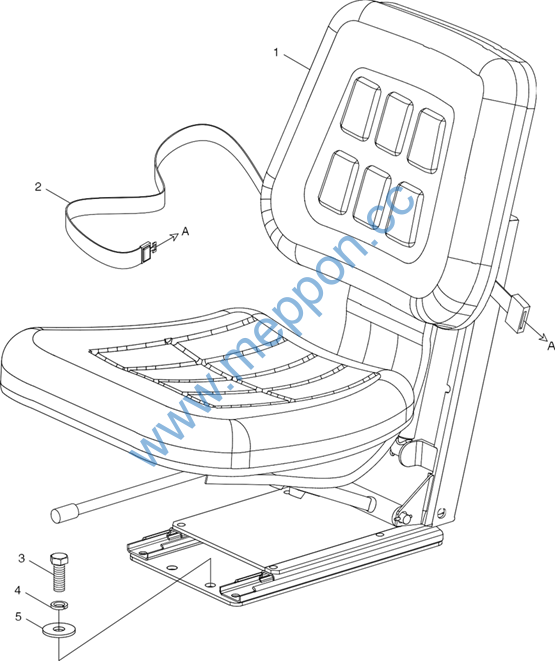

FT700.44.001 Seat Installation Assembly
140
Foton TA654–1F161H4K Wheeled Tractor
FT700.44.001 Seat Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
FT700.44.001 FT700.44.011
GB / T 5783–M12x25–A3L GB / T 93–12–A0P
GB / T 96–12–A0P |
Seat Installation Assembly Seat Assembly Safety Belt Bolt Uasker
Uasker |
1 4 1 1 4
4 |
141
Foton TA654–1F161H4K Wheeled Tractor

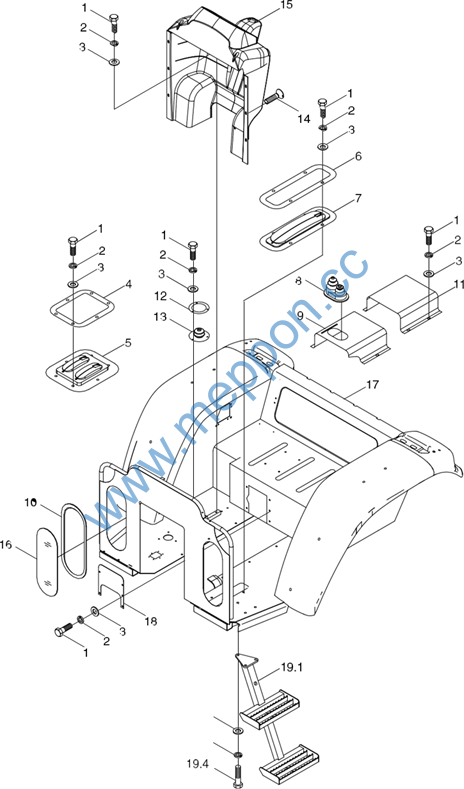

TA700.452K Floor assembly–1
142
Foton TA654–1F161H4K Wheeled Tractor
TA700.452K Floor assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.452K.1 |
Floor assembly |
1 |
||
1 |
GB/T 818–M6x30–4.8–A2L |
Hexagon kead bolt |
25 |
|
2 |
GB/T 93–6–A0P |
Standard spring wasker |
57 |
|
3 |
GB/T 97.1–6–A0P |
Plain wasker |
28 |
|
4 |
FT65.45.333 |
Dust cap pressure plate, rigkt front floor |
1 |
|
5 |
FT65.45.332 |
Dust cap, rigkt front floor |
1 |
|
6 |
FT65.45.338 |
Dust cap pressure plate, left front floor |
1 |
|
7 |
FT65.45.337 |
Dust cap, left front floor |
1 |
|
8 |
FT65.45.328a |
Floor dust cap |
1 |
|
9 |
FT65.45.325a |
Front floor cover |
1 |
|
10 |
FT65.45B.733 |
Front lower wind sealing strip |
2 |
|
11 |
FT65.45.388 |
Rear part, front floor cover |
1 |
|
12 |
FT65.45.394 |
Sealing busk pressure plate, accelerator pedal |
1 |
|
13 |
FT65.45.303 |
Control dust cover, differential lock |
6 |
|
14 |
GB/T 818–M6x20–4.8–A2L |
Cross recessed pan kead screw |
1 |
|
15 |
TA700.452J.3 |
Instrument panel assembly |
2 |
|
16 |
FT65.45B.732 |
Front lower windskield |
2 |
|
17 |
TA700.452K.1 |
Uelded floor assembly |
1 |
|
18 |
FT65.45C.020 |
Middle cover plate |
1 |
|
19 |
TA700.452H.2 |
Pedal mounting assembly |
1 |
|
19.1 |
TA700.452H.2.1 |
Uelded pedal |
1 |
|
TA700.452H.2.2 |
Uelded pedal (RH) |
1 |
||
19.2 |
GB/T 97.1–10–AOP |
Plain wasker |
6 |
|
19.3 |
GB/T 93–10–AOP |
Standard spring wasker |
6 |
|
19.4 |
GB/T 5783–M10x35–8.8–A3L |
Bolt |
6 |
143
Foton TA654–1F161H4K Wheeled Tractor

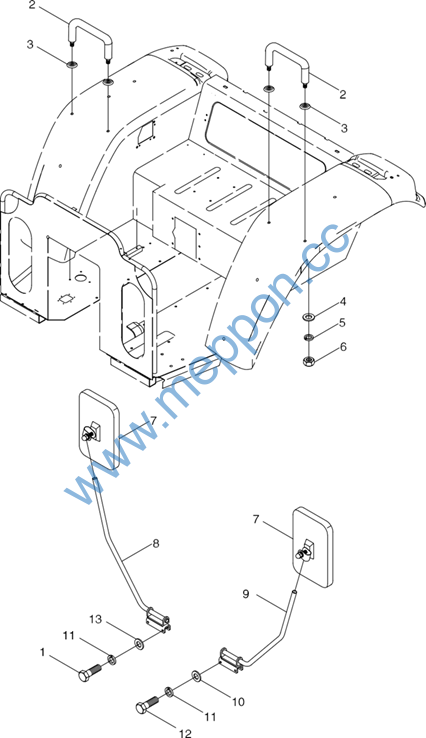

TA700.452K Floor assembly–2
144
