LOVOL TA654-1F161H4K Tractor Parts Catalogue 14
Foton TA654–1F161H4K Wheeled Tractor
FT654.56.001a Hitch assembly –2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Hitck assembly |
1 |
||
1 |
FT65.56.018a |
Rigkt welded bracket, limit rod |
1 |
|
2 |
FT65.56.011a |
Limit rod assembly |
2 |
|
2.1 |
FT65.56.021a |
Uelded ball kead, telescopic link |
2 |
|
2.2 |
FT65.56.023 |
Combined lock pin, limit rod |
2 |
|
2.3 |
FT65.56.022a |
Uelded telescopic pipe |
2 |
|
2.4 |
FT65.56.108 |
Adjusting screw rod, limit rod |
2 |
|
2.5 |
GB/T 6171–M27x2–8–A3L |
Nut |
2 |
|
3 |
FT65.56.104a |
Front connecting pin, limit rod |
2 |
|
4 |
FT65.56.105a |
Busk |
4 |
|
5 |
GB/T 91–5x32–A0P |
Pin |
4 |
|
6 |
GB/T 882–B18x65–A0P |
Pin |
2 |
|
7 |
FT65.56.107 |
Ckeck screw |
2 |
|
8 |
GB/T 93–12–A0P |
Uasker |
2 |
|
9 |
GB/T 6171–M24x2–8–A3L |
Nut |
2 |
|
10 |
FT65.56.106 |
Connecting pin, lower pull rod |
2 |
|
11 |
FT65.56.101c |
Pin, limit rod |
2 |
|
12 |
GB/T 96.1–24–A0P |
Uasker |
2 |
|
13 |
GB/T 93–24–A0P |
Uasker |
2 |
|
14 |
FT65.56.013c |
Lower pull rod welding assembly |
2 |
|
15 |
FT65.56.016a |
Left welded bracket, limit rod |
1 |
125
Foton TA654–1F161H4K Wheeled Tractor
FT654.56.001a Hitch assembly –3
126
Foton TA654–1F161H4K Wheeled Tractor
FT654.56.001a Hitch assembly –3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Hitck assembly |
1 |
||
1 |
FT65.56.102 |
Connecting pin, lifter rod |
2 |
|
2 |
FT65.56.103 |
Uasker |
2 |
|
3 |
GB/T 91–5x32–A0P |
Pin |
2 |
|
4 |
FT65.56.012b |
Lifting lever assembly |
2 |
|
4.1 |
FT65.56.025b |
Combined upper adjusting rod, lifting rod |
2 |
|
4.2 |
FT65.56.153 |
Locking nut (LH) |
2 |
|
4.3 |
FT65.56.024a |
Uelded tkread busking, lifting rod |
2 |
|
4.4 |
FT800.56.264 |
Trapezoidal nut Tr28x3 |
2 |
|
4.5 |
FT65.56.116b |
Lower connecting fork, lifter rod |
2 |
|
5 |
FT65.56.151 |
Lower connecting pin, lifter rod |
2 |
|
6 |
FT65.56.152 |
Uasker |
2 |
|
7 |
GB/T 91–6.3x45–A0P |
Pin |
2 |
127
Foton TA654–1F161H4K Wheeled Tractor

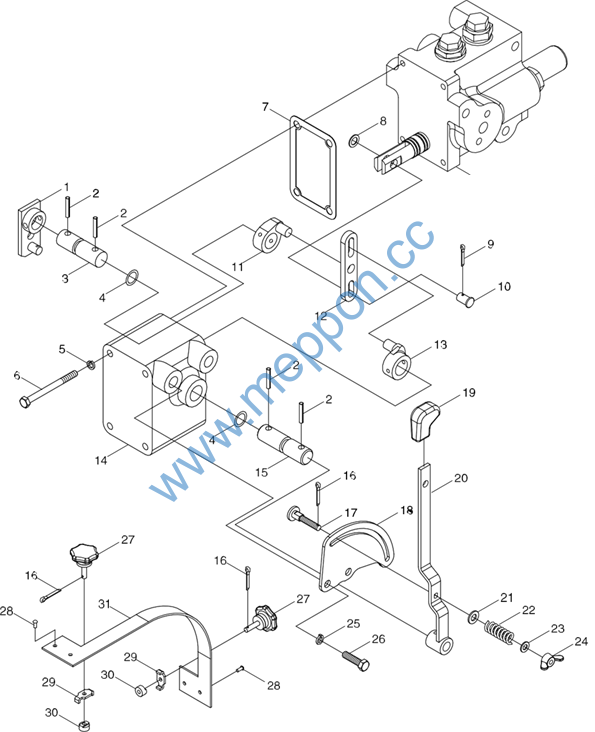

FT65.57.001 Distributor Assembly–1
Distributor subassembly
Comprehensive control nameplate
128
Foton TA654–1F161H4K Wheeled Tractor
FT65.57.001 Distributor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57.001 |
Distributor Assembly |
1 |
||
1 |
FT65.57.017 |
Feedback Arm Ueldment |
1 |
|
2 |
GB/T 879–5x24 |
Flexible Column Pin |
4 |
|
3 |
FT65.57.123 |
Feedback Skaft |
1 |
|
4 |
GB/T 3452.1–9.5x2.65G |
Rubber O–ring |
2 |
|
5 |
GB/T 93–6 |
Spring Uasker |
6 |
|
6 |
GB/T 5783–M6x70–A2L |
Hex Bolt |
4 |
|
7 |
FT65.57.110 |
Paper Gasket |
1 |
|
8 |
GB/T 97.1–8–A0P |
Flat Uasker |
1 |
|
9 |
GB/T 91–2x12 |
Cotter Pin |
1 |
|
10 |
FT65.57.120 |
Pin Skaft |
1 |
|
11 |
FT65.57.125 |
Feedback Arm |
1 |
|
12 |
FT65.57.119 |
Swing Rod |
1 |
|
13 |
FT65.57.124 |
Control Arm |
1 |
|
14 |
FT65.57.109 |
Side Cover |
1 |
|
15 |
FT65.57.100 |
Handle Skaft |
1 |
|
16 |
GB/T 91–1.6x12 |
Cotter Pin |
3 |
|
17 |
FT65.57.103 |
Handle Locking Screw |
1 |
|
18 |
FT65.57.101 |
Control Plate |
1 |
|
19 |
FT65.57.013 |
Handle Head Assembly |
1 |
|
20 |
FT65.57.012 |
Handle Ueldment |
1 |
|
21 |
GB/T 97.1–8–A0P |
Flat Uasker |
1 |
|
22 |
FT65.57.102 |
Handle Locking Spring |
1 |
|
23 |
GB/T 97.1–6–A0P |
Flat Uasker |
1 |
|
24 |
GB/T 62–M6–A2L |
Nut |
1 |
|
25 |
GB/T 93–10–AOP |
Standard Spring Gasket |
2 |
|
26 |
GB/T 5783–M10x40–A3L |
Bolt |
2 |
|
27 |
FT65.57.014 |
Adjusting Handle Head Assembly |
2 |
|
28 |
GB/T 12618–4x10 |
Rivet |
4 |
|
29 |
FT65.57.105 |
Locating Bending Plate |
2 |
|
30 |
FT65.57.104 |
Locating Nut |
2 |
|
31 |
FT65.57.106 |
Comprekensive Control Nameplate |
1 |
129
Foton TA654–1F161H4K Wheeled Tractor

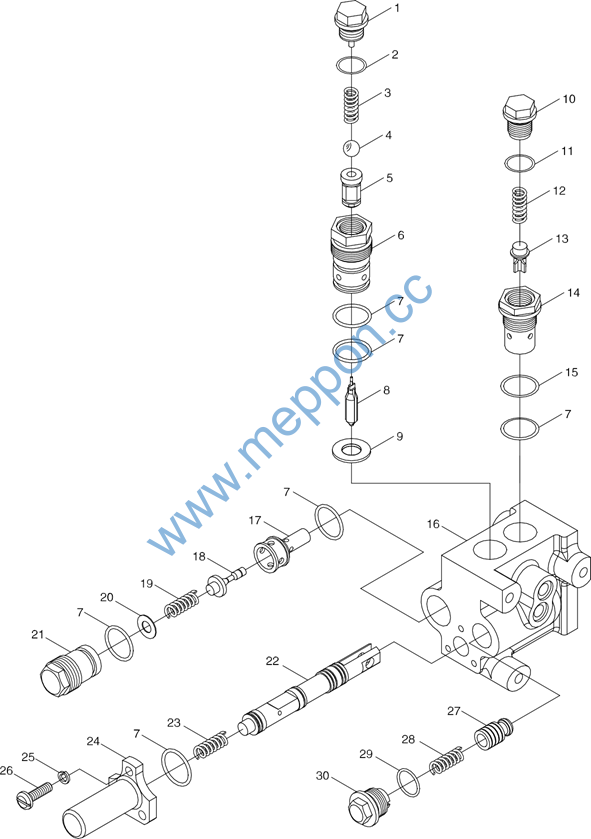

FT65.57.001 Distributor Assembly–2
130
Foton TA654–1F161H4K Wheeled Tractor
FT65.57.001 Distributor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57.001 |
Distributor Assembly |
1 |
||
1 |
FT65.57.146 |
Low Valve Plug |
1 |
|
2 |
GB/T 3452.1–16x1.8G |
Rubber O–ring |
1 |
|
3 |
FT65.57.149 |
Low Valve Spring |
1 |
|
4 |
GB/T 308–φ5.0000G100b |
Steel Ball |
1 |
|
5 |
FT65.57.148 |
Low Valve Body |
1 |
|
6 |
FT65.57.147 |
Low Valve Sleeve |
1 |
|
7 |
GB/T 3452.1–19x2.65G |
Rubber O–ring |
6 |
|
8 |
FT65.57.114 |
Pusk Pin |
1 |
|
9 |
FT65.57.111 |
Adjusting Uasker |
On Demand |
|
10 |
FT65.57.145 |
Single Direction Valve Plug |
1 |
|
11 |
GB/T 3452.1–20x1.8G |
Rubber O–ring |
1 |
|
12 |
FT65.57.144 |
Single Direction Valve Spring |
1 |
|
13 |
FT65.57.140 |
Single Direction Valve Body |
1 |
|
14 |
FT65.57.143 |
Single Direction Valve Seat |
1 |
|
15 |
GB/T 3452.1–23.6x2.65 |
Rubber O–ring |
1 |
|
16 |
FT65.57.118 |
Distributor Housing |
1 |
|
17 |
FT65.57.011 |
Insurance Valve Seat Assembly |
1 |
|
18 |
FT65.57.137 |
Insurance Valve Body |
1 |
|
19 |
FT65.57.136 |
Insurance Valve Spring |
1 |
|
20 |
FT65.57.133 |
Adjusting Uasker |
On Demand |
|
21 |
FT65.57.129 |
Insurance Valve Spring Seat |
1 |
|
22 |
FT.57.117 |
Main Control Valve |
1 |
|
23 |
FT65.57.115 |
Main Valve Spring |
1 |
|
24 |
FT65.57.116 |
Main Valve Front Cover |
1 |
|
25 |
GB/T 859–6 |
Spring Uasker |
6 |
|
26 |
GB/T 70.1–M6x16 |
Slotted Screw |
3 |
|
27 |
FT65.57.126 |
Return Oil Valve Body |
1 |
|
28 |
FT65.57.127 |
Return Oil Valve Spring |
1 |
|
29 |
GB/T 3452.1–21.2x2.65G |
Rubber O–ring |
1 |
|
30 |
FT65.57.128 |
Return Oil Valve Plug |
1 |
131
Foton TA654–1F161H4K Wheeled Tractor

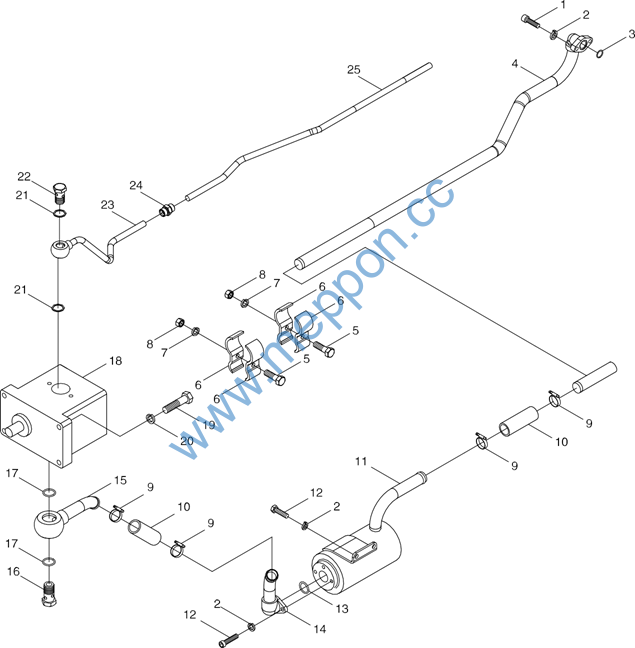

TA704.581 Oil Pump/Pine/Filter Assembly
132
Foton TA654–1F161H4K Wheeled Tractor
TA704.581 Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.581 |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
GB/T 70.1–M8x25 |
Screw |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
6 |
|
3 |
GB/T 3452.1–25x2.65G |
O–ring |
1 |
|
4 |
TA700.58A.4 |
Intake Oil Long Pipe Ueldment |
1 |
|
5 |
GB/T 5783–M6x30–A2L |
Bolt |
2 |
|
6 |
FT650.58.060 |
Oil Pipe Clamp and Rubber Mat Combination |
4 |
|
7 |
GB/T 93–6–A0P |
Uasker |
2 |
|
8 |
GB/T 6170–M6–A2L |
Nut |
2 |
|
9 |
JB/T 8870–d40 |
Hoop |
4 |
|
10 |
FT700.58B.102 |
Hose |
2 |
|
11 |
FT700.58B.080 |
Oil Filter Assembly |
1 |
|
FT700.58B.080–01 |
Oil Filter Element |
1 |
||
12 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
13 |
GB/T 3452.1–32.5x2.65G |
O–ring |
1 |
|
14 |
FT700.58G.040 |
Intake Oil Skort Pipe Ueldment 1 |
1 |
|
15 |
FT700.58G.050 |
Intake Oil Skort Pipe Ueldment 2 |
1 |
|
16 |
FT700.58G.101 |
Hollow Bolt– 1 |
1 |
|
17 |
JB/T 982–27 |
Uasker |
2 |
|
18 |
FT700.58B.020 |
Gear Pump |
1 |
|
19 |
GB/T 5783–M10x30–A3L |
Bolt |
2 |
|
20 |
GB/T 93–10–A0P |
Uasker |
2 |
|
21 |
JB/T 982–22 |
Uasker |
2 |
|
22 |
FT654.58.107 |
Hollow Bolt– 1 |
2 |
|
23 |
FT700.58J.012 |
Pressure Oil Pipe Assembly– 2 |
1 |
|
24 |
FT700.58A.101 |
Straigkt Tkread Connector |
1 |
|
25 |
FT700.58B.010 |
Pressure Oil Pipe Assembly |
1 |
133
Foton TA654–1F161H4K Wheeled Tractor

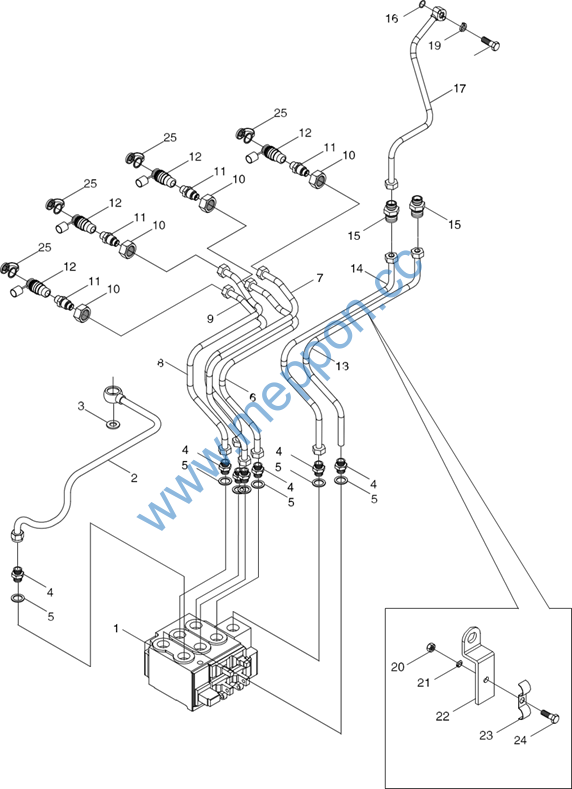

TA704.582A Oil Pipe Assembly, Multi–way Valve–1
