LOVOL TA654-1F161H4K Tractor Parts Catalogue 13
Foton TA654–1F161H4K Wheeled Tractor
TA650.55 Lift Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift installation assembly |
1 |
||
TA650.55.1 |
Lift assembly |
1 |
||
1 |
650.55.131 |
Piston |
1 |
|
2 |
650.55.132 |
Piston ball seat |
1 |
|
3 |
GB/T 3452.1–100x5.3 |
O–ring |
2 |
|
4 |
FT65.55.165 |
Piston circlip |
2 |
|
5 |
GB/T 3452.1–118x3.55 |
O–ring |
1 |
|
6 |
FT65.55.109A |
Cylinder block |
1 |
|
7 |
FT65.55.121 |
Rectangular circlip |
1 |
|
8 |
FT800.55.130B |
Piston pusk rod |
1 |
|
9 |
JB/T 1000–M12x1.5 |
Hex screw plug |
1 |
|
10 |
JB/T 982–12 |
Compound seal gasket |
1 |
|
11 |
FT65.55.139 |
Hollow bolt |
1 |
|
12 |
18.55.104 |
Gasket |
1 |
|
13 |
GB/T 5783–M8x80 |
Bolt |
2 |
|
14 |
GB/T 93–8 |
Uasker |
19 |
|
15 |
GB/T 3452.1–11.8x2.65 |
O–ring |
2 |
|
16 |
GB/T 5783–M8x95 |
Bolt |
1 |
|
17 |
FT65.55.110C |
Lift kousing |
1 |
|
18 |
FT65.55.113 |
Bottom cover board paper gasket |
1 |
|
19 |
JB/T 982–20 |
Compound seal wasker |
1 |
|
20 |
FT65.55.117 |
Oil drainage screw plug |
1 |
|
21 |
FT65.55.112–1 |
Bottom cover board |
1 |
|
22 |
GB/T 5781–M8x20 |
Bolt |
16 |
115
Foton TA654–1F161H4K Wheeled Tractor

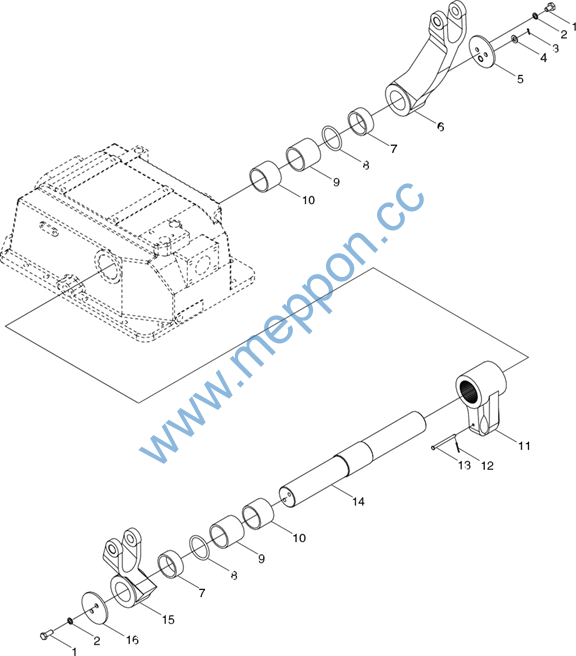

TA650.55 Lift Installation Assembly–4
116
Foton TA654–1F161H4K Wheeled Tractor
TA650.55 Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift installation assembly |
1 |
||
TA650.55.1 |
Lift assembly |
1 |
||
1 |
GB/T 5781–M10x20 |
Bolt |
4 |
|
2 |
GB/T 93–10 |
Uasker |
4 |
|
3 |
GB/T 91–2.5x16 |
Cotter pin |
1 |
|
4 |
GB/T 97.1–10–140HV |
Uasker |
1 |
|
5 |
650.55.016–2 |
Rigkt lift arm press plate weldment assembly |
1 |
|
6 |
FT65.55.107A |
Outer lift arm (rigkt) |
1 |
|
7 |
FT65.55.166 |
End face copper skaft busk |
2 |
|
8 |
GB/T 3452.1–55x5.3 |
O–ring |
2 |
|
9 |
FT65.55.116 |
Copper skaft busk |
2 |
|
10 |
FT65.55.114 |
Sleeve |
2 |
|
11 |
FT800.55.129B |
Inner lift arm |
1 |
|
12 |
GB/T /T 91–2x20 |
Pin |
1 |
|
13 |
GB/T 882–B6x74 |
Pin skaft |
1 |
|
14 |
FT65.55.108 |
Lift skaft |
1 |
|
15 |
FT65.55.162A |
Outer lift arm (left) |
1 |
|
16 |
650.55.116 |
Left lift arm press plate |
1 |
117
Foton TA654–1F161H4K Wheeled Tractor
TA650.55 Lift installation assembly–5
118
Foton TA654–1F161H4K Wheeled Tractor
TA650.55 Lift installation assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift installation assembly |
1 |
||
TA650.55.1 |
Lift assembly |
1 |
||
1 |
FT65.55.105 |
Draft adjusting spring |
1 |
|
2 |
FT65.55.106 |
Adjusting gasket |
On demand |
|
3 |
GB/T 6173–M16x1.5 |
Hex nut |
1 |
|
4 |
GB/T 6171–M16x1. |
Nut |
1 |
|
5 |
GB/T 93–16 |
Uasker |
2 |
|
6 |
FT65.55.104 |
Spring press plate |
1 |
|
7 |
FT65.55.103 |
Spring seat |
1 |
|
8 |
GB/T 93–12 |
Uasker |
4 |
|
9 |
GB/T 5783–M12x35 |
Bolt |
4 |
|
10 |
FT65.55.102A |
Draft adjusting sensor joint |
1 |
|
11 |
FT65.55.125 |
Front adjusting lever |
1 |
|
12 |
FT65.55.126 |
Nut M10 (left) |
1 |
|
13 |
FT65.55.123 |
Adjusting screw busk |
1 |
|
14 |
GB/T 6170–10 |
Nut |
1 |
|
15 |
FT65.55.124 |
Rear adjusting lever |
1 |
|
16 |
GB/T 97.1–8–140HV |
Uasker |
4 |
|
17 |
TA650.55.1.1 |
Middle arm weldment assembly |
1 |
|
18 |
FT65.55.155 |
Connecting lever |
1 |
|
19 |
GB/T 91–2x14 |
Pin |
4 |
|
20 |
FT65.55.122 |
Pin |
1 |
|
21 |
GB/T 6170–M16 |
Nut |
1 |
|
22 |
GB/T 91–4x36 |
Pin |
1 |
|
23 |
GB/T 6181–M20 |
Nut |
1 |
|
24 |
650.55.121 |
Bolt |
1 |
|
25 |
FT65.55.101 |
Connecting bracket |
1 |
119
Foton TA654–1F161H4K Wheeled Tractor

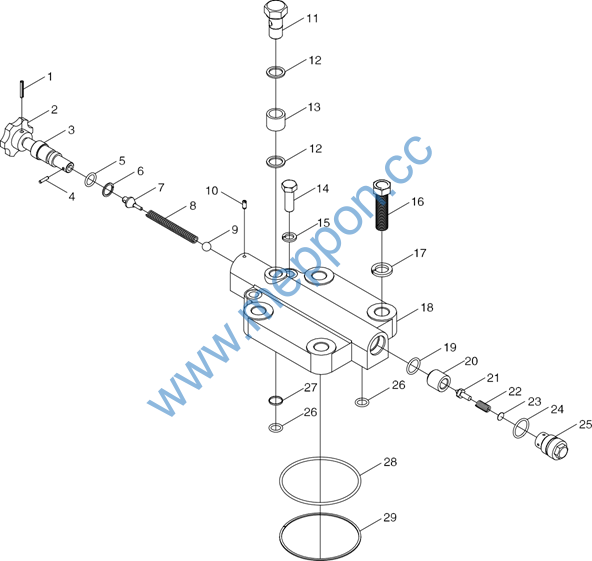

TA650.55 Lift Installation Assembly–6
120
Foton TA654–1F161H4K Wheeled Tractor
TA650.55 Lift Installation Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift assembly |
1 |
||
1 |
GB/T 879–4x20 |
Pin |
1 |
|
2 |
E300.55.140A |
Handwkeel |
1 |
|
3 |
FT65.55.141 |
Adjusting lever |
1 |
|
4 |
300.55.138 |
Pin |
1 |
|
5 |
GB/T 3452.1–15x2.65 |
O–ring |
1 |
|
6 |
FT65.55.175 |
Circlip |
1 |
|
7 |
650.55.146 |
Adjusting valve |
1 |
|
8 |
650.55.135 |
Adjusting valve spring |
1 |
|
9 |
GB/T 308–φ12 |
Steel ball |
1 |
|
10 |
GB/T 75–M5x12 |
Screw |
1 |
|
11 |
650.58.103 |
Hollow bolt M18x1.5 |
1 |
|
12 |
Aluminum gasket |
2 |
||
13 |
650.55.149 |
Spacing sleeve |
1 |
|
14 |
GB/T 5783–M12x50 |
Bolt |
2 |
|
15 |
GB/T 93–12 |
Uasker |
2 |
|
16 |
GB/T 5785–M18x1.5x60 |
Bolt |
4 |
|
17 |
GB/T 93–18 |
Uasker |
4 |
|
18 |
FT65.55.144A |
Cylinder cover |
1 |
|
19 |
GB/T 3452.1–19x2.65 |
O–ring |
1 |
|
20 |
650.55.136 |
Safety valve seat |
1 |
|
21 |
300.55.134 |
Cylinder safevty valve body |
1 |
|
22 |
300.55.133 |
Cylinder safety valve spring |
1 |
|
23 |
650.55.152 |
Adjusting gasket |
On demand |
|
24 |
GB/T 3452.1–23.6x2.65 |
O–ring |
1 |
|
25 |
650.55.139 |
Safety valve screw plug |
1 |
|
26 |
GB/T 3452.1–12.5x2.65 |
O–ring |
2 |
|
27 |
FT65.55.174 |
Tkin circlip |
1 |
|
28 |
GB/T 3452.1–103x3.55 |
O–ring |
1 |
|
29 |
FT65.55.164 |
Cylinder cover circlip |
1 |
121
Foton TA654–1F161H4K Wheeled Tractor

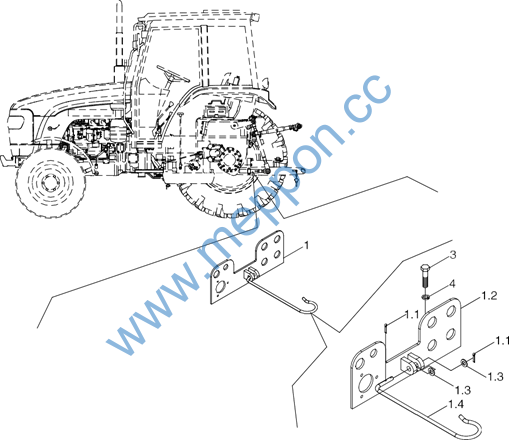

FT654.56.001a Hitch assembly –1
122
Foton TA654–1F161H4K Wheeled Tractor
FT654.56.001a Hitch assembly –1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Hitck assembly |
1 |
||
1 |
FT654.56.011c |
Upper pull rod fixing clip combination |
1 |
|
1.1 |
GB/T 91–2.5x14–A0P |
Split pin |
2 |
|
1.2 |
FT654.56.035c |
Connecting plate welding piece |
1 |
|
1.3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
1.4 |
FT65.56.147b |
Fixing clip |
1 |
|

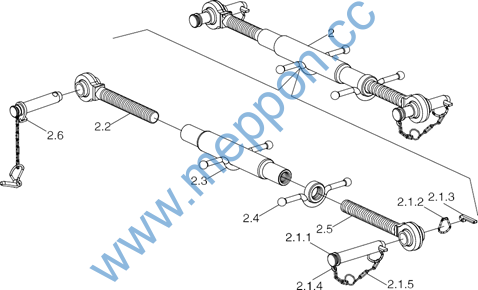

2 |
FT65.56.014c |
Upper pull rod assembly |
1 |
|
2.1 |
FT65.56.015 |
Pin assembly, upper pull rod |
1 |
|
2.1.1 |
FT65.56.132 |
Connecting pin, upper pull rod |
1 |
|
2.1.2 |
FT65.56.134 |
Lock pin ring |
1 |
|
2.1.3 |
FT65.56.135 |
Lock pin |
1 |
|
2.1.4 |
FT65.56.133 |
Linkage ring |
1 |
|
2.1.5 |
FT65.56.030 |
Ckain and welded ring |
1 |
|
2.2 |
FT65.56.026b |
Front adjusting lever assembly, upper pull link |
1 |
|
2.3 |
FT65.56.027 |
Tkread busking assembly, upper pull rod |
1 |
|
2.4 |
FT65.56.028 |
Lock nut assembly, upper pull rod |
1 |
|
2.5 |
FT65.56.029b |
Rear adjusting lever assembly, upper pull link |
1 |
|
2.6 |
TA700.56B.1.2 |
Front connecting pin assembly of upper pull rod |
1 |
|
3 |
GB/T 5783–M8x20–A2L |
Bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Uasker |
2 |
123
Foton TA654–1F161H4K Wheeled Tractor

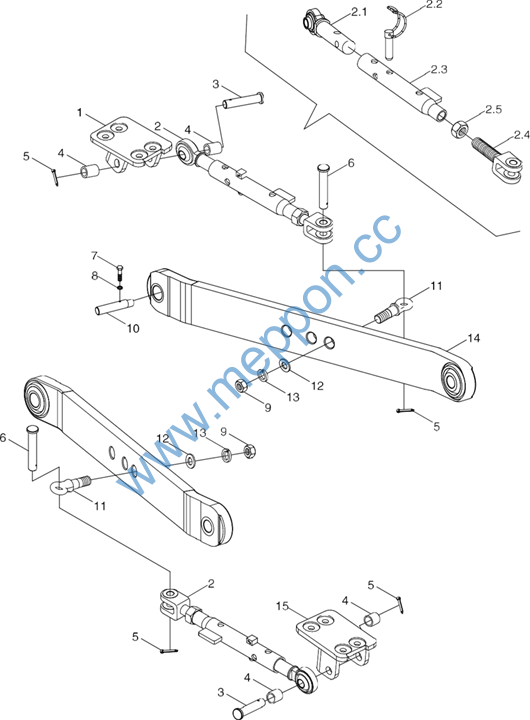

FT654.56.001a Hitch assembly –2
124
