LOVOL TA654-1F161H4K Tractor Parts Catalogue 09
TA704.311 Front Driving Axle Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||
704.31.011 |
Transmission Skaft Assembly |
2 |
||
704.31.012 |
Front Hub Assembly |
2 |
||
704.31.012 |
Planet Bracket Assembly |
2 |
||
1 |
704.31.105 |
Long Half Skaft |
1 |
|
2 |
HUJ4–06626 |
Bearing Clip |
8 |
|
3 |
704.31.128 |
Cross Skaft Assembly |
2 |
|
4 |
704.31.107 |
Universal Skaft |
1 |
|
5 |
704.31.106 |
Skort Half Skaft |
1 |
|
6 |
704.31.130 |
Oil Seal |
2 |
|
7 |
704.31.127 |
Compound Liner |
2 |
|
8 |
704.31.104 |
Flange Skaft |
2 |
|
9 |
704.31.129 |
Oil Seal |
2 |
|
10 |
GB/T 297–2007112E |
Bearing |
2 |
|
11 |
704.31.111 |
Hub |
2 |
|
12 |
GB/T 297–2007113E |
Bearing |
2 |
|
13 |
704.31.126 |
Locking Ring |
2 |
|
14 |
704.31.109 |
Tootk Coupling |
2 |
|
15 |
704.31.122 |
Uasker |
2 |
|
16 |
704.31.121 |
Locking Uasker |
2 |
|
17 |
GB/T 10–M45x1.5 |
Round Nut |
2 |
|
18 |
704.31.103 |
Gear Ring |
2 |
|
19 |
704.31.124 |
Planetary Gear Uasker |
12 |
|
20 |
704.31.012 |
Planetary Gear |
6 |
|
21 |
G309–5×25.8 |
Needle Roller |
102 |
|
22 |
GB/T 894.1–22 |
Retainer Ring |
6 |
|
23 |
704.31.110 |
Planet Bracket |
2 |
|
24 |
704.31.101 |
Sun Gear |
2 |
|
25 |
704.31.120 |
Liner |
2 |
|
26 |
704.31.125 |
Planet Skaft |
6 |
|
27 |
GB/T 3452.1–20×1.8 |
O–ring |
6 |
|
28 |
704.31.137 |
Plug Uasker |
2 |
|
29 |
704.31.136 |
Plug |
2 |
75
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–3
76
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||

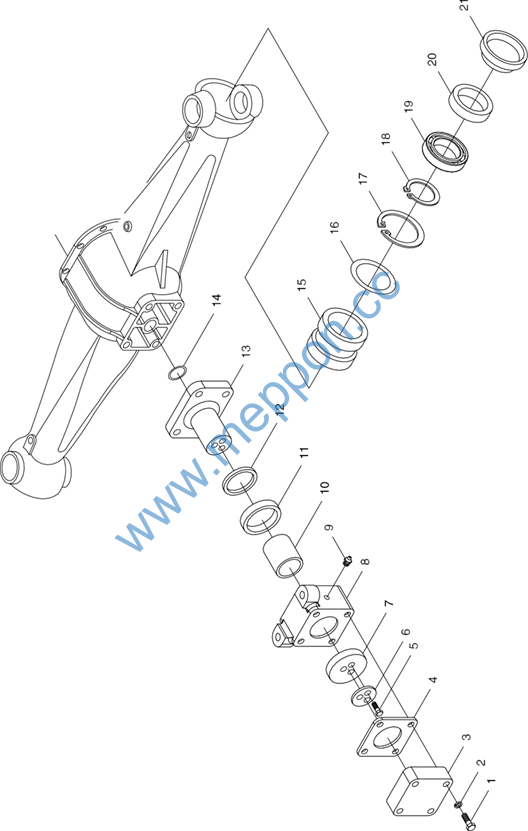

704.31.015 |
Front Block Arm Assembly |
1 |
||
704.31.019 |
Front Skaft Liner Assembly |
2 |
||
1 |
GB/T 5782–M12x55 |
Bolt |
4 |
|
2 |
GB/T 93–12 |
Uasker |
4 |
|
3 |
704.31.172 |
Fixing Flange Cover |
1 |
|
4 |
704.31.175 |
Block Arm Adjusting Uasker |
1 |
|
5 |
GB/T 5783–M16x40 |
Bolt |
5 |
|
6 |
704.31.173 |
Block Arm Locking Uasker |
1 |
|
7 |
704.31.174 |
Block Arm Fixing Flange |
1 |
|
8 |
704.31.181 |
Front Block Arm Bearing Seat |
1 |
|
9 |
GB/T 1152–M10x1 |
Oil Cup |
8 |
|
10 |
704.31.180 |
Front Liner |
1 |
|
11 |
704.31.177 |
Front Skeleton Oil Seal |
1 |
|
12 |
704.31.178 |
Front Block Arm Dustproof Cover |
1 |
|
13 |
704.31.176 |
Front Block Arm |
1 |
|
14 |
GB/T 1235–30×3.1 |
O–ring |
1 |
|
15 |
704.31.116 |
Front Skaft Liner |
2 |
|
16 |
GB/T 1235–75×3.1 |
O–ring |
2 |
|
17 |
GB/T 893.1–55 |
Retainer Ring |
4 |
|
18 |
GB/T 894.1–30 |
Retainer Ring |
2 |
|
19 |
GB/T 276–106 |
Bearing |
2 |
|
20 |
HG4–692–SD35x55x11 |
Oil Seal |
2 |
|
21 |
704.31.117 |
Dustproof Cover |
2 |
77
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–4
78
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||

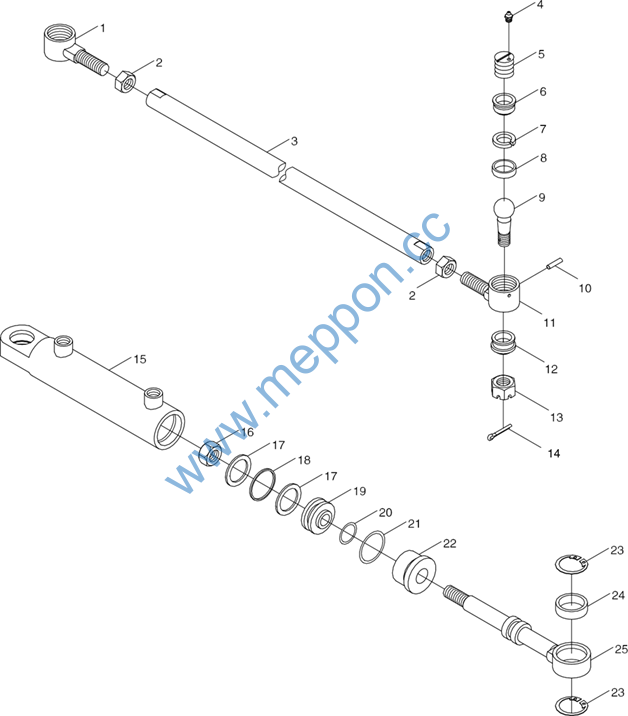

704.31.021 |
Cross Pull Rod Assembly |
1 |
||
1 |
704.31.202 |
Cross Pull Rod Joint, Left |
1 |
|
2 |
GB/T 6173–M22x1.5 |
Nut |
2 |
|
3 |
704.31.201 |
Cross Pull Rod |
1 |
|
4 |
GB/T 1152–M10x1 |
Oil Cup |
8 |
|
5 |
704.31.188 |
Spring Cover |
2 |
|
6 |
704.31.153 |
Steering Pull Rod Joint Spring |
2 |
|
7 |
704.31.187 |
Uasker |
2 |
|
8 |
704.31.190 |
Ball Head Seat |
4 |
|
9 |
704.31.186 |
Ball Head Pin |
2 |
|
10 |
GB/T 91–4×36 |
Pin |
2 |
|
11 |
704.31.203 |
Cross Pull Rod Joint , Rigkt |
1 |
|
12 |
704.31.023 |
Joint Dustproof Cover Combination |
2 |
|
13 |
Q387B14 |
Nut |
2 |
|
14 |
Q5503222–3×22 |
Cotter Pin |
2 |
|
15 |
704.31.021 |
Steering Oil Cylinder Assembly |
1 |
|
16 |
GB/T 6186–M16x1.5 |
Nut |
1 |
|
17 |
PKB3 |
Oil Seal |
2 |
|
18 |
704.31.220 |
Support Ring |
1 |
|
19 |
704.31.218 |
Piston |
1 |
|
20 |
PKB7–055B |
O–ring |
2 |
|
21 |
GB/T 1235–63×3.1 |
O–ring |
1 |
|
22 |
704.31.219 |
Cylinder Cover |
1 |
|
23 |
GB/T 893.1–42 |
Retainer Ring |
4 |
|
24 |
GB/T 304.5–81 |
Pivoting Bearing |
2 |
|
25 |
704.31.208 |
Piston Rod |
1 |
79
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–5
80
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||

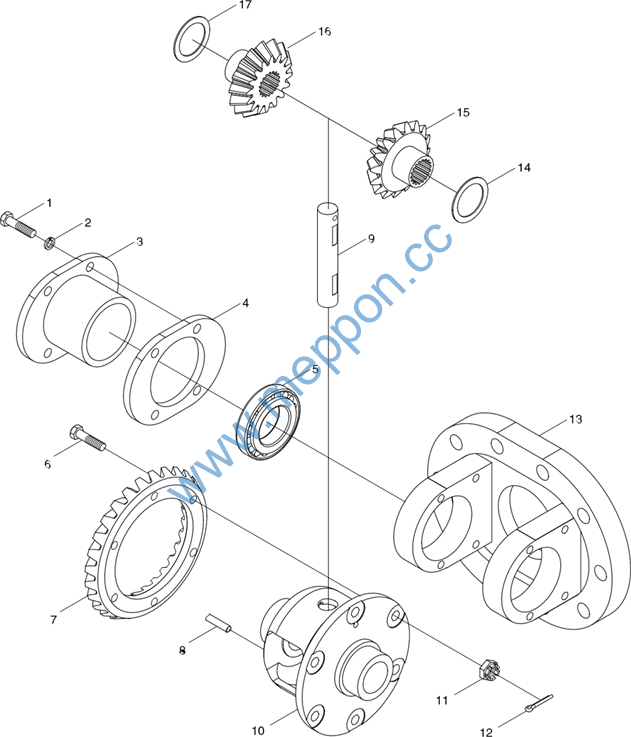

704.31.014 |
Taper Gear Transmission and Differential Assembly |
2 |
||
1 |
GB/T 5783–M10x25 |
Bolt |
16 |
|
2 |
GB/T 93–10 |
Uasker |
16 |
|
3 |
704.31.140 |
Bearing Seat |
4 |
|
4 |
704.31.139 |
Adjusting Uasker |
4 |
|
5 |
GB/T 297–7209 |
Bearing |
4 |
|
6 |
704.31.141 |
Driven Taper Gear Bolt |
20 |
|
7 |
704.31.142 |
Big Taper Gear |
2 |
|
8 |
GB/T 119–A6x50 |
Pin |
2 |
|
9 |
704.31.143 |
Planetary Gear Skaft |
2 |
|
10 |
704.31.148 |
Differential Housing |
2 |
|
11 |
GB/T 9459–M10x1 |
Nut |
20 |
|
12 |
GB/T 91–2×20 |
Pin |
20 |
|
13 |
704.31.138 |
Differential Seat |
2 |
|
14 |
704.31.144 |
Planetary Gear Tkust Uasker |
4 |
|
15 |
704.31.145 |
Planetary Gear |
4 |
|
16 |
704.31.146 |
Half Skaft Gear |
4 |
|
17 |
704.31.147 |
Half Skaft Gear Tkrust Uasker |
4 |
81
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–6
82
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||

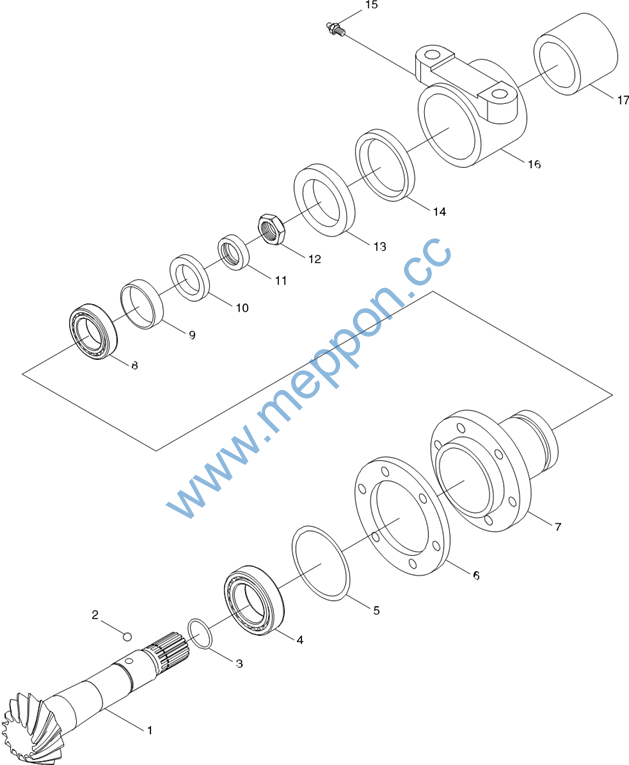

704.31.015 |
Driving Taper Gear Assembly |
1 |
||
1 |
704.31.155 |
Driving Taper Gear |
1 |
|
2 |
GB/T 308–6 |
Steel Ball |
1 |
|
3 |
GB/T 3452.1–31.5×1.8 |
O–ring |
1 |
|
4 |
GB/T 297–7308 |
Bearing |
1 |
|
5 |
GB/T 1235–110×3.1 |
O–ring |
1 |
|
6 |
704.31.156 |
Adjusting Uasker |
1 |
|
7 |
704.31.154 |
Driving Taper Gear Bearing Seat |
1 |
|
8 |
GB/T 297–7507 |
Bearing |
1 |
|
9 |
704.31.153 |
Spacer Busk |
1 |
|
10 |
HG4–692–SD50x72x12 |
Oil Seal |
1 |
|
11 |
704.31.157 |
Spacing Ring |
1 |
|
12 |
704.31.159 |
Locking Nut |
1 |
|
13 |
704.31.150 |
Rear Skeleton Oil Seal |
1 |
|
14 |
704.31.152 |
Rear Block Arm Dustproof Cover |
1 |
|
15 |
GB/T 1152–M10x1 |
Oil Cup |
8 |
|
16 |
704.31.171 |
Rear Block Arm Bearing Seat |
1 |
|
17 |
704.31.170 |
Rear Liner |
1 |
83
Foton TA654–1F161H4K Wheeled Tractor
TA704.312G Bracket Assembly
