LOVOL TA654-1F161H4K Tractor Parts Catalogue 08
TA704.421H Transfer Case Body Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.421H |
Transfer Case Body Assembly |
1 |
||
1 |
GB/T 3452.1–132x3.55G |
O–ring |
1 |
|
2 |
FT704.42B.014 |
Fork Skaft Ueldment |
1 |
|
3 |
FT704.42B.124 |
Fork Skaft Spacer Busk |
1 |
|
4 |
GB/T 3452.1–15x2.65G |
O–ring |
2 |
|
5 |
FT704.42B.114 |
Fork Skaft Side Cover |
1 |
|
6 |
GB/T 93–10–A0P |
Standard Spring Gasket |
8 |
|
7 |
GB/T 5783–M10x45–A3L |
Hex Bolt |
4 |
|
8 |
JB/T 982–18 |
Gasket Combination |
1 |
|
9 |
FT804.42.110 |
Screw Plug |
1 |
|
10 |
TA704.421G.1–06 |
Transfer Case Fork |
1 |
|
11 |
GB/T 308–9.5–G200–b |
Steel Ball |
1 |
|
12 |
FT704.42B.163 |
Fork Skaft Locating Spring |
1 |
|
13 |
GB/T 91–4x32–A0P |
Cotter Pin |
1 |
|
14 |
GB/T 3452.1–11.2x2.65G |
O–ring |
1 |
|
15 |
FT704.42B.123 |
Transfer Case Fork Skaft |
1 |
|
16 |
GB/T 3452.1–54.5x3.55G |
O–ring |
1 |
|
17 |
FT704.42B.113 |
Bearing Cover |
1 |
|
18 |
GB/T 5783–M10x30–A3L |
Hex Bolt |
4 |
65
Foton TA654–1F161H4K Wheeled Tractor

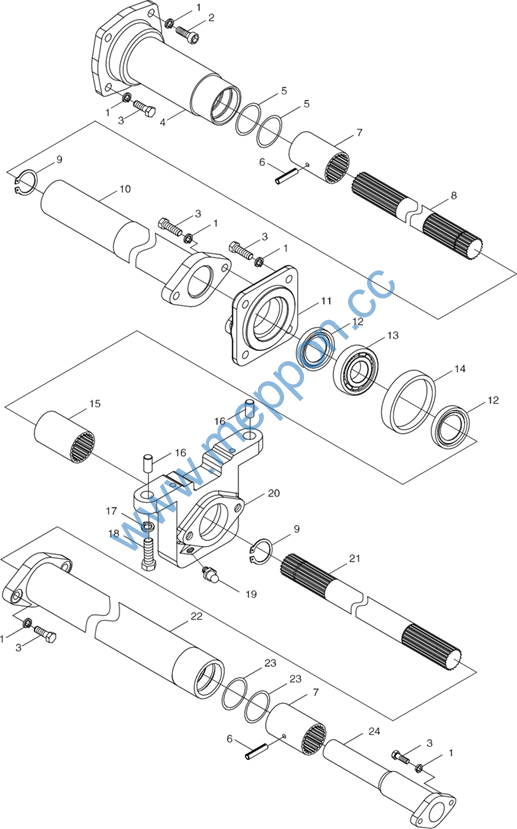

TA704.422E Transfer Case Transmission and Bonnet Installation Assembly
66
Foton TA654–1F161H4K Wheeled Tractor
TA704.422E Transfer Case Transmission and Bonnet Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.422E |
Transfer Case Transmission and Bonnet Installation Assembly |
1 |
||
1 |
GB/T 93–10–A0P |
Standard Spring Gasket |
14 |
|
2 |
GB/T 70.1–M10x20 |
Hex Socket Cap Screw |
2 |
|
3 |
GB/T 5783–M10x25–A3L |
Hex Bolt |
12 |
|
4 |
FT704.42B.013 |
Sleeve Ueldment N |
1 |
|
5 |
GB/T 3452.1–46.2x2.65G |
O–ring |
2 |
|
6 |
GB/T 879.1–6x40–A0P |
Flexible Column Pin |
2 |
|
7 |
FT654.42.120 |
Connecting Hub Spline Busk |
2 |
|
8 |
FT654.42.139 |
Front Transmission Skaft |
1 |
|
9 |
GB/T 894.1–30 |
Circlips For Skaft |
2 |
|
10 |
FT704.42B.012 |
Sleeve Ueldment “ |
1 |
|
11 |
FT704.42B.116a |
Middle Bearing Seat End Cover |
1 |
|
12 |
GB/T 9877.1–FB40x62x8 |
Oil Seal |
2 |
|
13 |
GB/T 276–6208 |
Bearing |
1 |
|
14 |
FT654.42.140a |
Bearing Liner |
1 |
|
15 |
FT704.42B.136 |
Transmission Skaft Hub Spline Connecting Sleeve |
1 |
|
16 |
GB/T 119.1–8 k8x20–A1 |
Pin |
2 |
|
17 |
GB/T 93–16–A0P |
Standard Spring Gasket |
2 |
|
18 |
GB/T 5783–M16x45–A3L |
Hex Bolt |
2 |
|
19 |
JB/T 7940.1–M10x1 |
Oil Cup |
1 |
|
20 |
FT704.42B.133a |
Middle Bearing Seat |
1 |
|
21 |
FT654.42.121 |
Rear Transmission Skaft |
1 |
|
22 |
FT704.42B.011 |
Sleeve Ueldment 亞 |
1 |
|
23 |
GB/T 3452.1–45.0x2.65G |
O–ring |
2 |
|
24 |
FT704.42B.010 |
Sleeve Ueldment I |
1 |
67
Foton TA654–1F161H4K Wheeled Tractor

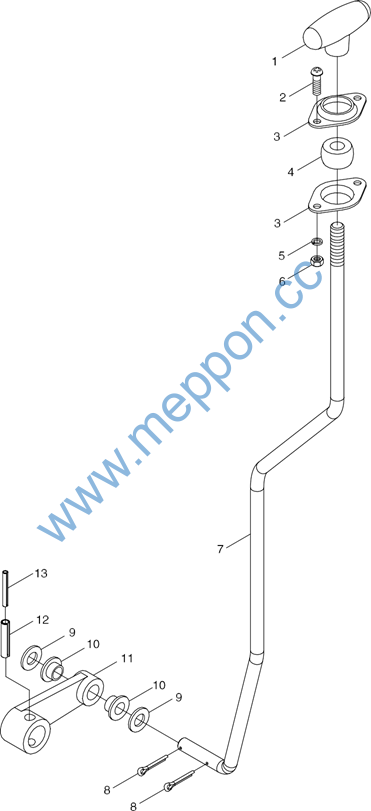

TA704.423E Transfer Case Control Mechanism Assembly
68
Foton TA654–1F161H4K Wheeled Tractor
TA704.423E Transfer Case Control Mechanism Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.423E |
Transfer Case Control Meckanism Assembly |
1 |
||
1 |
FT65.38.051 |
Pull Handle |
1 |
|
2 |
GB / T 818–M6x14–A2L |
Pan Head Screw |
2 |
|
3 |
TG1204.435.2–01 |
Ball Skaft Liner Seat |
2 |
|
4 |
FT65.38.504 |
Ball Skaft Liner |
1 |
|
5 |
GB / T 93–6–A0P |
Standard Spring Gasket |
2 |
|
6 |
GB / T 6170–M6–A2L |
Nut, Type–I |
2 |
|
7 |
FT654.42.144a |
Control Rod |
1 |
|
8 |
GB / T 91–2×18–A0P |
Cotter Pin |
2 |
|
9 |
GB / T 97.1–10–A0P |
Flat Uasker |
2 |
|
10 |
FT654.42.107 |
Control Rod Liner |
2 |
|
11 |
FT704.42B.105 |
Lever Plate |
1 |
|
12 |
GB / T 879.1–8×32 |
Flexible Column Pin |
1 |
|
13 |
GB / T 879.1–5×32 |
Flexible Column Pin |
1 |
69
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–1
70
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||
1 |
704.31.016 |
Front Block Arm Assembly |
1 |
|
2 |
GB / T 5783–M12x35 |
Bolt |
20 |
|
3 |
GB / T 93–12 |
Uasker |
24 |
|
4 |
704.34.137 |
Plug |
1 |
|
5 |
704.34.136 |
Plug Uasker |
1 |
|
6 |
Q61906–Z3 / 4–14 |
Plug |
1 |
|
7 |
704.31.114 |
Left Steering Burl Arm |
1 |
|
8 |
704.31.118 |
Limiting Screw |
2 |
|
9 |
704.31.112 |
Front Axle Housing |
1 |
|
10 |
704.31.164 |
Paper Gasket |
1 |
|
11 |
Q90Z1 / 8–27 |
Vent Plug |
1 |
|
12 |
704.31.119 |
Fixing Screw |
2 |
|
13 |
GB / T 889–M12 |
Nut |
2 |
|
14 |
704.31.019 |
Transmission Skaft Liner Assembly |
2 |
|
15 |
GB / T 5786–M10x1.25×25 |
Bolt |
12 |
|
16 |
GB / T 1152–M10x1 |
Oil Cup |
8 |
|
17 |
704.31.108 |
Steering Burl King Pin |
4 |
|
18 |
704.31.131 |
Oil Seal |
4 |
|
19 |
GB / T 297–2007106E |
Bearing |
4 |
|
20 |
704.31.133 |
Hole Cover |
4 |
|
21 |
704.31.113 |
Rigkt Steering Burl Arm |
1 |
|
22 |
704.31.011 |
Transmission Skaft Assembly |
2 |
|
23 |
704.31.013 |
Front Hub Assembly |
2 |
|
24 |
GB / T 5786–M10x1.25×30 |
Bolt |
20 |
|
25 |
704.31.012 |
Planet Bracket Assembly |
2 |
|
26 |
GB / T 119–B10x20 |
Pin |
4 |
|
27 |
704.31.014 |
Taper Gear Transmission and Differential Assembly |
1 |
|
28 |
704.31.015 |
Driving Taper Gear Assembly |
1 |
|
29 |
GB / T 5783–M8x20 |
Bolt |
1 |
|
30 |
GB / T 93–8 |
Uasker |
1 |
|
31 |
704.31.191 |
Cylinder Pin Skaft Assembly |
1 |
71
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–1(extension)
72
Foton TA654–1F161H4K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–1(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
32 33 34 35 36 |
704.31.021 704.31.194 504.31.195 GB / T 91–4×36 704.31.021 |
Steering Oil Cylinder Assembly Cylinder Pin Skaft Pin Skaft Uasker Pin Cross Pull Rod Assembly |
1 1 4 1 1 |
73
Foton TA654–1F161H4K Wheeled Tractor

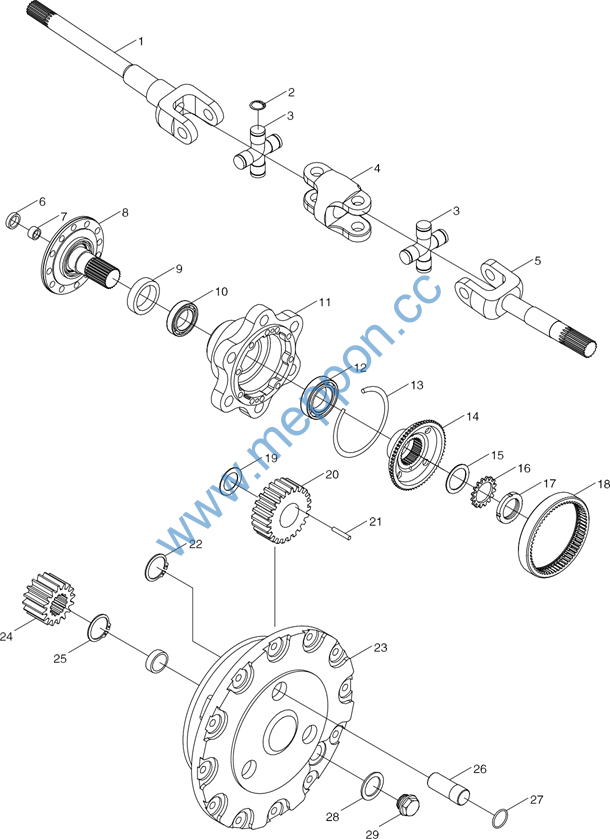

TA704.311 Front Driving Axle Assembly–2
