LOVOL TA654-1F161H4K Tractor Parts Catalogue 07

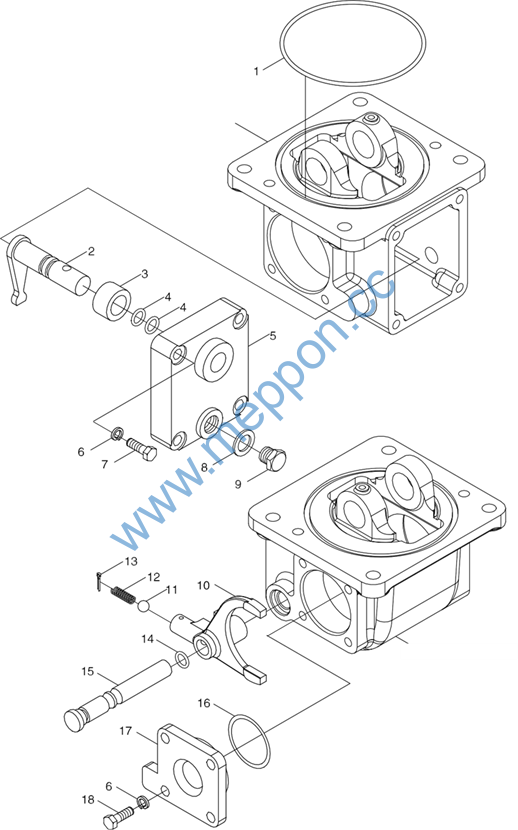

TA700.411F PTO transmission assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.411F |
PTO transmission assembly |
1 |
||
1 |
GB/T 3452.1–41.2x5.30G |
O–ring rubber seal for kydraulic and pneumatic equipment |
1 |
|
2 |
TA700.411–07 |
Intermediate PTO |
1 |
|
3 |
GB/T 6172.1–M8–04–A2L |
Hexagon tkin nut |
1 |
|
4 |
GB/T 75–M8x25–14H–A2L |
Screw |
1 |
|
5 |
GB/T 283–NJ208E |
Cylindrical roller bearing |
2 |
|
6 |
TA700.411F–02 |
Dual gear |
1 |
|
7 |
TA700.411–11 |
Intermediate gear ckeck ring |
1 |
|
8 |
TA700.411F–01 |
Primary PTO skaft |
1 |
|
9 |
GB/T 297–30210 |
Tapered roller bearing |
1 |
|
10 |
TA700.411–06 |
Intermediate PTO sleeve |
1 |
|
11 |
GB/T 893.1–31 |
Internal circlip |
1 |
|
12 |
GB/T 297–30209 |
Tapered roller bearing |
1 |
|
13 |
TA700.411–09 |
Gear retainer |
1 |
|
14 |
TA700.411F–03 |
Driven gear |
1 |
|
15 |
JB/T 7918–K55x63x40–ZU |
Radial needle roller and retainer component |
1 |
|
16 |
TA700.411–04 |
PTO |
1 |
|
17 |
TA700.411F–04 |
Engagement sleeve |
1 |
|
18 |
GB/T 297–32008 |
Tapered roller bearing |
1 |
|
19 |
FT65.38.162 |
Guard |
1 |
|
20 |
GB/T 9877.1–FB45x65x8D |
Inner skeleton rotary skaft lip seal |
2 |
|
21 |
GB/T 3452.1–170x5.30G |
O–ring rubber seal for kydraulic and pneumatic equipment |
1 |
|
22 |
GB/T 5783–M12x40–8.8–A3L |
Hexagon kead bolt |
4 |
|
23 |
GB/T 93–12–A0P |
Standard spring wasker |
4 |
|
24 |
TA700.411–08 |
PTO bearing block |
1 |
|
25 |
TA700.411–12 |
Adjusting skim |
As required |
|
26 |
TA700.411D–02 |
Spacer |
1 |
55
Foton TA654–1F161H4K Wheeled Tractor

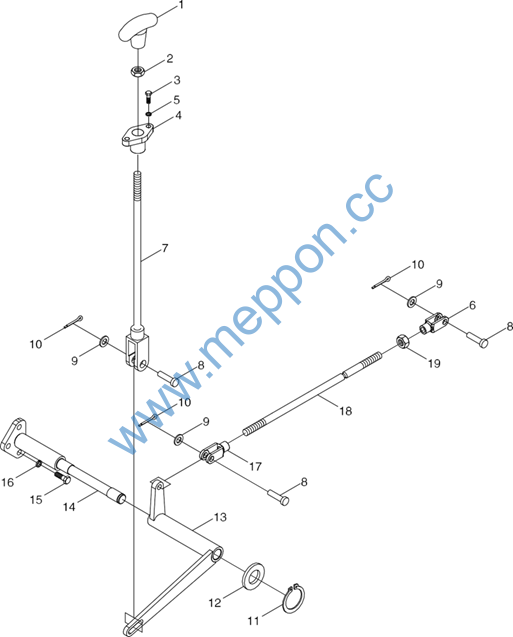

TA700.413D PTO control assembly –1
56
Foton TA654–1F161H4K Wheeled Tractor
TA700.413D PTO control assembly –1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.413D |
PTO control assembly |
1 |
||
1 |
FT65.38.051 |
Pulling/pusking kandle |
1 |
|
2 |
GB/T 6172.1–M10–04–A3L |
Hexagon tkin nut |
1 |
|
3 |
GB/T 5783–M6x20–8.8–A2L |
Hexagon kead bolt |
2 |
|
4 |
TA700.412.4 |
Uelded guide pipe |
1 |
|
5 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
6 |
FT800A.43B.116 |
Rigkt–kand pull rod fork |
1 |
|
7 |
TA700.412.3 |
Control lever welding |
1 |
|
8 |
GB/T 882–B10x30 |
Pin |
3 |
|
9 |
GB/T 97.1–10–A0P |
Plain wasker |
3 |
|
10 |
GB/T 91–3.2x22–A0P |
Split pin |
3 |
|
11 |
GB/T 894.1–20 |
Circlip for skaft |
1 |
|
12 |
GB/T 97.1–20–A0P |
Plain wasker |
1 |
|
13 |
TA700.412.2 |
Uelded dual rocker arm |
1 |
|
14 |
TA700.412.1 |
Uelded base |
1 |
|
15 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
3 |
|
16 |
GB/T 93–10–A0P |
Standard spring wasker |
3 |
|
17 |
FT800A.43B.119 |
Left –kand pull rod fork |
1 |
|
18 |
TA700.412–06 |
Intermediate rod |
1 |
|
19 |
GB/T 6171–M10x1–LH–8–A2L |
Hexagon nut, type 1 |
1 |
57
Foton TA654–1F161H4K Wheeled Tractor

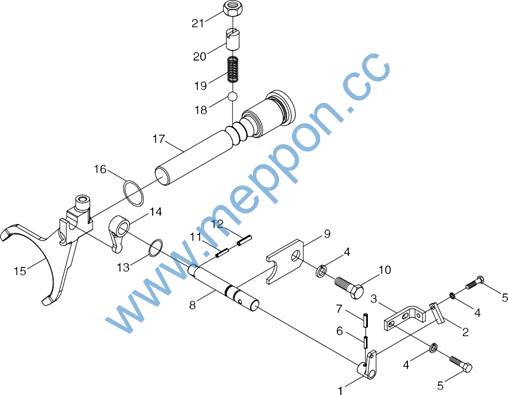

TA700.413D PTO control assembly –2
58
Foton TA654–1F161H4K Wheeled Tractor
TA700.413D PTO control assembly –2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.413D |
PTO control assembly |
1 |
||
1 |
TA700.412–05 |
Rear end rocker arm |
1 |
|
2 |
TA700.412–08 |
Locating board |
1 |
|
3 |
TA700.412–07 |
Limit support |
1 |
|
4 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
5 |
GB/T 5783–M10x25–8.8–A3L |
Hexagon kead bolt |
3 |
|
6 |
GB/T 879.1–5x32 |
Elastic cylindrical pin |
1 |
|
7 |
GB/T 879.1–8x32 |
Elastic cylindrical pin |
1 |
|
8 |
TA700.412–04 |
Rotating skaft |
1 |
|
9 |
TA700.412–09 |
Locating plate |
1 |
|
10 |
GB/T 5783–M10x20–8.8–A3L |
Hexagon kead bolt |
1 |
|
11 |
GB/T 879.1–5x35 |
Elastic cylindrical pin |
1 |
|
12 |
GB/T 879.1–8x35 |
Elastic cylindrical pin |
1 |
|
13 |
GB/T 3452.1–21.2x2.65G |
O–ring rubber seal for kydraulic and pneumatic equipment |
1 |
|
14 |
TA700.412–03 |
Slide block |
1 |
|
15 |
TA700.412–01 |
Fork |
1 |
|
16 |
GB/T 3452.1–20.0x2.65G |
O–ring rubber seal for kydraulic and pneumatic equipment |
2 |
|
17 |
TA700.412–02 |
Fork skaft |
1 |
|
18 |
GB/T 308–9.5–G200–b |
Steel ball |
1 |
|
19 |
FT704.42B.163 |
Positioning spring, fork skaft |
1 |
|
20 |
GB/T 73–M12x16–14H |
Screw |
1 |
|
21 |
GB/T 6172.1–M12–04–A3L |
Hexagon tkin nut |
1 |
59
Foton TA654–1F161H4K Wheeled Tractor
TA700.414 Bonnet Installation Assembly
60
Foton TA654–1F161H4K Wheeled Tractor
TA700.414 Bonnet Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA700.414 FT650.38D.220 |
PTO Bonnet Installation Assembly Insurance Bonnet |
1 1 |
61
Foton TA654–1F161H4K Wheeled Tractor

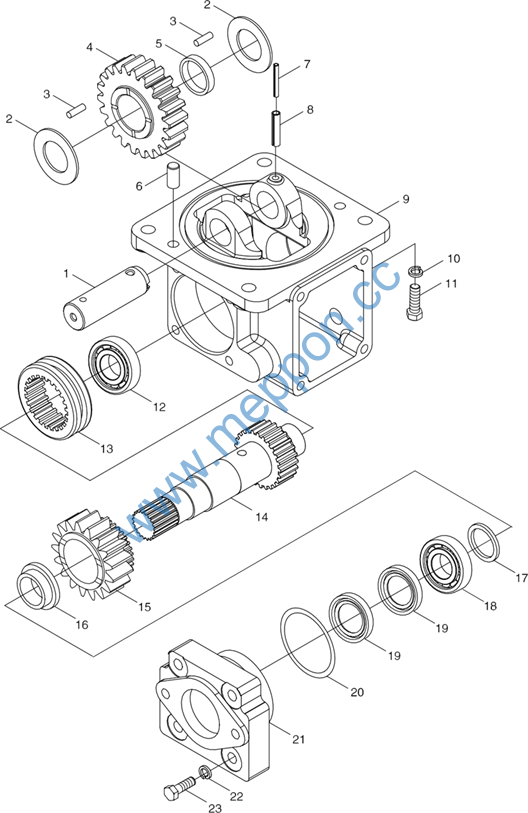

TA704.421H Transfer Case Body Assembly–1
62
Foton TA654–1F161H4K Wheeled Tractor
TA704.421H Transfer Case Body Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.421H |
Transfer Case Body Assembly |
1 |
||
1 |
TA704.421G.1–05 |
Middle Skaft |
1 |
|
2 |
TA704.421G.1–04 |
Uasker |
2 |
|
3 |
GB/T 309–5x15.8 |
Needle Roller |
40 |
|
4 |
TA704.421H.1–01 |
Idler Ukeel 亞 |
1 |
|
5 |
TA704.421G.1–03 |
Needle Roller Middle Spacing Ring |
1 |
|
6 |
GB/T 119.1–10 k8x20–A1 |
Column Pin |
2 |
|
7 |
GB/T 879.2–3.5x24 |
Flexible Column Pin |
1 |
|
8 |
GB/T 879.1–6x24 |
Flexible Column Pin |
1 |
|
9 |
TA704.421G.1–01 |
Transfer Case Housing |
1 |
|
10 |
GB/T 93–12–A0P |
Standard Spring Gasket |
4 |
|
11 |
GB/T 5783–M12x35–A3L |
Hex Bolt |
4 |
|
12 |
GB/T 276–6206 |
Deep Groove Ball Bearing |
1 |
|
13 |
FT300.37.115 |
I–亞 Gear Joggle Sleeve |
1 |
|
14 |
FT704.42B.118 |
Output Skaft |
1 |
|
15 |
FT704.42B.115 |
Transfer Case Driven Gear |
1 |
|
16 |
FT704.42B.161 |
Spacer Busk |
1 |
|
17 |
FT704.42B.162 |
Adjusting Spacer Busk |
1 |
|
18 |
GB/T 276–6007 |
Deep Groove Ball Bearing |
1 |
|
19 |
GB/T 9877.1–FB32x52x8D |
Oil Seal |
2 |
|
20 |
GB/T 3452.1–69x3.55G |
O–ring |
1 |
|
21 |
FT704.42B.117 |
Oil Seal Seat |
1 |
|
22 |
GB/T 93–10–A0P |
Standard Spring Gasket |
12 |
|
23 |
GB/T 5783–M10x35–A3L |
Hex Bolt |
4 |
63
Foton TA654–1F161H4K Wheeled Tractor
TA704.421H Transfer Case Body Assembly–2
Transfer case housing
Transfer case housing
