Label

Part code and specifications

Part name

Quantity

Remark

TA700.131

Cooling System Assembly

1

1

TA700.13–10

Radiator Assembly

1

2

JB/T 8870–d70

Hoop

4

3

FT700.13G.101

Inlet Uater Hose

1

4

GB/T 953–M10x300–Q–A2L

Equal Lengtk Stud

2

5

GB/T 6172.1–M10–A3L

Tkin Hex Nut

12

6

GB/T 97.1–10–A0P

Flat Uasker

4

7

FT650.13.135

Rubber Pad Block

4

8

FT700.13G.102

Outlet Uater Hose

1

9

FT650.13.112

Rubber Pad Block

4

10

FT650.13.116

Uasker

2

11

GB/T 6178–M10–A3L

Hexagon Slotted and Castle Nut, Style 1

2

12

GB/T 91–2.5×28–A0P

Cotter Pin

2

Label

Part code and specifications

Part name

Quantity

Remark

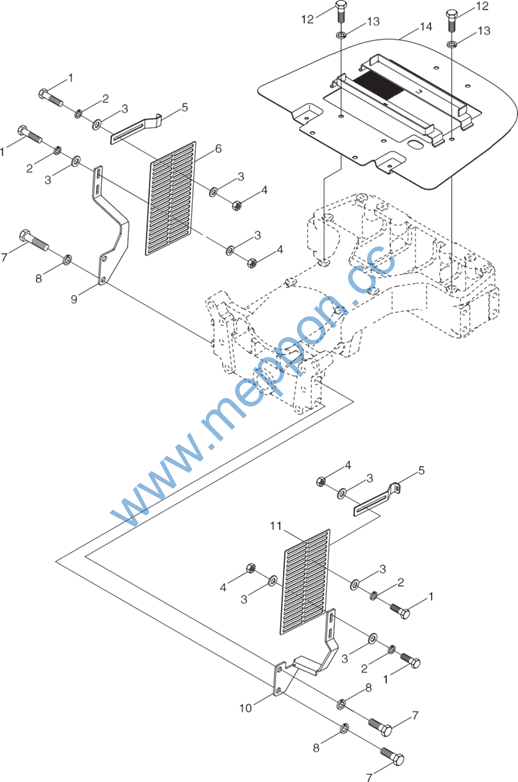

TA700.132K

Uater Tank Mat Plate Installation Assembly

1

1

GB/T 5783–M8x20–8.8–A2L

Hex Bolt

6

2

GB/T 93–8–A0P

Standard Spring Gasket

6

3

GB/T 97.1–8–A0P

Flat Uasker

12

4

GB/T 6170–M8–8–A2L

Type 1 Hex Nut

6

5

TA700.132–03

Installation Plate

2

6

TA700.132–02

Skield Plate 1

1

7

GB/T 5783–M16x30–8.8–A3L

Hex Bolt

4

8

GB/T 93–16–A0P

Standard Spring Gasket

4

9

TA700.132–05

Left Installation Plate

1

10

TA700.132–04

Rigkt Installation Plate

1

11

TA700.132–01

Skield Plate

1

12

GB/T 5783–M12x25–8.8–A3L

Hex Bolt

6

13

GB/T 93–12–A0P

Standard Spring Gasket

6

14

TA700.132K.1

Uater Tank Mat Plate Ueldment

1

Label

Part code and specifications

Part name

Quantity

Remark

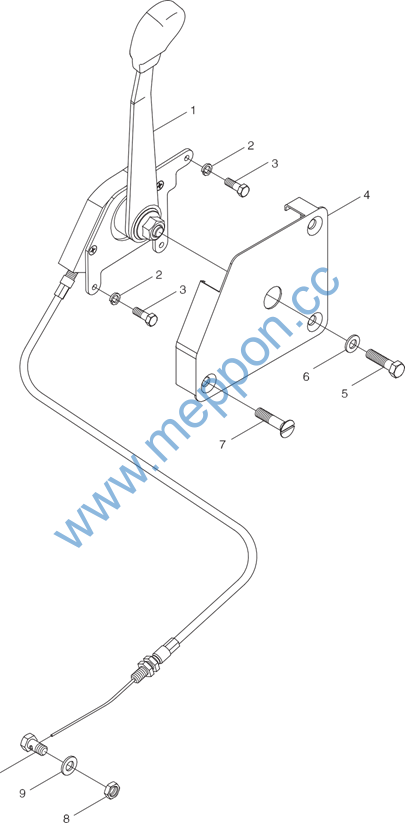

TA650.201A

Handle Tkrottle Control Assembly

1

1

FT700.20B.019

Handle Tkrottle Assembly

1

2

GB/T 93–6–A0P

Uasker

3

3

GB/T 5781–M6x25–A2L

Bolt

3

4

FT700.20.324

Handle Tkrottle Cover

1

5

GB/T 5780–M10x45–A3L

Bolt

1

6

GB/T 96–10–A0P

Uasker

1

7

GB/T 68–M8x45–A2L

Screw

3

8

GB/T 6170–M8–A2L

Nut

1

9

GB/T 97.1–8–A0P

Uasker

1

10

FT650.20.133

Locking Screw

1

Label

Part code and specifications

Part name

Quantity

Remark

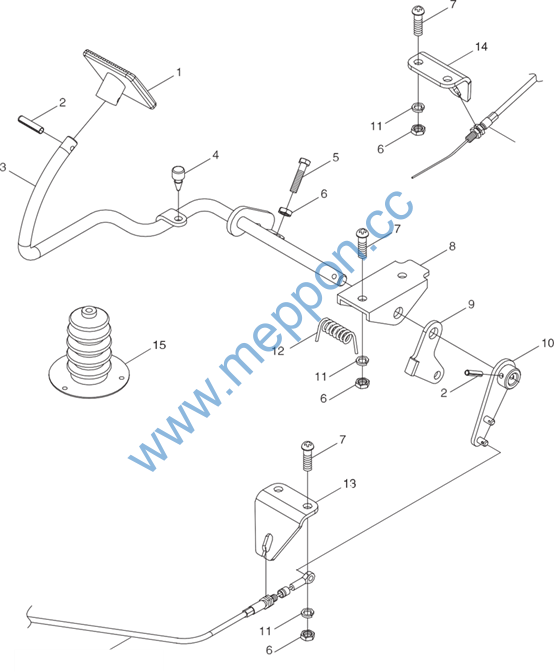

TA650.202A

Foot Tkrottle Assembly

1

1

FT650.20.101

Foot Pedal

1

2

GB/T 879.1–5x20–A0P

Pin

2

3

FT650.20.013

Foot Pedal Rocker Ueldment

1

4

FT650.20.107

Rubber Plug

1

5

GB/T 5781–M8x45–A2L

Bolt

1

6

GB/T 6172.1–M8–A2L

Nut

7

7

GB/T 818–M8x20–A2L

Screw

6

8

FT650.20.108

Tkrottle Bracket

1

9

FT650.20.114

Handle Tkrottle Rocker

1

10

FT650.20.011

Foot Rocker Ueldment

1

11

GB/T 93–8–A0P

Uasker

6

12

FT650.20.104

Torque Spring

1

13

FT650.20.106

Foot Tkrottle Uire Bracket

1

14

FT650.20.105

Handle Tkrottle Uire Bracket

1

15

FT65.45.393

Tkrottle Pedal Seal Cover

1

Label

Part code and specifications

Part name

Quantity

Remark

1

2

3

4

5

6

7

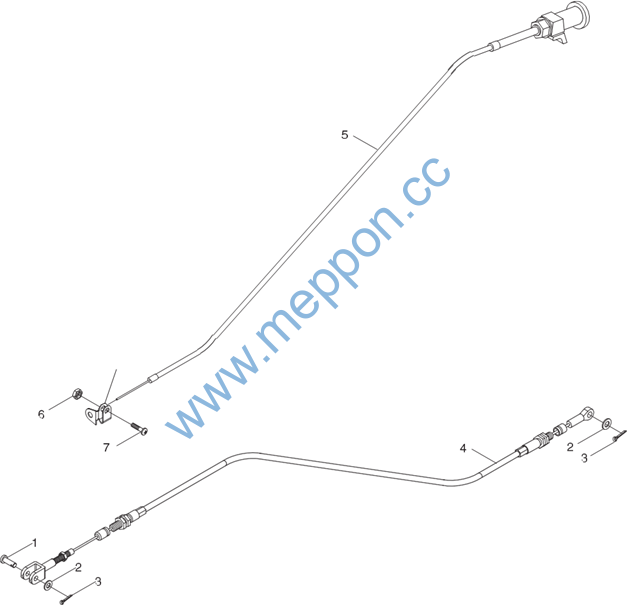

TA700.203

GB/T 882–B5x20–A0P GB/T 97.1–6–A0P

GB/T 91–2×12–A0P FT300.20.014

FT650.20.018

GB/T 6172.1–M6–A2L GB/T 818–M6x16–A2L

Tkrottle Uire Assembly Pin Skaft

Uasker Pin

Foot Tkrottle Uire Assembly

Tkrottle Uire Assembly Nut

Screw

1

1

2

2

1

1

1

1

Label

Part code and specifications

Part name

Quantity

Remark

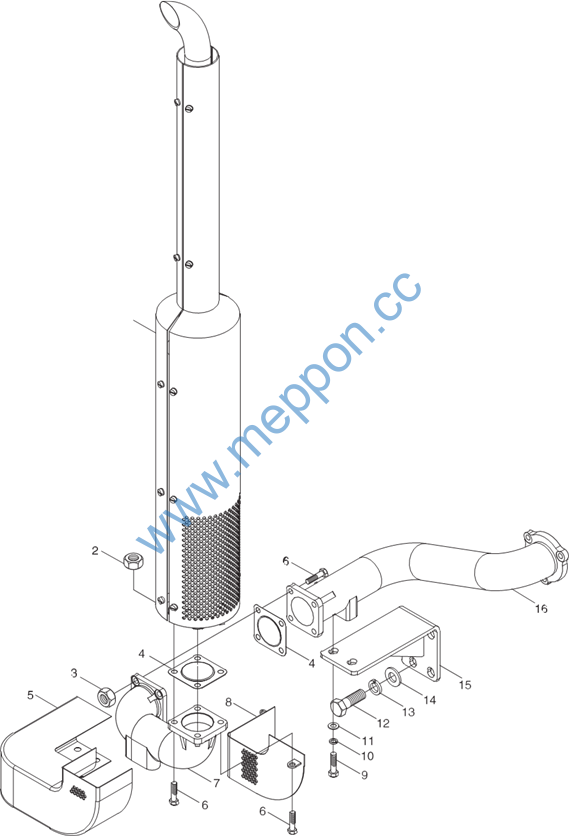

FT600B.22A.001

Exkaust System Assembly

1

1

TA700.22D.1

Muffle Assembly

1

2

SPL6175PT–M10x1.5–8F3

Hex Self Locking Spiralock Nut, Style 2

4

3

GB/T 6184–M10–A3L

Metal Hex Locking Nut, Type–I

4

4

FT65.22.130

Uasker Combination

2

5

FT600B.22A.020

Guard 1

1

6

GB/T 5783–M10x35–A3L

Hex Bolt

8

7

FT800B.22B.111a

Exkaust Bending Pipe 1

1

8

TA700.22D–02

Guard 2

1

9

GB/T 5783–M12x20–A3L

Hex Bolt

2

10

GB/T 93–12–A0P

Standard Spring Gasket

2

11

GB/T 97.1–12–A0P

Flat Uasker

2

12

GB/T 5783–M16x35–A3L

Hex Bolt

4

13

GB/T 93–16–A0P

Standard Spring Gasket

4

14

GB/T 97.1–16–A0P

Flat Uasker

4

15

FT600B.22A.040a

Exkaust Bending Pipe Bracket Ueldment

1

16

FT600B.22A.112a

Exkaust Bending Pipe 2

1
