TE250.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

68

TE250.55.133-1

内提升臂

INNER LIFTING ARM

1

2011-11_

69

GBT91-2X12

开口销

PIN

1

2011-11_

7

JB1000-M10X1X12

外六角螺塞

PLUG

1

2011-11_

70

GBT97.1-6

垫圈 6

WASHER 6

1

2011-11_

71

GBT882-B6X50

销轴

PIN

1



72

TE250.55.106-1

轴套

SHAFT SLEEVE

1

2004-01_

72

TE250.55.114

轴套

SHAFT SLEEVE

1

2010-08_

73

TE250.55.113-1

轴套

SHAFT SLEEVE

2

2004-01_

73

TE250.55.113

轴套

SHAFT SLEEVE

2

2010-08_

74

TE250.55.105A

提升轴套

LIFTING SHAFT SLEEVE

2

2004-01_

74

TE250.55.111

提升轴套

LIFTING SHAFT SLEEVE

2

2010-08_

75

TE250.55.110

O形密封圈

O RING

2

2011-11_

76

TE250.55.132

活塞顶杆

PISTON TOP ROD

1

2011-11_

77

TE250.55.013

右提升臂总成

RIGHT LIFTING ARM ASSEMBLY

1

2011-11_

78

GBT97.1-12

垫圈

WASHER

1

2011-11_

79

TE250.55.145

回位挡板

RETURN RETAINER PLATE

1

2011-11_

8

150D.55.227-2

密封圈

SEAL RING

1

2011-11_

80

GBT97.1-8

垫圈

WASHER

1

2011-11_

81

GBT91-2X16

开口销

PIN

3

2011-11_

82

14.55.108A

提升调节杆

LIFTING ADJUSTING ROD

1

2011-11_

83

GBT6170-M8

螺母M8

NUT M8

3

2011-11_

84

TE250.55.110

O形密封圈

O RING

1

2011-11_

85

14.55.107

限位销轴

LIMITING PIN SHAFT

1

2011-11_

9

25.55.109A

六角螺塞六角

HEXAGON SCREW PLUG

1

2011-11_

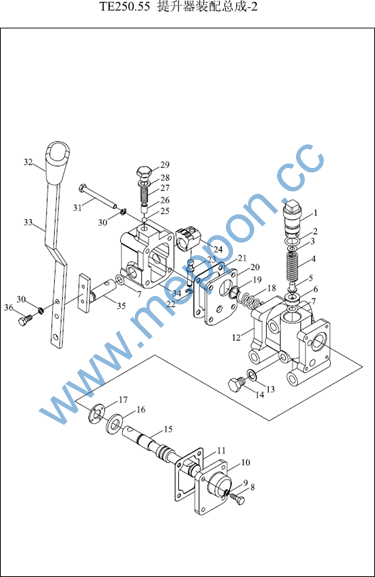

TE250.55-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT250.57.128

压紧螺塞

PRESSURE PLUG

1

2011-11_

10

FT250.57.102

前盖

FRONT COVER

1

2011-11_

11

FT250.57.103

前盖纸垫

FRONT COVER PAPER GASKET

1

2011-11_

12

FT250.57.104

分配器壳体

DISTRIBUTOR HOUSING

1

2011-11_

13

150D.55.227-2

密封圈

SEAL RING

1

2011-11_

14

JB1000-M10X1X12

外六角螺塞

PLUG

1

2011-11_

15

FT250.57.113

滑阀

SLIDING VALVE

1

2011-11_

16

18FP.57.120

垫圈

WASHER

1

2011-11_

17

FT250.57.115

垫片

WASHER

1

2011-11_

18

FT250.57.114

滑阀回位弹簧

SLIDING VALVE RETURN SPRING

1

2011-11_

19

GBT894.1-15

轴用弹性挡圈

SNAP RING

1

2011-11_

2

GBT3452.1-15X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

20

FT250.57.106

挡板

RETAINER PLATE

1

2011-11_

21

FT250.57.107

后盖纸垫

REAR COVER GASKET

2

2011-11_

22

GBT896-4

开口挡圈

SNAP RING

1

2011-11_

23

FT250.57.120

拨销

DIAL PIN

1

2011-11_

24

FT250.57.119

定位块

LOCATING BLOCK

1

2011-11_

25

GBT308-6

钢球

BALL

1

2011-11_

25

GBT308-6

钢球

BALL

1

2011-11_

26

FT250.57.121

定位弹簧座

LOCATING SPRING SEAT

1

2011-11_

27

FT250.57.122

定位弹簧

LOCATING SPRING

1

2011-11_

28

14FP.57.121

垫

WASHER

1

2011-11_

28

14FP.57.121

垫

WASHER

1

2011-11_

29

FT250.57.123

螺堵

SCREW PLUG

1

2011-11_

3

FT250.57.124

调整垫片

ADJUSTING WASHER

1

2011-11_








TE250.55-2 55.2-提升器装配总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

GBT93-6

垫圈

WASHER

6

2011-11_

31

GBT5782-M6X60

六角头螺栓

BOLT

4

2011-11_

32

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

1

2011-11_

32

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

1

2011-11_

33

TE300.57.101

手柄

HANDLE

1

2011-11_

34

FT250.57.108

后盖

COVER REAR

1

2011-11_

35

FT250.57.109

手柄轴

HANDLE SHAFT

1

2011-11_

35

FT250.57.109

手柄轴

HANDLE SHAFT

1

2011-11_

36

GBT5783-M6X14

六角头螺栓

BOLT

2

2011-11_

4

FT250.57.129

安全阀弹簧

SAFETY VALVE SPRING

1

2011-11_

5

FT250.57.131

安全阀阀芯

SAFETY VALVE CORE

1

2011-11_

6

FT250.57.101

安全阀阀座

SAFETY VALVE SEAT

1

2011-11_

7

GBT3452.1-9.5X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

8

GBT5783-M5X16

六角头螺栓

BOLT

4

2011-11_

9

GBT93-5

垫圈

WASHER

4

2011-11_

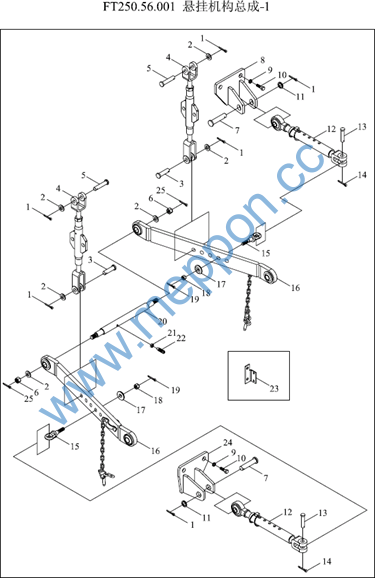

FT250.56.001-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT250.56.148

限位杆后联接销

LIMITING ROD REAR CONNECTING PIN

2

2014-07_

1

GBT91-4X28-A0P

开口销

PIN

6

2011-11_

10

GBT5783-M14X35-A3L

六角头螺栓

BOLT

4

2011-11_

11

FT250.56.103

套

COVER

4

2011-11_

12

FT250.56.016a

限位杆总成

LIMIT ROD ASSEMBLY

2

2011-11_

13

GBT882-B16X55-A0P

销轴

PIN

2

2011-11_

14

GBT91-5X32-A0P

开口销

PIN

2

2011-11_

15

FT250.56.138

限位杆后联接销

LIMITING ROD REAR CONNECTING PIN

2

2004-01_

15

FT250.56.138a

限位杆后联接销

LIMITING ROD REAR CONNECTING PIN

2

2011-11_

16

FT250.56.013

下拉杆总成

LOWER PULL ROD ASSEMBLY

2

2011-11_

17

FT250.56.139a

圆板

ROUND BOARD

2

2011-11_

17

FT250.56.139

圆板

ROUND BOARD

2

2004-01_

18

GBT6178-M14-A3L

螺母

NUT

2

2011-11_

19

GBT91-3.2X28-A0P

开口销

PIN

2

2004-01_

2

GBT97.1-16-A0P

垫圈

WASHER

6

2011-11_

20

FT250.56.102

下拉杆固定轴

LOWER PULL ROD FIXING SHAFT

1

2011-11_

21

GBT6172.1-M12-A3L

螺母

NUT

1

2011-11_

22

FT250.56.125

止动螺钉

THRUST SCREW

1

2004-01_

22

FT250.56.125

止动螺钉

THRUST SCREW

1

2004-01_

23

FT250.56.144

油管支架

OIL PIPE BRACKET

1

2011-11_

24

FT250.56.018

左限位杆支架焊合件

LEFT LIMITING ROD BRACKET WELDMENT

1

2011-11_

25

GBT91-4X36-A0P

开口销

PIN

2

2011-11_

3

FT250.56.104

提升杆下联接销

LIFTING ROD LOWER CONNECTING PIN

2

2011-11_

4

FT250.56.011

提升杆总成

LIFTING ROD ASSEMBLY

2

2011-11_

5

FT250.56.101

提升杆上联连接销

LIFTING ROD UPPER CONNECTING PIN

2

2004-01_








FT250.56.001-1 56.1-悬挂机构总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

FT250.56.101a

提升杆上联连接销

LIFTING ROD UPPER CONNECTING PIN

2

2008-01_

6

GBT6178-M16-A3L

1型六角开槽螺母

NUT (PAGE81)

2

2011-11_

7

FT250.56.106

限位杆联接销

LIMITING ROD CONNECTING PIN

2

2011-11_

8

FT250.56.015

右限位杆支架焊合件

RIGHT LIMITING ROD BRACKET WELDMENT

1

2011-11_

9

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

9

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

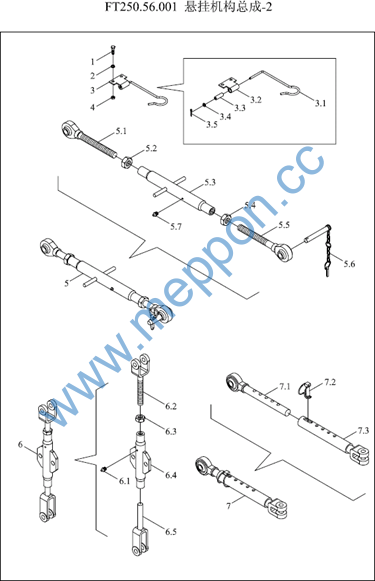

FT250.56.001-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8X16-A2L

螺栓

BOLT

2

2011-11_

2

GBT93-8-AOP

垫圈

WASHER

2

2011-11_

3

TE300.56.6

上拉杆固定卡组合

UPPER PULL ROD FIXED CLIP COMBINATION

1

2011-11_

3.1

TE300.56.6-02

上拉杆固定卡

UPPER PULL ROD FIXING CLIP

1

2011-11_

3.2

TE300.56.6-01

固定座

FIXING SEAT

1

2011-11_

3.3

TE300.56.6-03

尼龙衬套

NYLON BUSH

1

2011-11_

3.4

GBT96.1-6-A0P

垫圈

WASHER

1

2011-11_

3.5

GBT91-2X14-A0P

开口销

PIN

1

2011-11_

4

GBT6170-8-A2L

1型六角螺母

NUT

2

2011-11_

5

FT250.56.012a

上拉杆总成

UPPER PULL ROD ASSEMBLY

1

2011-11_

5.1

FT250.56.017

上拉杆前调节杆总成

UPPER PULL ROD FRONT ADJUSTING ROD

1

2011-11_

5.2

GBT6171-M22X1.5-A3L

1型六角螺母

ASSEMBLY

1

2011-11_

5.3

FT250.56.031

调节螺管焊合

NUT

1

2011-11_

5.4

GBT6171-M22X1.5LH-A3L

1型六角螺母

ADJUSTING SCREW WELDMENT

1

2011-11_

5.5

FT250.56.019

上拉杆后调节杆总成

NUT

1

2011-11_


UPPER PULL ROD REAR ADJUSTING ROD



5.6

FT300.56A.113

锁销链总成

ASSEMBLY

1

2011-11_

6

FT250.56.011

提升杆总成



1

2011-11_

6.1

JBT7940.1-M6

直通式压注油杯

LOCKING PIN CHAIN ASSEMBLY

1

2011-11_

6.2

FT250.56.107

提升杆上联接叉

LIFTING ROD ASSEMBLY

1

2004-01_

6.2

FT250.56.107a

提升杆上联接叉

STRAIGHT PRESSURE FILLING OIL CUP

1

2008-01_


LIFTING ROD UPPER CONNECTING FORK



6.3

GBT6171-M18X1.5-A3L

1型六角螺母

LIFTING ROD UPPER CONNECTING FORK

1

2011-11_

6.4

FT250.56.022a

提升杆螺管总成



1

2008-01_

6.4

FT250.56.022

提升杆螺管总成

NUT

1

2004-01_

6.5

FT250.56.108

提升杆下联接叉

LIFTING ROD SOLENOID ASSEMBLY

1

2004-01_

6.5

FT250.56.108a

提升杆下联接叉

LIFTING ROD SOLENOID ASSEMBLY

1

2008-01_
