FT250.49.001 49-工具箱安装总成 49-TOOL BOX INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

GBT5781-M8X20-Zn.D FT250.49.010

GBT97.1-8 GBT93-8-Zn.D

GBT6170-M8-Zn.D

六角头螺栓工具箱总成垫圈

标准型弹簧垫圈 1型六角螺母

BOLT

TOOL BOX ASSEMBLY WASHER

WASHER NUT

2

1

2

2

2

2011-11_

2011-11_

2011-11_

2004-01_

2011-11_

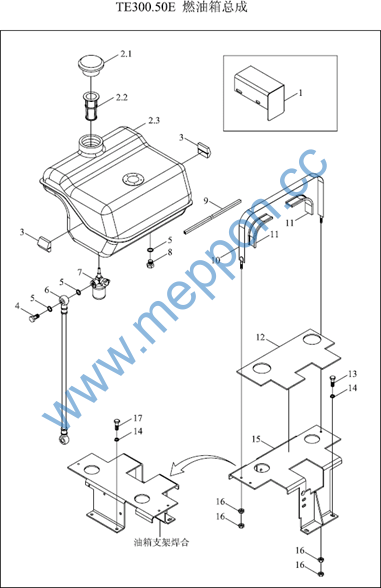

TE300.50E 50-燃油箱总成



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE300.50.5

隔热板焊合

HEAT INSULATION BOARD WELDMENT

1

2011-11_

1

TE300.50.5

隔热板焊合

HEAT INSULATION BOARD WELDMENT

1

2011-11_

10

TE300.50.4

钢带焊合件

STEEL BAND WELDMENT

1

2011-11_

10

TE300.50.4

钢带焊合件

STEEL BAND WELDMENT

1

2011-11_

11

FT65.50.209a

油箱上橡胶条

OIL TANK UPPER RUBBER STRIP

2

2009-04_

11

FT65.50.209

油箱上胶条

UPPER RUBBER STRIP OF OIL TANK

2

2009-04_

11

FT250.50.102

钢带胶垫

STEEL BAND RUBBER WASHER

2

2004-01_

12

TE300.50-02

油箱胶垫

OIL TANK RUBBER WASHER

1

2011-11_

13

GBT5783-M10X25-A3L

螺栓

BOLT

2

2011-11_

14

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

15

TE300.50.2

油箱支架焊合

OIL TANK BRACKET WELDMENT

1

2011-11_

16

GBT6170-M10-A3L

螺母

NUT

4

2011-11_

17

GBT5783-M10X20-A3L

螺栓

BOLT

2

2011-11_

2

TE300.50E.1

油箱总成

OIL TANK ASSEMBLY

1

2011-11_

2.1

TD800.501A.1.1

油箱盖

OIL TANK COVER

1

2011-11_

2.2

FT250.50.015a

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

2.3

TE300.50E.1.1

油箱焊合

FUEL TANK WELDMENT

1

2011-11_

3

FT300.50.112

橡胶垫块

RUBBER PAD BLOCK

2

2011-11_

4

FT65.50.106

空心螺栓

HOLLOW BOLT

1

2011-11_

5

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

5

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

6

FT250.50.023

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

7

TE300.50A.3

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2011-11_

8

FT250.50.107

放油塞

OIL DISCHARGING PLUG

1

2011-11_

9

FT300.45.809

顶盖压条

UPPER COVER PRESS STRIP

1

2011-11_

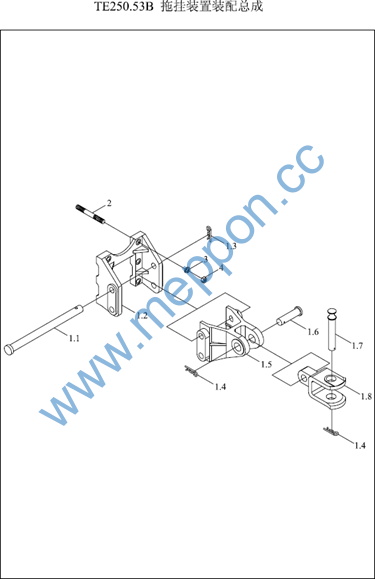

TE250.53B 53-拖挂装置装配总成 53-TOW EQUIPMENT INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE250.53B.1

拖挂装置总成

TOW EQUIPMENT ASSEMBLY

1

2011-11_

1.1

TE250.53B.1-03

连接销

CONNECTING PIN

2

2011-11_

1.2

TE250.53B.1-02

拖挂固定支架

TOW FIXING BRACKET

1

2011-11_

1.2

TE250.53B.1-02

拖挂固定支架

TOW FIXING BRACKET

1

2011-11_

1.3

FT65.35.103

弹性锁销

SPRING LOCK PIN

2

2011-11_

1.3

FT65.35.103

弹性锁销

SPRING LOCK PIN

2

2011-11_

1.4

FT800.35.112

弹性锁销

SPRING LOCK PIN

2

2011-11_

1.5

TE250.53B.1-01

拖挂架

TOW BRACKET

1

2011-11_

1.6

TE250.53B.1-04

连接销

CONNECTING PIN

1

2011-11_

1.7

TE250.53A-03

拖挂销

TOW PIN

1

2011-11_

1.8

TE250.53A-02

拖挂卡

TOW CARD

1

2011-11_

2

GBT899-GM12-M12X45-8.8-A3L

双头螺柱

8.8-A3L STUD

6

2011-11_

3

GBT93-12-A0P

垫圈

WASHER

6

2011-11_

4

GBT6170-M12-A3L

螺母

NUT

6

2011-11_








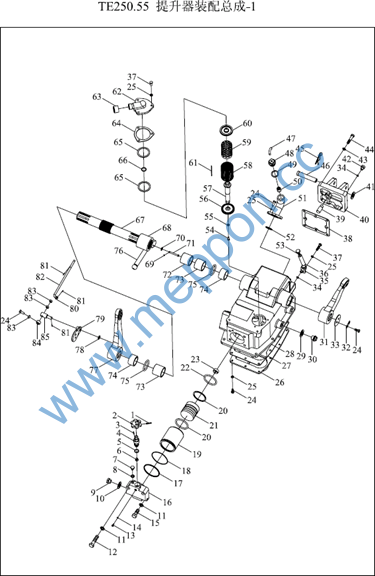

TE250.55-1 55.1-提升器装配总成-1 LIFTER INSTALLATION ASSEMBLY-7-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TE250.55.2a

呼吸器总成



1

2011-03_

0

TE250.55.2

呼吸器总成



1



0

TE250.55.010

缸头总成

CYLINDER HEAD ASSEMBLY

1

2011-11_

0

TE250.54.013

吸油滤清器总成

OIL SUCTION FILTER ASSEMBLY

1

2011-11_

0

TE250.55.1a

提升器装配总成

LIFTER INSTALLATION ASSEMBLY

1

2011-11_

1

GBT829-4X20

螺钉



1

2011-11_

1

GBT829-4X20

螺钉



1

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

11

GBT93-14

垫圈

WASHER

4

2011-11_

11

GBT93-14

垫圈

WASHER

4

2011-11_

12

GBT5782-M14X60-A3L

六角头螺栓

BOLT

2

2004-01_

13

GBT828-M5X6X4

开槽盘头定位螺钉

SLOTTED PAN HEAD SET SETSCREWS WITH

1

2011-11_

14

GBT97.1-5

垫圈

DOG POINT

1

2011-11_

15

YT18.55.152

六角螺栓

WASHER

2

2011-11_


HEX BOLT



16

TE250.55.126

缸头



1

2011-11_

17

TE250.55.112

O形密封圈

CYLINDER HEAD

1

2011-11_

18

TE250.55.200

矩形轴用挡圈

O RING

1

2011-11_

19

TE250.55.102

缸筒

RECTANGULAR RETAINER RING FOR SHAFT

1

2011-11_

2

FT65.55.140

手轮

CYLINDER TRUNK

1

2011-11_


HANDLE WHEEL



20

GBT3452.1-60X5.3

液压气动用O形橡胶密封圈



2

2011-11_

21

220-1.55.130

活塞

O-SEAL RING

1

2011-11_

22

220-1.55.161

挡圈

PISTON

1

2011-11_

23

25.55.207

活塞球座

RETAINER RING

1

2011-11_

24

GBT5783-M8X20

螺栓

PISTON BALL SEAT

17

2011-11_








TE250.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

24

GBT5783-M8X20

螺栓

BOLT

17

2011-11_

25

GBT93-8

垫圈8

WASHER 8

16

2011-11_

26

TE250.55.115-1

提升器壳体底板

LIFTER HOUSING BOTTOM PLATE

1

2011-11_

27

TE250.55.116-1

底板纸垫

BOTTOM PLATE PAPER GASKET

1

2011-11_

28

TE250.55.101

提升器壳体

LIFTER HOUSING

1

2011-11_

29

JB982-20

组合垫圈

COMBINED GASKET

2

2011-11_

3

300.55.138

销

PIN

1

2011-11_

30

TE250.55.108

放油螺塞

OIL DISCHARGING SCREW PLUG

2

2011-11_

31

TE250.55.014

左提升臂总成

LEFT LIFTING ARM ASSEMBLY

1

2011-11_

32

18.55.111

止动垫片

THRUST WASHER

1

2011-11_

33

TE250.55.109

提升轴压板

LIFTING SHAFT PRESSURE PLATE

1

2011-11_

34

GBT1234-12X1.9

O形密封圈

O RING

2

2011-11_

35

TE250.55.103

油管接头

JOINT

1

2011-11_

35

TE250.55.103

油管接头

JOINT

1

2011-11_

36

TE250.55.012

油尺管焊合

OIL DIPSTICK PIPE WELDMENT

1

2011-11_

37

GBT5783-M8X25

螺栓

BOLT

4

2011-11_

38

TE250.55.159

后端盖纸垫

REAR END COVER PAPER GASKET

1

2011-11_

39

18.55.141

限位销

LIMITING PIN

1

2011-11_

4

FT250.55.128A

调节阀杆

ADJUSTING VALVE ROD

1

2011-11_

40

TE250.55.015

后端盖总成

REAR END COVER ASSEMBLY

1

2011-11_

41

GBT97.1-20

垫圈

WASHER

1

2011-11_

42

18.55.108

放油塞

OIL DISCHARGING PLUG

1

2011-11_

43

GBT93-10

垫圈10

WASHER 10

8

2011-11_

44

GBT5782-M10X45

六角头螺栓

BOLT

8

2011-11_

45

150.31.105

弹簧锁销

SPRING LOCK PIN

1

2011-11_








TE250.55-1 55.1-提升器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

46

TE250.55.107

上拉杆前连接销

UPPER PULL ROD FRONT CONNECTING PIN

1

2011-11_

47

150.55.164

接管

CONNECTING TUBE

1

2011-11_

48

TE250.55.022

通气塞体焊合

VENTILATION PLUG

1

2004-01_

48

TE250.55.131

加油口螺堵

SCREW PLUG

1

2010-08_

49

18.55.104

垫片

WASHER

1

2011-11_

5

GBT1235-22X2.4

O形圈

O-RING

1

2011-11_

50

TE250.55.136

加油盖芯

OIL FILLING COVER CORE

1

2011-11_

51

TE250.55.201

加油口管

PIPE

1



52

GBT3452.1-30X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

53

TE250.55.105

油尺压合

OIL DIPSTRICK PRESSURE UNIT

1

2011-11_

54

GBT5781-M6X16

六角头螺栓

BOLT

1

2011-11_

55

GBT97.1-6

垫圈 6

WASHER 6

1

2011-11_

56

YT18.54.120

滤网下盖

FILTER MESH LOWER COVER

1

2011-11_

57

YT18.54.118-1

吸油管

OIL SUCTION PIPE

1

2011-11_

58

YT18.54.122

吸油滤网

OIL SUCTION STRAINER

1

2011-11_

59

YT18.54.123

滤网骨架

FILTER MESH FRAMEWORK

1

2011-11_

6

YT18.55.129

调节阀

ADJUSTING VALVE

1

2011-11_

60

YT18.54.119

滤网上盖

FILTER MESH UPPER COVER

1

2011-11_

61

YT18.54.124

滤网合缝片

FILTER MESH CLOSING PIECES

1

2011-11_

62

FT254.58.138

滤清器盖

FILTER COVER

1

2011-11_

63

FT254.58.140

吸油口护丝

OIL SUCTION CAP THREAD

1

2011-11_

64

YT18.54.125

吸油管接头纸垫

OIL SUCTION PIPE JOINT PAPER WASHER

1

2011-11_

65

YT18.54.121

密封垫片

SEAL WASHER

1

2011-11_

66

GBT3452.1-20X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

67

TE250.55.103-1

提升轴

LIFTING SHAFT

1

2011-11_
