TE250.373B-2 37.3.2-传动箱操纵机构总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

33

4

5

6

7



9

TE250.373B.4 GBT879.1-5X30 GBT5783-M8×16-A2L GBT93-8-A0P FT250.37.313



FT250.37.038

拉杆焊合（二）弹性圆柱销

螺栓垫圈压板



副变速拨杆总成

PULL ROD WELDMENT (2) PIN

BOLT WASHER

PRESSURE PLATE



AUXILIARY DIAL ROD ASSEMBLY

1

1

1

1

1



1

2011-11_

2011-03_

2011-03_

2011-03_

2011-03_



2011-11_

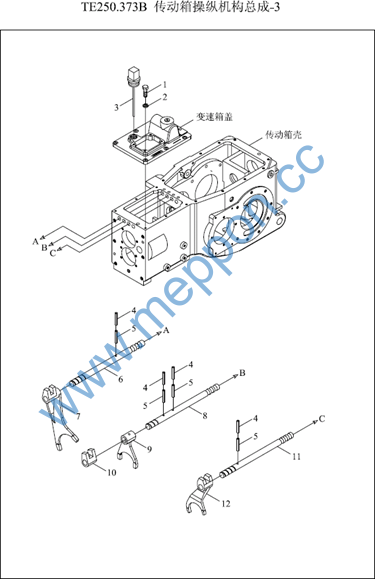

TE250.373B-3 37.3.3-传动箱操纵机构总成-3 TRANSMISSION CONTROL MECHANISM ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8×30-A2L

螺栓

BOLT

6

2011-03_

10

FT250.37.142

Ⅲ-Ⅳ档拨头

Ⅲ-Ⅳ FORK HEAD

1

2011-11_

11

FT250.37.186

Ⅰ-Ⅱ档拨叉轴

I-II GEAR FORK SHAFT

1

2011-11_

12

FT250.37.131

Ⅰ-Ⅱ档拨叉

I-II GEAR FORK

1

2011-11_

2

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

3

FT250.37.030

油尺总成

DIPSTICK ASSEMBLY

1

2011-11_

4

GBT879.1-5X24

弹性圆柱销

PIN

4

2011-11_

5

GBT879.1-3X24

弹性圆柱销

PIN

4

2011-11_

6

FT250.37.188

高低档拨叉轴

HIGH AND LOW GEAR FORK SHAFT

1

2011-11_

7

FT250.37.145

高低档拨叉

HIGH AND LOW GEAR FORK

1

2011-11_

8

TE250.373B-02

Ⅲ-Ⅳ挡拨叉轴

III-IV FORK SHAFT

1

2011-11_

9

TE250.373B-01

Ⅲ-Ⅳ挡拨叉

Ⅲ-Ⅳ GEAR FORK

1

2011-11_

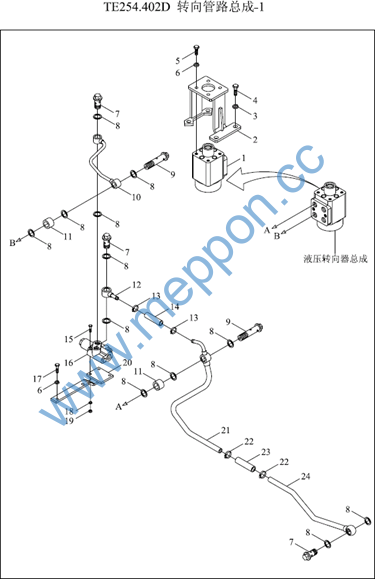

TE254.402D-1 40.2.1-转向管路总成-1 STEERING PIPE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT254.40.028

液压转向器总成

HYDRAULIC STEERING MECHANISM ASSEMBLY

1

2011-11_

10

TE254.402C.3

转向器进油钢管总成

REDIRECTOR OIL INLET STEEL PIPE ASSEMBLY

1

2011-11_

11

FT254.40A.114

短接管

SHORT CONNECTING PIPE

2

2011-11_

12

TE254.402C.7

回油短管焊合

OIL RETURN SHORT PIPE WELDMENT

1

2011-11_

13

Q67627

软管环箍27

HOSE HOOP 27

2

2011-11_

14

TE254.402C-01

回油胶管

OIL RETURN RUBBER HOSE

1

2011-11_

15

GBT5782-M8X60-A2L

六角头螺栓

BOLT

3

2011-11_

16

FT254.40.030

单路稳定分流阀

SINGLE-WAY STABILIZER DIVERTER VALVE

1

2011-11_

17

GBT5783-M10X25-A3L

螺栓

BOLT

2

2011-11_

18

GBT93-8-A0P

垫圈

WASHER

3

2011-11_

19

GBT6170-M8-A2L

螺母

NUT

3

2011-11_

2

TE254.402A.6

转向器支架焊合

REDIRECTOR BRACKET WELDMENT

1

2011-11_

20

TE254.402A.7

分流阀支架焊合

DIVERTER VALVE BRACKET WELDMENT

1

2011-11_

21

TE254.402C.4

回油钢管总成

OIL RETURNING TUBE ASSEMBLY

1

2009-09_

21

TE304.402B.3

回油管焊合总成

OIL RETURN STEEL PIPE ASSEMBLY

1

2011-11_

22

Q67638

A型蜗杆传动式软管环箍

A-TYPE WORM TRANSMISSION HOSE CLAMP

2

2011-11_

23

TE254.402A-01

回油胶管

OIL RETURN RUBBER HOSE

1

2011-11_

24

TE254.402A.11

回油钢管总成二

OIL RETURN STEEL PIPE ASSEMBLY 2

1

2009-09_

24

TE254.402D.3

回油钢管总成

OIL RETURNING TUBE ASSEMBLY

1

2011-12_

3

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

3

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

4

GBT5783-M14X35-A3L

六角头螺栓

BOLT

4

2011-11_

5

GBT5783-M10X30-A3L

螺栓

BOLT

4

2011-11_

6

GBT93-10-A0P

标准型弹簧垫圈

WASHER

6

2011-11_

7

FT254.40.102

空心螺栓

HOLLOW BOLT

3

2011-11_








TE254.402D-1 40.2.1-转向管路总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

JBT982-20 FT254.40A.112

组合密封垫圈空心螺栓(1)

COMBINED SEAL GASKET HOLLOW BOLT (1)

12

2

2011-11_

2011-11_

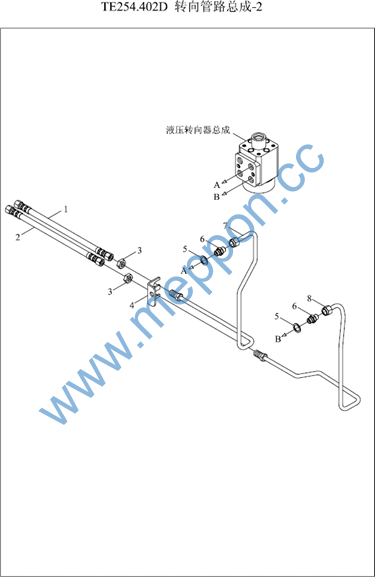

TE254.402D-2 40.2.2-转向管路总成-2 STEERING PIPE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE254.402D.5

左高压输油胶管总成

LEFT HIGH PRESSURE OIL SUPPLY RUBBER

1

2011-11_

2

TE254.402D.6

右高压输油胶管总成

HOSE ASSEMBLY

1

2011-11_

3

GBT6173-M16X1.5-A3L

六角薄螺母

RIGHT HIGH PRESSURE OIL SUPPLY RUBBER

2

2011-11_

4

TE254.402D-02

油管支架

PIPE ASSEMBLY

1

2011-11_

5

JBT982-20

组合密封垫圈

NUT

2

2011-11_


OIL PIPE BRACKET



6

TE250.402A-05

卡套式端直通接头体

COMBINED SEAL GASKET

2

2011-11_

7

TE254.402D.1

左输油钢管总成



1

2011-11_

8

TE254.402D.2

右输油钢管总成

STRAIGHT PIPE JOINT BODY

1

2011-11_

8

TE254.402D.2

右输油钢管总成

LEFT STEEL OIL PIPE ASSEMBLY

1

2011-11_


RIGHT OIL STEEL PIPE ASSEMBLY




RIGHT OIL STEEL PIPE ASSEMBLY

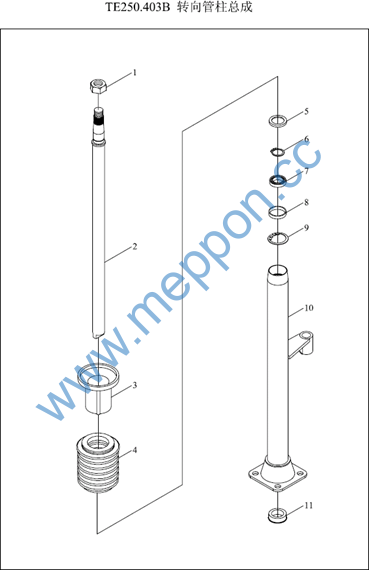

TE250.403B 40.3-转向管柱总成 40.3-STEERING PIPE COLUMN ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6173-M16X1.5-A3L

六角薄螺母

NUT

1

2011-11_

10

TE250.403B.1

转向套筒焊合

STEERING SLEEVE WELDMENT

1

2011-11_

11

FT254.40.114

隔套

SPACER BUSH

1

2011-11_

2

TE250.403B-01

转向杆

STEERING ROD

1

2011-11_

3

FT650.40.014

喇叭电刷座总成

HORN BRUSH SEAT ASSEMBLY

1

2011-11_

4

FT220.40.301

转向杆护套

STEERING ROD SLEEVE

1

2011-11_

5

FT650.40.172

轴承挡圈

BEARING RETAINER RING

1

2011-11_

6

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

7

GBT276-61804-2LS

轴承

BEARING

1

2011-11_

8

FT650.40.173

轴承挡圈2

BEARING RETAINER RING 2

1

2011-11_

9

GBT893.1-32

档圈

RETAINER RING

1

2011-11_
