FT250.21B.011 21离合器分总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

FT200.21B.113

主离合器压盘

MAIN CLUTCH PRESSURE PLATE

1



6

GBT6173-M10X1-Zn.D

六角薄螺母

NUT

3

6

GBT6173-M10X1-Zn.D

六角薄螺母

NUT

3

7

FT200.21B.110

主离合器调整螺钉

MAIN CLUTCH ADJUSTING SCREW

3

8

FT200.21B.015/017

离合器主从动盘

ведомый диск

1

8

FT250.21B.017

主离合器从动盘总成

MAIN CLUTCH DRIVEN PLATE ASSEMBLY

1

9

GBT91-3.2X20-A0P

开口销

PIN

12

9

GBT91-3.2X20-A0P

开口销

PIN

12








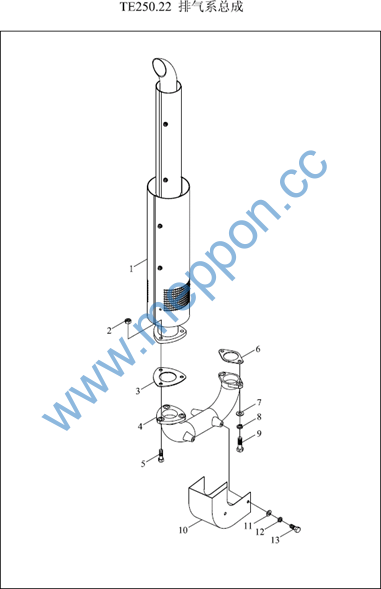

TE250.22 22-排气系总成 22-EXHAUST SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE250.22.1

消声器总成

MUFFLER ASSEMBLY

1

2011-11_

10

TE250.22-03

排气管护网

EXHAUST PIPE SHIELD NET

1

2011-11_

11

GBT97.1-8-A0P

平垫圈

WASHER

4

2011-11_

12

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

13

GBT5783-M8X16-A2L

螺栓

BOLT

4

2011-11_

2

SPL6175PT-M10X1.5-8F3

施必牢2型六角自锁防脱螺母

HEXAGON SELF-LOCKING NUT、 STYLE 2

3

2011-11_

2

GBT6184-M8

1型全金属六角锁紧螺母

Ⅰ-HEXAGON BLOCKNUT

3

2007-04_

3

FT250.22.030

密封垫合件

SEAL GASKET UNIT

1

2011-11_

4

TE250.22-01

排气弯管

EXHAUST BENDING PIPE

1

2007-06_

4

FT250.22B.111

排气弯管

EXHAUST BENDING PIPE

1

2004-01_

5

GBT5783-M10X40-A3L

螺栓

BOLT

3

2011-11_

6

FT250.22C.030

密封垫合件

SEAL GASKET UNIT

1

2011-11_

7

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

8

GBT93-10-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

9

GBT5783-M10X30-A3L

螺栓

BOLT

2

2011-11_








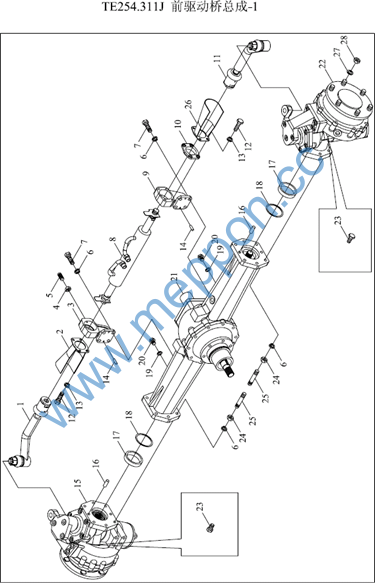

TE254.311J-1 31.1-前驱动桥总成-1 FRONT DRIVING AXLE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE254.311J.4

左转向横拉杆总成

LEFT STEERING HORIZONTAL PULL ROD

1

2011-11_

1

TE254.311J.4

左转向横拉杆总成

ASSEMBLY

1

2011-11_

10

TE254.311G-01

座盖

LEFT STEERING HORIZONTAL PULL ROD

1

2011-11_

11

TE254.311J.5

右转向横拉杆总成

ASSEMBLY

1

2011-11_

12

GBT5783-M8X20-A2L

螺栓

SEAT COVER

8

2011-11_


RIGHT STEERING CROSS PULL ROD ASSEMBLY



13

GBT93-8-A0P

垫圈

BOLT

8

2011-11_

14

GBT119.1-6h8X14-A0P

圆柱销



4

2011-11_

15

TE254.311J.1

左侧传动总成

WASHER

1

2011-11_

16

GBT119.1-10h8X20-A0P

圆柱销

PIN

4

2011-11_

17

FT254.31F.123

定位套

LEFT TRANSMISSION ASSEMBLY

2

2011-11_


PIN



18

FT254.31F.124

调整垫

LOCATING SLEEVE

1

2011-11_

19

JB982-14

组合垫圈



2

2011-11_

19

JB982-14

组合垫圈

ADJUSTING GASKET

2

2011-11_

2

TE254.311J.6

油缸护罩焊合(左)

COMBINED GASKET

1

2011-11_

20

Q617B14

六角头螺塞

COMBINED GASKET

2

2011-11_


OIL CYLINDER BONNET WELDMENT (LEFT)



21

TE254.311J.3

主减速箱总成

SCREW PLUG

1

2011-11_

22

TE254.311J.2

右侧传动总成



1

2011-11_

23

TE254.311J-01

限位螺栓

MAIN REDUCER BOX ASSEMBLY

2

2011-11_

24

GBT6171-M10X1.25-A2L

1型六角螺母

RIGHT TRANSMISSION ASSEMBLY

12

2011-11_

24

GBT6171-M10X1.25-A2L

1型六角螺母

LIMIT BOLT

12

2011-11_


NUT



25

GBT899-AM10-M10X1.25X35-8.8-A2L

双头螺柱

NUT

12

2011-11_

26

TE254.311J.7

油缸护罩焊合（右）



1

2011-11_

27

GBT97.1-14-A0P

垫圈14-A0P

8.8-A3L STUD

12



28

GBT6176-M14X1.5-A3L

2型六角螺母

OIL CYLINDER BONNET WELDMENT (RIGHT)

12

2011-11_

3

TE254.311G-03

油缸固定座Ⅱ

WASHER

1

2011-11_








TE254.311J-1 31.1-前驱动桥总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

GBT6174-M6-A2L GBT71-M6X20 GBT93-10-A0P

GBT5783-M10X25-A3L TE254.311G.4



TE254.311G-02

六角薄螺母

开槽锥端紧定螺钉标准型弹簧垫圈 螺栓

液压缸总成油缸固定座

NUT SCREW WASHER BOLT

HYDRAULIC CYLINDER ASSEMBLY OIL CYLINDER FIXING SEAT

1

1

20

8

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_








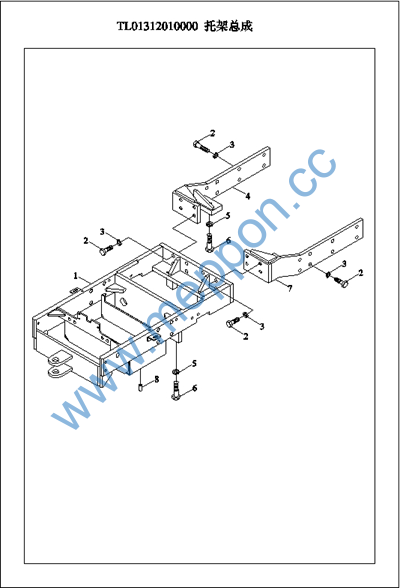

TL01312010000 31.2-托架总成 31.2-BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TL01312010003

电瓶安装架焊合

BATTERY BRACKET WELDMENT

1

2013-03_

2

GBT5783-M12X35-8.8-A3L

六角头螺栓

BOLT

24

2013-03_

3

GBT93-12-A0P

垫圈

WASHER

24

2013-03_

4

TL01312010002

右护板焊合

RIGHT GUARD PLATE WELDMENT

1

2013-03_

5

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

4

2013-03_

6

GBT5783-M16X45-8.8-A3L

六角头螺栓

BOLT

4

2013-03_

7

TL01312010001

左护板焊合

LEFT GUARD WELDMENT

1

2013-03_

8

GBT119.2-8X20-A0P

圆柱销

PIN

2

2013-03_








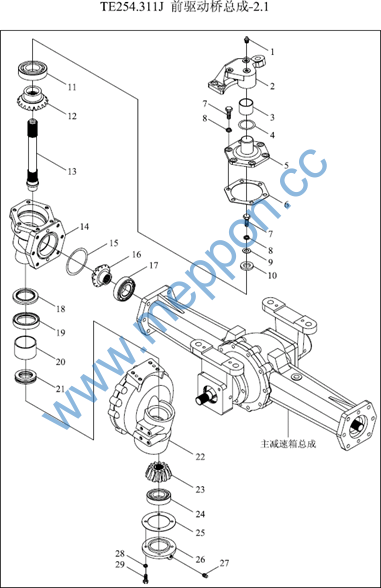

TE254.311J-2.1 31.2.1-前驱动桥总成-2.1 FRONT DRIVING AXLE ASSEMBLY-2.1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TE254.311J.1

左侧传动总成

LEFT TRANSMISSION ASSEMBLY

1

2011-11_

1

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

1

2011-11_

10

FT254.31F.106

垫

WASHER

1

2011-11_

11

GBT276-6210

深沟球轴承

BEARING

1

2011-11_

12

FT254.31F.108

半轴大齿轮

HALF SHAFT BIG GEAR

1

2011-11_

13

TE254.311J.1-03

末端销轴

END PIN SHAFT

1

2011-11_

14

TE254.311J.1-02

转向节壳体

STEERING BURL HOUSING

1

2011-11_

15

JBT3452.1-80X2.65G

O形圈

O-RING

1

2011-11_

15

JBT3452.1-80X2.65G

O形圈

O-RING

1

2011-11_

16

FT254.31F.101

半轴小齿轮

HALF SHAFT PINION

1

2011-11_

17

GBT276-6207

轴承

BEARING

1

2011-11_

18

FT254.31F.113

防尘圈



1

2011-11_

19

GBT9877.1-B507210D

油封

OIL SEAL

1

2011-11_

2

TE254.311J.1-01

左转向支撑

LEFT STEERING SUPPORT

1

2011-11_

20

FT254.31F.122

滑动轴套

SLIDING BUSHING

1

2011-11_

21

GBT301-51106

推力球轴承

HANDSPIKE BALL BEARING

1

2011-11_

22

FT254.31F.120a

左末端壳体

LEFT END HOUSING

1

2010-11_

22

FT254.31F.120

左末端壳体

LEFT END HOUSING

1

2004-01_

23

FT254.31F.118a

末端小齿轮

END PINION

1

2010-11_

23

FT254.31F.118

末端小齿轮

END PINION

1

2004-01_

24

GBT276-6305

轴承

BEARING

1

2011-11_

25

FT254.31F.117

调整垫

ADJUSTING GASKET

1

2011-11_

25

FT254.31F.117

调整垫

ADJUSTING GASKET

1

2011-11_

26

FT254.31F.116

底端盖

BOTTOM END COVER

1

2011-11_

27

Q614B01

方头锥形螺塞

SQUARE HEAD TAPERED SCREW PLUG

1

2011-11_
