标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE250.20.4

手油门总成

HANDLE THROTTLE ASSEMBLY

1

2004-01_

1

TE300A.20.1

手油门总成

HANDLE THROTTLE ASSEMBLY

1

2008-01_

1

TE324.20.3

手油门总成

HANDLE THROTTLE ASSEMBLY

1

2006-01_

10

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

11

GBT6172.1-M8-A2L

螺母

NUT

2

2011-11_

12

FT250.20B.017

熄火拉线总成

EXTINGUISH WIRE ASSEMBLY

1

2011-11_

12

TE254.20.1

熄火拉线总成

EXTINGUISH WIRE ASSEMBLY

1

2013-03_

13

Q67405100

塑料紧箍带

PLASTIC FASTEN STRIP

1

2011-11_

2

GBT68-M8X20-A0P

开槽沉头螺钉

SCREW

3

2004-01_

3

TE324.20A-01

过线胶圈

RUBBER RING

1

2004-01_

3

TD800.484B-03

过线胶圈

RUBBER RING

1

2008-12_

4

FT65.48.097

线束固定夹(二)

HARNESS LOCKING CLAMP (2)

1

2011-11_

5

GBT819.1-M8X20-A2L

十字槽沉头螺钉

CUNERSUNK FLAT HEAD SCREW WITH CROSS

2

2011-11_

6

FT300.20.105

手油门拉线支架

RECESS

1

2011-11_

7

GBT6170-M8-A2L

螺母

PULL WIRE BRACKET OF HAND THROTTLE

1

2011-11_

NUT

8

GBT97.1-8-A0P

平垫圈

1

2011-11_

9

FT650.20.133

紧固螺钉

WASHER

1

2011-11_

LOCKING SCREW

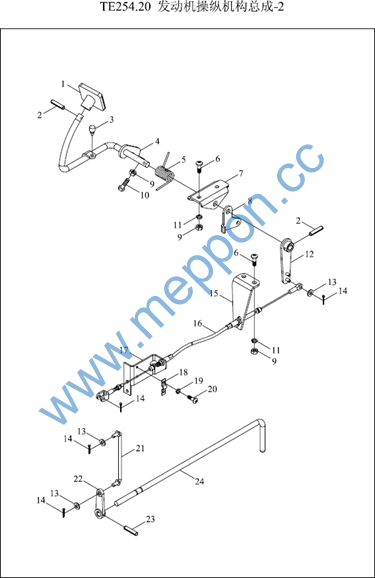

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT650.20.101

脚踏板

FOOT PEDAL

1

2011-11_

10

GBT5781-M8X45-A2L

六角头螺栓

BOLT

1

2011-11_

11

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

12

FT300.20.011

脚油门摇臂焊合

FOOT THROTTLE ROCKER ARM WELDMENT

1

2011-11_

13

GBT97.1-6-A0P

平垫圈

WASHER

3

2011-11_

14

GBT91-2X16-A0P

开口销

PIN

4

2011-11_

15

TE250.20B-01

脚油门拉线支架

FOOT THROTTLE WIRE BRACKET

1

2011-11_

16

TE250.20B.1

脚油门拉线总成

FOOT THROTTLE WIRE ASSEMBLY

1

2006-11_

16

FT700.20S.014

脚油门拉线总成

FOOT THROTTLE WIRE ASSEMBLY

1

2006-11_

16

FT650.20.014

脚油门拉线总成

FOOT THROTTLE WIRE ASSEMBLY

1

2004-01_

17

FT250.20.107

支架

SUPPOT BRACKET

1

2011-11_

18

FT250.20.127

固定夹

LOCKING CLAMP

1

2011-11_

19

GBT93-5-A0P

标准型弹簧垫圈

WASHER

2

2011-11_

2

GBT879.1-5X20

弹性圆柱销

PIN

2

2011-11_

20

GBT818-M5X10-A2L

十字槽盘头螺钉

SCREW

2

2011-11_

21

FT250.20.018

减压拉杆焊合

DECOMPRESSION PULL ROD WELDMENT

1

2011-11_

22

FT250.20.118

减压摇臂

DECOMPRESSION ROCKER

1

2011-11_

23

GBT879.1-3X20

弹性圆柱销

PIN

1

2011-11_

24

FT250.20.117

减压手柄

DECOMPRESSION HANDLE

1

2011-11_

3

FT650.20.107

橡胶塞

RUBBER RING

1

2011-11_

4

TE250.20B.3

脚踏板摇臂焊合

FOOT PEDAL ROCKER ARM WELDMENT

1

2011-11_

5

FT650.20.104

扭簧

TORSION SPRING

1

2011-11_

6

GBT819.1-M8X20-A2L

十字槽沉头螺钉

CUNERSUNK FLAT HEAD SCREW WITH CROSS

4

2011-11_

7

FT650.20.108

油门支架

RECESS

1

2011-11_

8

FT650.20.114

手油门摇臂

THROTTLE PEDESTAL

1

2011-11_

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

9

GBT6172.1-M8-A2L

螺母

NUT

5

2011-11_

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

FT250.21B.011 TE250.211.1

21离合器分总成离合器分总成

21CLUTCH SUBASSEMBLY CLUTCH SUBASSEMBLY

1

1

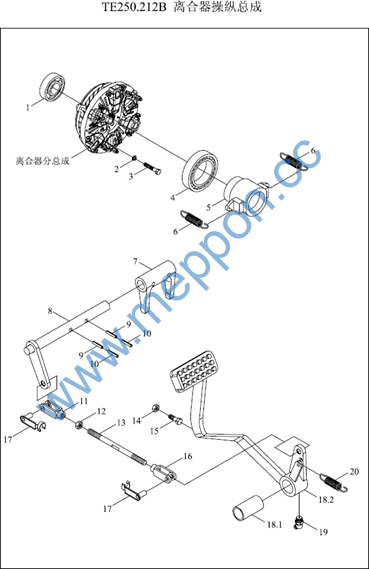

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT276-6203-2Z

深沟球轴承

BEARING

1

2011-11_

10

GBT879.2-5X32

弹性圆柱销

PIN

2

2011-11_

11

FT800A.43B.116

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

1

2011-11_

12

GBT6170-M10-A3L

螺母

NUT

1

2011-11_

13

TE250.212-01

拉杆

PULL ROD

1

2011-11_

14

GBT6172.1-M12-A3L

螺母

NUT

1

2011-11_

15

GBT5783-M12X30-A3L

螺栓

BOLT

1

2011-11_

16

FT800A.43B.119

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

17

FT800A.43B.011

定位销铆合件

LOCATING PIN RIVET UNIT

2

2011-11_

18

TE250.212B.1

离合器踏板总成

CLUTCH PEDAL ASSEMBLY

1

2011-11_

18.1

TE250.212.1-01

离合器踏板轴衬套

CLUTCH PEDAL SHAFT BUSH

1

2004-01_

18.1

TH350.212.1-01

离合器踏板轴衬套

CLUTCH PEDAL SHAFT BUSH

1

2010-09_

18.2

TE250.212B.1.1

离合器踏板焊合件

CLUTCH PEDAL WELDMENT

1

2011-11_

19

JBT7940.2-45°M10X1

油杯

OIL CUP

1

2011-11_

2

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

20

TE250.212-03

离合器踏板弹簧

CLUTCH PEDAL SPRING

1

2011-11_

3

GBT5783-M8X60-8.8-A2L

六角头螺栓

BOLT

6

4

TE250.212B-01

分离轴承

BEARING

1

2011-11_

5

FT200.21B.103

分离轴承座

RELEASE BEARING SEAT

1

2011-11_

6

FT200.21.106

分离轴承座回位弹簧

RETURN SPRING OF RELEASE BEARING SEAT

2

2011-11_

7

FT200.21.105a

离合器拨叉

CLUTCH FORK

1

2009-04_

7

FT200.21.105

离合器拨叉

CLUTCH FORK

1

2004-01_

7

FT200.21.107

离合器拨叉

CLUTCH FORK

1

2013-01_

8

FT200.21.013a

离合器分离摇臂合件

CLUTCH RELEASE ROCKER UNIT

1

2009-04_

9

GBT879.1-8X32

弹性圆柱销

PIN

2

2011-11_

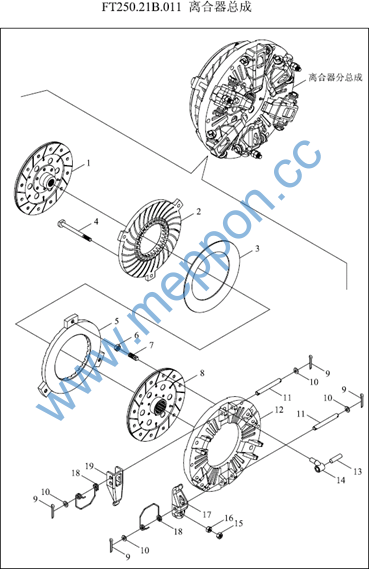

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT250.21B.014

副摩擦片总成

AUXILIARY FRICTION PIECE ASSEMBLY

1

1

FT200.21B.014

副离合器从动盘总成

AUXILIARY CLUTCH DRIVEN PLATE ASSEMBLY

1

10

GBT848-10-Zn.D

平垫

WASHER

12

11

FT300.21B.111

长销

LONG PIN

6

12

FT250.21B.115

离合器盖

CLUTCH COVER

1

12

FT200.21B.115

离合器盖

CLUTCH COVER

1

13

FT300.21B.109

销轴

PIN

3

14

FT250.21B.114

顶杆

TOP ROD

1

14

FT200.21B.114

主离合器分离推杆

MAIN CLUTCH RELEASE PULL ROD

1

15

GBT6171-M8X1-Zn.D

1型六角螺母

NUT

3

16

FT300.21B.105

球头螺母

BALL NUT

3

16

FT300.21B.105

球头螺母

BALL NUT

3

17

FT200.21B.118

副离合器分离杠杆

AUXILIARY CLUTCH RELEASE LEVER

3

17

FT250.21B.118

副离合器分离杠杆

AUXILIARY CLUTCH RELEASE LEVER

3

18

FT250.21B.121

分离杆弹簧

RELEASE ROD SPRING

6

18

FT200.21B.116

离合器分离杠杆弹簧

CLUTCH RELEASE LEVER SPRING

6

19

FT200.21B.117

主离合器分离杠杆

MAIN CLUTCH RELEASE LEVER

3

19

FT200.21B.117

主离合器分离杠杆

MAIN CLUTCH RELEASE LEVER

3

19

FT250.21B.117

主离合器分离杠杆

MAIN CLUTCH RELEASE LEVER

3

2

FT250.21B.112

副离合器压盘

AUXILIARY CLUTCH PRESSURE PLATE

1

3

FT250.21B.105

碟形弹簧

DISC SPRING

1

3

FT250.21B.105

碟形弹簧

DISC SPRING

1

4

FT400.21B.104

副离合器拉杆

AUXILIARY CLUTCH PULL ROD

3

5

FT250.21B.126

主压板

PRESSURE PLATE

1

2011-11_

5

FT250.21B.113

主离合器压盘

MAIN CLUTCH PRESSURE PLATE

1
