TB504.382-1 38.2.1-后桥中央传动总成-1 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB450.38J-05

小圆锥齿轮轴

SMALL TAPER GEAR SHAFT

1

2011-11_

10

FT300.38.117

轴承座

BEARING SEAT

1

2011-11_

11

GBT93-10-A0P

标准型弹簧垫圈

WASHER

16

2011-11_

12

GBT5783-10X30-A3L

六角头螺栓

BOLT

4

2011-11_

13

GBT812-M39X1.5

圆螺母

ROUND NUT

2

2011-11_

14

GBT858-39

圆螺母用止动垫圈

THRUST RING

1



15

FT300.38.177

右差速器轴承座

RIGHT DIFFERENTIAL BEARING SEAT

1

2011-11_

16

FT300.38.151

调整螺母

ADJUSTING NUT

2

2011-11_

17

FT300.38.142

左差速器轴承座

LEFT DIFFERENTIAL BEARING SEAT

1

2011-11_

18

GBT5783-10X25-A3L

六角头螺栓

BOLT

12

2011-11_

19

FT300.38.161

锁片

LOCK SHIM

2

2011-11_

2

GBT283-NUP2210E

圆柱滚子轴承

BEARING

1

2011-11_

20

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

21

TB554.382-01

螺栓

BOLT

4



3

GBT894.1-50

轴用弹性挡圈

SNAP RING

1

2011-11_

4

GBT894.1-48

挡圈

RETAINER RING

1

2011-11_

5

FT404.38G.116

前驱动输出齿轮

FRONT DRIVE OUTPUT GEAR

1

2011-11_

6

GBT297-32208

圆锥滚子轴承

BEARING

2

2011-11_

7

FT300.38.118

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_

8

FT300.38.119

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_

9

FT300.38.120

锥齿轮轴调整垫片

TAPER GEAR SHAFT ADJUSTING GASKET

999

2011-11_

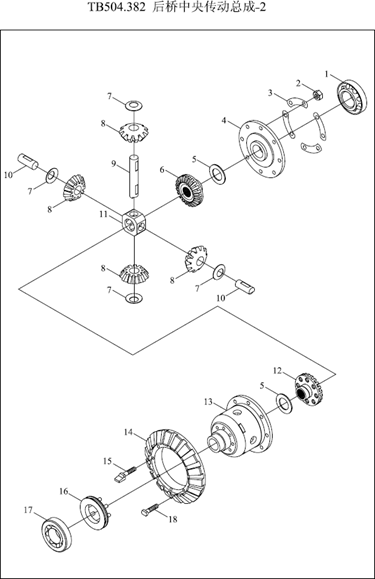

TB504.382-2 38.2.2-后桥中央传动总成-2 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT300.38.012

差速器总成

DIFFERENTIAL ASSEMBLY

1

2011-11_

1

GBT297-32013

圆锥滚子轴承

BEARING

1

2011-11_

10

FT300.38.183

短行星齿轮轴

SHORT PLANETARY GEAR SHAFT

2

2011-11_

11

FT300.38.184

中心环

CENTRAL RING

1

2011-11_

12

FT300.38.143

左半轴齿轮

LEFT HALF SHAFT GEAR

1

2011-11_

13

FT300.38.180

差速器壳体

DIFFERENTIAL HOUSING

1

2011-11_

14

FT300.38.141

大圆锥齿轮

BIG TAPER GEAR

1

2011-11_

15

FT300.38.185

行星齿轮轴止推螺栓

PLANET GEAR SHAFT THRUST BOLT

4

2011-11_

16

FT300.38.019

差速锁总成

DIFFERENTIAL LOCK ASSEMBLY

1

2011-11_

16

FT300.38.019

差速锁总成

DIFFERENTIAL LOCK ASSEMBLY

1

2011-11_

17

GBT297-30211

圆锥滚子轴承

BEARING

1

2011-11_

18

FT300.38.186

大锥齿轮固定螺栓

FIXING BOLT

4

2011-11_

2

GBT6170-M12-A3L

螺母

NUT

8

2011-11_

3

FT300.38.152

锁紧垫片

LOCKING WASHER

4

2011-11_

4

FT300.38.181

差速器盖

DIFFERENTIAL HOUSING

1

2011-11_

4

FT300.38.181

差速器盖

DIFFERENTIAL HOUSING

1

2011-11_

5

FT300.38.147

半轴齿轮垫片

HALF SHAFT GEAR WASHER

2

2011-11_

6

FT300.38.144

右半轴齿轮

RIGHT HALF SHAFT GEAR

1

2011-11_

7

FT300.38.148

行星齿轮垫片

PLANET GEAR WASHER

4

2011-11_

8

FT300.38.145

行星齿轮

PLANETARY GEAR

4

2011-11_

8

FT300.38.145

行星齿轮

PLANETARY GEAR

4

2011-11_

9

FT300.38.182

长行星齿轮轴

LONG PLANETARY GEAR SHAFT

1

2011-11_

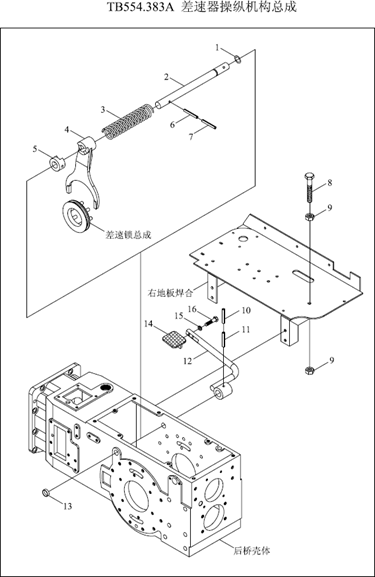

TB554.383A 38.3-差速锁操纵机构总成 38.3-DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT3452.1-15.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

10

GBT879.1-6X35

弹性圆柱销

PIN

1

2011-11_

11

GBT879.2-3.5X35

弹性圆柱销

PIN

1

2011-11_

12

TB554.383A.2

差速锁踏杆焊合件

DIFFERENTIAL LOCK PEDAL LEVER WELDMENT

1

2004-01_

13

Q72220

碗形塞片

PLUG PIECE

1

2011-11_

14

TB554.383A.1

差速锁踏板焊合件

DIFFERENTIAL LOCK PEDAL WELDMENT

1

2004-01_

14

TB554.383A.4

差速锁上踏杆焊合件

DIFFERENTIAL LOCK PEDAL LEVER WELDMENT

1

2010-03_

15

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

16

GBT5783-M6X25-8.8-A2L

六角头螺栓

BOLT

2

2011-11_

2

FT300.38.158a

差速锁拨叉轴

DIFFERENTIAL LOCK FORK SHAFT

1

2011-11_

3

FT300.38.160

差速锁回位弹簧

DIFFERENTIAL LOCK RETURN SPRING

1

2011-11_

4

FT300.38.159a

差速锁拨叉

DIFFERENTIAL LOCK FORK

1

2011-11_

5

FT300.38.190

差速锁拨块

DIFFERENTIAL LOCK DIAL BLOCK

1

2011-11_

6

GBT879.1-6X40

弹簧圆柱销

SPRING COLUMN PIN

1

2011-11_

7

GBT879.2-3.5X40

弹性圆柱销

PIN

1

2011-11_

8

GBT5781-M8X45-A2L

六角头螺栓

BOLT

1

2011-11_

9

GBT6170-M8-A2L

螺母

NUT

2

2011-11_


TB554.383A.3

差速锁下踏杆焊合件

DIFFERENTIAL LOCK DOWN PEDAL WELDMENT

1

2010-03_

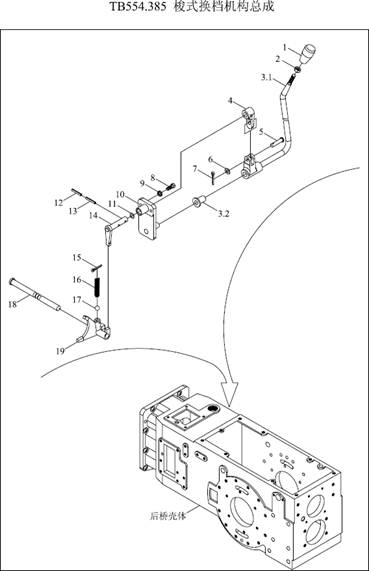

TB554.385 38.5-梭式换档机构总成 38.5-SHUTTLE SHIFT MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.41.015

动力输出操纵手柄总成

PTO CONTROL HANDLE ASSEMBLY

1

2011-11_

10

TB554.385.3a

拨杆轴套焊合

LEVER BUSH WELDMENT

1

2010-01_

10

TB554.385.3

拨杆轴套焊合

LEVER BUSH WELDMENT

1

2011-11_

11

GBT3452.1-16.0X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

12

GBT879.1-6X28

弹性圆柱销

PIN

1

2011-11_

12

GBT879.1-6X28

弹性圆柱销

PIN

1

2011-11_

13

GBT879.2-3.5X28

弹性圆柱销

PIN

1

2011-11_

14

TB554.385.2

指形拨杆焊合件

FINGER LEVER WELDMENT

1

2008-09_

14

FT300.38J.023c

指形拨杆焊合件

FINGER LEVER WELDMENT

1

2007-10_

15

GBT91-4X32-A0P

开口销

PIN

1

2011-11_

16

FT704.42B.163

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

1

2011-11_

17

GBT308-9.5-G100-b

钢球

BALL

1

2011-11_

18

FT300.38J.203

倒档拨叉轴

REVERSE FORK SHAFT

1

2011-11_

19

FT300.38J.218

倒挡拨叉

REVERSE GEAR FORK

1

2011-11_

2

GBT6170-M10-A3L

螺母

NUT

1

2011-11_

3

TB554.385.1a

倒档操纵杆压合

REVERSE CONTROL LEVER PRESSURE UNIT

1

2010-01_

3

TB554.385.1

倒档操纵杆压合

REVERSE CONTROL LEVER PRESSURE UNIT

1

2004-01_

3.1

FT300.38J.022b

倒档操纵杆焊合

REVERSE CONTROL LEVER WELDMENT

1

2008-07_

3.1

FT300.38J.022b

倒档操纵杆焊合

REVERSE CONTROL LEVER WELDMENT

1

2008-07_

3.1

FT300.38J.022c

倒档操纵杆总成

REVERSE CONTROL LEVER ASSEMBLY

1

2010-01_

3.1

FT300.38J.022a

倒档操纵杆总成

REVERSE CONTROL LEVER ASSEMBLY

1

2004-01_

3.2

TB504.385.1-01

衬套

SLEEVE

1

2011-11_

4

FT300.38J.231b

摇臂

ROCKER

1

2007-10_

4

FT300.38J.231a

摇臂

ROCKER

1



4

FT300.38J.216

摇臂

ROCKER

1

2010-08_






TB554.385 38.5-梭式换档机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



9

FT300.38J.231b GBT882-B10X30-A0P GBT848-10-A0P GBT91-3.2X40-A0P TB400.385-09



GBT93-10-A0P

摇臂 销轴 小垫圈开口销螺栓



标准型弹簧垫圈

ROCKER PIN WASHER PIN BOLT



WASHER

1

1

1

1

2



2

2007-10_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

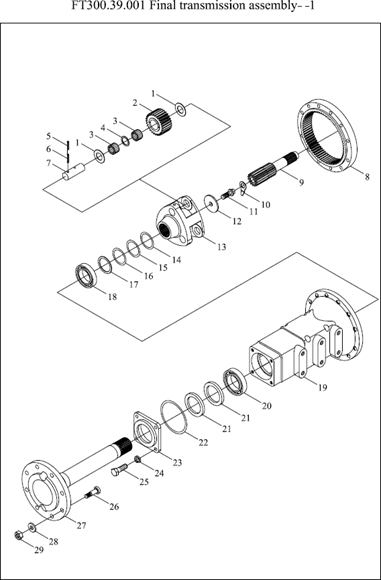

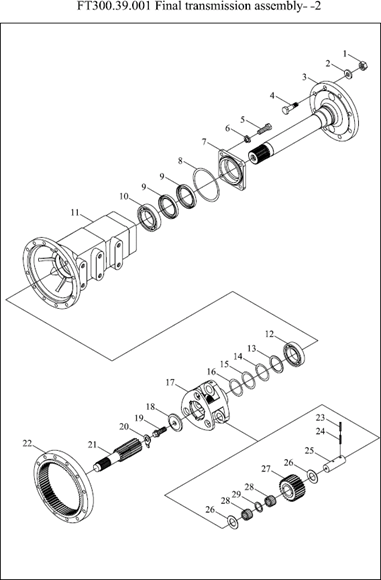

FT300.39.001-1 39.1-最终传动总成-1 39FINAL TRANSMISSION ASSEMBLY -1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.39.109

滚针外隔圈

NEEDLE OUTER SPACER RING

6

2011-11_

10

FT300.39.110

驱动轴锁片

DRIVING SHAFT LOCK PIECE

1

2011-11_

11

FT300.39.112

驱动轴锁紧螺栓

DRIVING SHAFT LOCK BOLT

1

2011-11_

12

FT300.39.111

挡块

RETAINER BLOCK

1

2011-11_

13

FT300.39.104

行星架

PLANET CARRIER

1

2011-11_

14

FT300.39.123

调整垫片

ADJUSTING WASHER

999

2011-11_

15

FT300.39.122

调整垫片

ADJUSTING WASHER

999

2011-11_

16

FT300.39.121

调整垫片

ADJUSTING WASHER

999

2011-11_

16

FT300.39.121

调整垫片

ADJUSTING WASHER

999

2011-11_

17

FT300.39.113

隔套

SPACER BUSH

1

2011-11_

18

GBT276-6211

深沟球轴承

BEARING

1

2011-11_

19

FT300.39.115

左驱动轴壳体

LEFT DRIVING SHAFT HOUSING

1

2011-11_

2

FT300.39.103

行星轮

PLANET GEAR

3

2011-11_

20

GBT276-6212

球轴承

BALL BEARING

1

2011-11_

21

GBT9877.1-FB70X95X10D

内包骨架旋转轴唇形密封

O RING

2

2011-11_

22

GBT3452.1-115X3.55G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2004-01_

23

FT300.39.116

油封座

OIL SEAL CAGE

1

2011-11_

24

GBT93-12-AOP

垫圈

WASHER

4

2011-11_

25

GBT5783-M12X30-8.8-A3L

六角头螺栓

BOLT

4



26

FT300.39.136

后轮毂螺栓（左）

REAR HUB BOLT (LEFT)

8

2011-11_

27

FT300.39.118

驱动轴

DRIVING SHAFT

1

2011-11_

28

FT300.39.137

垫圈

WASHER

8

2011-11_

29

GBT6176-M16X1.5-LH-10-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

8

2004-01_

3

GBT309-P5X23.8-G2

滚针

NEEDLE

132

2011-11_

4

FT300.39.105

滚针内隔圈

NEEDLE INNER SPACER RING

3

2011-11_






FT300.39.001-1 39.1-最终传动总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

GBT879.1-5X24 GBT879.1-8X24 FT300.39.106 FT300.39.107 FT300.39.101

弹性圆柱销弹性圆柱销行星轮轴 齿圈

左半轴

PIN PIN

PLANET GEAR SHAFT GEAR RING

LEFT HALF SHAFT

3

3

3

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_
