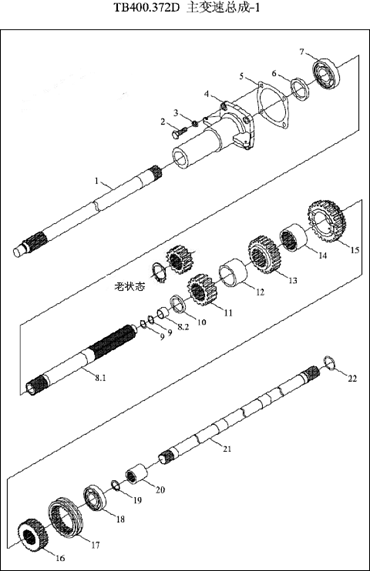

TB400.372D-1 37.2.1-主变速总成-1 MAIN TRANSMISSION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT400.37B.201

副离合器轴

AUXILIARY CLUTCH SHAFT

1

2011-11_

10

TB550.372-18

Ⅰ档齿轮隔套

I GEAR SPACER

1

2004-01_

10

GBT894.1

挡圈20

BLCOKING RING

1

2011-11_

11

FT300.37B.126a

Ⅰ档主动齿轮

I DRIVING GEAR

1

2008-08_

11

FT300.37B.126

Ⅰ档主动齿轮

I DRIVING GEAR

1

2004-01_

12

FT300.37B.127a

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2007-04_

12

TB550.372-19

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2008-08_

12

FT300.37B.127

Ⅰ-Ⅱ档齿轮隔套

I-II GEAR SPACER

1

2004-01_

13

FT300.37.128

Ⅱ档主动齿轮

Ⅱ DRIVING GEAR

1

2011-11_

14

FT300.37.130

Ⅲ档齿轮衬套

III GEAR BUSH

1

2011-11_

15

FT300.37.131a

Ⅲ档主动齿轮

Ⅲ DRIVING GEAR

1

2011-11_

16

FT300.37.132

Ⅲ-Ⅳ档啮合齿座

Ⅲ-Ⅳ ENGAGING GEAR SEAT

1

2011-11_

17

FT300.37.134a

Ⅲ-Ⅳ档啮合套

Ⅲ-Ⅳ SHIFT COLLAR

1

2011-11_

18

GBT276-6007

轴承6007

BEARING

1

2011-11_

19

GBT893.1-21

孔用弹性挡圈

SNAP RING

1

2011-11_

2

GBT5783-M8X25-A2L

螺栓

BOLT

4

2011-11_

20

FT300.37.136

连接套

CONNECTING SLEEVE

1

2011-11_

21

FT300.37J.137

动力输出连接轴

PTO CONNECTING SHAFT

1

2011-11_

22

GBT895.2-24

轴用钢丝挡圈

SNAP RING

1

2011-11_

3

GBT93-8

垫圈8

WASHER 8

4

2011-11_

4

FT300.37B.124

Ⅰ轴轴承盖

SHAFT I BEARING COVER

1

2011-11_

5

FT300.37B.125

Ⅰ轴轴承盖纸垫

SHAFT I BEARING COVER PAPER GASKET

1

2011-11_

6

GBT9877.1-FB40X62X8D

内包骨架旋转轴唇形密封

O RING

1

2011-11_

7

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

8

FT300.37B.021a

Ⅰ轴合件

SHAFT I UNIT

1

2008-08_






TB400.372D-1 37.2.1-主变速总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

8

8.1

8.1

8.2



9

FT300.37B.021a FT300.37B.021 FT300.37B.202a FT300.37B.202 FT300.37.170



GBT3452.1-23.6X1.80G

Ⅰ轴合件 Ⅰ轴合件 Ⅰ轴 Ⅰ轴

衬套



液压气动用O形橡胶密封圈

SHAFT I UNIT SHAFT I UNIT SHAFT I SHAFT I SLEEVE



O-SEAL RING

1

1

1

1

1



2

2008-08_

2004-01_

2008-08_

2004-01_

2011-11_



2011-11_

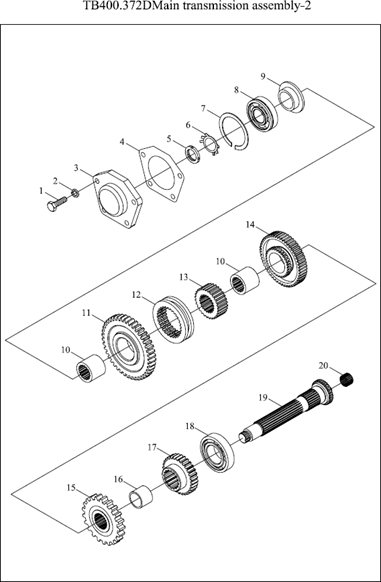

TB400.372D-2 37.2.2-主变速总成-2 MAIN TRANSMISSION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M8X25-A2L

螺栓

BOLT

4

2011-11_

10

FT300.37.114

Ⅰ-Ⅱ档齿轮衬套

I-II GEAR BUSH

2

2011-11_

11

FT300.37.117

Ⅰ档从动齿轮

I DRIVEN GEAR

1

2004-01_

11

FT300.37.117a

Ⅰ档从动齿轮

I DRIVEN GEAR

1

2011-06_

12

FT300.37.115a

Ⅰ-Ⅱ档啮合套

I-II SHIFT COLLAR

1

2011-06_

12

FT300.37.115

Ⅰ-Ⅱ档啮合套

I-II SHIFT COLLAR

1

2004-01_

13

FT300.37.116

Ⅰ-Ⅱ档啮合齿座

I-II ENGAGING TOOTH SEAT

1

2011-11_

14

FT300.37.113a

Ⅱ档从动齿轮

Ⅱ DRIVEN GEAR

1

2011-06_

14

FT300.37.113

Ⅱ档从动齿轮

Ⅱ DRIVEN GEAR

1

2004-01_

15

FT300.37.112

Ⅲ档从动齿轮

Ⅲ DRIVEN GEAR

1

2011-11_

16

FT300.37.110

Ⅲ-Ⅳ档齿轮隔套

III-IV GEAR SPACER

1

2011-11_

17

FT300.37.108a

Ⅳ档从动齿轮

Ⅳ DRIVEN GEAR

1

2011-11_

18

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

19

FT300.37.109a

Ⅱ轴

SHAFT Ⅱ

1

2011-11_

2

GBT93-8

垫圈8

WASHER 8

4

2011-11_

20

JBT7918-K20X26X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

3

FT300.37.120

Ⅱ轴轴承盖

SHAFT Ⅱ BEARING COVER

1

2011-11_

4

FT300.37.119

Ⅱ轴轴承盖纸垫

SHAFT Ⅱ BEARING COVER PAPER GASKET

1

2011-11_

5

GBT812-M24X1.5

圆螺母

ROUND NUT

1

2011-11_

6

GBT858-24

圆螺母用止动垫圈

THRUST RING

1

2011-11_

7

GBT305-72/78.6

止推环

PLATE;THRUST

1

2004-01_

8

GBT276-6306N

深沟球轴承

BEARING

1

2011-11_

9

FT300.37.118

Ⅱ轴轴端挡圈

SHAFT Ⅱ END RETAINER RING

1

2011-11_

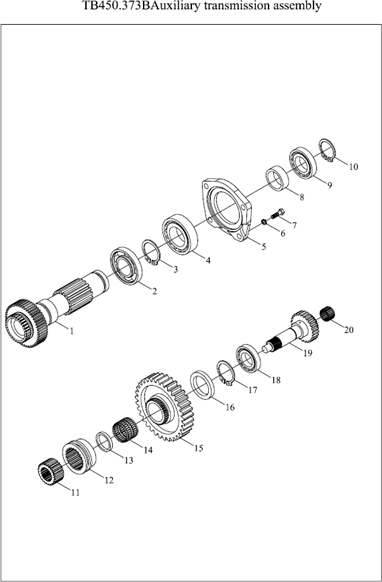

TB450.373B 37.3-副变速总成 37.3-AUXILIARY GEARSHIFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.37J.169a

副变速主动齿轮轴

AUXILIARY GEARSHIFT DRIVING GEAR SHAFT

1

2011-11_

10

GBT894.1-40

挡圈40

WASHER 40

1

2011-11_

11

FT300.37.106a

倒档齿轮啮合齿座

REVERSE GEAR MESHING SEAT

1

2011-11_

12

FT300.37J.105

副变速换档套

AUXILIARY GEARSHIFT SLEEVE

1

2011-11_

12

FT300.37J.105

副变速换档套

AUXILIARY GEARSHIFT SLEEVE

1

2011-11_

13

FT300.37.111

隔套

SPACER BUSH

1

2011-11_

14

QSFZB019-K35X43X34ZW

滚针轴承

NEEDLE BEARINGS

1

2011-11_

15

FT300.37.103

副变速从动齿轮

AUXILIARY GEARSHIFT DRIVEN GEAR

1

2004-01_

15

FT450.37.103

副变速从动齿轮

AUXILIARY GEARSHIFT DRIVEN GEAR

1

2007-04_

16

FT300.37J.182

限位挡圈

LIMITING RETAINER RING

1

2004-01_

16

FT300.37J.182a

限位挡圈

LIMITING RETAINER RING

1

2007-04_

17

GBT894.1-35

轴用弹性挡圈

SNAP RING

1

2011-11_

18

GBT283-NUP307E

圆柱滚子轴承

BEARING

1

2011-11_

19

TB450.37J-01

副变速从动轴

AUXILIARY GEARSHIFT DRIVEN SHAFT

1

2011-11_

2

GBT276-6210

深沟球轴承

BEARING

1

2011-11_

20

JBT7918-K25X31X20

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

3

GBT894.1-50

轴用弹性挡圈

SNAP RING

1

2011-11_

4

GBT283-NUP308E

圆柱滚子轴承

BEARING

1

2011-11_

5

FT300.37.139

副变速轴承盖

AUXILIARY GEARSHIFT BEARING COVER

1

2011-11_

6

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

7

GBT5783-M10X30-A2L

六角头螺栓

BOLT

4

2011-11_

8

FT300.37J.180

隔套

SPACER BUSH

1

2011-11_

9

GBT283-NF208E

圆柱滚子轴承

BEARING

1

2011-11_






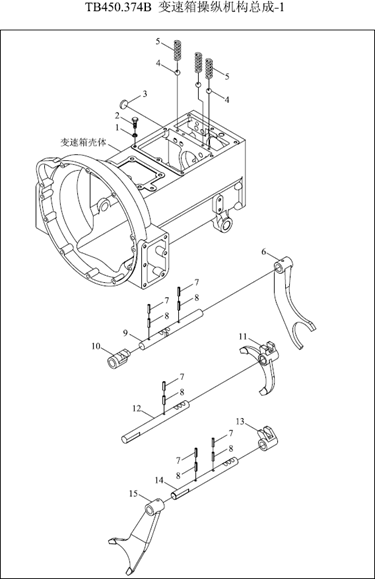

TB450.374B-1 37.4.1变速箱操纵机构总成-1 37.4TRANSMISSION CONTROL MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT93-10

垫圈10

WASHER 10

8

2011-11_

10

FT300.37.154

副变速拨头

AUXILIARY GEARSHIFT DIAL HEAD

1

2011-11_

11

FT300.37.147

Ⅲ-Ⅳ档拨叉

Ⅲ-Ⅳ FORK

1

2011-11_

12

FT300.37.150

Ⅲ-Ⅳ档拨叉轴

Ⅲ-Ⅳ FORK SHAFT

1

2011-11_

13

FT300.37.152

Ⅰ-Ⅱ档拨头

I-II GEAR FORK HEAD

1

2011-11_

14

FT300.37.149

Ⅰ-Ⅱ档拨叉轴

I-II GEAR FORK SHAFT

1

2011-11_

15

FT300.37.148

Ⅰ-Ⅱ档拨叉

I-II GEAR FORK

1

2011-11_

2

GBT5783-M10X30-A3L

螺栓

BOLT

8

2011-11_

3

Q72114

塞片

PLUG PIECE

1

2011-11_

4

GBT308-8-G100-B

钢球

BALL

3

2011-11_

5

FT300.37.135

拨叉轴定位弹簧

FORK SHAFT LOCATING SPRING

3

2011-11_

6

FT300.37.145

副变速拨叉

AUXILIARY GEARSHIFT FORK

1

2011-11_

7

GBT879.1-3X24

弹性圆柱销

PIN

5

2011-11_

8

GBT879.1-5X24

弹性圆柱销

PIN

5

2011-11_

9

FT300.37.156

副变速拨叉轴

AUXILIARY GEARSHIFT FORK SHAFT

1

2011-11_

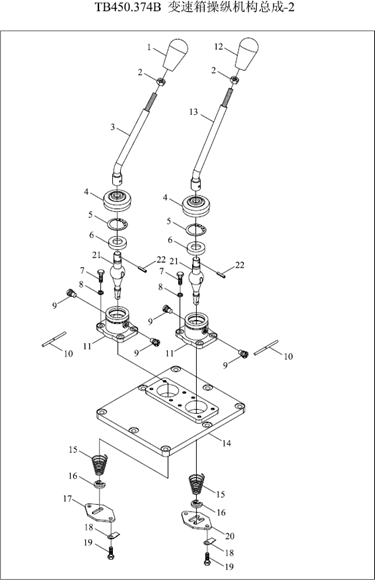

TB450.374B-2 37.4.2变速箱操纵机构总成-2 GEARBOX CONTROL MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TB450.374B.1

变速箱上盖总成

GEARBOX UPPER COVER ASSEMBLY

1

2011-11_

1

FT300.37J.016

副变速操纵手柄总成

AUXILIARY GEARSHIFT CONTROL HANDLE

1

2011-11_

10

TF1004.374-02

低碳钢丝

ASSEMBLY

2

2011-11_

11

FT300.37.180

变速杆支座

LOW CARBON STEEL WIRE

2

2011-11_

12

FT300.37.015

主变速操纵手柄总成

GEARLEVER SEAT

1

2011-11_


MAIN GEARSHIFT CONTROL HANDLE ASSEMBLY



13

TB450.374B.1.1

主变速杆焊合



1

2011-11_

14

FT300.37.163a

变速箱上盖

MAIN GEARLEVER WELDMENT

1

2011-11_

15

FT300.37.165

变速杆弹簧

GEARBOX UPPER COVER

2

2011-11_

15

FT300.37.165

变速杆弹簧

GEARLEVER SPRING

2

2011-11_

16

FT300.37.164

变速杆弹簧挡圈

GEARLEVER SPRING

2

2011-11_


GEARLEVER SPRING RETAINER RING



17

FT300.37J.161

副变速导板



1

2011-11_

18

GBT854-8

单耳制动垫圈

AUXILIARY GAR GUIDE PLATE

4

2011-11_

19

GBT5783-M8X16-A2L

螺栓

WASHER

4

2011-11_

2

GBT6172.1-M10-A2L

螺母

BOLT

2

2011-11_

20

FT300.37.162

主变速导板

NUT

1

2011-11_


MAIN GEARSHIFT GUIDE PLATE



21

TB450.374B.1-01

下操纵杆



2

2011-11_

22

GBT879.1-6X28

弹性圆柱销

LOWER CONTROL ROD

2

2011-11_

22

GBT879.1-6X28

弹性圆柱销

PIN

2

2011-11_

3

TB450.374B.1.2

副变速杆焊合

PIN

1

2011-11_

3

TB450.374B.1.2

副变速杆焊合

ASSISTANT GEARLEVER WELDMENT

1

2011-11_


ASSISTANT GEARLEVER WELDMENT



4

FT300.37.166a

变速杆防尘罩



2

2009-12_

4

TB450.374B-01

变速杆防尘罩

GEARLEVER DUSTPROOF BONNET

2

2012-01_

5

GBT893.1-40

挡圈

GEARLEVER DUSTPROOF BONNET

2

2011-11_

6

FT800A.37.305

尼龙座

RETAINER RING

2

2011-11_

7

GBT5781-M8X20-A2L

六角头螺栓

NYLON SEAT

8

2011-11_






TB450.374B-2 37.4.2变速箱操纵机构总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

7

8

9

GBT5781-M8X20-A2L GBT93-8-A0P FT800A.37.326

六角头螺栓垫圈

变速杆定位销

BOLT WASHER

GEARLEVER LOCATING PIN

8

8

4

2011-11_

2011-11_

2011-11_
