Description

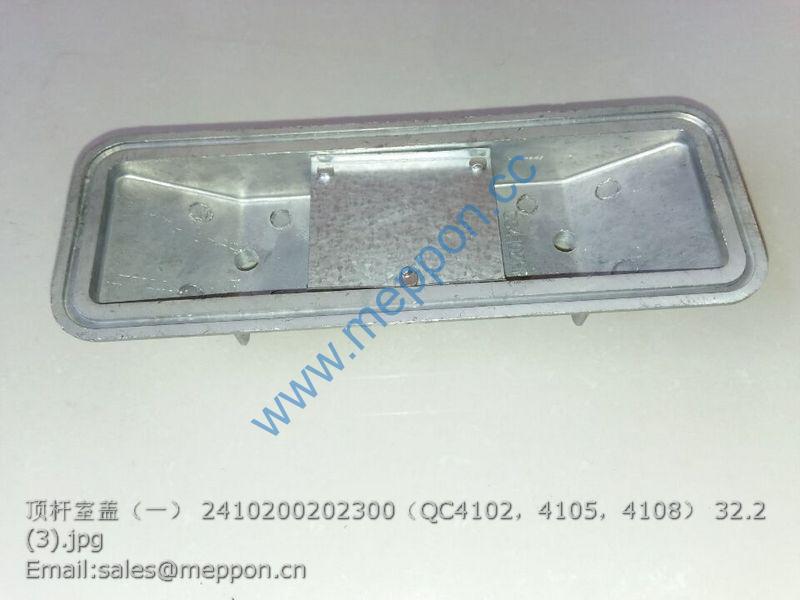

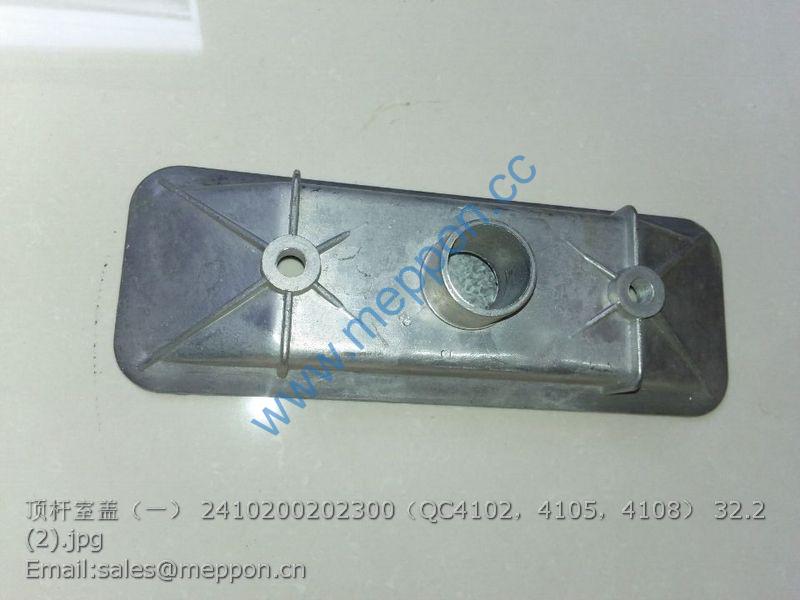

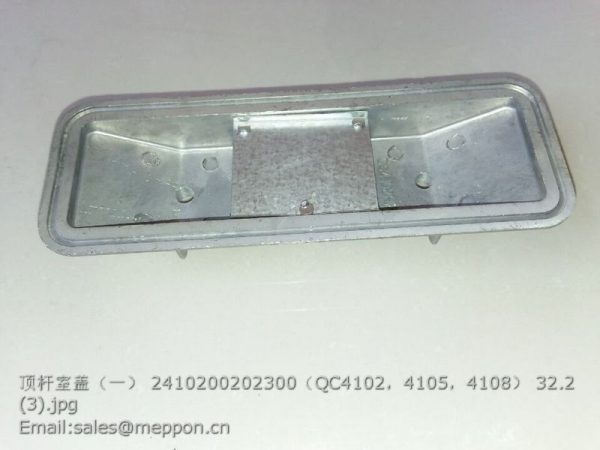

2410200202300 QUANCHAI QC4102 QC4105 QC4108 4102Q-02023 Jib room coverⅠ

TB400.91 Rear ballast assembly 1
1 GBT 6171-M16X1.5-A3L Nut 3
2 GBT 93-16-A0P Washer 6
3 TB400.91-02 Rear ballast screw Ⅰ 3
4 TB400.91-01 Rear ballast 6
5 TB400.91-04 Washer 18
6 TB400.91-03 Rear ballast screw Ⅱ 15
7 TB400.91-05 Bolt 3

TC02481200000K Harness installation assembly, engine 1
1 FT300.48.073a Oil pressure alarm 1
2 TS10481010002 Rotating speed sensor 1
3 TC02481200001K Engine harness assembly 1
4 FT304.48L.203 Harness fastener 2
5 FT800.48L.107 Grommet 2
6 FT800.48L.108a Fastener 2
7 Q67405100 Plastic fastening belt 2
8 FT65.48.072 Water temperature sensor 1
9 FT300.48P.102 Sleeve 1

TC02482220000K Harness installation assembly, body 1
1 GBT 818-M6X25-4.8-A2L Cross recessed pan head screw 2
2 TC02482220002K Central electric box assembly 1
FT300.48.512 Master power source relay 1
FT300.48.513 Electronic flasher 1
FT300.48D.2.2.2 Preheating relay 1
TC02482010003K Warning type fuse (10A) 7
TC02482010004K Warning type fuse (15A) 6
TC02482010005K Warning type fuse (20A) 2
TC02482010006K Warning type fuse (30A) 2
TC02482010007K Warning type fuse (7.5A) 2
3 GBT 97.1-6-A0P Plain washer 2
4 GBT 93-6-A0P Standard spring washer 2
5 GBT 6170-M6-8-A2L Hexagon nut, style 1 2
6 FT65.48.095 Harness fastener (1) 1
7 TB450.482.2 Starting relay 1
8 TC02482220001K Body harness assembly 1
9 TB550.482.3 Ignition lock 1
10 GBT 818-M4X10-4.8-A2L Cross recessed pan head screw 5
11 GBT 93-4-A0P Standard spring washer 5
12 TB450.482.6 Oil amount sensor 1
13 TB450.482.4 Left rocker switch 1
14 TB450.482N.4 Right rocker switch assembly 1

TB550.483 Harness Installation Assembly, Front Lamp 1
1 TB550.483.1 Front lamp harness assembly 1
2 GBT 6170-M6-8-A2L Type 1 hex nut 3
3 GBT 93-6-A0P Standard spring washer 3
4 GBT 97.1-6-A0P Flat washer 3
5 FT65.48.340 Horn assembly 1
6 GBT 5783-M6X16-8.8-A2L Hex bolt 1
7 GBT 97.1-8-A0P Flat washer 2
8 GBT 93-8-A0P Standard spring washer 2
9 GBT 5783-M8X16-8.8-A2L Hex bolt 2
10 GBT 818-M5X14-4.8-A2L Cross recessed pan head screw 1
11 TB400.483-01 Harness buckle 1
12 GBT 97.1-5-A0P Flat washer 1
13 GBT 93-5-A0P Standard spring washer 1
14 GBT 6170-M5-8-A2L Type 1 hex nut 1
15 FT65.48.097 Harness fixing clip (2) 6
16 TB550.483.2 Combination of headlight assembly 1

TC02484080000K Harness installation assembly, rear lamp 1
1 FT65.48.094 Wire through ring (2) 2
2 TC02484020003 Rear work lamp assembly 2
3 TB550.484.4 Rear taillamp assembly 2
4 GBT 818-M5X35-4.8-A1L Cross recessed countersunk head screw 3
5 GBT 93-5-A0P Standard spring washer 3
6 GBT 97.1-5-A0P Plain washer 3
7 TD900.484.2 Rear trailer socket 1
8 FT65.48.093 Wire through ring (1) 2
9 GBT 6170-M5-8-A2L Hexagon nut, style 1 3
10 TC02484060001K Air pressure alarm 1
11 TC02484070001K Rear lamp harness assembly 1
12 TA600.486-01 Harness fastener 2
13 TB550.484.2 Brake lamp switch 2
14 FT300.48C.211 Brake switch installation plate 1
