Description

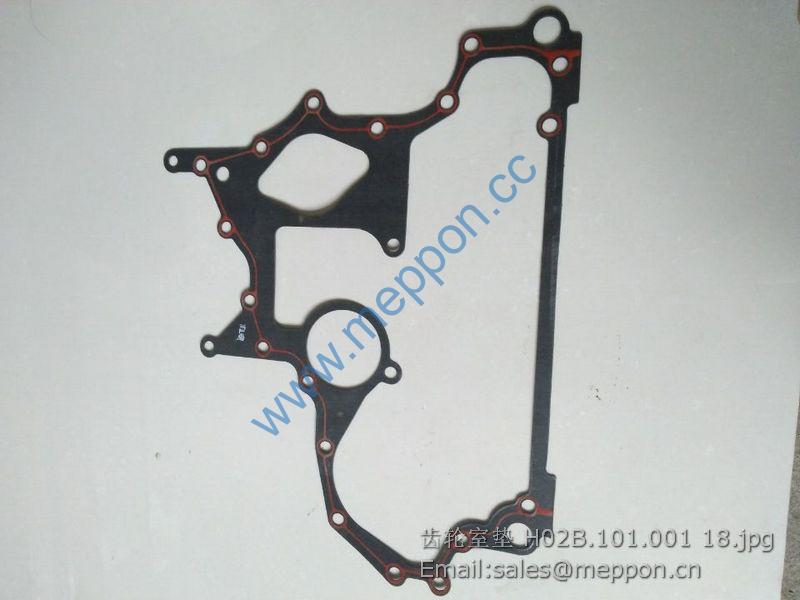

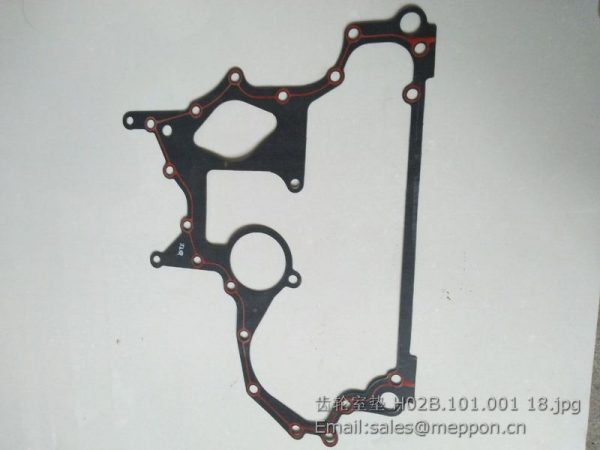

H02B.101.001 QUANCHAI GASKET

TB400.372D Main Gear Assembly 1
1 GBT 5783-M8X25-8.8-A2L Bolt 4
2 GBT 93-8-A0P Washer 4
3 FT300.37.120 Shaft-2 bearing cover 1
4 FT300.37.119 Shaft-2 bearing cover gasket 1
5 GBT 812-M24X1.5 Nut 1
6 GBT 858-24 Washer 1
7 GBT 305-72-78.6 Thrust ring 1
8 GBT 276-6306N Bearing 1
9 FT300.37.118 Shaft-2 end circlip 1
10 FT300.37.114 1st and 2nd gear liner 2
11 FT300.37.117a 1st gear driven gear 1
12 FT300.37.115a 1st and 2nd gear joggle sleeve 1
13 FT300.37.116 1st and 2nd gear seat 1
14 FT300.37.113a 2nd gear driven gear 1
15 FT300.37.112 3rd gear driven gear 1
16 FT300.37.110 3rd and 4th gear spacing sleeve 1
17 FT300.37.108a 4th gear driven gear 1
18 GBT 276-6208 Bearing 1
19 FT300.37.109a Shaft 2 1
20 JBT 7918-K20X26X20 Bearing 1

TB450.373B Assistant gear assembly 1
1 FT300.37J.169a Assistant gear driving gear shaft 1
2 GBT 276-6210 Bearing 1
3 GBT 894.1-50 Circlip 1
4 GBT 283-NUP308E Bearing 1
5 FT300.37.139 Assistant gear bearing cover 1
6 GBT 93-10-A0P Washer 4
7 GBT 5783-M10X30-A2L Bolt 4
8 FT300.37J.180 Spacing sleeve 1
9 GBT 283-NF208E Bearing 1
10 GBT 894.1-40 Circlip 1
11 FT300.37.106a Reverse gear seat 1
12 FT300.37J.105 Assistant gear shifting sleeve 1
13 FT300.37.111 Spacing sleeve 1
14 Q/SFZ B019 Bearing K35X43X34ZW 1
15 FT450.37.103 Assistant gear driven gear 1
16 FT300.37J.182a Limitation circlip 1
17 GBT 894.1-35 Circlip 1
18 GBT 283-NUP307E Bearing 1
19 TB450.37J-01 Assistant gear driven shaft 1
20 JBT 7918-K25X31X20 Bearing 1

TB450.374B Gearbox control mechanism assembly 1
1 GBT 93-10 Washer 8
2 GBT 5783-M10X30-A3L Bolt 8
3 Q72114 Plug piece 1
4 GBT 308-8-G100-b Steel ball 3
5 FT300.37.135 Shift fork shaft positioning spring 3
6 FT300.37.145 Assistant gear shift fork 1
7 GBT 879.1-3X24 Pin 5
8 GBT 879.1-5X24 Pin 5
9 FT300.37.156 Assistant gear shift fork shaft 1
10 FT300.37.154 Assistant gear shift head 1
11 FT300.37.147 3rd and 4th gear shift fork 1
12 FT300.37.150 3rd and 4th gear shift fork shaft 1
13 FT300.37.152 1st and 2nd gear shift head 1
14 FT300.37.149 1st and 2nd gear shift fork shaft 1
15 FT300.37.148 1st and 2nd gear shift fork 1
16 TB450.374B-01 Shift lever dustproof cover 1

TB450.374B Gearbox control mechanism assembly 1
TB450.374B.1 Gearbox upper cover assembly 1
1 FT300.37J.016 Assistant gear control lever assembly 1
2 GBT 6172.1-M10-A2L Nut 2
3 TB450.374B.1.2 Assistant gear lever weldment 1
4 FT300.37.166a Gearshift lever dustproof cover 2
5 GBT 893.1-40 Circlip 2
6 FT800A.37.305 Nylon seat 2
7 GBT 5781-M8X20-A2L Bolt 8
8 GBT 93-8-A0P Washer 8
9 FT800A.37.326 Shift lever location pin 4
10 TF1004.374-02 Low-carbon steel wire SZ-1.4X250 2
11 FT300.37.180 Gearshift lever bracket 2
12 FT300.37.015 Main gear control lever assembly 1
13 TB450.374B.1.1 Main gear shift lever weldment 1
14 FT300.37.163a Gearbox upper cover 1
15 FT300.37.165 Gear shift lever spring 2
16 FT300.37.164 Gearshift lever spring circlip 2
17 FT300.37J.161 Assistant gear guide plate 1
18 GBT 854-8 Washer 4
19 GBT 5783-M8X16-A2L Bolt 4
20 FT300.37.162 Main gear guide plate 1
21 TB450.374B.1-01 Lower control lever 2
22 GBT 879.1-6X28 Spring pin 2
