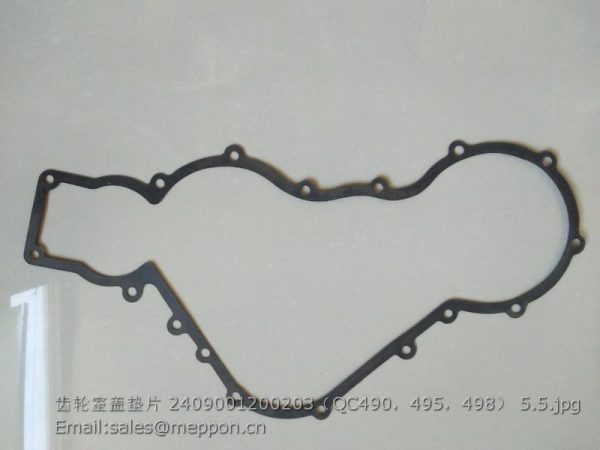

2409001200203 QC490 QC495 QC498 QUANCHAI

Description

TC02311020000 Front driving axle ssembly 1
TC02311020001 Front driving axle subssembly 1
TC02311020012 Left final transmission assembly 1
TC02311020013 Right final transmission assembly 1
1 TC02311020014 Front driving shaft 1
2 TC02311020015 Knurled bolt 6
3 TC02311010032 Floating oil seal 2
4 GBT5783-M10X40-10.9-A3L Hexagon head bolt 8
5 GBT93-10-A0P Standard spring washer 8
6 TC02311010050 End large cover 1
7 TC02311010060 Adjusting gasket Ⅰ 1
8 GBT276-6410 Deep grooved ball bearing 1
9 TC02311020019 End large gear 1
10 GBT276-6310 Deep grooved ball bearing 1
11 TC02311010055 Gasket 1
12 TC02311010054 Lock piece 1
13 GBT5783-M10X30-10.9-A3L Hexagon head bolt 2
14 GBT3452.1-243X5.30G O-ring sealant used for hydraulic or pneumatic parts 1
15 TC02311020020 End small gear 1
16 GBT276-6308 Deep grooved ball bearing 1
17 TC02311010059 Adjusting gasket Ⅱ 1
18 GBT893.1-90 Circlip for hole 1
19 TC02311010058 Seal cover 1
20 GBT893.1-102 Circlip for hole 1
21 TD904.311K.1-13 Screw plug 2
22 GBT3452.1-21.2X2.65G O-ring sealant used for hydraulic or pneumatic parts 2
23 TC02311010047 Left final transmission housing 1
TC02311010048 Right final transmission housing 1
24 GBT301-51107 Thrust ball bearing 1
25 TC02311010057 Bushing 1
26 TC02311010056 End spline shaft 1
27 GBT6172.1-M16-04-A3L Hexagon thin nut 1
28 GBT5783-M16X40-10.9-A3L Hexagon head bolt 1

TC02311020000 Front driving axle assembly 1
TC02311020001 Front driving axle subassembly 1
TC02311020002 Left side transmission assembly 1
TC02311020003 Right side transmission assembly 1
1 TD800.311C.1-01 Oil cup dustproof cap 1
2 JBT7940.1-M10X1 Straight hydraulic grease nozzle 1
3 TC02311010041 Connecting cover 1
4 GBT9877.1-FB65X85X10D Rubber covered rotary shaft lip seal 2
5 GBT70.1-M8X25-8.8 Hexagon socket head cap screw 6
6 GBT93-8-A0P Standard spring washer 6
7 TC02311010044 Oil seal end cover 1
8 GBT3452.1-92.5X5.30G O-ring sealant used for hydraulic or pneumatic parts 1
9 GBT276-6211 Deep grooved ball bearing 1
10 TC02311010039 Bearing gasket 1
11 TC02311020018 Driven gear 1
12 TD904.311K.1-13 Screw plug 1
13 GBT3452.1-21.2X2.65G O-ring sealant used for hydraulic or pneumatic parts 1
14A TC02311020006 Right half axle housing 1
14B TC02311020004 Left half axle housing 1
15 TC02311020017 Driving gear 1
16 GBT276-6309 Deep grooved ball bearing 1
17 TC02311020005 Sleeve 1
18 TC02311010073 Adjusting gasket 1
19 GBT893.1-100 Circlip for hole 1
20 TC02311010074 Plug 2
21 TC02311010040 Adjusting gasket 1
22 TC02311010043 Sliding bearing 1
23 TC02311010042 Bushing 1
24 TD904.311K.1.6 Vent plug 1

TC02311020000 Front driving axle assembly 1
TC02311020001 Front driving axle subssembly 1
TC02311010002 Main reducer assembly 1
1 TC02311010018 Differential assembly 1
1.1 GBT70.1-M10X70-8.8 Hexagon socket head cap screw 6
1.2 GBT93-10 Standard spring washer 6
1.3 TC02311010027 Left housing of differential 1
1.4 TC02311010030 Half axle gear gasket 2
1.5 TC02311010035 Half axle gear 2
1.6 TC02311010033 Planetary gear shaft 1
1.7 TC02311010031 Planetary gear gasket 2
1.8 TC02311010034 Planetary gear 2
1.9 GBT119.1-8h8X45-A0P Column pin 1
1.10 GBT119.1-8h8X20-A0P Column pin 2
1.11 TC02311010028 Right housing of differential 1
2 GBT276-6216 Deep grooved ball bearing 2
3 TC02311010026 Main driven bevel gear unit 1
3.1 TC02311010029 Central transmission big bevel gear 1
3.2 TC02311010020 Driving bevel gear shaft 1
4 TC02311010019 Main reducer housing 1
5 TD904.311K.1-13 Screw plug 1
6 GBT3452.1-21.2X2.65G O-ring sealant used for hydraulic or pneumatic parts 1
7 TC02311010083 Driving bevel gear shaft adjsuting gasket 1
8 GBT297-32208 Tapered roller bearing 2
9 TC02311010022 Spacing sleeve 1
10 TC02311010023 Adjusting ring 1
11 GBT893.1-80 Circlip for hole 1
12 GBT9877.1-FB55X80X8D Rubber covered rotary shaft lip seal 1
13 GBT3452.1-41.2X3.55G O-ring sealant used for hydraulic or pneumatic parts 1
14 TC02311010025 Oil seal seat 1
15 GBT810-M36X1.5 Small round nut 2
16 GBT858-36 Thrust washer of round nut 1
17 TC02311010024 Spline protection sleeve 1
