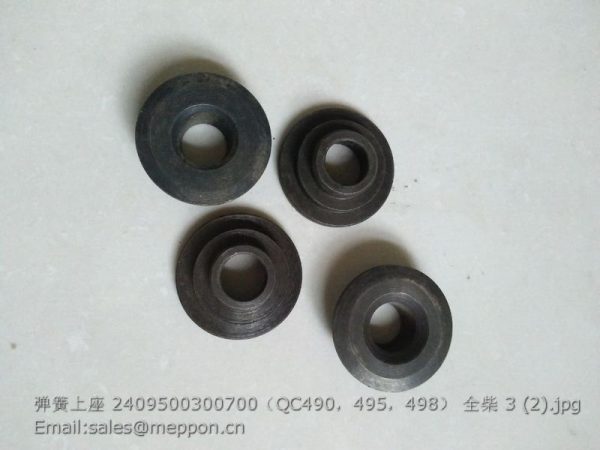

2409500300700 QUANCHAI QC490 QC495 QC498 VALVE SPRING UPPER SEAT

FT500A.56B.001 Suspension mechanism assembly 1
1 FT300.56A.018b Fixed clip combination, upper link 1
1.1 GBT 91-2X10-A0P Split pin 1
1.2 GBT 97.1-6-A0P Washer 1
1.3 FT300.56A.020b Base plate welded unit 1
1.4 FT300.56A.216 Fixing clip 1
2 FT500A.56.011a Upper link assembly 1
2.1 FT500A.56.026 Front adjusting link assembly, upper link 1
2.2 GBT 6173-M27X2-A3L Hexagon thin nut 1
2.3 FT500A.56.027 Adjustment solenoid weldment 1
2.4 JBT 7940.1-M6 Straight-through type forced filling oil cup 1
2.5 GBT 6173-M27X2-LH-A3L Hexagon thin nut 1
2.6 FT500A.56.024 Rear adjusting link assembly, upper link 1
2.7 FT65.56.015 Lockpin assembly, upper link 1
3 FT500A.56.101 Connecting pin, upper clevis, lift link 2
4 FT500A.56.013 Lift link assembly 2
4.1 FT500A.56.107 Upper clevis, lift link 1
4.2 GBT 6173-M27X2-A3L Hexagon thin nut 1
4.3 FT500A.56.033 Solenoid weldment, lift link 1
4.4 JBT 7940.1-M6 Straight-through type forced filling oil cup 1
4.5 GBT 6173-M27X2-LH-A3L Hexagon thin nut 1
4.6 FT500A.56.108 Lower clevis, lift link 1
5 FT500A.56.118 Washer 2
6 GBT 91-5X40-A0P Pin 2
7 FT300.56A.112 Connecting pin, lower clevis, lift link 2
8 GBT 97.1-24-A0P Flat washer 2
9 GBT 91-5X32-A0P Split pin 2

TC02581160000K Oil pipe filter assembly of oil pump 1
1 GBT 5783-M8X35-8.8-A2L Hexagon head bolt 3
2 GBT 93-8-A0P Standard spring washer 11
3 TC04581080001 Pressure oil pipe weldment 1 1
4 GBT 3452.1-18.0X2.65G O-ring sealant used for hydraulic or pneumatic parts 1
5 TC04581080005 Pressure oil pipe assembly 2 1
6 FT354.58A.030 Quick-adapt connector 1
7 TC04581080003 Pressure oil pipe weldment 3 1
8 TB504.581F.1 Gear pump 1
9 GBT 3452.1-21.2X1.80G O-ring sealant used for hydraulic or pneumatic parts 1
10 FT400.58X.015 Oil suction short pipe weldment 1
11 GBT 70.1-M8X35-8.8-A2L Hexagon socket cap head screw 4
12 Q67632 B-type worm drive hose hoop 4
13 FT300.58A.104 Oil suction rubber pipe 1
14 FT400.58X.040 Oil filter assembly 1
15 GBT 5783-M8X16-8.8-A2L Hexagon head bolt 2
16 GBT 95-8-A0P Plain washer 2
17 FT300.58.013 Oil pipe clip and rubber pad paste 4
18 FT450.58X.011 Oil suction pipe weldment 1
19 GBT 5783-M6X35-8.8-A2L Hexagon head bolt 2
20 FT450.58.103 Oil suction hose 1
21 GBT 93-6-A0P Standard spring washer 2
22 GBT 6170-M6-8-A2L Hexagon nut, style 1 2
23 FT300.58.101 Hollow bolt 1
24 JBT 982-22 Compound seal washer 2
25 GBT 5783-M8X25-8.8-A2L Hexagon head bolt 2

TC04582040000 Multi-way valve control mechanism assembly 1
1 TC04582010024 Straight thread connector M22-16 assembly 4
2 FT354.58A.030 Quick-adapt connector 4
3 FT354.58A.104 Oil pipe connector 4
4 GBT 3452.1-12.5X2.65G O-ring sealant used for hydraulic or pneumatic parts 4
5 GBT 6173-M22X1.5-05-A3L Hexagon thin nut 4
6 TC04582010007 Multi-way valve outlet oil pipe assembly-3 1
7 TC04582010011 Multi-way valve outlet oil pipe assembly-1 1
8 TC04582010013 Multi-way valve outlet oil pipe assembly-2 1
9 TC04582010009 Multi-way valve outlet oil pipe assembly-4 1
10 TC04582010023 Multi-way valve assembly DF 50F1 1

TC04582020000 Multi-way valve control mechanism assembly 1
1 TC04582010005 Multi-way valve oil inlet pipe assembly-1 1
2 TC04582010025 Straight thread connector M22-20 assembly 2
3 FT354.58D.015c Compound seal washer 1
4 TC04582010026 Adjustable joint M22-20 assembly 1
5 TC04582010018 Multi-way valve oil outlet pipe assembly-1 1
6 GBT 3452.1-18.0X2.65G O-ring sealant used for hydraulic or pneumatic parts 1
7 TC04582010003 Multi-way valve oil inlet pipe assembly-2 1
8 FT354.58A.018b Multi-way valve oil outlet pipe assembly-2 1
9 GBT 5783-M8X30-8.8-A2L Hexagon head bolt 2
10 GBT 93-8-A0P Standard spring washer 2
11 FT654.58B.102 Straight thread connector 1, body 1
12 TC04582010001 Multi-way valve oil return pipe assembly 1
13 GBT 6170-M10-8-A3L Hexagon nut, style 1 3
14 GBT 93-10-A0P Standard spring washer 4
15 GBT 5782-M10X70-8.8-A2L Hexagon head bolt 3
16 GBT 5783-M10X20-8.8-A3L Hexagon head bolt 1

TC04582040000 Multi-way valve control mechanism assembly 1
1 GBT 68-M4X10-4.8-A2L Slotted countersunk head screw 2
2 TB604.582G-01 Handle head 2
3 TB504.552A-02b Dustproof sleeve 1
4 GBT 894.1-18 Circlip for shaft 2
5 TB504.552A-03 Nylon washer 1
6 TB504.582H.3a Multi-way valve control lever pressing unit 1 1
6.1 TB504.582H.3A.1 Multi-way valve control lever weldment 1 1
6.2 TB504.552A.1-01 Nylon spacing sleeve 1
7 TB504.582H.4a Multi-way valve control lever pressing unit 2 1
7.1 TB504.582H.4A.1 Multi-way valve control lever weldment 2 1
7.2 TB504.552A.1-01 Nylon spacing sleeve 1
8 GBT 5783-M8X35-8.8-A2L Hexagon head bolt 2
9 GBT 93-8-A0P Standard spring washer 2
10 GBT 97.1-8-A0P Plain washer 2
11 TB504.552A-01 Rotary shaft 1
12 GBT 882-B6X28 Pin shaft 8
13 FT804A.58L.133 Right-hand pull rod fork 2
14 GBT 97.1-6-A0P Plain washer 10
15 GBT 91-2X12-A0P Split pin 10
16 GBT 6170-M8-8-A2L Hexagon nut, style 1 2
17 TB504.582A-01 Screw lever 2
18 FT804A.58L.136 Left-hand pull rod fork 2
19 GBT 882-B6X22 Pin shaft 2
20 TB504.582A.2 Connecting plate weldment 2 1
21 TB504.582A.1 Connecting plate weldment 1 1
22 FT654.58.103 Connecting plate 4
23 GBT 68-M6X16-4.8-A2L Slotted countersunk head screw 4
24 TB504.552A-06 Dustproof sleeve pressing plate 1
