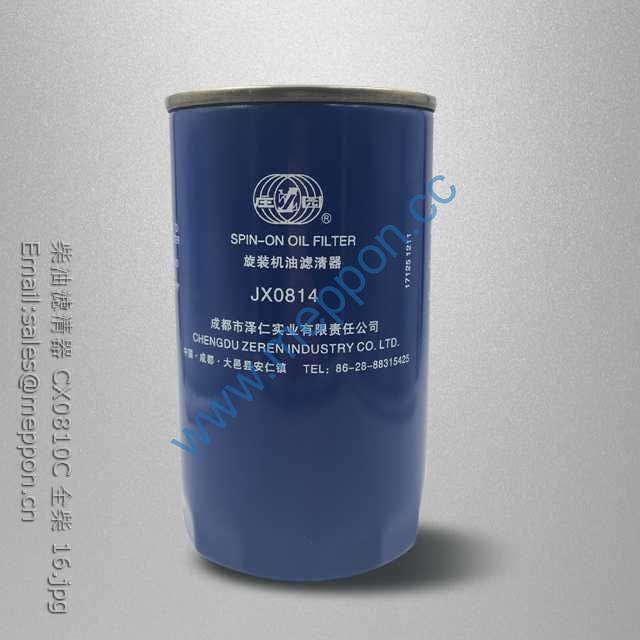

CX0810C QUANCHAI FUEL FILTER 2410201250001 4102T-12130

Description

CX0810C QUANCHAI FUEL FILTER 2410201250001 4102T-12130

TB450.482A Body Wire Harness Mounting Assy 1
1 GBT 818-M6X25-4.8-A2L Cross Recessed Pan Head Screw 2
2 TB400.482A.2 Central Electrical Box 1
2.1 TC02482010003K Warning Fuse (10A) 8
TC02482010004K Warning Fuse (15A) 2
TC02482010006K Warning Fuse (30A) 3
2.2 FT300.48D.2.2.1 Voltage Regulator 1
2.3 FT300.48D.2.2.2 Preheating Relay 1
2.4 FT300.48.512 Main Power Relay 1
2.5 FT300.48.513 Electronic Flasher 1
3 GBT 97.1-6-A0P Flat Washer 2
4 GBT 93-6-A0P Standard Spring Washer 2
5 GBT 6170-M6-8-A2L Hexagon Nut , Style 1 2
6 FT65.48.095 Harness Fastening Clamp (A) 1
7 TB450.482.2 Startup Relay 1
8 FT300.48C.2.1 Body Wire Harness Assy 1
9 FT300.48.064 Ignition Lock 1
10 GBT 818-M4X10-4.8-A2L Cross Recessed Pan Head Screw 5
11 GBT 93-4-A0P Standard Spring Washer 5
12 FT300.48.071a Fuel Capacity Sensor 1
13 TB450.482.4 Lh Rocker Switch 1
14 TB450.482N.4 Right Rocker Switch Assembly 1

TB450.483 Front Lamp Harness Installation Assembly 1
1 FT400.48.023 Front Lamp Harness Assembly 1
2 FT65.48.097 Harness Fixing Clamp (2) 6
3 GBT6170-M6-8-A2L Hexagon Nut, Type-1 3
4 GBT93-6-A0P Standard Spring Washer 3
5 GBT97.1-6-A0P Flat Washer 3
6 FT65.48.340 Horn Assembly 1
7 GBT5783-M6X16-8.8-A2L Hexagon Bolt 1
8 TB400.483A.1a Front Combined Lamp Assembly 1
9 GBT97.1-8-A0P Flat Washer 2
10 GBT93-8-A0P Standard Spring Washer 2
11 GBT5783-M8X16-8.8-A2L Hexagon Bolt 2

TB450.484G Rear Lamp Wire Harness Mounting Assy 1
1 FT300.48C.211 Mounting Plate, Brake Switch 1
2 GBT 6170-M5-8-A2L Hexagon Nut , Style 1 3
3 FT300.48.033 Brake Lamp Switch 2
4 FT300.48.053a Rear Light 2
5 TB450.484M.1a Rear Lamp Harness Assy 1
6 FT65.48.093 Threading Rubber Ring (A) 2
7 FT65.48.094 Threading Rubber Ring (B) 2
8 FT300.48.052a Tail Lamp 2
9 TD900.484.2 Rear Trailer Socket 1
10 GBT 818-M5X35-4.8-A1L Cross Recessed Pan Head Screw 3
11 GBT 97.1-5-A0P Washer 3
12 GBT 93-5-A0P Washer 3
13 TA600.486-01 Wire Harness Fixing Clamp 2
14 FT800A.48L.106 Harness Clip 1

TB450.485A Battery Installation Assembly 1
1 GBT6170-M8-8-A2L Hex Nut, Style 1 2
2 GBT93-8-A0P Standard Spring Washer 2
3 GBT97.1-8-A0P Flat Washer 2
3.1 TG1204.485-02 Battery Press Plate 1
3.2 TB400.485A.2 Battery Bonding 1
4 TB400.485A.1 Power Source Wire Assembly 1
5 FT450.48.010 Maintenance Free Lead Acid Battery 1
6 TB450.485.2 Harness Fixing Clamp 1
7 TB450.485.1 Battery Shock Absorbing Mat 2
8 TG1204.485-01 Battery U-Shape Pull Rod 1
9 Q67405200 Plastic Hoop Belt 1

TB400.487 Combined Instrument Assembly 1
1 TB400.487.1 Combined Instrument Assembly 1
