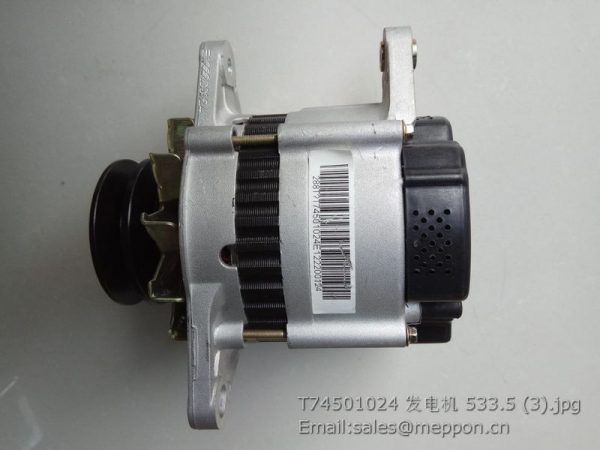

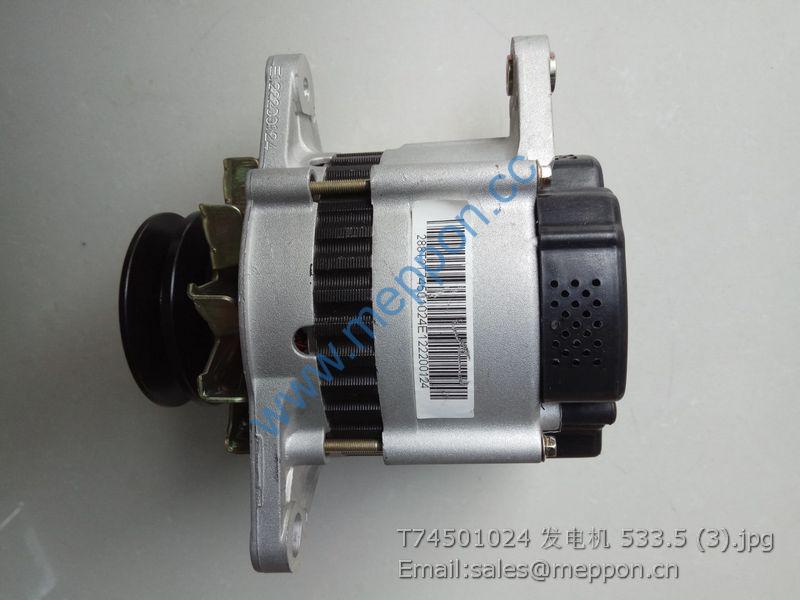

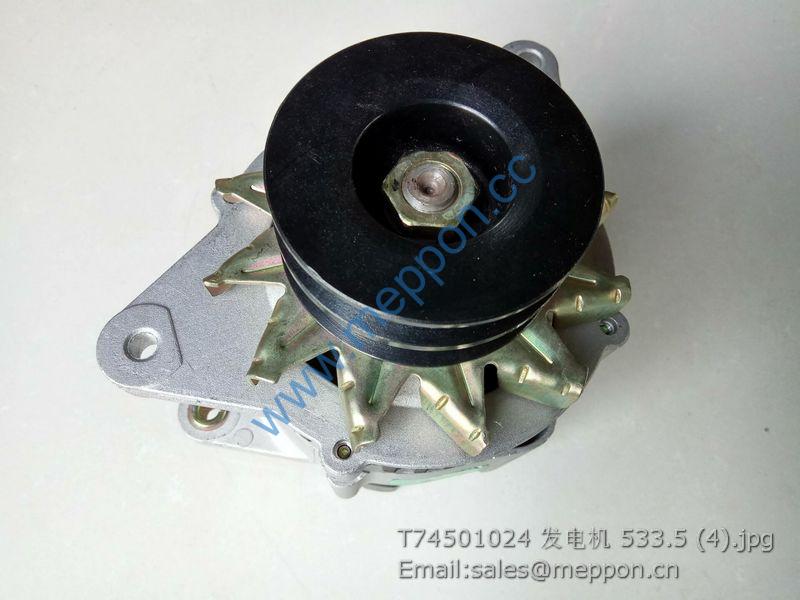

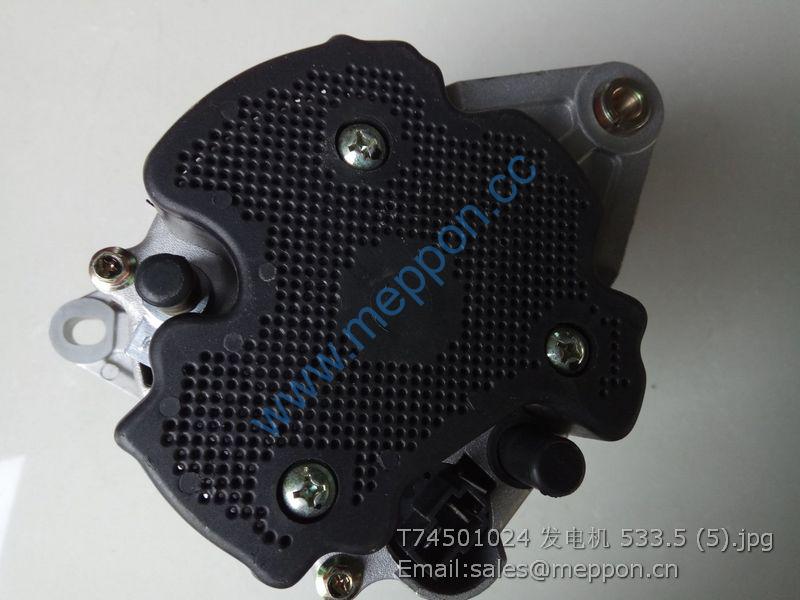

T74501024 LOVOL ENGINE ALTERNATOR

TS06502020000 Assistant Oil Tank Installation Assembly 1
1 Q67645 Hoop 4
2 TD800.502-03a Main And Assistant Oil Tank Connecting Pipe 1
3 TD800.502-05 Rubber Connecting Pipe 2
4 TD800.502.3 Assistant Oil Tank Belt Weldment 2
5 GBT 6170-M10-A3L Nut 4
6 TD800.502-02 Assistant Oil Tank Belt Rubber Strip 2
7 TS06502020005 Assistant Oil Tank Assembly 1
7.1 GBT 818-M5X10 Screw 5
7.2 TS0450110006 Breather Assembly 1
7.3 TS06502020001 Assistant Oil Tank Weldment
7.4 TS09580010005 O-Ring 1
7.5 FT65.50.226 Oil Drainage Screw Plug 1
8 TD800.502-01 Oil Tank Rubber Pad 4
9 TS06502020003 Rear Bracket Weldment Of Assistant Oil Tank 1
10 GBT 5783-M10X20-A3L Bolt 4
11 GBT 93-10-A0P Washer 4
12 TD800.502.2 Assistant Oil Tank Bracket Weldment 1

TD800.503A Oil Inlet/Outlet Pipe Assembly 1
1 Q67627 B-Type Worm Drive Hose Hoop 2
2 FT700.50G.121 Oil Return Pipe 1
3 FT65.50.106 Hollow Bolt 2
4 JBT 982-14 Combined Seal Gasket 4
5 FT800A.50.162 Oil Pipe Joint 1
6 FT800A.50P.081 Oil Pipe Assembly 1
7 GBT 5783-M8X30-8.8-A2L Hexagon Head Bolt 2
8 GBT 97.1-8-A0P Plain Washer 2
9 GBT 93-8-A0P Standard Spring Washer 2
10 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 2
11 TD800.503A-01 Assembly Bracket 1
12 FT800A.50.061a Diesel Filter Assembly 1
13 TD800.503J.1 Oil Delivery Pipe Assembly 1
14 Q67405300 Plastic Fastening Strap 1

FT800.74B.001 Front Counterweight Assembly 1
1 GBT 5785-M20X1.5X80-8.8-A3L Hex Bolt 2
2 GBT 97.1-20-A0P Flat Washer 2
3 FT650.74.107 Towing Lug 1
4 TA700.741-02 Towing Plate 1
5 FT800.74B.010 Small Front Counterweight Assembly 1
6 GBT 5783-M16X35-8.8-A3L Hex Bolt 8
7 GBT 93-16-A0P Standard Spring Washer 8
8 GBT 97.1-16-A0P Flat Washer 8
9 TC05742010001 Left Fixing Plate Welding Assembly 1
10 TC05742010002 Right Fixing Block Welding Assembly 1

FT800.74B.001 Front Counterweight Assembly 1
FT800.74B.010 Small Front Counterweight Assembly 1
1 GBT 6170-M16-8-A3L Style 1, Hex Nut 4
2 GBT 93-16-A0P Spring Washer 4
3 GBT 97.1-16-A0P Washer 4
4 FT800.74B.106a Counterweight 9
5 FT800.74B.104 Counterweight 2
6 FT700.74B.107 Connecting Bolt 2

FT800.74B.002 Front Ballast Bracket Assembly 1
1 GBT 5785-M18X1.5X70-A3L Bolt 6
2 GBT 93-18-AOP Spring Washer 6
3 GBT 97.1-18-AOP Flat Washer 6
4 FT800.74B.105a Ballast Bracket 1

FT800.91B.001 Rear Ballast Assembly 1
1 GBT 5783-M16X40-A3L Bolt 6
2 GBT 93-16-AOP Washer 12
3 FT800.34.108 Flat Washer 12
4 FT804.91.105 Rear Ballast 2
5 FT804.91.102 Ballast Screw II 6
6 FT800.91B.103 Rear Ballast II 2
7 FT804.91.101 Ballast Screw I 6
8 GBT 97.1-16-AOP Flat Washer 6
9 GBT 6170-M16-A3L Nut 6

TS06481120000 Harness Installation Assembly, Engine 1
1 TF1204.481B-01 Harness Fastener 3
2 GBT97.1-10-A0P Plain Washer 3
3 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 3
4 FT65.48.072 Water Temperature Sensor 1
5 GBT93-10-A0P Standard Spring Washer 3
6 Q67405200 Plastic Fastening Belt 1
7 TS06481010013 Engine Harness Assembly 1
8 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 2
9 TS10481010002 Rotating Speed Sensor 1
10 FT65.48.073a Oil Pressure Alarm 1
11 Q67405100 Plastic Fastening Belt 4
12 GBT818-M4X10-4.8-A2L Cross Recessed Pan Head Screw 5
13 GBT93-4-A0P Standard Spring Washer 5
14 TD800.484.2 Oil Amount Sensor 1
15 TS04481010003 Bonding 1
16 GBT93-8-A0P Standard Spring Washer 1
17 TS06481070004 Preheating Plug Transit Wire 1
18 GBT97.1-8-A0P Plain Washer 1
19 FT304.48L.203 Harness Fastener 3
20 TS06481070003 Fuse Fixing Seat 1
21 Q67405400 Plastic Fastening Belt 1
22 TS06481010011 Air Conditioner Dryer Harness 1

TS06482010000K Harness Installation Assembly, Body 1
1 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 5
2 GBT93-8-A0P Standard Spring Washer 5
3 GBT97.1-8-A0P Plain Washer 5
4 FT65.48.095 Harness Fastener (1) 2
5 TS06482010005 Harness Fastener 3
6 FT800A.48L.088 Parking Brake Switch 1
7 FT65.48.094 Wire Through Ring (2) 2
8 TS06482010013 Body Harness Assembly 1
9 TS04482010006 Two-Function Rocker Switch 1
10 TB550.482.3 Ignition Lock 1
11 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 4
12 FT300.48.055 Starting Relay 1
13 GBT97.1-6-A0P Plain Washer 8
14 GBT93-6-A0P Standard Spring Washer 8
15 TS06482010002 Control Panel Rocker Switch 1
16 GBT6170-M4-8-A2L Hexagon Nut, Style 1 2
17 GBT93-4-A0P Standard Spring Washer 2
18 FT800.48B.068 Work Lamp Socket 1
19 GBT68-M4X35-4.8-A1L Slotted Countersunk Head Screw 2
20 TB550.484.2 Brake Lamp Switch 2
21 TS06482010010K Central Electric Box Assembly 1
21.1 FT300.48D.2.2.2 Preheating Relay 2
21.2 GE20H16Y.34.6-04 Main Power Source Relay 1
21.3 TS06482010004 Double-Contact Relay 2
21.4 FT300.48.513 Electronic Flasher 1
21.5 TD9600000500 Common Type Fuse (5A) 7
21.5 TD9600000700 Common Type Fuse (10A) 5
21.5 TD9600000800 Common Type Fuse (15A) 4
21.5 TD9600000900 Common Type Fuse (20A) 2
21.5 TD9600001100 Common Type Fuse (25A) 1
22 GBT818-M6X25-4.8-A2L Cross Recessed Pan Head Screw 4

23 TS06482010006 Antenna 1
24 TS04482010010 Mp3 Player 1
25 Q67405100 Plastic Fastening Strap 2
26 TS06482010009 Electronic Clock 1
27 3203505D9-L Tie Band 12
28 TS06482010011 Wire Through Ring 1

TC05483040000K Harness Installation Assembly, Front Lamp 1
1 TC05483040003K Right Headlamp Assembly 1
2 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
3 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 1
4 GBT93-8-A3L Standard Spring Washer 1
5 GBT97.1-8-A3L Plain Washer 1
6 FT65.48.340 Horn Assembly 1
7 TC05483040002K Left Headlamp Assembly 1
8 GBT97.1-6-A3L Plain Washer 8
9 GBT93-6-A3L Standard Spring Washer 8
10 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 4
11 TS04483010007 Washer 2
12 FT65.48.095 Harness Fastener (1) 10
13 GBT6170-M6-8-A2L Hexagon Nut, Style 1 4
14 TC05483040001K Headlamp Harnss Assembly 1
15 3203505D9-L Lock Cable Ties 3
16 TS06483010004 Decorative Strip 1
17 GBT97.1-5-A3L Plain Washer 2
18 GBT93-5-A3L Standard Spring Washer 2
19 GBT6170-M5-8-A2L Hexagon Nut, Style 1 2
