HELI CPYD15C-KU1H single fuel hydraulic forklift parts catalog 12
|

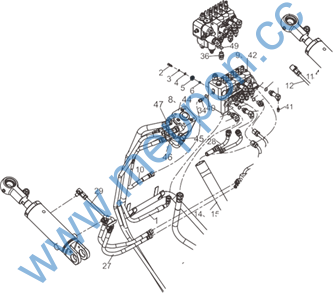

H1H27-60001-1 01 Hydraulic pipeline system |
|
H1H27-60001-1 01 液压管路系统(公制) |
|
39 4949 38 49 37 49 40 36
35 |
|
H1H27-60001-1 01 Hydraulic pipeline system |
|||||||
|
H1H27-60001-1 01 液压管路系统(公制) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
42 |
H1E97-30441 |
00 |
Four-throw control valve |
四片多路阀 |
1 |
HRH1E9731 1,1- 1.5t,enhanc ed whole OPS |
HRH1E9731 1,1-1.5t,增强 全套 OPS |
|
42 |
H1E97-30441G |
00 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH1E9731 1,1- 1.5t,enhanc ed whole OPS |
HRH1E9731 1,1-1.5t,增强 全套 OPS |
|
42 |
H1E97-31421 |
00 |
Two-throw control valve |
二片多路阀 |
1 |
HRH1E9731 1,1.8- 2t,enhanced whole OPS |
HRH1E9731 1,1.8-2t,增强 全套 OPS |
|
42 |
H1E97-31431 |
00 |
Three-throw control valve |
三片多路阀 |
1 |
HRH1E9731 1,1.8- 2t,enhanced whole OPS |
HRH1E9731 1,1.8-2t,增强 全套 OPS |
|
42 |
H1E97-31431G |
00 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH1E9731 1,1.8- 2t,enhanced whole OPS |
HRH1E9731 1,1.8-2t,增强 全套 OPS |
|
42 |
H1E97-31441 |
00 |
Four-throw control valve |
四片多路阀 |
1 |
HRH1E9731 1,1.8- 2t,enhanced whole OPS |
HRH1E9731 1,1.8-2t,增强 全套 OPS |
|
42 |
H1E97-31441G |
00 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH1E9731 1,1.8- 2t,enhanced whole OPS |
HRH1E9731 1,1.8-2t,增强 全套 OPS |
|
42 |
H2HD7-31421 |
00 |
Two-throw control valve |
二片多路阀 |
1 |
HRH2HD73 02,1-1.5t whole OPS |
HRH2HD73 02,1-1.5t 全 套 OPS |
|
42 |
H2HD7-31431 |
00 |
Three-throw control valve |
三片多路阀 |
1 |
HRH2HD73 02,1-1.5t whole OPS |
HRH2HD73 02,1-1.5t 全 套 OPS |
|
42 |
H2HD7-31431G |
00 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH2HD73 02,1-1.5t whole OPS |
HRH2HD73 02,1-1.5t 全 套 OPS |
|
42 |
H2HD7-31441 |
00 |
Four-throw control valve |
四片多路阀 |
1 |
HRH2HD73 02,1-1.5t whole OPS |
HRH2HD73 02,1-1.5t 全 套 OPS |
|
42 |
H2HD7-31441G |
00 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH2HD73 02,1-1.5t whole OPS |
HRH2HD73 02,1-1.5t 全 套 OPS |
|
42 |
H1M57-31421 |
00 |
Two-throw control valve |
二片多路阀 |
1 |
HRH2HD73 02,1.8-2t whole OPS |
HRH1M573 02,1.8-2t 全 套 OPS |
|
42 |
H1M57-31431 |
00 |
Three-throw control valve |
三片多路阀 |
1 |
HRH2HD73 02,1.8-2t whole OPS |
HRH1M573 02,1.8-2t 全 套 OPS |
|
42 |
H1M57-31431G |
00 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH2HD73 02,1.8-2t whole OPS |
HRH1M573 02,1.8-2t 全 套 OPS |
|
42 |
H1M57-31441 |
00 |
Four-throw control valve |
四片多路阀 |
1 |
HRH2HD73 02,1.8-2t whole OPS |
HRH1M573 02,1.8-2t 全 套 OPS |
|
42 |
H1M57-31441G |
00 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH2HD73 02,1.8-2t whole OPS |
HRH1M573 02,1.8-2t 全 套 OPS |
|
42 |
H2MD7-30421 |
01 |
Two-throw control valve |
二片多路阀 |
1 |
HRH2MD73 01,1.8-2t |
HRH2MD73 01,1.8-2t |
|
42 |
H2MD7-30431 |
02 |
Three-throw control valve |
三片多路阀 |
1 |
HRH2MD73 01,1.8-2t |
HRH2MD73 01,1.8-2t |
|
42 |
H2MD7-30431G |
01 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH2MD73 01,1.8-2t |
HRH2MD73 01,1.8-2t |
||
|
H1H27-60001-1 01 Hydraulic pipeline system |
|||||||||
|
H1H27-60001-1 01 液压管路系统(公制) |
|||||||||
|
39 4949 38 49 37 49 40 36
35 |
|||||||||
|
H1H27-60001-1 01 Hydraulic pipeline system |
|||||||
|
H1H27-60001-1 01 液压管路系统(公制) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
42 |
H2MD7-30441 |
01 |
Four-throw control valve |
四片多路阀 |
1 |
HRH2MD73 01,1.8-2t |
HRH2MD73 01,1.8-2t |
|
42 |
H2MD7-30441G |
01 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH2MD73 01,1.8-2t |
HRH2MD73 01,1.8-2t |
|
42 |
H2HD7-30421 |
00 |
Two-throw control valve |
二片多路阀 |
1 |
HRH2HD73 01,1-1.5t |
HRH2HD73 01,1-1.5t |
|
42 |
H2HD7-30431 |
00 |
Three-throw control valve |
三片多路阀 |
1 |
HRH2HD73 01,1-1.5t |
HRH2HD73 01,1-1.5t |
|
42 |
H2HD7-30431G |
00 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH2HD73 01,1-1.5t |
HRH2HD73 01,1-1.5t |
|
42 |
H2HD7-30441 |
00 |
Four-throw control valve |
四片多路阀 |
1 |
HRH2HD73 01,1-1.5t |
HRH2HD73 01,1-1.5t |
|
42 |
H2HD7-30441G |
00 |
Four-throw control valve |
四片多路阀(带过载) |
1 |
HRH2HD73 01,1-1.5t |
HRH2HD73 01,1-1.5t |
|
43 |
G15X7-10101 |
01 |
Gear pump |
齿轮油泵 |
1 |
||
|
44 |
H1M54-10111 |
02 |
Steering unit |
转向器 |
1 |
||
|
45 |
G7B37-63501 |
00 |
Straight joint |
直通接头 |
1 |
HRG7B3760 2 |
HRG7B3760 2 |
|
46 |
JT6023-20001LOR |
00 |
Elbow |
60 度接头 |
3 |
Metric |
公制 |
|
47 |
H1M57-60251 |
01 |
Elbow |
60 度接头 |
1 |
||
|
48 |
Z6006-01082 |
00 |
O-ring P11:10.8×2.4 |
O 型密封圈 P11:10.8×2.4 |
1 |
JIS B2401 |
JIS B2401 |
|
49 |
Z6006-01782 |
00 |
O-ring |
O 型密封圈 17.8×2.4 |
8 |
JIS B2401 |
JIS B2401 |
|
50 |
Z6005-02873 |
00 |
O-ring |
O 型密封圈 P29:28.7×3.5 |
1 |
JIS B2401 |
JIS B2401 |
|
51 |
Z6006-01982 |
00 |
O-ring P20:19.8×2.4 |
O 型密封圈 P20:19.8×2.4 |
1 |
JIS B2401 |
JIS B2401 |
|
52 |
Z6053-01702 |
00 |
O-ring 17*2.65 |
O 型密封圈 17*2.65 |
1 |
GB3452.1- 92 |
GB3452.1- 92 |
|
H1H27-50001 00 Oil tank |
|
H1H27-50001 00 液压油箱辅件 |
|
|
|
H1H27-50001 00 Oil tank |
|||||||
|
H1H27-50001 00 液压油箱辅件 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
H1H27-50201 |
00 |
Cover plate ass’y |
油箱盖板总成 |
1 |
||
|
2 |
Z6700-03027 |
00 |
Washer |
组合垫圈 30 |
1 |
JB982-77 |
JB982-77 |
|
3 |
22197-52081 |
04 |
Plug |
放油螺塞 |
1 |
||
|
4 |
Z6701-00827 |
00 |
Washer |
组合垫圈 8 |
8 |
JB982-77 |
JB982-77 |
|
5 |
B0330-08016 |
00 |
Bolt |
螺栓 M8x16 |
8 |
GB5783-86 |
GB5783-86 |
|
6 |
H1H27-52011 |
00 |
Cover gasket |
油箱盖板垫 |
1 |
||
|
7 |
H1M57-50211 |
01 |
Cap ass’y |
加油盖总成 |
1 |
||
|
G15X7-10101 01 Gear pump |
|
G15X7-10101 01 齿轮油泵 |
|
|
|
G15X7-10101 01 Gear pump |
|||||||
|
G15X7-10101 01 齿轮油泵 |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
H1H27-60001-2 01 Hydraulic pipeline system |
|
H1H27-60001-2 01 液压管路系统(美制) |
|
39 4949 38 49 37 49 36
35 |
|
H1H27-60001-2 01 Hydraulic pipeline system |
|||||||
|
H1H27-60001-2 01 液压管路系统(美制) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
1 |
E2MD7-62201 |
03 |
Hose H.P. |
高压胶管总成 |
1 |
||
|
2 |
B0530-10020 |
00 |
Bolt |
螺栓 M10x1.25×20 |
4 |
GB5786-86 |
GB5786-86 |
|
3 |
B5050-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB93-87 |
GB93-87 |
|
4 |
B5210-00010 |
00 |
Washer |
垫圈 10 |
4 |
GB96-85 |
GB96-85 |
|
5 |
H24C7-42121 |
02 |
Cushion |
减震块 |
4 |
||
|
6 |
H2MD7-62131 |
01 |
Bushing |
衬管 |
4 |
||
|
7 |
E1H27-60201 |
00 |
Tilt steel tube |
倾斜钢管总成 |
1 |
||
|
8 |
E1M57-60231 |
00 |
Redirector ass’y |
转向器总成 |
1 |
Include 44- 47 |
包含 44-47 |
|
9 |
HRE1E97301 |
01 |
Control valve |
多路阀总成 |
1 |
For unloaded OPS,walking OPS,includi ng 34-39,41- 42 |
用于不装 OPS,行走 OPS,包含 34-39,41-42 |
|
9 |
HRE1E97321 |
01 |
Control valve |
多路阀总成 |
1 |
Used for whole OPS/upgrad ed OPS,includi ng 34-39,41- 42 |
用于全套 OPS/升级 OPS,包含 34-39,41-42 |
|
10 |
E1M57-60281A |
00 |
Steel pipe ass’y |
转向胶管钢管总成 |
1 |
||
|
11 |
JT8022-96371 |
00 |
Right angle joint |
直角接头 |
2 |
Include 48 |
包含 48 |
|
12 |
E1H27-60211 |
00 |
Steel tube ass’y(R.H.) |
右高压钢管总成 |
1 |
||
|
13 |
B0330-08016-X |
00 |
Combined bolt |
组合螺栓 M8x16 |
4 |
||
|
14 |
Z4592-32050 |
00 |
German type hose hoops |
德式喉箍 32~50 |
4 |
||
|
15 |
H1H27-62061 |
00 |
Hose |
多路阀回油胶管 |
1 |
||
|
16 |
Z4592-70090 |
00 |
Clamp 70-90 |
德式喉箍 70-90 |
1 |
||
|
17 |
H1H27-52021 |
00 |
Return oil filter |
回油滤油器 |
1 |
||
|
18 |
G2Q32-12371 |
00 |
Oil filter holder |
滤油器支架 |
1 |
||
|
19 |
H1H27-62071 |
00 |
Hose |
过渡回油胶管 |
1 |
||
|
20 |
Z7300-13210 |
00 |
Fuel hose |
燃油胶管 |
1 |
JB/T8406- 2008 type A |
JB/T8406- 2008 A 型 |
|
21 |
Z4503-12022 |
00 |
Clip |
喉箍 12~22 |
2 |
||
|
22 |
H1H27-50001 |
00 |
Oil tank |
液压油箱辅件 |
1 |
||
|
23 |
HRH1H27601 |
01 |
Pump pipe |
泵管路总成 |
1 |
Include 30- 33 |
包含 30-33 |
|
24 |
JT8021-96061 |
01 |
Straight joint |
直通接头 |
2 |
Include 52 |
包含 52 |
|
25 |
Z7801-0822514 |
00 |
Hose H.P. |
高压胶管 |
1 |
||
|
26 |
Z7801-0821514 |
00 |
Hose H.P. |
高压胶管 |
1 |
||
|
H1H27-60001-2 01 Hydraulic pipeline system |
|
H1H27-60001-2 01 液压管路系统(美制) |
|
39 4949 38 49 37 49 36
35 |
|
H1H27-60001-2 01 Hydraulic pipeline system |
|||||||
|
H1H27-60001-2 01 液压管路系统(美制) |
|||||||
|
序号 No. |
零部件代号 Part No. |
版本 Edition |
名称 Part name |
数量 Q’ty |
备注 Remark |
||
|
27 |
Z7801-8A04214 |
00 |
Hose H.P. 8Ax420 |
高压胶管 8Ax420 |
4 |
||
|
28 |
E1H27-60241 |
01 |
Steel ass’y |
起升过渡钢管总成 |
1 |
Used of walking OPS without OPS |
用于不装 OPS,行走 OPS |
|
28 |
E1H27-60231 |
00 |
Steel ass’y |
过渡钢管总成 |
1 |
Used for whole OPS/upgrad ed OPS |
用于全套 OPS/升级 OPS |
|
29 |
E1H27-60221 |
00 |
Left high pressure steel pipe |
左高压钢管 |
1 |
||
|
30 |
E24C7-60291 |
02 |
Elbow |
油泵接头 |
1 |
Include 49 |
包含 49 |
|
31 |
JT7021-10011 |
02 |
Straight joint |
直通接头 |
1 |
Include 50 |
包含 50 |
|
32 |
H1H27-62081 |
00 |
Oil suction hose |
吸油胶管 |
1 |
||
|
33 |
Z7802-1312522NL |
00 |
Hose H.P. |
高压胶管 |
1 |
||
|
34 |
JT8021-96021 |
01 |
Straight joint |
直通接头 |
1 |
Include 40 |
包含 40 |
|
35 |
JT8022-34011 |
04 |
Right angle joint |
直角接头 |
1 |
Include 51 |
包含 51 |
|
36 |
JT8022-34031 |
02 |
Right angle joint |
直角接头 |
1 |
Used without OPS,walking OPS,includi ng 49 |
用于不装 OPS,行走 OPS,包含 49 |
|
36 |
JT8021-34051 |
02 |
Straight joint |
直通接头 |
1 |
用于全套 OPS/升级 OPS,包含 49 |
|
|
37 |
JT6021-20151 |
00 |
Straight joint |
直通接头 |
2 |
Include 49 |
包含 49 |
|
38 |
JT8022-96041 |
04 |
Right angle joint |
直角接头 |
1 |
Three-piece valve,includi ng 49 |
三片阀,包含 49 |
|
38 |
JT8022-96041 |
04 |
Right angle joint |
直角接头 |
2 |
Four piece valve |
四片阀 |
|
39 |
JT8022-96031 |
04 |
Right angle joint |
直角接头 |
1 |
Three-piece valve,includi ng 49 |
三片阀,包含 49 |
|
39 |
JT8022-96031 |
04 |
Right angle joint |
直角接头 |
2 |
Four piece valve |
四片阀 |
|
40 |
Z6006-00982 |
00 |
O-ring P10A:9.8×2.4 |
O 型密封圈 P10A:9.8×2.4 |
1 |
||
|
41 |
E12A7-60251 |
01 |
Plug |
堵头 |
2 |
Three piece valve |
三片阀 |
|
41 |
E12A7-60251 |
01 |
Plug |
堵头 |
4 |
Four piece valve |
四片阀 |
|
42 |
H1E97-30421 |
00 |
Two-throw control valve |
二片多路阀 |
1 |
HRH1E9731 1,1- 1.5t,enhanc ed whole OPS |
HRH1E9731 1,1-1.5t,增强 全套 OPS |
|
42 |
H1E97-30431 |
00 |
Three-throw control valve |
三片多路阀 |
1 |
HRH1E9731 1,1- 1.5t,enhanc ed whole OPS |
HRH1E9731 1,1-1.5t,增强 全套 OPS |
|
42 |
H1E97-30431G |
00 |
Three-throw control valve |
三片多路阀(带过载) |
1 |
HRH1E9731 1,1- 1.5t,enhanc ed whole OPS |
HRH1E9731 1,1-1.5t,增强 全套 OPS |
