H1H24-30001 01 Steering axle

H1H24-30001 01 横置油缸转向桥

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

32

H24C4-12003

02

Dushing

衬套

8

H3HL5-60001 02 Electronic throttle mount

H3HL5-60001 02 电子油门安装

H3HL5-60001 02 Electronic throttle mount

H3HL5-60001 02 电子油门安装

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

K0W55-60301

02

Bracket assembly

电子油门踏板总成

1

2

B5310-00008

00

Washer

垫圈 8

2

GB97.1-85

GB97.1-85

3

B0330-08025

00

Bolt

螺栓 M8x25

2

GB5783-86

GB5783-86

4

B5050-00008

00

Washer

垫圈 8

2

GB93-87

GB93-87

5

B4130-00008

00

Nut

螺母 M8

2

GB6170-86

GB6170-86

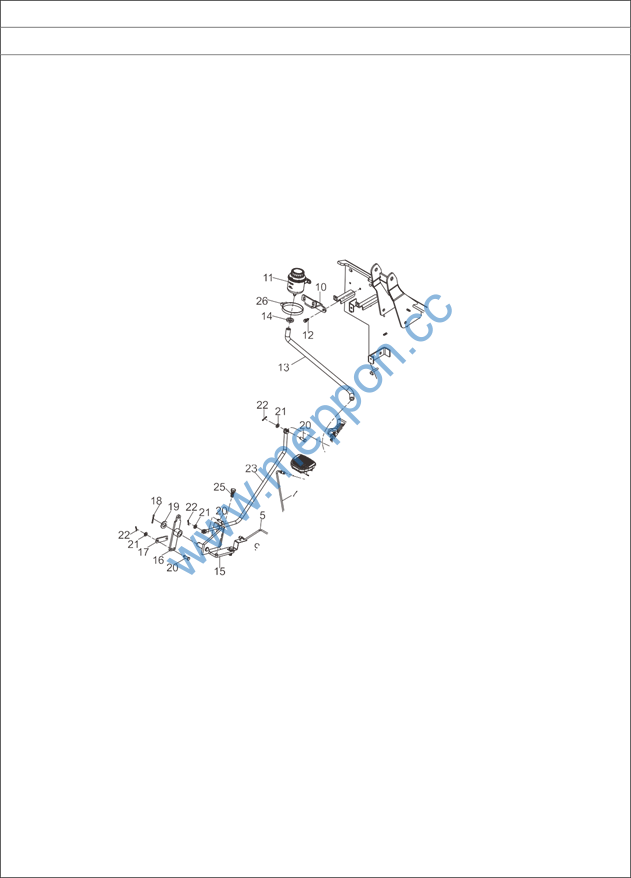

H1H25-40001 01 Service brake & inching control pedal ass’y

H1H25-40001 01 行车制动及微动操纵装置

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H2MD5-41801C

01

Brake & inching ass’y

制动微动总成

1

2

H2MD5-41651

01

Three way

三通接头

1

3

H1H25-42021

01

Tee-way bracket

三通接头支架

1

4

H1H25-41621

01

Hose ass’y

制动胶管总成

1

5

H1H25-40101

01

Brake steel tube L.H

左制动钢管总成

1

6

H1H25-40201

01

Brake steel tube R.H

右制动钢管总成

1

7

B5050-00010

00

Washer

垫圈 10

1

GB93-87

GB93-87

8

B0530-10025

00

Bolt

螺栓 M10x1.25×25

1

GB5786-86

GB5786-86

9

B0330-08030-X1

00

Combined bolt

组合螺栓 M8×30

1

GB/T 9074.15-88

GB/T 9074.15-88

10

H1H25-42041

01

Bracket

制动油壶支架

1

11

H1H25-42071

00

Oilcan

制动油壶

1

12

B0330-06016-X

00

Combined bolt

组合螺栓 M6×16

2

GB5783,GB 93,GB97.1

GB5783,GB 93,GB97.1

13

H08E5-48251

03

Hose

制动胶管

1

HRH08E541 1

HRH08E541 1

14

Z4592-10016

00

Clamp

德式喉箍 10~16

1

15

H2MD5-41511

01

Plate

固定板总成

1

16

H2MD5-41501

00

Plate

连接板总成

1

17

G27Z5-42091

02

Plate

连接板

1

18

B3010-3P226

00

Pin 3.2×26

销 3.2×26

1

GB91-86

GB91-86

19

B5310-00016

00

Washer

垫圈 16

1

GB97.1-85

GB97.1-85

20

B3220-08024

00

Pin B8x24

销 B8x24

4

GB882-86

GB882-86

21

B5310-00008

00

Washer

垫圈 8

4

GB97.1-85

GB97.1-85

22

B3010-2P516

00

Pin x16 2.5

销 2.5×16

4

GB91-86

GB91-86

23

H2MD5-41951

02

Guy cable

拉索总成

1

24

B0330-10020-X

00

Combined bolt

组合螺栓 M10x20

5

GB/T 9074.17-88

GB/T 9074.17-88

25

B0330-10025-X1

00

Combined bolt

组合螺栓 M10x25

2

GB/T 9074.15-88

GB/T 9074.15-88

26

Z4592-60080

00

Clamp 60~80

德式喉箍 60~80

1

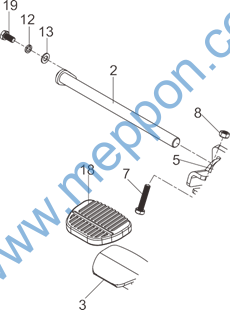

H2MD5-41801C 01 Brake & inching ass’y

H2MD5-41801C 01 制动微动总成

H2MD5-41801C 01 Brake & inching ass’y

H2MD5-41801C 01 制动微动总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H2MD5-41901

02

Bracket

制动微动支架

1

2

H2MD5-40601

02

Pin

销轴总成

1

3

H2MD5-40101

07

Inching pedal

微动踏板总成

1

4

H2MD5-40201C

00

Brake pedal assembly

制动踏板总成

1

5

H2MD6-42591

00

Torsion spring (left)

扭转弹簧（左）

1

6

H2MD6-42391

02

Spring R.H.

扭转弹簧(右)

1

7

B0330-08040

00

Bolt M8x40

螺栓 M8x40

1

GB5783-86

GB5783-86

8

B4123-00008

00

Nut

螺母 M8

1

GB6170-86

GB6170-86

9

B3220-08026

00

Pin

销 B8x26

1

GB882-86

GB882-86

10

B3010-2P516

00

Pin x16 2.5

销 2.5×16

1

GB91-86

GB91-86

11

H2MD5-40902

02

Brake pump

制动总泵

1

12

B5050-00008

00

Washer

垫圈 8

1

GB93-87

GB93-87

13

B5310-00008

00

Washer

垫圈 8

2

GB97.1-85

GB97.1-85

14

B0330-10030

00

Bolt

螺栓 M10x30

2

GB5783-86

GB5783-86

15

B5310-00010

00

Washer

垫圈 10

2

GB97.1-85

GB97.1-85

16

B5050-00010

00

Washer

垫圈 10

2

GB93-87

GB93-87

17

B4123-00010

00

Nut

螺母 M10

2

GB6170-86

GB6170-86

18

H2LD5-32451

00

Cover,pedal head

踏板垫

2

19

B0330-08016

00

Bolt

螺栓 M8x16

1

GB5783-86

GB5783-86

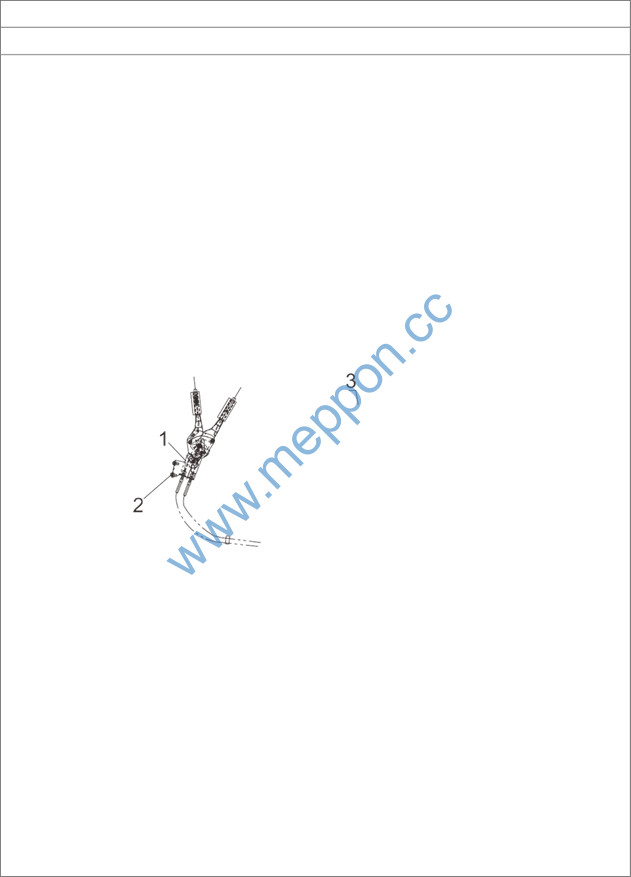

H1H25-50001 00 Brake lever

H1H25-50001 00 停车制动装置

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H1H25-50101

00

Hand brake

手制动总成

1

2

B0330-10025-X

00

Combined bolt

组合螺栓 M10x25

2

3

22495-55611

03

Pothook

手制动管托

1

H1H25-50101 00 Hand brake

H1H25-50101 00 手制动总成

H1H25-50101 00 Hand brake

H1H25-50101 00 手制动总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H9MF5-50301

00

Lever

手柄总成

1

2

Q64H5-52001

02

Sheath

手柄套

1

3

G2TA5-50401

01

Push rod

推杆总成

1

4

G2TA5-52121

02

Pin

固定销

3

5

B6250-00006

00

Snap ring

挡圈 6

9

GB896-86

GB896-86

6

B5310-00008

00

Washer

垫圈 8

10

GB97.1-85

GB97.1-85

7

G2TA5-52171

03

Sleeve

套筒 3

2

8

G2TA5-52111

03

Ratch

棘齿

1

9

G2TA5-52181

03

Sleeve

套筒 4

2

10

G2TA5-52141

02

pin

销轴

1

11

G2TA5-52161

03

Sleeve

套筒 2

1

12

G2TA5-52101

02

Pawl

棘爪

1

13

G2TA5-52151

03

Sleeve

套筒 1

1

14

239A5-58101

00

Washer

垫圈

2

15

G2TA5-52131

02

Pin

连接销

1

16

239A5-54101

00

Sleeve

套

2

17

239A5-50140

00

Rod

拉杆

1

18

G2TA5-52201

01

Bolt

螺栓 M8×55

1

GB29.1-88

GB29.1-88

19

239A5-53101

00

Shaft

轴

1

20

21235-52171G

01

Bracket

挂线架

1

21

Z2111-00810

00

Bushing

钢背轴承 0810

2

Q/AC40001- 2002

Q/AC40001- 2002

22

G2TA5-52191

01

Catch

弹簧卡

1

23

239A5-52101

00

Spring

弹簧

1

24

H1H25-50201

00

Bracket

手制动壳总成

1

25

A61Q2-40201

03

Control valve switch

多路阀控制开关

1

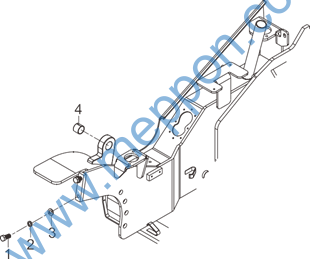

H1H26-10011 00 Frame

H1H26-10011 00 车架（二）
