H1H26-10011 00 Frame

H1H26-10011 00 车架（二）

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

B0530-16035

00

Bolt M16x1.5×35

螺栓 M16x1.5×35

4

GB5786-86

GB5786-86

2

B5050-00016

00

Washer

垫圈 16

8

GB93-87

GB93-87

3

B5310-00016

00

Washer

垫圈 16

4

GB97.1-85

GB97.1-85

4

Z2133-03530

00

Bushing 3530

钢背轴承 3530

2

Q/AC40001- 2002

Q/AC40001- 2002

5

G0176-10011

00

Magnet

磁铁Φ68/Φ37×14

4

6

B0330-16050

00

Bolt M16x50

螺栓 M16x50

4

GB5783-86

GB5783-86

7

B4130-00016

00

Nut

螺母 M16

4

GB6170-86

GB6170-86

HRH1H26301 01 Counter weight mount

HRH1H26301 01 平衡重安装

HRH1H26301 01 Counter weight mount

HRH1H26301 01 平衡重安装

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H1J26-32011

00

Counter weight

平衡重(2t,无字)

1

1

H1J26-32001

00

Counter weight

平衡重（2.0t）

1

1

H1H26-32011

00

Counter weight

平衡重(1.8t,无字)

1

1

H1H26-32001

00

Counter weight

平衡重（1.8t）

1

1

H1G26-32011

00

Counter weight

平衡重(1.5t,无字)

1

1

H1G26-32001

00

Counter weight

平衡重（1.5t）

1

2

25596-32051

03

Pin,drop

牵引销

1

3

B0230-30180

00

Bolt M30x180

螺栓 M30x180

1

GB5782-86

GB5782-86

3

B0230-30140

00

Bolt M30x140

螺栓 M30x140

1

GB5782-86

GB5782-86

3

B0230-30110

00

Bolt M30x110

螺栓 M30x110

1

GB5782-86

GB5782-86

4

B5050-00030

00

Washer 30

垫圈 30

1

GB93-87

GB93-87

5

22216-30051

02

Washer

平垫圈

1

6

A24K6-32011

01

Cap

配重饰盖

2

7

H1H26-33021

00

Sound insulation cotton

隔音棉

2

8

H1H26-33031

00

Sound insulation cotton (left)

隔音棉(左）

1

9

H1H26-33041

00

Sound insulation cotton (right)

隔音棉(右）

1

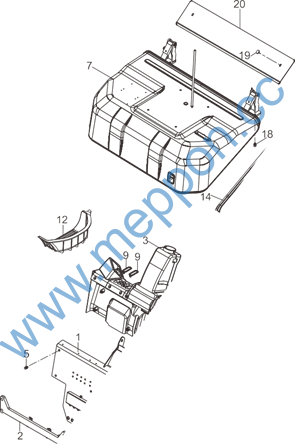

H1H26-40001 00 Hood

H1H26-40001 00 机罩类

H1H26-40001 00 Hood

H1H26-40001 00 机罩类

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H1H26-40081

00

Instrument stand

仪表架总成

1

2

H1H26-10701

01

Lever assembly

前拉杆总成

1

3

H1H26-40091

00

Instrument desk

仪表台总成

1

4

H2MD6-43521

00

Shield for adjusting handle

调节手柄护罩

1

5

B0330-10025-X

00

Combined bolt

组合螺栓 M10x25

4

6

H2MD6-42491

01

Plug

密封塞

2

7

HRH1H26405

00

Hood ass’y

机罩总成

1

Other seats

其他座椅

8

B0330-10020-X

00

Combined bolt

组合螺栓 M10x20

4

GB5783-86

GB5783-86

9

H1M56-42921

01

Cover

操纵杆盖板

4

10

H1M56-42881

01

Gas spring

气弹簧

1

11

H1H26-40601

01

Battery bracket

电瓶架

1

12

H1M56-42861

01

Treadboard R.H.

脚踏板(右)

1

13

B0330-08016-X1

00

Combined bolt

组合螺栓 M8x16

2

14

H1H26-43041

00

Seal

D 型密封条

2

15

HK2S6-42001

01

Boot

加油罩

1

单燃料不用

16

H1M56-42511

00

Rubber mat

加油罩橡胶垫

1

17

H1H26-42091

00

Tank top insulation cotton

水箱顶隔音棉

1

18

B0330-08025-X

00

Combined bolt

组合螺栓 M8x25

4

GB5783-86

GB5783-86

19

A22A6-42511

03

Screw

螺钉

2

20

H1H26-40301

00

Radiator cover assembly

水箱盖板总成

1

21

G27Z6-42171

02

Seal

密封条

1

22

H1H26-42081

00

Water tank cover insulation cotton

水箱盖板隔音棉

1

23

H1M56-42871

01

Treadboard L.H.

脚踏板(左)

1

24

H1M56-42471

00

Cap,dust

脚踏板防尘盖

4

25

H2MD6-43511

01

Shield for hand brake

手制动护罩

1

H1H26-40091 00 Instrument desk

H1H26-40091 00 仪表台总成

H1H26-40091 00 Instrument desk

H1H26-40091 00 仪表台总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

H1H26-40291

01

Instrument desk

仪表台总成

1

2

H2MD6-44121

00

Washer,lock

垫圈 6

15

GB97.1-85

GB97.1-85

3

H2MD6-44111

00

Screw

内六角螺钉 M6x16

13

GB70-85

GB70-85

4

H2MD6-44181

00

Screw

内六角螺钉 M6x10

2

GB70-85

GB70-85

5

B1210-05020

00

Screw M5x20

螺钉 M5x20

4

GB818-85

GB818-85

6

B5310-00005

00

Washer

垫圈 5

4

GB97.1-85

GB97.1-85

7

H2MD6-44141

00

Plug

仪表后盖板安装孔堵塞

4

HRH1H26405 00 Hood ass’y

HRH1H26405 00 机罩总成

HRH1H26405 00 Hood ass’y

HRH1H26405 00 机罩总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

0

H1H26-40721

00

Hood ass’y

机罩总成

1

Without travelling OPS,excludi

ng 11-13

不装行走 OPS,不含 11-13

0

H1H26-40731

00

Hood ass’y

机罩总成

1

Travelling/w hole OPS

行走/全套

OPS

0

H1H26-40741

00

Hood ass’y

机罩总成

1

Upgrade OPS

升级 OPS

1

H1H26-40201

00

The welding body of the hood

机罩焊接体

1

2

H1H26-42061

00

Seal

机罩密封条

1

3

KM916-42161

02

Shield

护罩

1

4

KM916-40811

02

Lock body assembly

锁体总成

1

5

B0330-08020-X

00

Combined bolt

组合螺栓 M8x20

2

GB/T 9074.17-88

GB/T 9074.17-88

6

H1H26-42051

00

Insulator

隔热垫

1

7

H24C6-42731

02

Clip

卡子

10

8

H1M56-40901

00

Rubber

缓冲胶垫

2

9

H1H26-40501

01

Hinge assembly Right

铰链总成右

1

10

H1H26-40401

01

Hinge assembly Left

铰链总成左

1

11

A65E5-10311

02

Rubber ring

出线胶圈

1

12

H2YY2-40906

01

Wiring harness

安全带开关过渡线

1

Upgrade OPS

升级 OPS

12

H2YY2-40903

00

Wiring harness

座椅开关过渡线

1

Travelling/w hole OPS

行走/全套

OPS

13

D12GZ15055

00

Ribbon

固定式扎带

1

14

A79S6-40151

02

Clip

资料夹

1

15

B2391-04008

00

Rivet

开口型铆钉 4×8

2

GB/T12618. 3-2006

GB/T12618. 3-2006

16

B0330-08035

00

Bolt

螺栓 M8x35

4

GB5783-86

GB5783-86

17

B5310-00008

00

Washer

垫圈 8

4

GB97.1-85

GB97.1-85

18

B5050-00008

00

Washer

垫圈 8

4

GB93-87

GB93-87

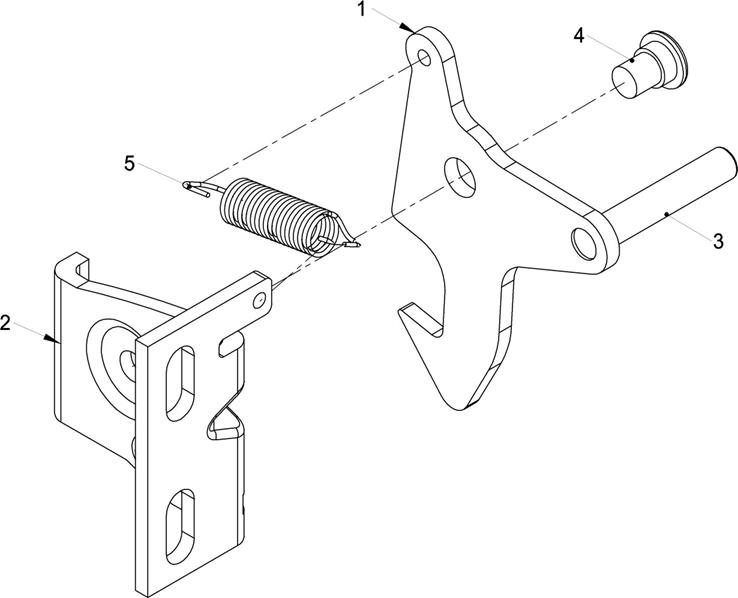

KM916-40811 02 Lock body assembly

KM916-40811 02 锁体总成

KM916-40811 02 Lock body assembly

KM916-40811 02 锁体总成

序号

No.

零部件代号

Part No.

版本

Edition

名称

Part name

数量

Q’ty

备注

Remark

1

KM916-42181

02

Hook

弹性锁钩

1

2

KM916-42171

01

Support

支架

1

3

KM916-42191

01

Knob,lever

手柄

1

4

KM916-42201

01

pin

销轴

1

5

KM916-42311

01

Spring

弹簧

1

H1H26-50001 01 Floor board

H1H26-50001 01 底板装配图
