YTO X704 Tractor Parts Catalogue Optional model 23

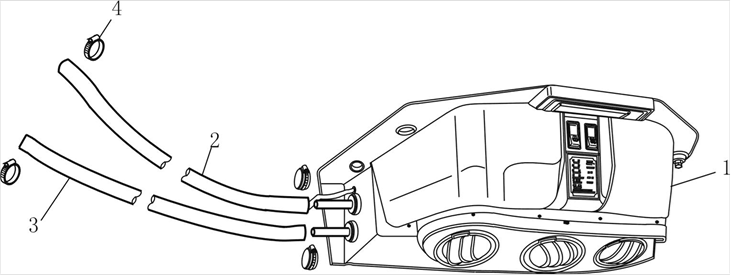

81 Heating & ventilation assembly
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Fan heater assembly (optional) |
JB606.81.001 |
1 |
||||
2 |
Water outlet pipe, fan heater |
SZ804.81.102 |
1 |
||||
3 |
Water inlet pipe, fan heater |
SZ804.81.101 |
1 |
||||
4 |
Clamp D=16~25 |
QC/T619 |
4 |
82 Air conditioner assembly (optional)
82 Air conditioner assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Evaporator assembly |
CSX904.81.010 |
1 |
21 |
Support plate (UPR), condenser |
LNQ904A -01a |
2 |
2 |
Support, oil pipe |
SZ804.50.216 |
1 |
22 |
Bolt M8X20 |
GB5783-2000 |
2 |
3 |
Spring washer 8 |
GB/T93-1987 |
4 |
23 |
Nut M6 |
GB6170-2000 |
3 |
4 |
Plain washer 8 |
GB97.1-2000 |
4 |
24 |
Spring washer 6 |
GB/T93-1987 |
3 |
5 |
Bolt M8X30 |
GB5783-2000 |
4 |
25 |
Plain washer 6 |
GB97.1-2000 |
3 |
6 |
Water overflow pipe |
JB804.81.203 |
1 |
26 |
Bolt M6X 45 |
GB5783-2000 |
2 |
7 |
Water return pipe, heater |
SZ804.81.102-1 |
1 |
27 |
Bracket, receiver |
TG1204.81.11 |
4 |
8 |
Water inlet pipe, fan heater |
SZ804.81.101-1 |
1 |
28 |
High-pressure pipe, condenser-receiver drier |
TG1204.81-02a |
1 |
9 |
Nut M10 |
GB6170-2000 |
2 |
29 |
Receiver drier |
FT800.45.082a |
1 |
10 |
Spring washer 10 |
GB/T93-1987 |
3 |
30 |
Line, evaporator-receiver |
X904.81.013 |
1 |
11 |
Plain washer 10 |
GB/T97.1-2002 |
3 |
31 |
High-pressure pipe, compressor-condenser |
X904.81-014 |
1 |
12 |
Bracket, compressor |
800.45.088-01 |
1 |
32 |
Low-pressure pipe, evaporator-compressor |
X904.81.015 |
1 |
13 |
Shaft lever (RR) M10X1 |
JB804.81.100 |
1 |
33 |
Global switch |
X904.81.016 |
1 |
14 |
Compressor assembly |
JB800.45.088a |
1 |
34 |
Bolt M6X 35 |
GB5783-2000 |
1 |
15 |
Bolt M10X35 |
GB5783-2000 |
1 |
35 |
Belt, compressor 17-650 |
GB13487-2002 |
|
16 |
Tightening bent plate, compressor |
JB800.45.088-03 |
1 |
36 |
Pipe clamp |
PP9206001 |
|
17 |
Tightner, compressor |
FT800.45.088-02 |
1 |
||||
19 |
Bolt M10X25 |
GB5783-2000 |
1 |
||||
20 |
Condenser assembly |
TG1204.81.2a |
2 |
40 Steering system oil pipes (optional air conditioner)
40 Steering system oil pipes (optional air conditioner)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
1 |
Hose assembly, cylinder |
SZ804.40.051A |
1 |
18 |
Steering oil pipe assembly (LH) |
SZ904.40.012-1 |
1 |
Hose assembly, cylinder |
SZ804.40.052A |
1 |
19 |
Steering fluid reservoir assembly |
5126670SZ/1.63.804A |
1 |
|
2 |
Washer 8-Zn.D |
GB/T7244-1987 |
7 |
19.1 |
Fluid reservoir assembly, hydraulic steering gear |
5126668/1.63.804 |
1 |
3 |
Hollow bolt |
885105699/1.63 |
1 |
19.2 |
Oil tank cap with gasket |
5111699/1.63.841B |
1 |
4 |
Sealing ring 18×24×1.5 |
10259960/14607 |
2 |
19.3 |
Case, filter |
4997991/1.63.857 |
1 |
5 |
Bolt M8×28 |
16043724/10312 |
2 |
19.4 |
Spring |
5103058/1.63.807 |
1 |
6 |
O-ring20.29×2.62 |
14618/14457581 |
1 |
19.5 |
Filter element assembly |
4997992/1.63.858 |
1 |
7 |
Steering pump |
HLCB-D16/12 |
1 |
20 |
Hose16×950 |
SZ804.40.509 |
1 |
8 |
Bolt M8×35-Zn.D |
GB/T5782-2000 |
4 |
21 |
Pad, hose, steering gear |
SZ804.40.501 |
1 |
9 |
Washer 8-Zn.D |
GB/T93-1987 |
4 |
22 |
Flange, hose, steering gear |
5126690/1.63.875 |
1 |
10 |
Bolt M10×20-Zn.D |
GB 21-76 |
2 |
23 |
Bolt M8×25-Zn.D |
GB/T5783-2000 |
3 |
11 |
Washer 10-Zn.D |
GB/T93-1987 |
2 |
24 |
Steering gear oil return pipe assembly |
885126687/1.63.824 |
1 |
12 |
Bracket, steering fluid reservoir |
SZ904.40.104 |
1 |
25 |
Sealing ring 21.2×26×2 |
44019496/1.63.898 |
10 |
13 |
Hoop (Φ22~Φ32mm) |
JB8870 |
4 |
26 |
Connection, hose, steering gear |
885126686/1.63.877 |
2 |
14 |
Hose 16×300 |
SZ904.40.106 |
1 |
27 |
Connection, hose, steering gear |
885126685/1.63.878 |
2 |
15 |
Oil pump inlet pipe assembly |
SZ904.40.025-1 |
1 |
28 |
Hose assembly, steering gear |
SZ804.40.053 |
3 |
16 |
Steering gear oil inlet pipe assembly |
SZ904.40.019 |
1 |
29 |
Hollow bolt |
5112983/1.63.881 |
1 |
17 |
Steering oil pipe assembly (RH) |
SZ904.40.013-1 |
1 |
40 Steering system oil pipes (optional air conditioner)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
30 |
Pipe clamp |
880006302/1.63 |
1 |
||||
31 |
Support, steering oil pipe |
SZ904.40.105 |
1 |
||||
32 |
Bolt M6×20-Zn.D |
GB/T818-2000 |
2 |
||||
33 |
Washer 6-Zn.D |
GB/T93-1987 |
2 |
||||
34 |
Bolt M16×80-Zn.D |
GB/T5782-2000 |
1 |
||||
35 |
Washer 16-Zn.D |
GB/T93-1987 |
1 |
||||
36 |
Support, oil pipe |
5149037/1.63.583 |
1 |
||||
37 |
Oil pipe clamp |
5137954/1.63.832 |
1 |
||||
38 |
Washer 6-Zn.D |
GB/T7244-1987 |
2 |
||||
39 |
Bolt M6×14 |
10902124/10312 |
2 |
||||
40 |
Oil pipe clamp |
4999554/1.63.853 |
1 |
||||
41 |
Support, oil pipe |
5149036/1.63.896 |
1 |
1 2
