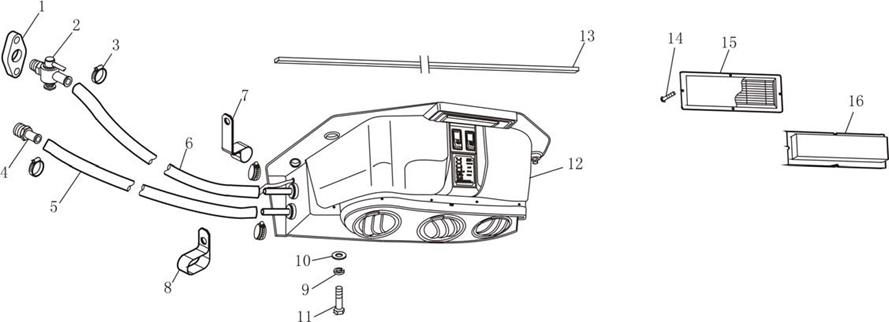

YTO X100 X125 Tractor Parts Catalogue 17
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
1 |
Clamp D=16~25 |
JK0 |
4 |
||||
2 |
Water outlet pipe, fan heater |
SZ1204.81.102 |
1 |
||||
3 |
Water inlet pipe, fan heater |
SZ1204.81.101 |
1 |
||||
4 |
Washer 8 |
GB 862.1-87 |
4 |
||||
5 |
Washer 8 |
GB 97.1-85 |
4 |
||||
6 |
Bolt M8×40 |
16136124/10372 |
4 |
||||
7 |
Fan heater assembly |
DFN-4601A |
1 |
||||
8 |
Screw M4×14 |
GB 818-85 |
4 |
||||
9 |
Cover plate, filter element |
SZ804.45A.703 |
1 |
||||
10 |
Air cleaner element |
SZ804.45A.702 |
1 |
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |
1 |
Evaporator assembly |
ZFQX904.804-00 |
1 |
22 |
Bolt M6×40 |
GB5783-86 |
1 |
2 |
Stud M8×40 |
GB899-88 |
1 |
23 |
Bolt M6×50 |
GB5782-86 |
2 |
3 |
Plain washer 8 |
GB96-85 |
4 |
24 |
High-pressure pipe, |
TG1204.81-02 |
1 |
4 |
Spring washer 8 |
GB93-87 |
4 |
condenser-receiver drier |
|||
5 |
Nut M8 |
GB6172-86 |
4 |
25 |
Receiver drier |
FT800.45.082 |
1 |
6 |
Water overflow pipe |
2 |
26 |
Bracket, receiver drier |
TG1204.81.3a |
1 |
|
7 |
Water return pipe |
1254C.81.102 |
1 |
27 |
Welded bracket (LWR) |
1254C.81.015 |
1 |
8 |
Water feed pipe |
1254C.81.103 |
1 |
28 |
Welded bracket (UPR) |
1254C.81.014 |
1 |
9 |
Nut M10 |
GB6172-86 |
6 |
29 |
Global switch |
FT800.45.084 |
1 |
10 |
Spring washer 10 |
GB93-87 |
6 |
30 |
Belt, compressor |
17-440 |
1 |
11 12 13 14 15 |
Plain washer 10 Shaft lever (RR) Compressor assembly Condenser Water feed adapter |
GB97.1-85 26 FT800.45.088 TG1204.81.2 50F-001 |
6 1 1 1 1 |
31
32
33 |
Low-pressure line, evaporator-compressor High-pressure line, evaporator-receiver drier High-pressure line, compressor-condenser |
1254C.81.013
1254C.81.016
1254C.81.011 |
1
1
1 |
16 |
Tightner, compressor |
FT800.45.088-02 |
1 |
34 |
Guard, compressor |
JBX1204.82.011 |
1 |
17 |
Bolt M10×30 |
GB5783-86 |
1 |
35 |
Bracket, compressor |
1254C.81.017 |
1 |
18 |
Bolt M6×15 |
GB5783-86 |
4 |
36 |
Water inlet valve, heater |
NPT3/8″ |
1 |
19 |
Spring washer 6 |
GB93-87 |
7 |
37 |
Joint, water return pipe, heater |
1254.81.101 |
1 |
20 |
Plain washer 6 |
GB97.1-85 |
7 |
38 |
Nut M10×1 |
2 |
|
21 |
Nut M6 |
GB6172-86 |
3 |
