YTO X100 X125 Tractor Parts Catalogue 04
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |

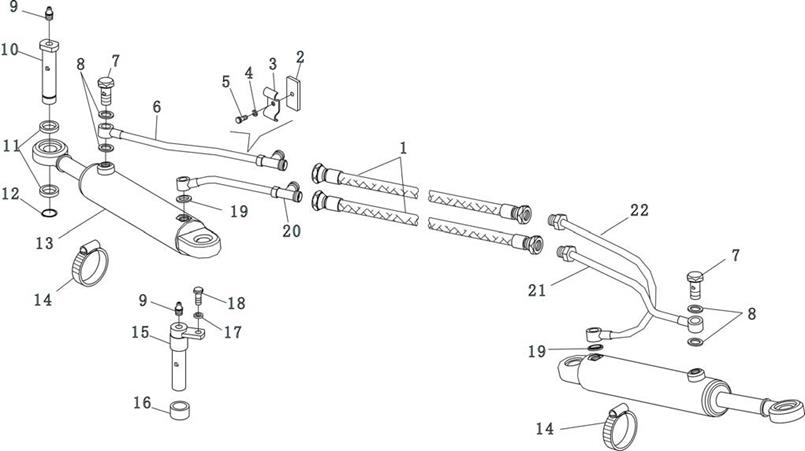

Steering cylinder |
022603040100 |
1 |
12 |
Pin, cylinder |
11066870/12245 |
2 |
|
(1603.04.01.1) |
13 |
Steering cylinder |
5142046/22 |
2 |
|||
1 |
Hose D=8×470, cylinder |
5145419A/22 |
2 |
14 |
Hoop (D=51~70) |
JK-3 |
2 |
2 |
Support plate |
5138294/22 |
2 |
15 |
Pin assembly, cylinder |
5142048/22 |
2 |
3 |
Oil pipe clamp |
4999554/1.63.583 |
2 |
16 |
Spacer, pin, cylinder |
5142223/22 |
2 |
4 |
Washer 6 |
GB 7244-87 |
2 |
17 |
Washer 8 |
GB 7244-87 |
2 |
5 |
Bolt M6×16 |
GB 5783-86 |
2 |
18 |
Bolt M8×16 |
GB 5783-86 |
2 |
6 |
Steering oil pipe assembly (RH), cylinder (RH) |
5139049/22 |
1 |
19 |
Rectangular cross-section seal washer 14.86×22.23×2 |
44906168/1.63.5 |
2 |
7 |
Hollow bolt |
10184314/14256 |
4 |
Steering oil pipe assembly |
5139048/22 |
1 |
|
8 |
Rectangular gasket |
10280060/14607 |
8 |
20 |
(LH), cylinder (RH) |
||
9 10 11 |
14×20×1.5 Oil cup M10×1 Pin, cylinder Washer, pin, cylinder |
GB 1152-79 498767/1.63.584 5100730/1.63.589 |
4 2 4 |
21
22 |
Steering oil pipe assembly (LH), cylinder (LH) Steering oil pipe assembly (RH), cylinder (LH) |
5139046/22
5139044/22 |
1
1 |
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |

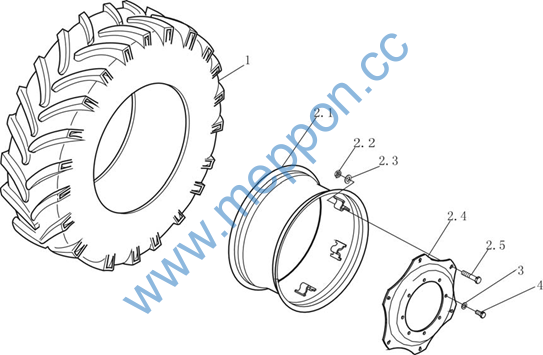

1 |
Inner tube & outer cover, 14.9-24 |
GB 2979-91① |
2 |
2.3 2.4 |
Washer, spoke Spoke, traction wheel (FR) |
4986961/1.49.440 5143973/1.49.407A① |
12 2 |
2 |
Inner tube & outer cover, 14.9-26 Hub unit, traction wheel |
GB 2979-91②
5133264/1.49.410B① 1204.32.010② |
2
2 2 |
2.5 3 4 |
Bolt, rim & spoke Washer, Spoke Bolt M16×1.5×45 |
1204.32.101② 5112385/1.49.541 4986961/1.49.440 14258304/10357/04 |
2 12 16 16 |
2.1 |
Welded hub unit, traction |
||||||
wheel |
|||||||
(W12-24) |
5133266/1.49.405B① |
2 |
|||||
(W13-26) |
1204.32.102② |
2 |
|||||
2.2 |
Nut M16×1.5-Zn.D |
GB 6171-86 |
12 |
Notes: ① For 1004C. ② For 1254C.
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |

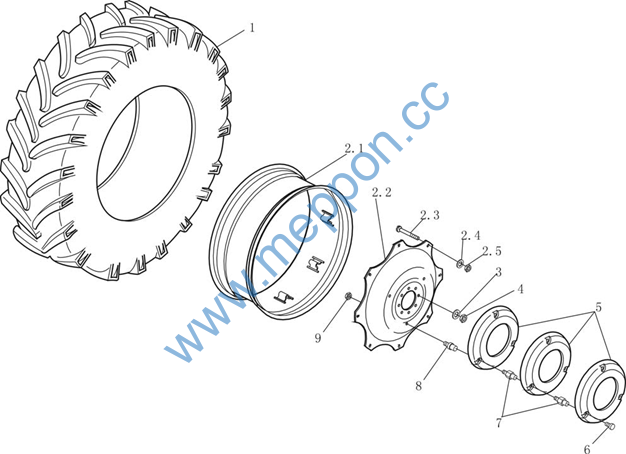

1 |
Inner tube & outer cover,16.9-38 |
GB 2979-91① |
2 |
2.4 2.5 |
Washer, spoke Nut M16×1.5-Zn.D |
4986961/1.49.440 GB 6171-86 |
16 16 |
Inner tube & outer cover,18.4-38 |
GB 2979-91② |
2 |
3 4 |
Washer Nut M18×1.5-Zn.D |
44011091/1.49.540 GB 6171-86 |
16 16 |
|
2 |
Hub unit, traction wheel |
5 |
Counterweight disc, traction wheel |
5113181SZ/1.49.604 |
6 |
||
W15L×38 |
885132490/1.49.502 |
2 |
6 |
Bolt M16×1.5×30-Zn.D |
GB 5785-86 |
6 |
|
7 |
Socket bolt, |
44018047/1.49.726 |
12 |
||||
2.1 |
Welded rim unit |
counterweight disc |
|||||
W15L×38 |
885132488/1.49.505 |
2 |
8 9 |
Socket bolt, counterweight disc |
44018046/1.49.723 GB 6171-86 |
6 6 |
|
2.2 |
Spoke, traction wheel |
885125703/1.49.507 |
16 |
Nut M16×1.5-Zn.D |
|||
2.3 |
Bolt, rim & spoke |
5131725/1.49.514A |
16 |
Notes: ① For 1004C. ② For 1254C
No. |
Part |
Drawing No. |
Qty. |
No. |
Part |
Drawing No. |
Qty. |

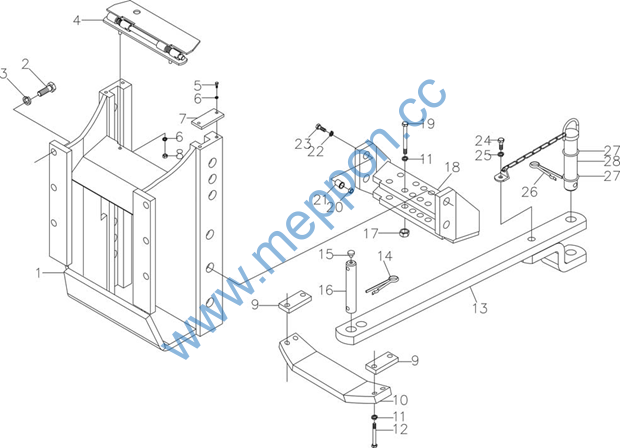

1 |
Welded drawbar frame unit |
1254C.35A.013 |
1 |
22 |
Washer 24 |
GB/T93-1987 |
4 |
(UPR) |
23 |
Bolt M24×90 |
GB/T5782-2000 |
4 |
|||
2 |
Bolt M18×1.5×60 |
GB/T5786-2000 |
6 |
24 |
Bolt M12×25 |
GB/T5783-2000 |
1 |
3 |
Washer 18 |
GB/T93-1987 |
14 |
25 |
Washer 12 |
GB/T93-1987 |
4 |
4 |
Welded baffle unit |
804C.35.015 |
1 |
26 |
Cotter pin |
567406/1.82.945 |
1 |
5 |
Bolt M6×15-Zn.D |
GB/T5781-2000 |
2 |
27 |
O-ring 23.6×3.55G |
GB3452.1-1995 |
2 |
6 |
Washer 6-Zn.D |
GB/T93-1987 |
4 |
28 |
Welded pin unit, drawbar |
1254C.35A.011 |
1 |
7 |
Block cover |
804C.35.126 |
1 |
||||
8 |
Nut M6-Zn.D |
GB/T6170-2000 |
2 |
||||
9 |
Link block |
1254C.35A.102 |
2 |
||||
10 |
Connecting support (FR), |
5132036/1.89.022 |
1 |
||||
drawbar |
|||||||
11 |
Washer 18 |
GB/T93-1987 |
14 |
||||
12 |
Bolt M18×1.5×145 |
GB/T5785-2000 |
4 |
||||
13 |
Welded drawbar unit |
1254C.35A.014 |
1 |
||||
14 |
Locking pin, link (LWR) |
88578668/1.89.961 |
1 |
||||
15 |
Rubber block |
1254C.35A.110 |
1 |
||||
16 |
Connecting pin |
1254C.35A.111 |
1 |
||||
17 |
Nut M18×1.5 |
GB/T6171-2000 |
4 |
||||
18 |
Welded drawbar frame unit |
1254C.35A.012 |
1 |
||||
(LWR) |
|||||||
19 |
Bolt M18×1.5×110 |
GB/T5785-2000 |
4 |
||||
20 |
Nut 24 |
GB/T6170-2000 |
4 |
||||
21 |
Spacer |
1254C.35A.101A |
2 |
